8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones - 503

BroanBroan brand logo

8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones

Model: 503

8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 5038-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 5038-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 5038-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 5038-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503
8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503
8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503
8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503
8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503
8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503

Color : White

8-Inch, 160 CFM Side Discharge Ventilation Fan with Square Plastic Grille, 5.0 Sones 503
White

Key Features

  • 160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms

  • 5.0 Audible Sones for privacy while using in any room

  • Built-in damper minimizes backdrafts for energy efficiency

  • Paintable white grilles blends in with any décor

  • Galvanized steel housing for superior durability

  • Fits 3-1/4” x 10” duct

Description

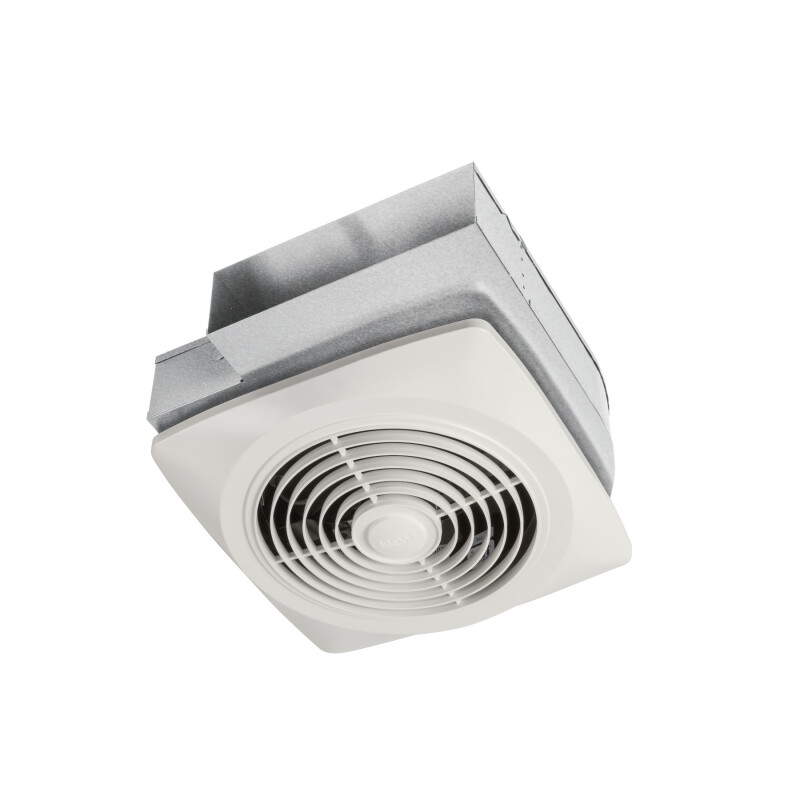

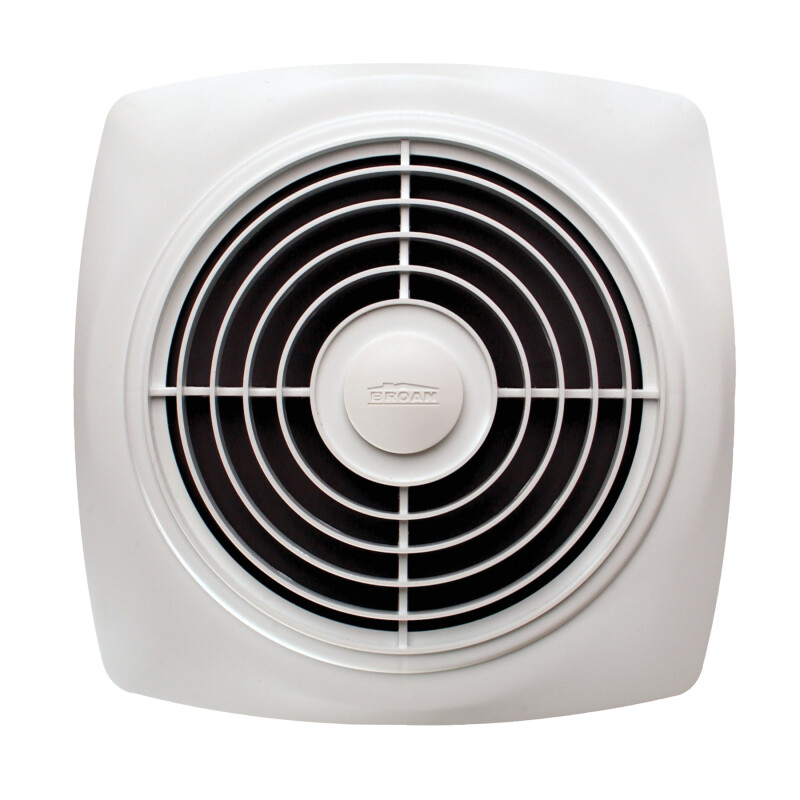

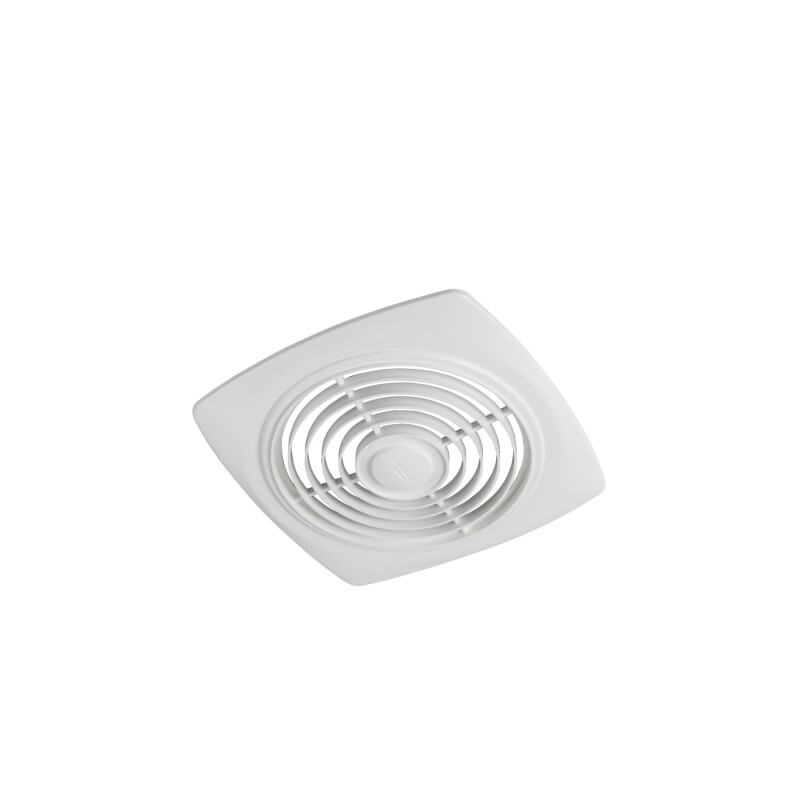

The Broan-NuTone® 160 CFM Side-Discharge Exhaust Fan can be mounted on either the ceiling or the wall to eliminate humidity and smoke from recreation rooms and workshops or to help remove cooking odors from kitchens. The fan is 8 in. in diameter and features a low-profile white grille that can be painted to match your decor. A built-in damper helps prevent back drafts.
Read More

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications

Features

160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms

5.0 Audible Sones for privacy while using in any room

Built-in damper minimizes backdrafts for energy efficiency

Paintable white grilles blends in with any décor

Galvanized steel housing for superior durability

Fits 3-1/4” x 10” duct

Specifications

Product Details

CFM160
ENERGY STAR® certifiedNo
Grille Length11.5
Grille Width11.5

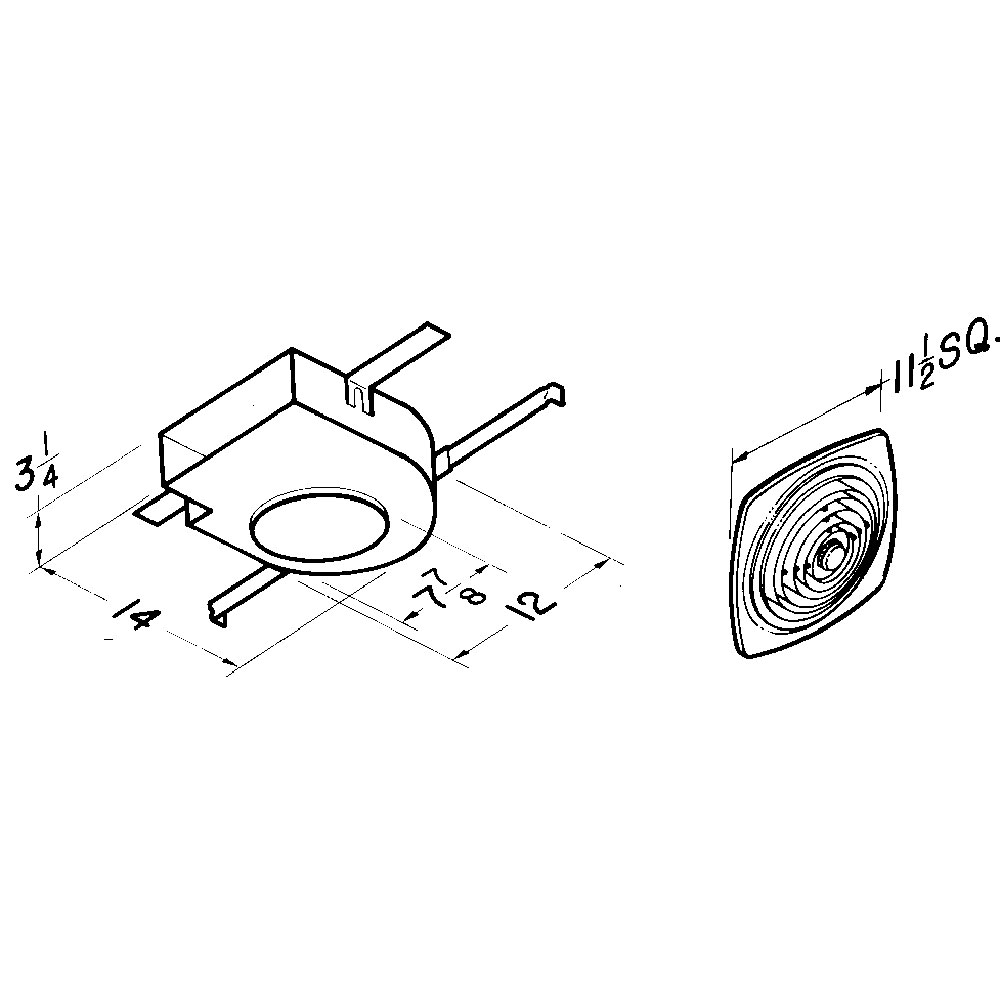

Housing Dimensions14" x 12" 3-1/4"
Sound Level (Sones)5
UL ListedYes
Grille FinishWhite
Humidity SensingNo
Motion SensingNo
Motor Engineered For Continuous OperationNo
Night LightNo
Radiation Damper AvailableNo
Room Side InstallationNo
UL Listed for use over bathtubs or showers when connected to a GFCI circuitNo
Heater Wattage0
Rated Amps1.5
Voltage120
Can Be Used To Comply With Title 24No
Minimum Construction Space Required2" x 4"
Manufacturer Warranty1 Year
High Efficiency LuminaireNo

Dimensions & Weight

Width11.5 in.
Height14 in.
Length-
Weight-
Housing Dimensions14" x 12" 3-1/4"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width16.5 in.
Shipping Height19 in.
Shipping Length-
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
