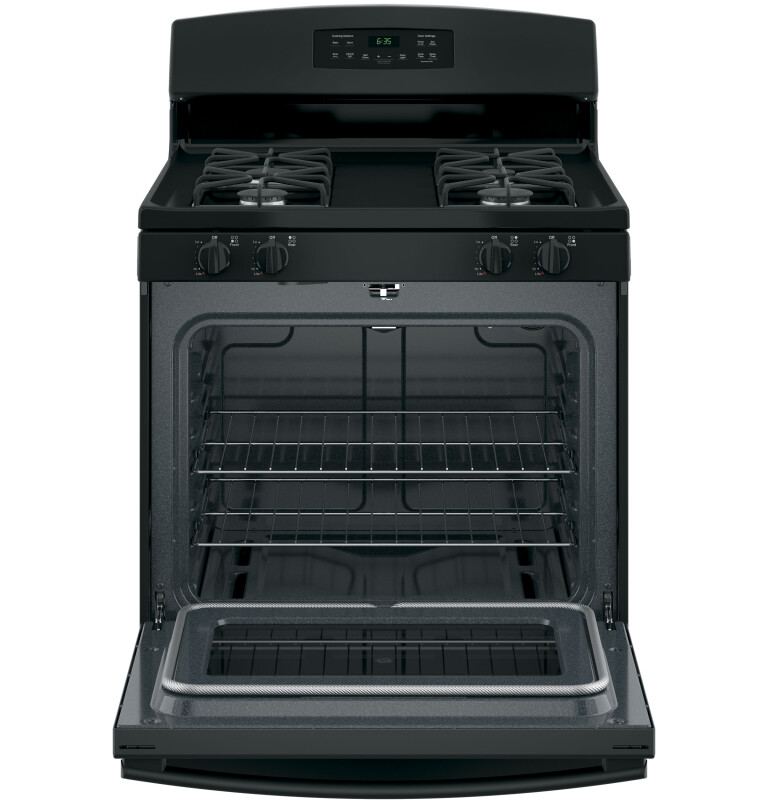

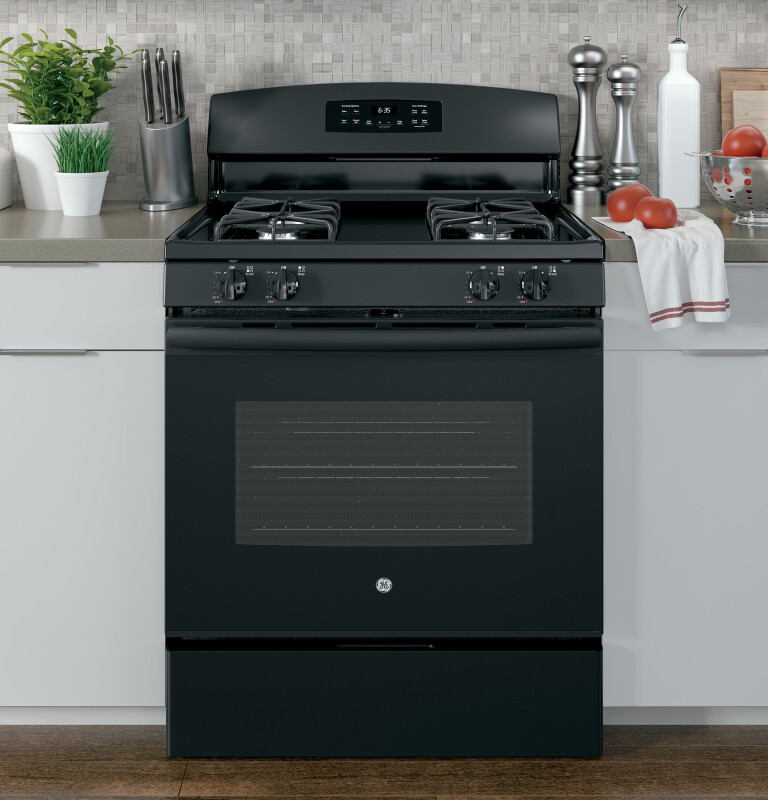

30" Free-Standing Gas Range - JGB635DEKBB
Color : Black
Key Features
13,000 BTU burner
Black matte steel grates
Precise Simmer burner
Self-clean oven
5.0 cu. ft. oven capacity
Sealed cooktop burners
In-oven broil
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features

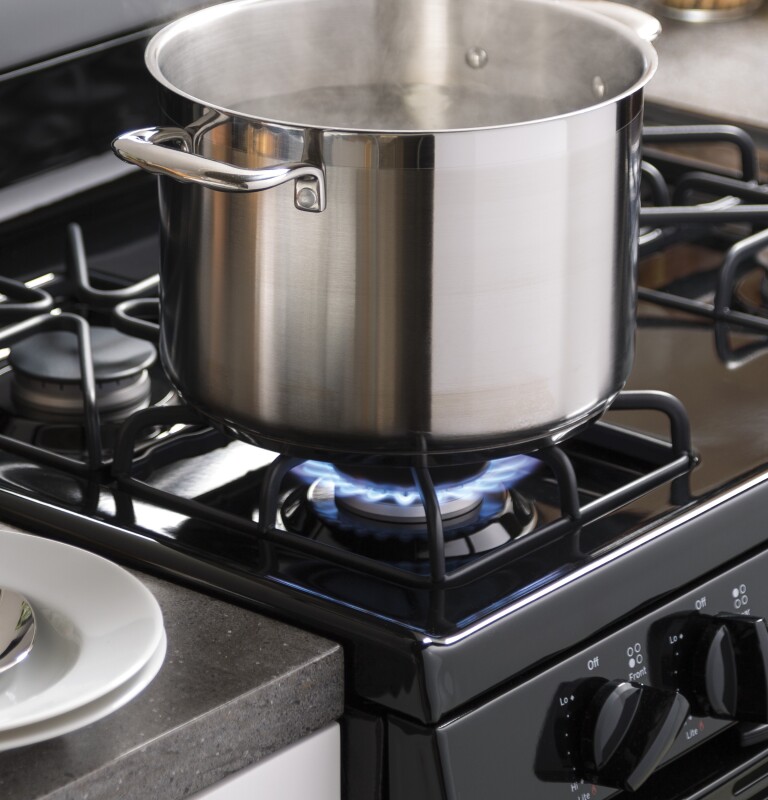

13,000 BTU burner
Delivers a wide range of heat output ideal for most cooking requirements

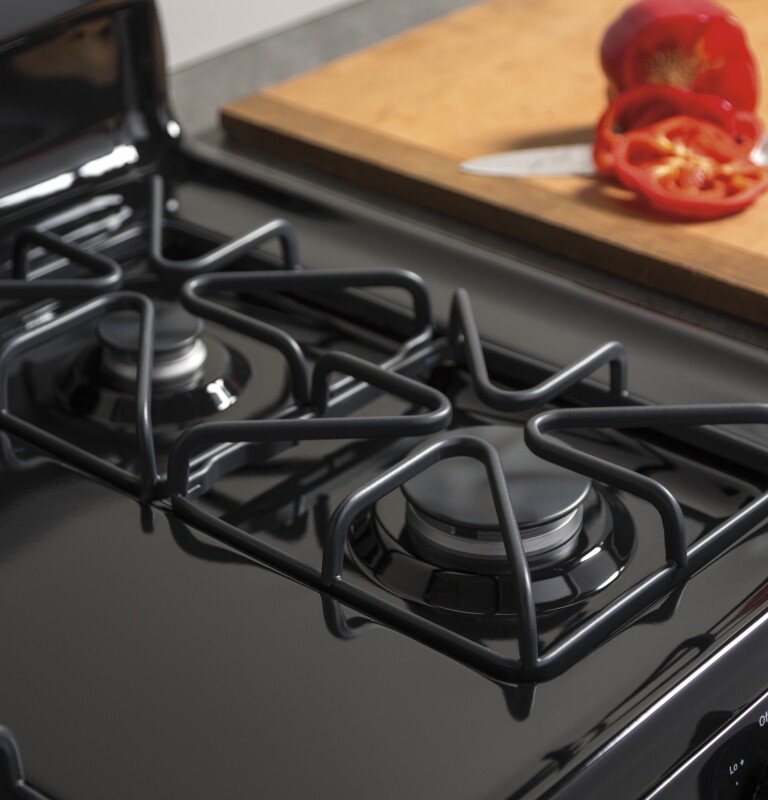

Black matte steel grates
Enjoy a high-end look with a durable, matte coating

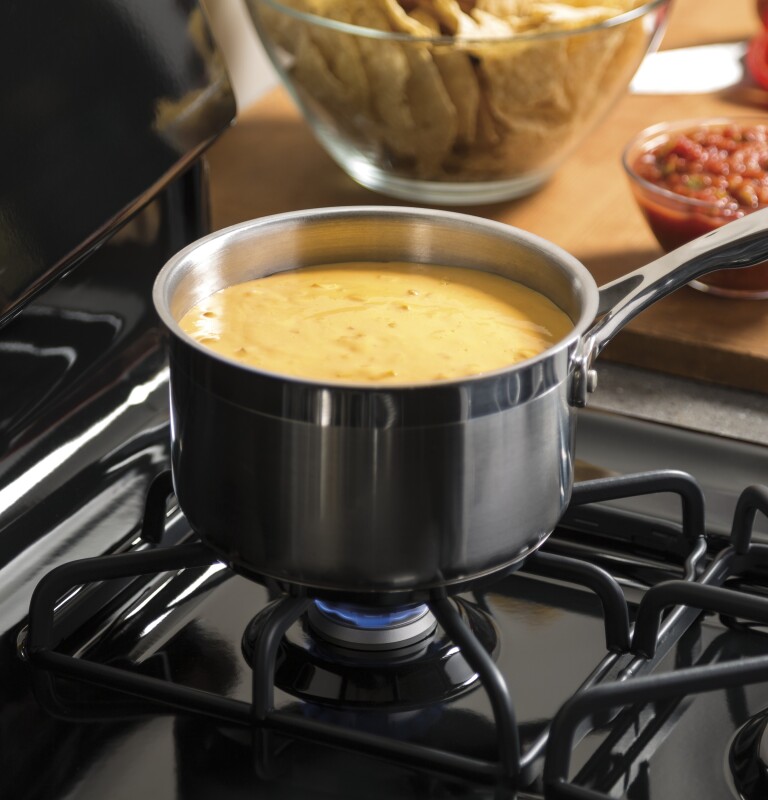

Precise Simmer burner
Delicate foods don’t burn with low, even heat

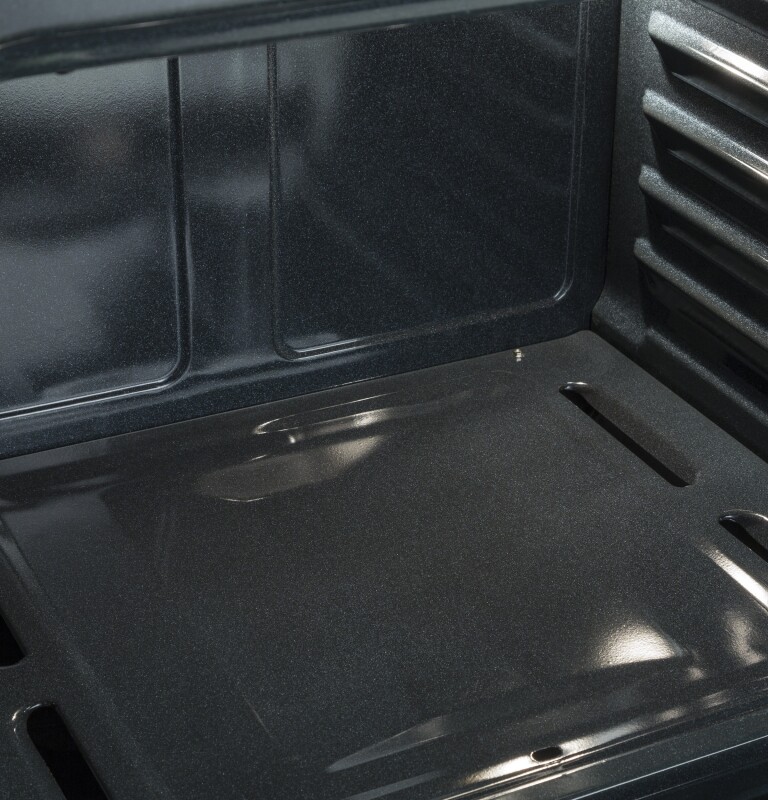

Self-clean oven
Cleans the oven cavity without the need for scrubbing

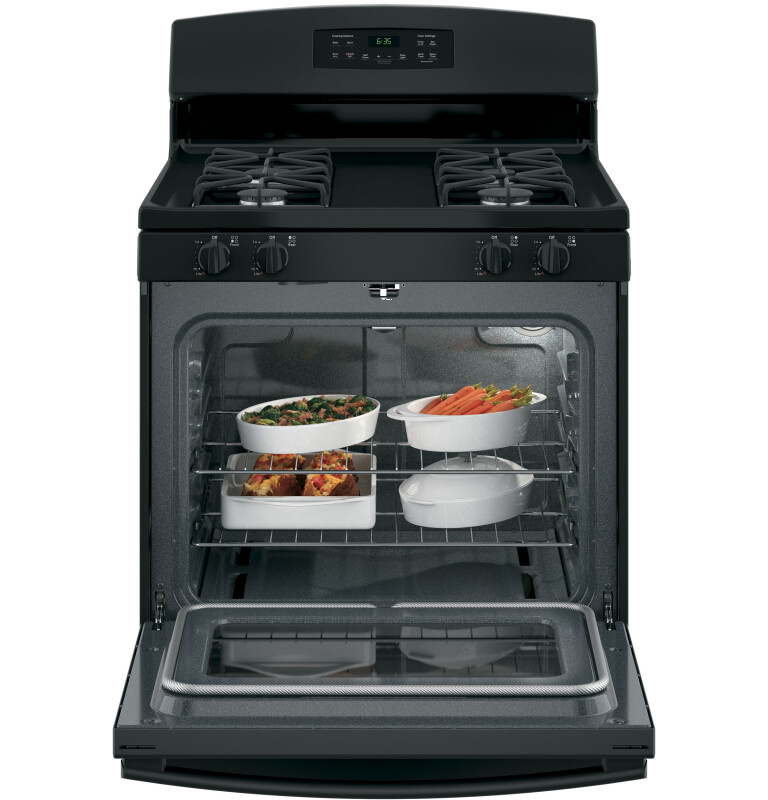

5.0 cu. ft. oven capacity
Cook more dishes at once

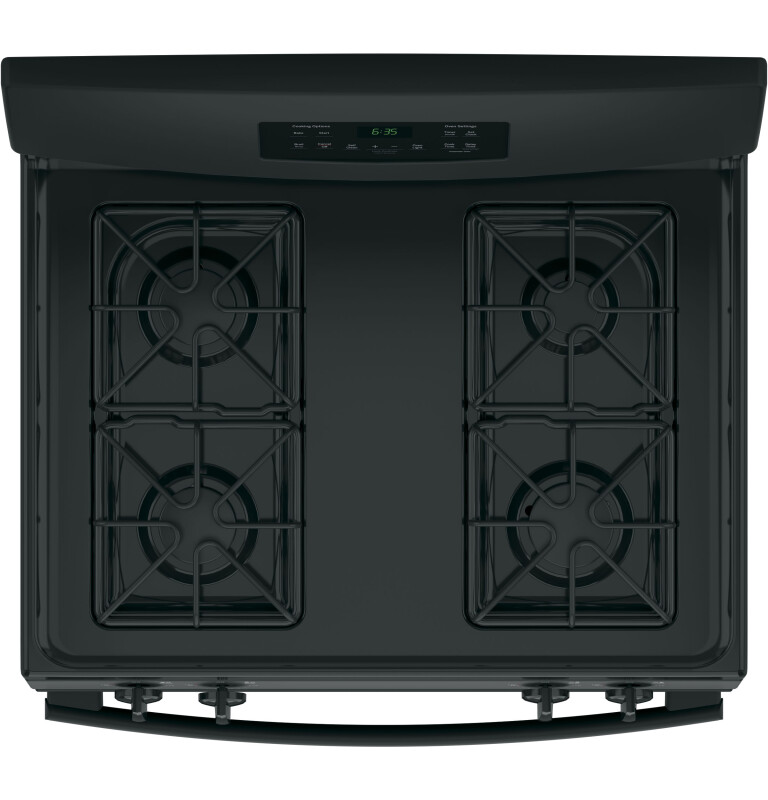

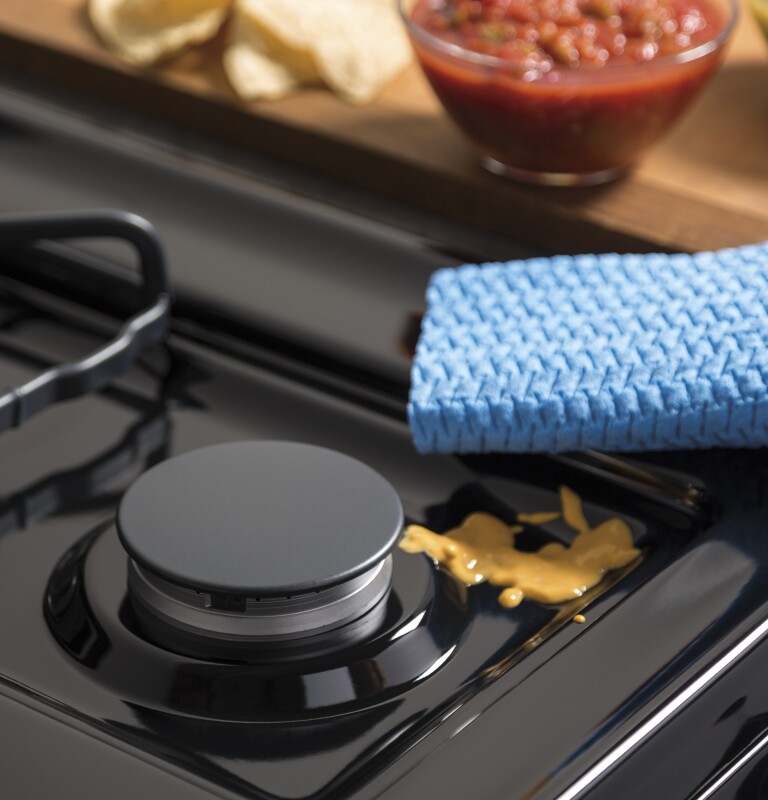

Sealed cooktop burners
Contains spills and make cleaning quick and easy
In-oven broil
Healthy meals are hassle-free with in-oven broiling
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

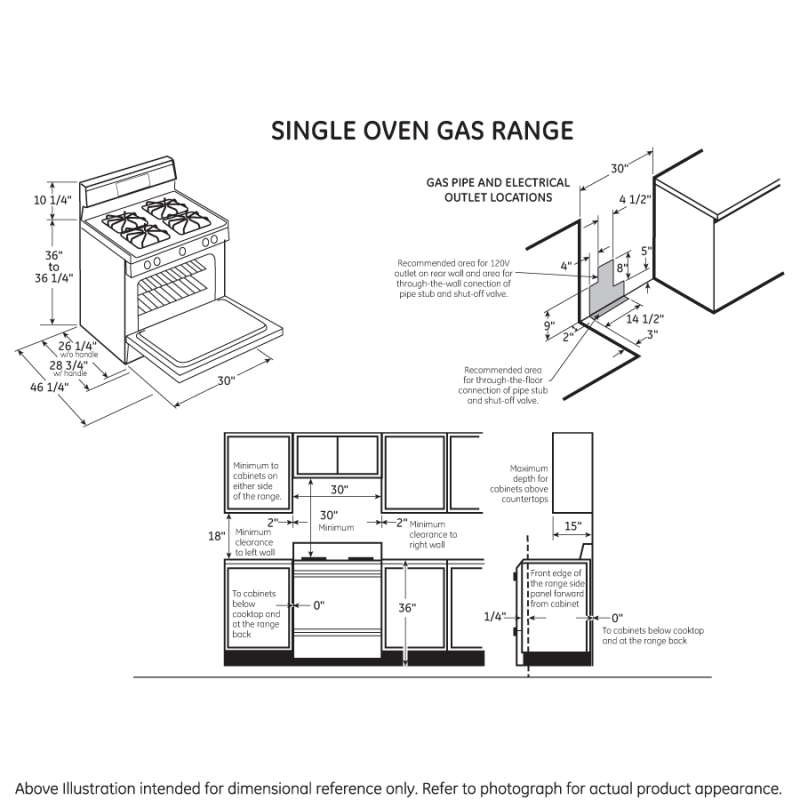

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 46.25 in |
| Overall Depth | 28.75 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 250 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Height to Cooking Surface (in.) | 36 - 36.25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Gloss Black |
| Color Appearance | Black |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Steel |
| Fuel Type | Natural Gas |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Control Type | Electronic Touch |
| Burner - Left Front | 9,500 BTU |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | No |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 13,000 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Delay Bake Option |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Surface | Black |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Audible Preheat Signal |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| LP Conversion Kit | Included |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
