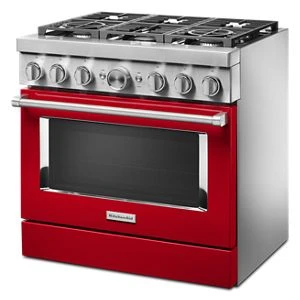

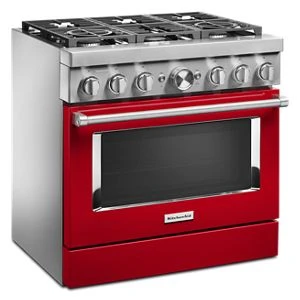

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners - KFDC506JPA
KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners
Model: KFDC506JPA
360 View
KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners
Model: KFDC506JPA
Color : Passion Red
Key Features
Dual Fuel Range
Smart Appliance
Even-Heat™ True Convection
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
Description
Documents
Available from Southern Appliance, serving customers throughout Georgia.
Features
Dual Fuel Range
satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.
Smart Appliance
lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.
Even-Heat™ True Convection
features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.
Specifications
Details
| Oven Automatic Shut-Off | Yes |
| Cooktop Configuration | All Burners |
| Fuel Type | Dual Fuel |
| LP Convertible | Yes - Kit Included |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | Yes |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
| Natural Gas Convertible | Yes |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Convect Modes, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Keep Warm Setting, Proofing, Sabbath Mode, Temperature Probe |
Cooktop Details
| Auto Re-ignition | Yes |
| Cooktop Control Knob Color | Stainless Steel |
| Cooktop Control Knob Type | Metal |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Flame-Sensing™ Re-ignition |
Certifications
| ADA Compliant | No |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
Dimensions & Weight
| Width | 35.88 in. |
| Height | 36 in. |
| Length | 24 in. |
| Weight | 444 lbs. |
| Carton Depth | 35 1/2 |
| Carton Height | 47 5/8 |
| Carton Width | 41 13/16 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 36 |
| Cutout Width (in) | 36 |
| Depth Closed Excluding Handles | 27 3/4 |
| Depth Closed Including Handles | 30 1/4 |
| Depth With Door Open 90 Degree | 46 1/2 |
| Gross Weight | 444 |
| Net Weight | 389.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 36.0000 |
| Cutout Width(IN,inches) | 36.0000 |
| Depth Closed Excluding Handles(IN,inches) | 27.7500 |
| Depth Closed Including Handles(IN,inches) | 30.2500 |
| Depth With Door Open 90 Degree(IN,inches) | 46.5000 |
| Maximum Height(IN,inches) | 37.5000 |
| Minimum Height(IN,inches) | 36.0000 |
| Net Weight(LB,pounds) | 389 |
| Carton Depth(IN,inches) | 35.5000 |
| Carton Height(IN,inches) | 47.6250 |
| Carton Width(IN,inches) | 41.8125 |
| Cutout Height Min(IN,inches) | 36.0000 |
| Gross Weight(LB,pounds) | 444 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.88 in. |
| Shipping Height | 41 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 484 lbs. |
| Total of Shipping Weight | 484 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.94 ft³ |
| Dimensional Weight | 222.99 lbs. |
| Total of Cubes | 17.94 ft³ |
| Total of Dimensional Weight | 222.99 lbs. |
Element/Burner Details
| Center Front Element-Burner Type | Sealed Burner |
| Center Rear Element-Burner Type | Sealed Burner |
| Cooktop Element Style | Sealed Burners |
| Left Front Element-Burner Type | Dual-Stacked Burner |
| Left Rear Element-Burner Power | 15000 BTU/11000 LP |
| Left Rear Element-Burner Type | Sealed Burner |
| Number of Cooking Element-Burners | 6 |
| Right Front Element-Burner Type | Dual-Stacked Burner |
| Right Rear Element-Burner Type | Sealed Burner |
| Center Front Element-Burner Power | 15,000 BTU |
| Center Rear Element-Burner Power | 5,000 BTU |
| Left Front Element-Burner Power | 20,000 BTU/14,000 LP |
| Number of Grates | 6 |
| Right Front Element-Burner Power | 20,000 BTU/14,000 LP |
| Right Rear Element-Burner Power | 15,000 BTU/11,000 LP |
Exterior Details
| Door Type | Metal & Glass |
| Oven Control Knob Type | Metal |
| Oven Control Location | Front |
| Oven Control Type | Knobs |
| Oven Window Size | Large |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Oven Control Knob Color | Stainless Steel |
Grate Details
| Number of Grates | 6 |
| Grate Details | Dishwasher Safe, Individual, Matte Finish, Porcelain Coated Cast Grates |
Smart Compatibility
| Smart Appliance | Yes |
| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 3,000 W |
| Broiler Element Power | 5,500 W |
| Broiler Location | Top Center |
| Convection Element Type | True Bow Tie |
| Convection Functions | Bake, Broil, Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Black |
| Natural Gas Convertible | Yes |
| Number of Oven Lights | 3 |
| Number of Oven Racks | 3 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | True Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Halogen |
| Oven Rack Guide Type | Molded |
| Oven Rack Type | Gliding Roll-Out, Standard (Both) |
| Convection Element Power | 1,600 w |
Features
| Range Features | Smart Appliance |
Dimensions
| Capacity | 5.1 cu. ft. |
| Common Size | 36 in |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 36 in |
| Depth | 30-1/4 in |
| Depth Closed Excluding Handles | 27-3/4 in |
| Depth Closed Including Handles | 30-1/4 in |
| Depth With Door Open 90 Degree | 46-1/2 in |
| Gross Weight | 444 lbs |
| Height | 36 in |
| Maximum Height | 37-1/2 in |
| Minimum Height | 36 in |
| Net Weight | 389 lbs |
| Oven Interior Depth | 16-3/10 in |
| Oven Interior Height | 14-3/10 in |
| Oven Interior Width | 29-9/10 in |
| Width | 35-7/8 in |
