Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry - CDT805M5NS5

This product has been discontinued by the manufacture and is no longer available.

Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry

Model: CDT805M5NS5

Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
+5more

Product Video

Cafe Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry Platinum Glass CDT805M5NS5 Picture
5 Videos

Color : Platinum Glass

Stainless Steel Interior Dishwasher with Sanitize and Ultra Wash & Dry CDT805M5NS5
Platinum Glass

Key Features

  • Upper Rack Fold-Down Tines

  • Lower Rack Fold-Down Tines

  • Steam + Sani

  • 4 Bottle Wash Jets

  • Built-In Third Rack

  • Water Leak Sensor

  • Flush Installation

  • Extra Large Capacity

Read More

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Upper Rack Fold-Down Tines

With multi-position, fold-down tines in the upper rack, you have the loading flexibility. Adjust each tine into three different positions and configure the rack to fit any item, so you can wash less loads

Lower Rack Fold-Down Tines

Enjoy next-level this loading flexibility dishwasher thanks to multi-position, fold-down tines in the lower rack. Adjust them into three different positions and configure your rack to accommodate any item

Steam + Sani

Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

4 Bottle Wash Jets

This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

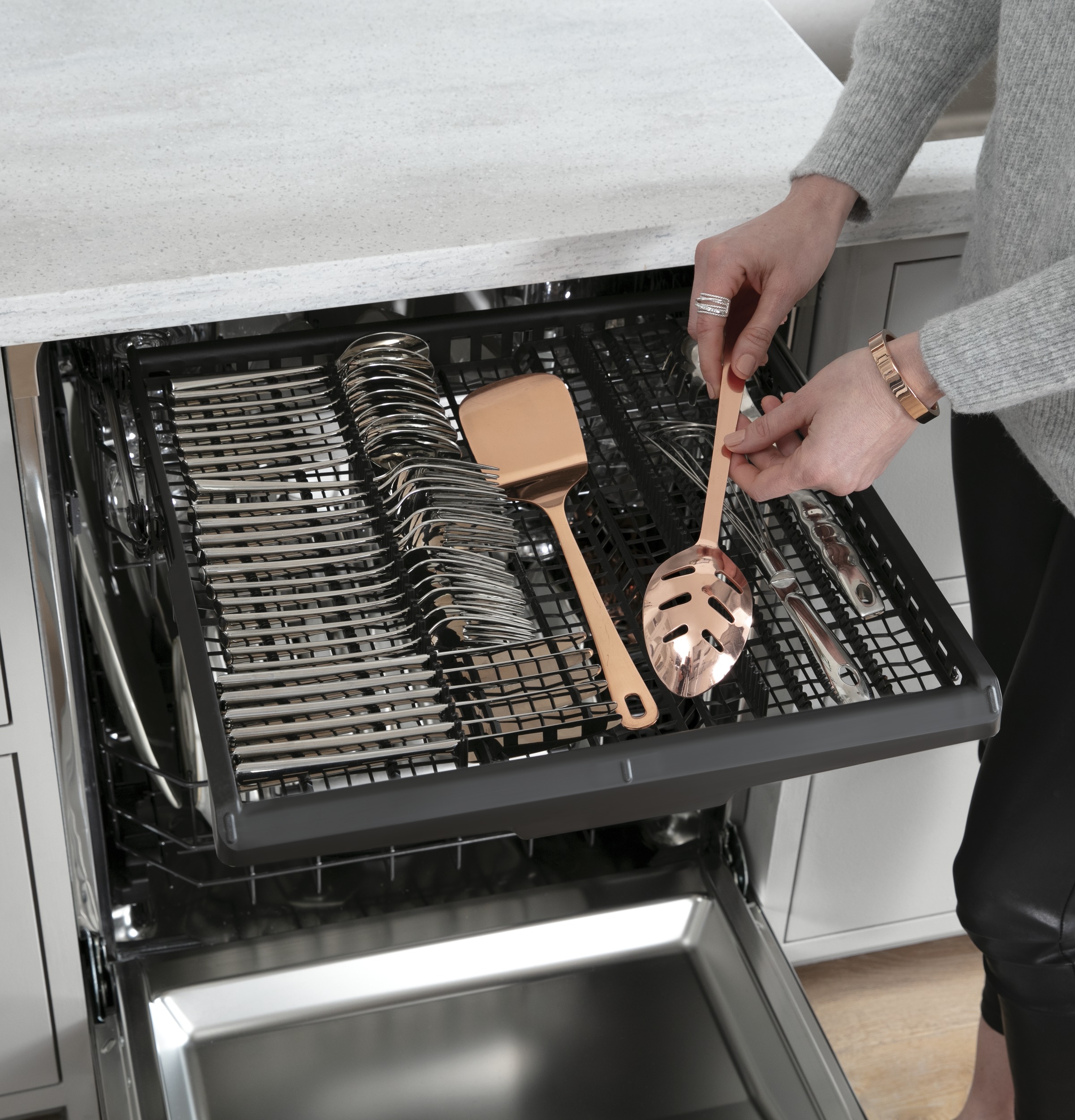

Built-In Third Rack

This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to store silverware, spatulas, lids and more

Water Leak Sensor

This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached

Flush Installation

Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside

Extra Large Capacity

This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings

45 dBA Dishwasher

This 45 decibel dishwasher offers quiet operation that will make your kitchen more peaceful, while delivering a powerful wash for clean results every time

Optional WiFi

Turn your appliance into a smart dishwasher with a WiFi adapter (sold separately). Simply attach it and start using the SmartHQ app to control and monitor your unit remotely. You can even reorder detergent

Platinum Glass

Create an easy-to-clean, contemporary look for your kitchen with the striking reflective glass finish

Ultra Wash & Dry

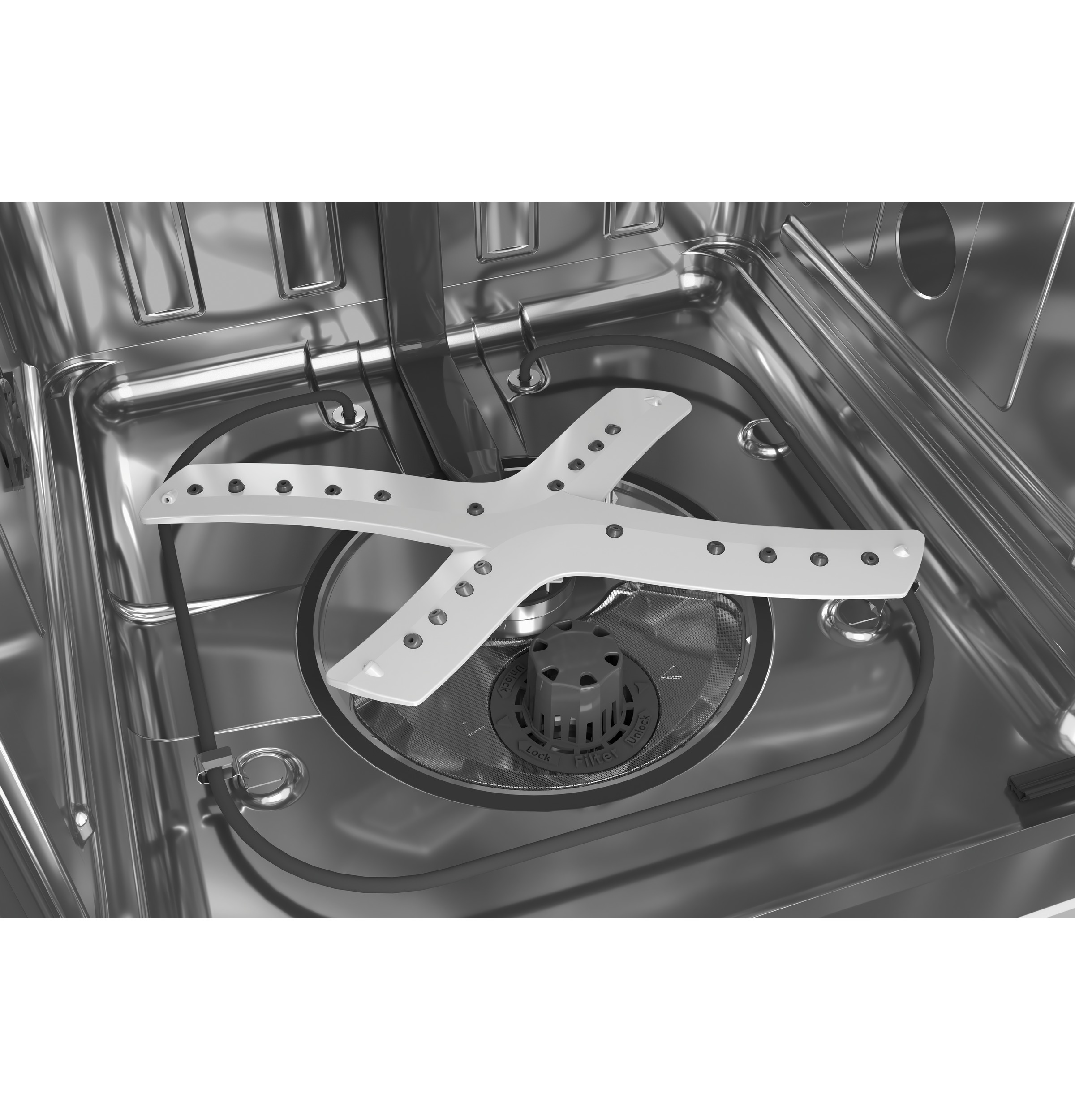

This ultra-wash and dry dishwasher ensures sparkling clean, table-ready dishes. Its comprehensive wash system has a reversing quad spray arm for full coverage. Plus a premium drying system dries every item completely

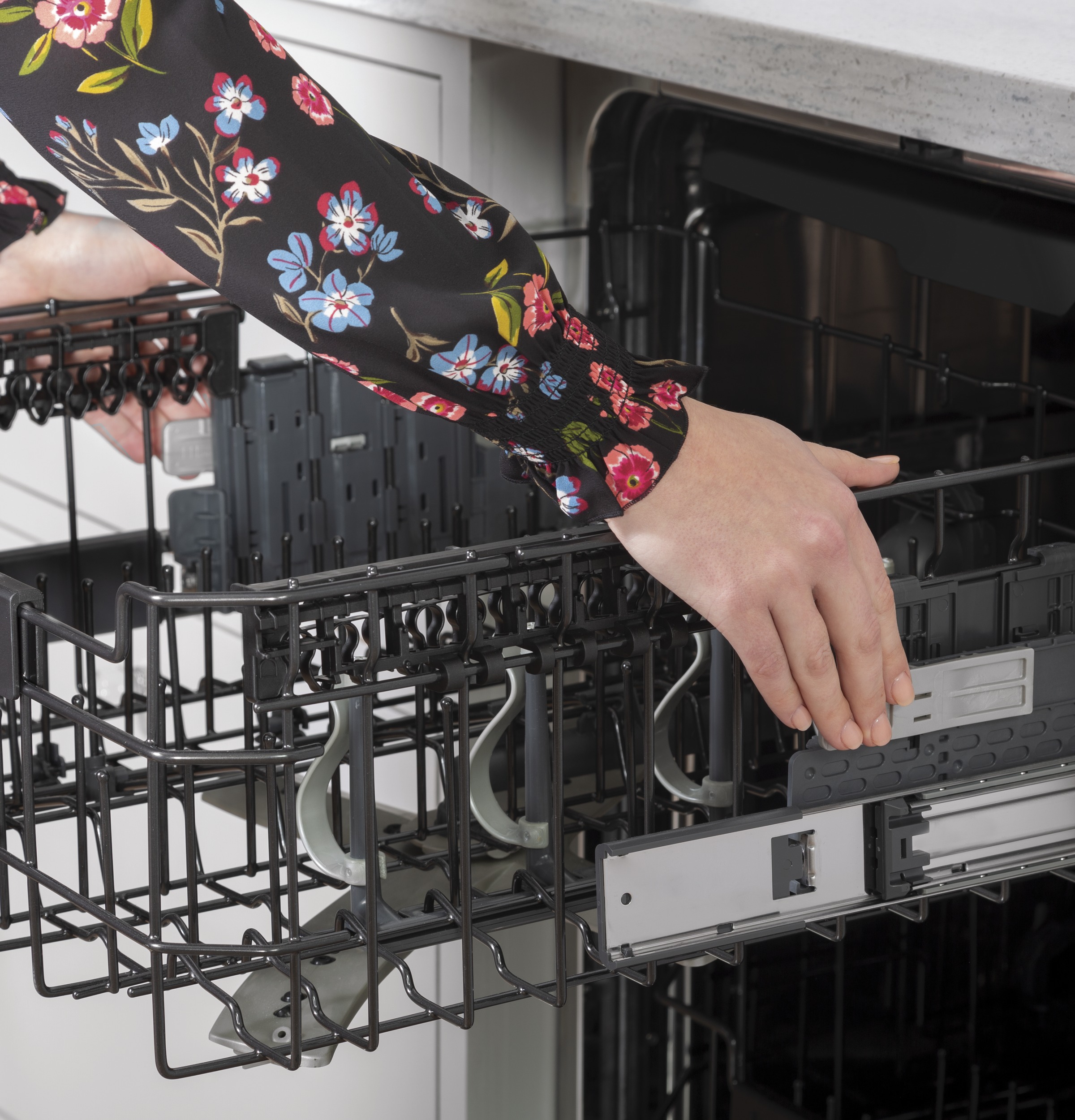

Adjustable Upper Rack

Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5

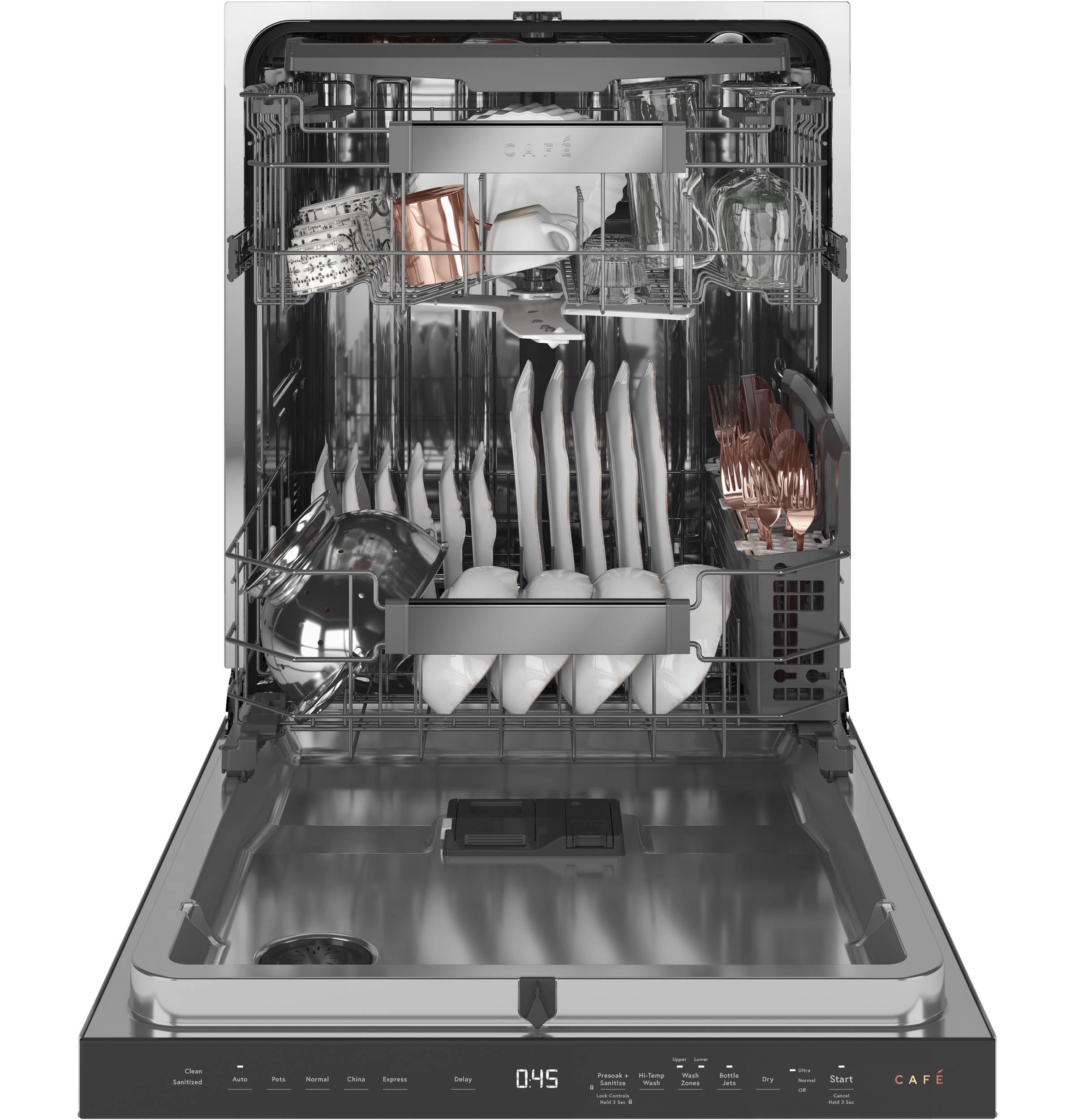

Loading Flexibility

A dishwasher with fold-down tines for uniquely shaped items and a third rack for extra capacity gives you the loading flexibility to store every dish how you want, and still get perfect results

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy

Certifications

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

MADE IN AMERICA:  70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

NSF Certified certification

NSF Certified

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Depth24 in
Overall Height34 in
Height w/ Legs Retracted - Minimum Height33.375 in
Cabinet Width24 in
Net Weight105 lb
Approximate Shipping Weight118 lb
Height w/Legs Extended - Maximum Height34.625 in
Overall Width23 3/4 in

FEATURES

Wash System800 Series
SensorClean Sensor
Lower RackBall-Tip Tines
Tub TypeTall Tub
Leveling System4 Leveling Legs
OU CertifiedNo
Additional ProtectionActive Flood Protect
Number of Place Settings16
Dishwasher OptionsWash Zone Upper Only
LatchPull with Handle
Number of Options12
StyleBuilt-In Top Control
Water Filtration System100% Filtration with Hard Food Disposer and Removable Filter
Cutlery TrayOne piece removable 3rd rack
Rack FeaturesFull Extension Slides - Upper
Racking MaterialNylon
Dishwasher CyclesPots
Rack ColorBlack Pearl
DispenserRinse Aid with Indicator and Adjustment
WiFi ConnectOptional (Requires part no. PBX23W00Y1)
Control TypeTop Controls
Racking SystemFull 3rd rack
Dishwasher Drying FeaturesMulti-Wattage Wash & Dry Element
Wash ArmsMiddle - Quad Blade
Wash System FeaturesReversing Quad Blade Lower Wash Arm
Exterior StyleMinimal
Upper RackPremium Height Adjustable
Dishwasher Control FeaturesLast Cycle Memory
Number of Cycles5
Tub and Door LinerStainless Steel
Sabbath ModeYes
Showroom Power ModeYes
Dishwasher OptionsDelay Start 1-12 Hr.
Rack Features3-Piece Silverware Basket with Cell Covers
Dishwasher CyclesChina

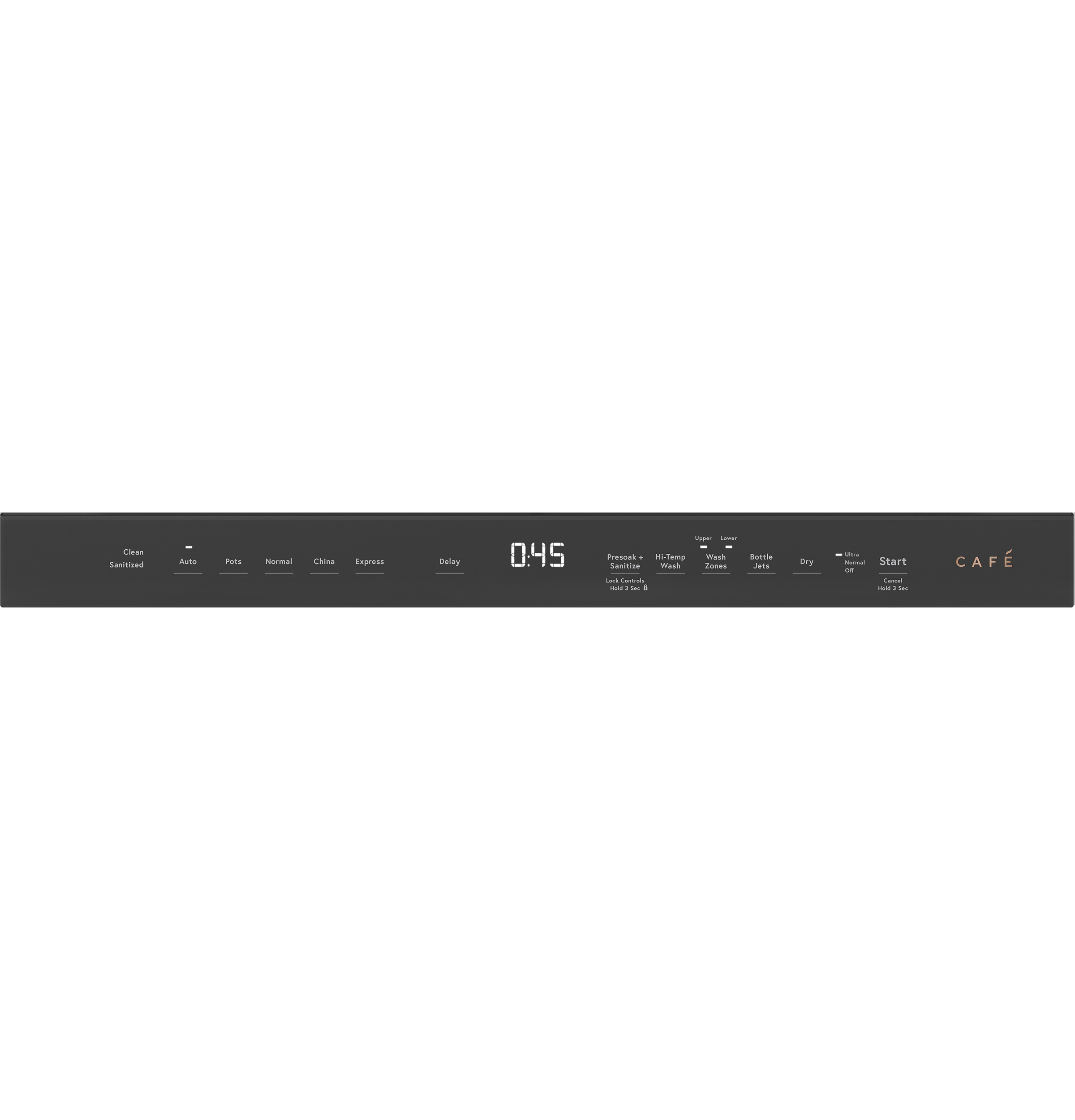

Control TypeCap Touch Controls
Dishwasher Drying FeaturesHeated Dry - Ultra/On/Off
Wash ArmsBottle Jets
Wash System FeaturesAutomatic Temperature Control
Upper Rack1/2 fixed tines, 1/2 fold down tines
Dishwasher Control FeaturesAudible End-of-Cycle Signal
Control Type12 Touchpads
Dishwasher Control FeaturesCycle Countdown with Bi-Color LED Status Light on door
Dishwasher Control Features1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher CyclesAuto
Dishwasher CyclesNormal
Dishwasher CyclesExpress
Dishwasher Drying FeaturesFan Assist Dry
Dishwasher OptionsLock Controls
Dishwasher OptionsHi-Temp Wash
Dishwasher OptionsPresoak + Sanitize (Certified to NSF Standard 184)
Dishwasher OptionsHeated Dry Off
Dishwasher OptionsNormal Dry
Dishwasher OptionsUltra Dry
Dishwasher OptionsWash Zone Lower Only
Dishwasher OptionsStart/Reset
Dishwasher OptionsBottle Jets
Dishwasher OptionsSabbath Mode
Lower Rack1/2 fixed tines, 1/2 fold down tines
Rack FeaturesBall-Tipped Tines
Rack FeaturesAdjustable Upper Rack
Rack Features2 short articulating plastic utility shelves w/Stemsafe and chop-stick slots
Upper RackBall-Tip Tines
Upper RackFixed tines with Bottle Jets
Upper Rack1 Rack handle
Upper Rack2 Stem Safe Shelves
Upper RackChop stick slots
Wash Arms3 Wash Levels
Wash ArmsLower- Reversing Quad Blade
Wash System3-Level
Wash System FeaturesDual Pumps and Motors
Wash System FeaturesDrain Pump
Wash System FeaturesHard Food Disposer with removable filter
Wash System FeaturesAutomatic HotStart
Wash System FeaturesBottle Jets (4)
Wash System FeaturesQuad Blade Middle Wash Arm

APPEARANCE

HandlePocket Handle
InstallationSide Installation or Top Installation Included
Handle ColorColor Matched
Door StyleLong Door with Top Controls
Door AppearanceFull-length flat door
Color AppearancePlatinum Glass
InstallationFlush Cabinet Installation
InstallationBuilt-Up Floor Capable

POWER / RATINGS

Power ConnectionOptional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts800/500
Volts/Hertz/Amps120V; 60Hz; 6.6A

ECONOMICAL / QUIET

Door InsulationMastic
Quiet Package45 dBA
Outer WrapFull-wrap Blanket
Motor TypeSingle Speed
Quiet FeaturesTub Collar Trim
Quiet FeaturesSealed Toe Kick
Door InsulationInsulation
Outer WrapBitumen
Quiet FeaturesQuiet Water Valve

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

Dimensions & Weight

Width23.75 in.
Height34 in.
Length24 in.
Weight105 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.75 in.
Shipping Height39 in.
Shipping Length29 in.
Shipping Weight118 lbs.
Total of Shipping Weight118 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.22 ft³
Dimensional Weight139.42 lbs.
Total of Cubes11.22 ft³
Total of Dimensional Weight139.42 lbs.
