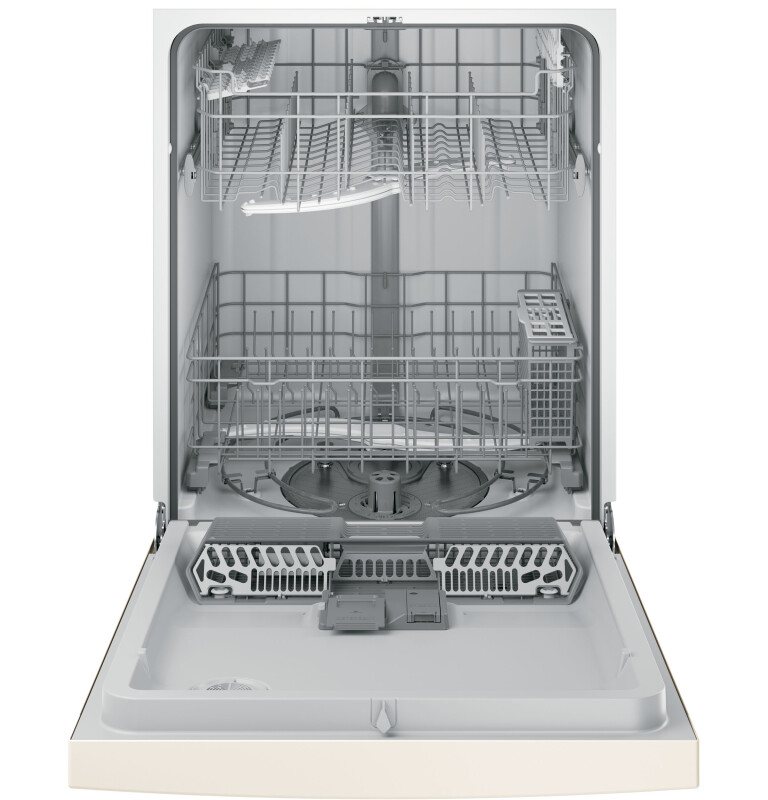

Dishwasher with Front Controls - GDF520PGJCC

This product has been discontinued by the manufacture and is no longer available.

Dishwasher with Front Controls

Model: GDF520PGJCC

Dishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCCDishwasher with Front Controls GDF520PGJCC
Dishwasher with Front Controls GDF520PGJCC
Dishwasher with Front Controls GDF520PGJCC
Dishwasher with Front Controls GDF520PGJCC
Dishwasher with Front Controls GDF520PGJCC
Dishwasher with Front Controls GDF520PGJCC
+11more

Color : Bisque

Dishwasher with Front Controls GDF520PGJCC
Bisque

Key Features

  • Piranhaā„¢ hard food disposer with removable filter

  • Steam PreWash

  • Sanitize option (NSF Certified)

  • SpaceMakerĀ® silverware basket

  • Pearlescent dark gray racks with ball tip tines

  • 54 dBA with status light on door

  • 2/4/8-hour Delay Start

  • Dedicated Silverware Jets

Read More

Description

Loosens tough soils before any cycle, virtually eliminating the need for soaking or pre-rinsing dishes.High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes.34 H x 23 3/4 W x 24 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

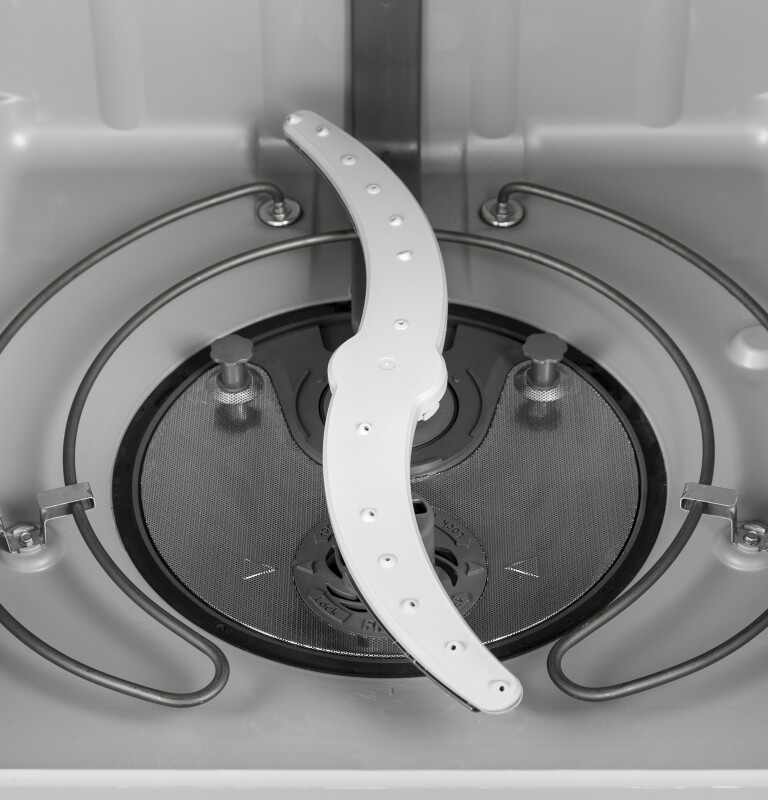

Piranhaā„¢ hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

Steam PreWash

Loosens tough soils before any cycle, virtually eliminating the need for soaking or pre-rinsing dishes

Sanitize option (NSF Certified)

High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes

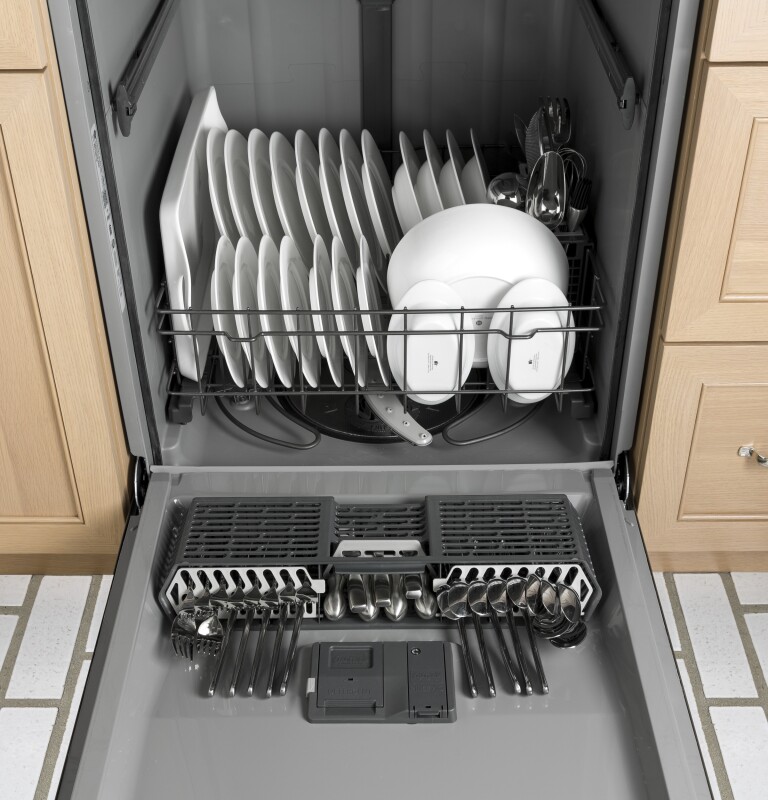

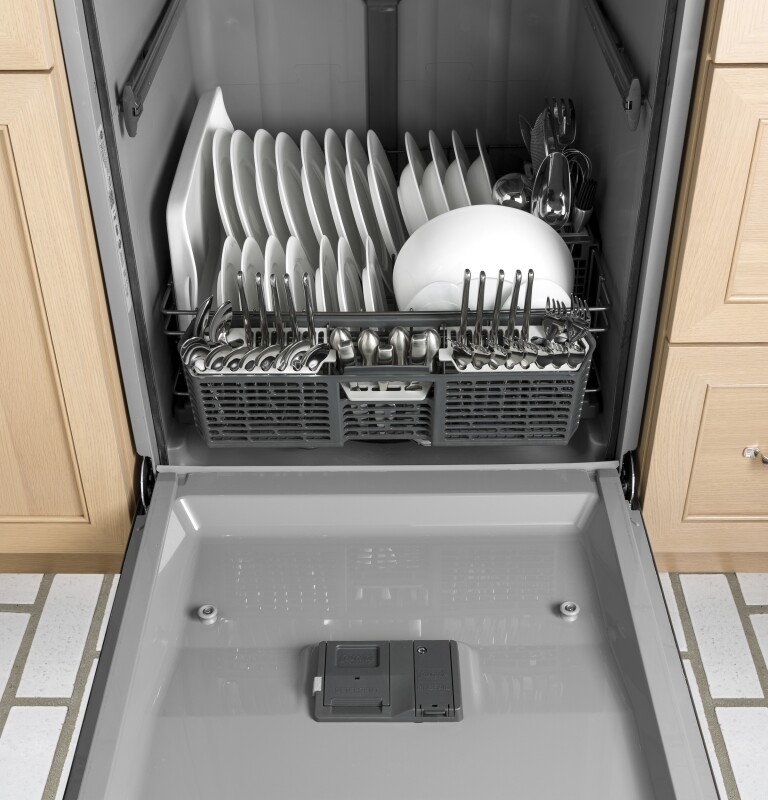

SpaceMakerĀ® silverware basket

Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door

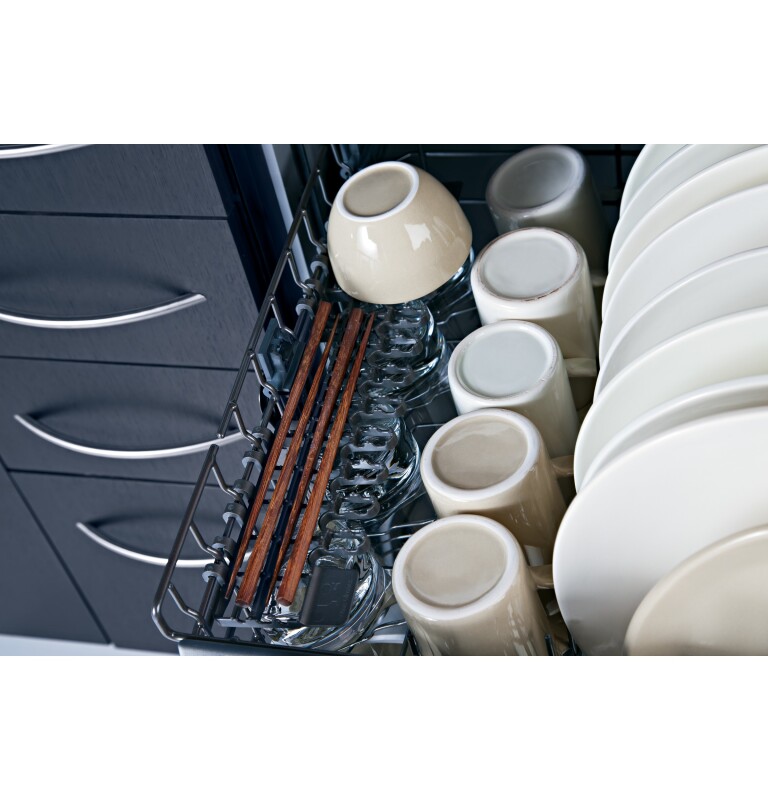

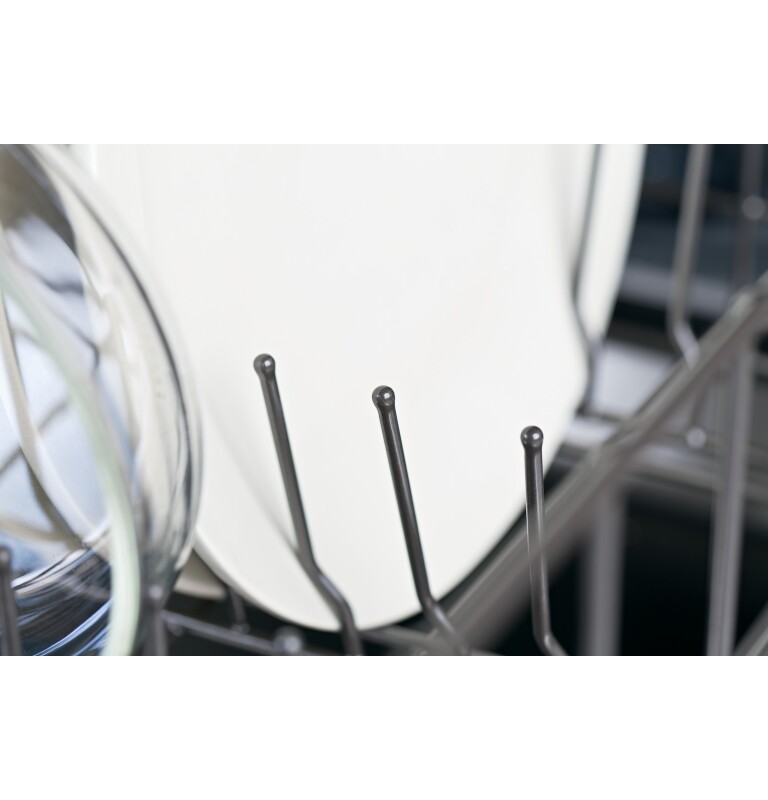

Pearlescent dark gray racks with ball tip tines

Offer durability and secure dishes

54 dBA with status light on door

A dishwasher this quiet has a multi-colored status light to let you know it is running

2/4/8-hour Delay Start

Wash dishes at your convenience

Dedicated Silverware Jets

Get table-ready silverware thanks to powerful jets that focus on silverware baskets in multiple locations

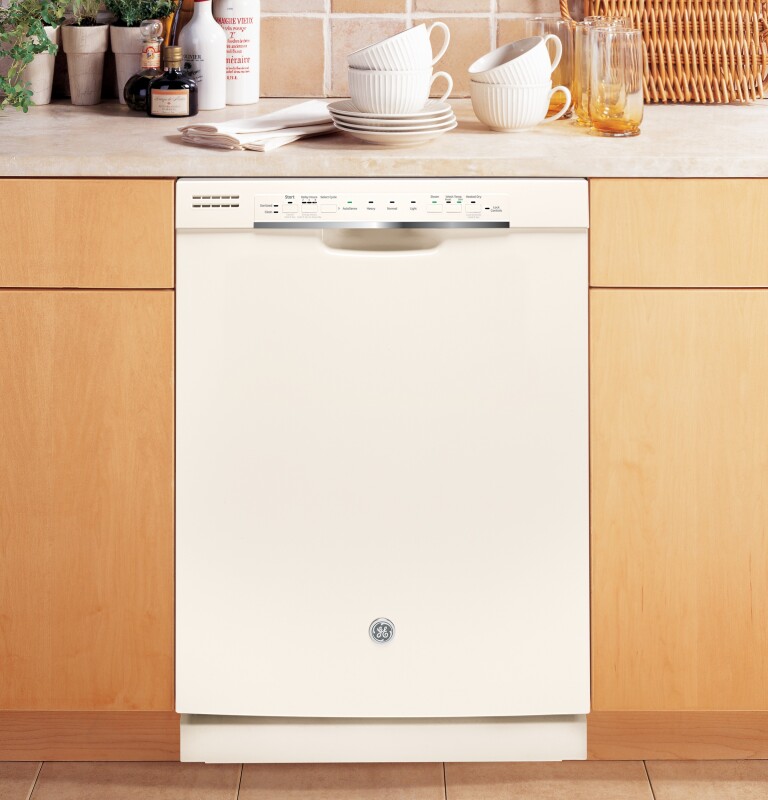

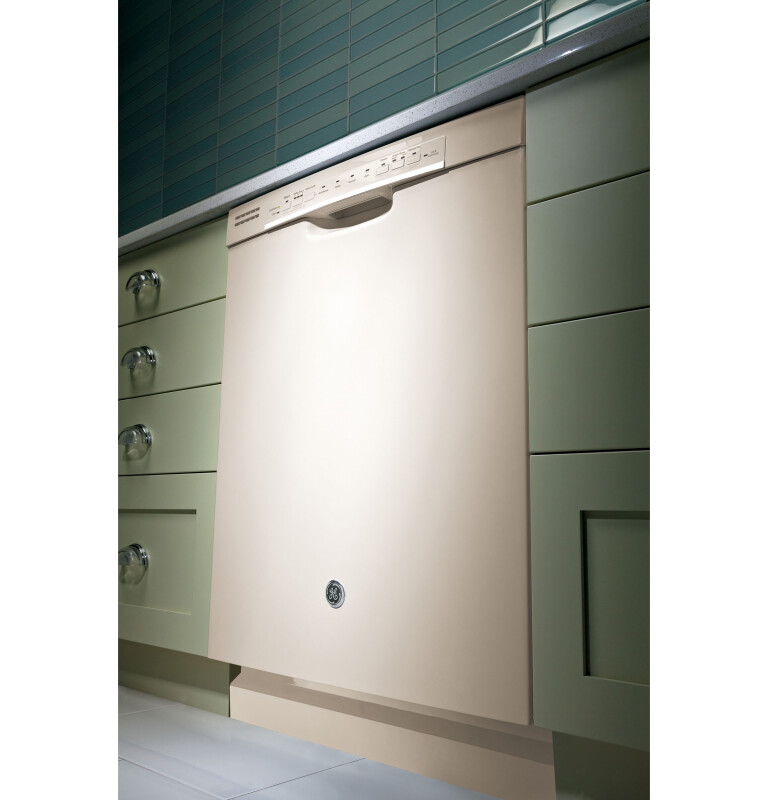

Cabinet depth installation

Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity

Clean design inner door

The clean, attractive appearance features no visible hardware, so it’s also easy to maintain

Built-up floor capable

Installation over built-up floors is simple with the ability to adjust the dishwasher height

Auto sense cycle

Automatically adjusts to soil level to maximize energy savings and ensure clean dishes

American gray plastic interior

Heavy-duty material is designed for years of dependability and has an attractive finish

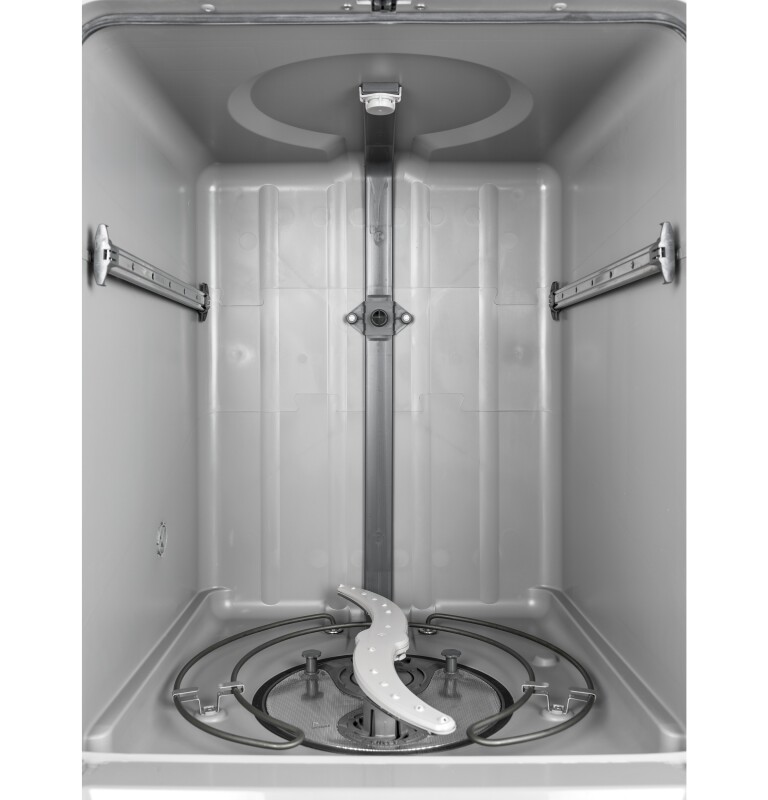

4-pass wash and dry element

Items come out consistently clean and dry with the help of this element, which evenly heats water for washing and air for drying

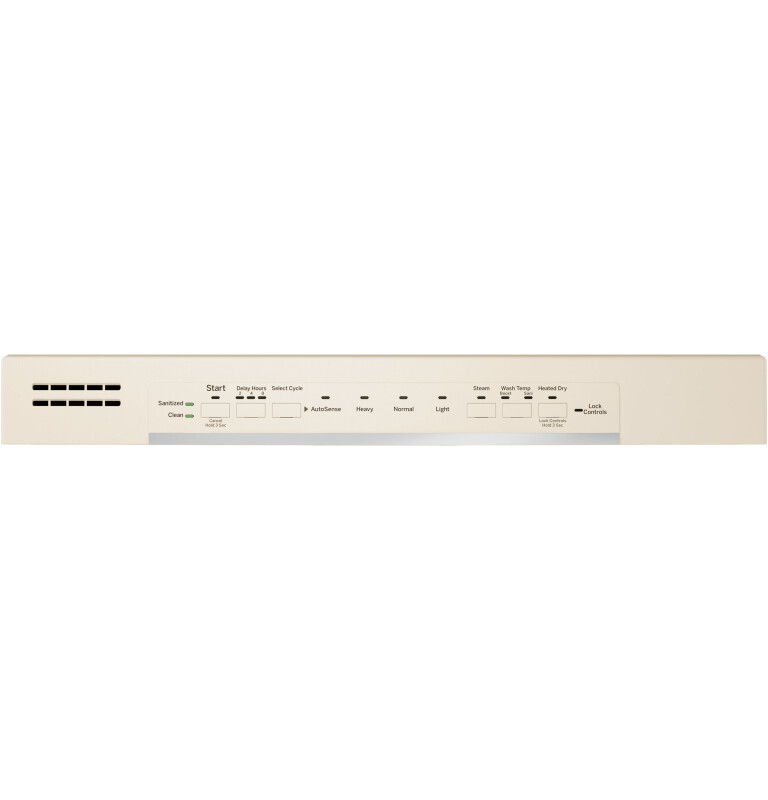

Chrome accents on control panel

Enjoy a touch of modern style with this chrome accent on the control panel

Certifications

CEE Tier I certification

CEE Tier I

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

MADE IN AMERICA:  70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

NSF Certified certification

NSF Certified

Specifications

Warranty

Parts1 Year
Labor1 Year

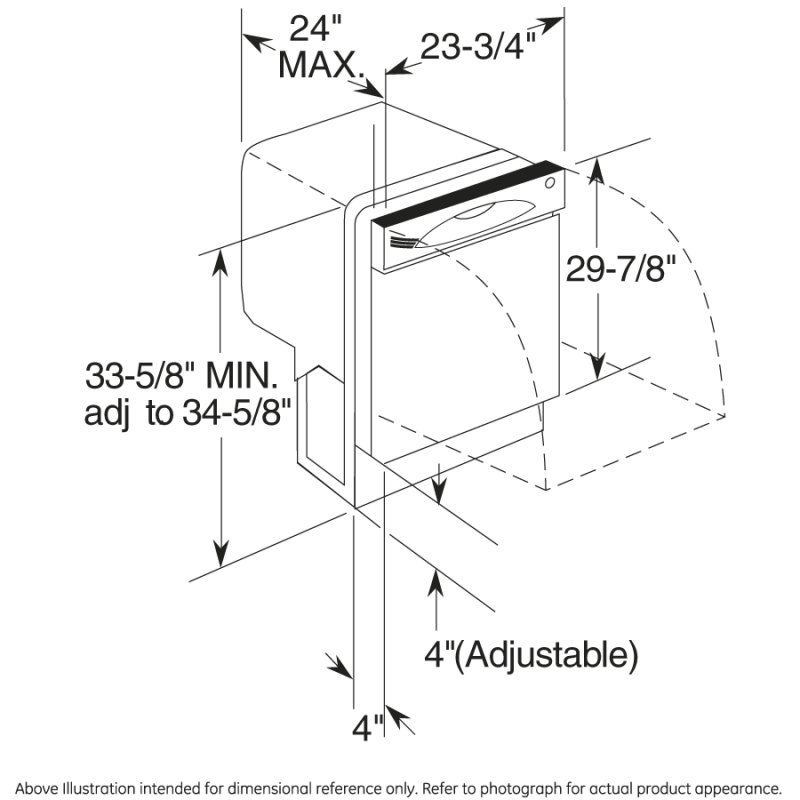

WEIGHTS & DIMENSIONS

Overall Depth24 in
Overall Height34 in
Height w/ Legs Retracted - Minimum Height33.375 in
Cabinet Width24 in
Net Weight62 lb
Approximate Shipping Weight77 lb
Height w/Legs Extended - Maximum Height34.625 in
Overall Width23 3/4 in

Dimensions & Weight

Width23.75 in.
Height34 in.
Length24 in.
Weight62 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.75 in.
Shipping Height39 in.
Shipping Length29 in.
Shipping Weight102 lbs.
Total of Shipping Weight102 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.22 ft³
Dimensional Weight139.42 lbs.
Total of Cubes11.22 ft³
Total of Dimensional Weight139.42 lbs.

FEATURES

Wash System500 Series
SensorClean Sensor
Lower RackBall-Tip Tines
Tub TypeTall Tub
Leveling System4 Leveling Legs

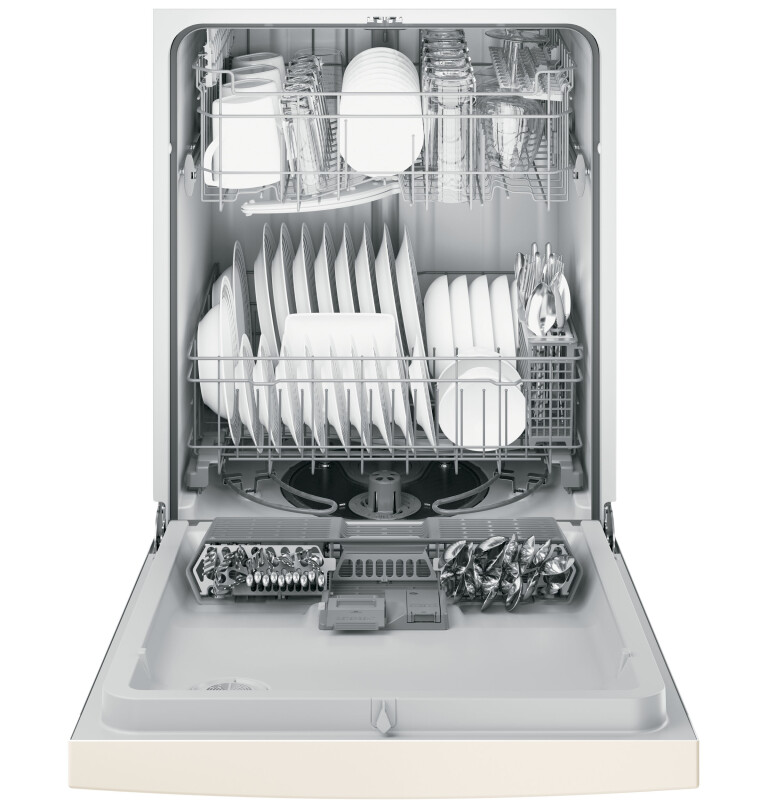

Number of Place Settings16
Tub LinerPlastic
LatchCenter Pull
Number of Options7
StyleBuilt-In
Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
Door LinerClean Design with Plastic
Rack ColorPearlescent Dark Gray
DispenserRinse Aid with Indicator and Adjustment
Racking SystemTowerless
Dishwasher Drying FeaturesHeated Dry - On/Off
Exterior StyleTraditional
Number of Cycles4
Tub and Door LinerGray Plastic
Showroom Power ModeYes

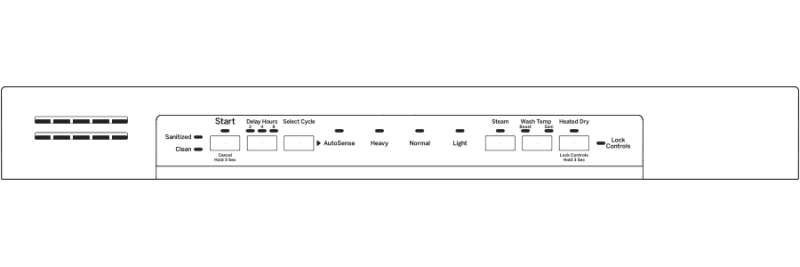

Control TypeElectronic Tactile Buttons
Dishwasher Control FeaturesAudible End-of-Cycle Signal
Dishwasher CyclesHeavy Wash
Dishwasher OptionsDelay Start 2/4/8 Hr.

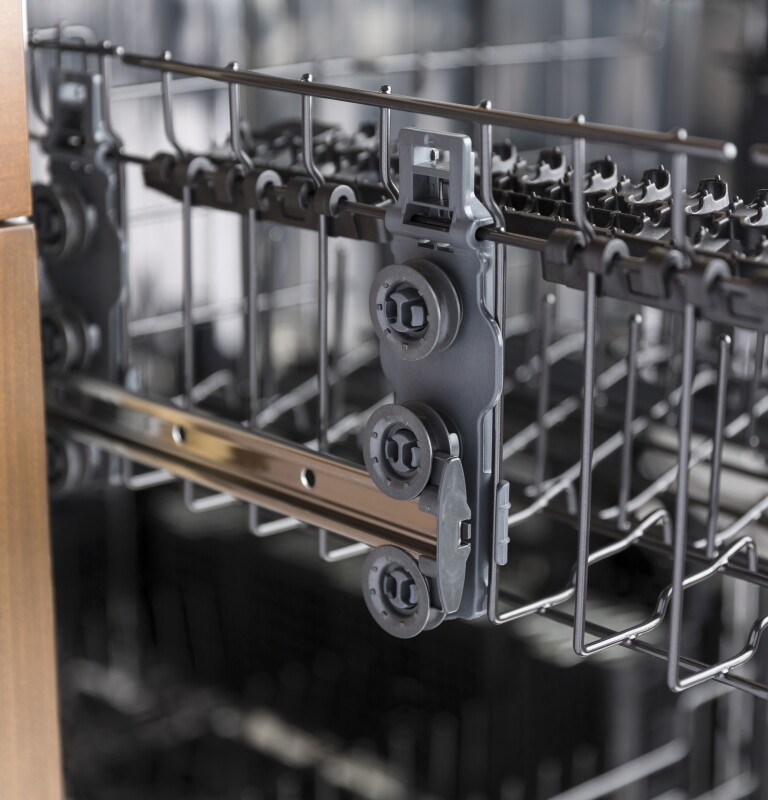

Rack FeaturesAdjustable Upper Rack
Upper RackHeight Adjustable
Wash ArmsLower
Wash System FeaturesAutomatic Temperature Control
Dishwasher OptionsWash TempBoost
Rack FeaturesSpaceMaker Silverware Basket in door with cell covers
Dishwasher CyclesNormal Wash
Control TypeFront Controls
Wash ArmsUpper
Wash System FeaturesPiranhaā„¢ Hard Food Disposer with removable filter
Upper RackRemovable
Dishwasher Control FeaturesLast Cycle Memory
Control Type6 Touchpads
Dishwasher Control Features1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher CyclesAutoSense
Dishwasher CyclesLight Wash
Dishwasher OptionsChild Lock
Dishwasher OptionsSani (Certified to NSF Standard 184)
Dishwasher OptionsHeated Dry
Dishwasher OptionsSteam PreWash
Dishwasher OptionsStart/Reset
Rack FeaturesBall-Tipped Tines
Rack FeaturesSmall Items Basket

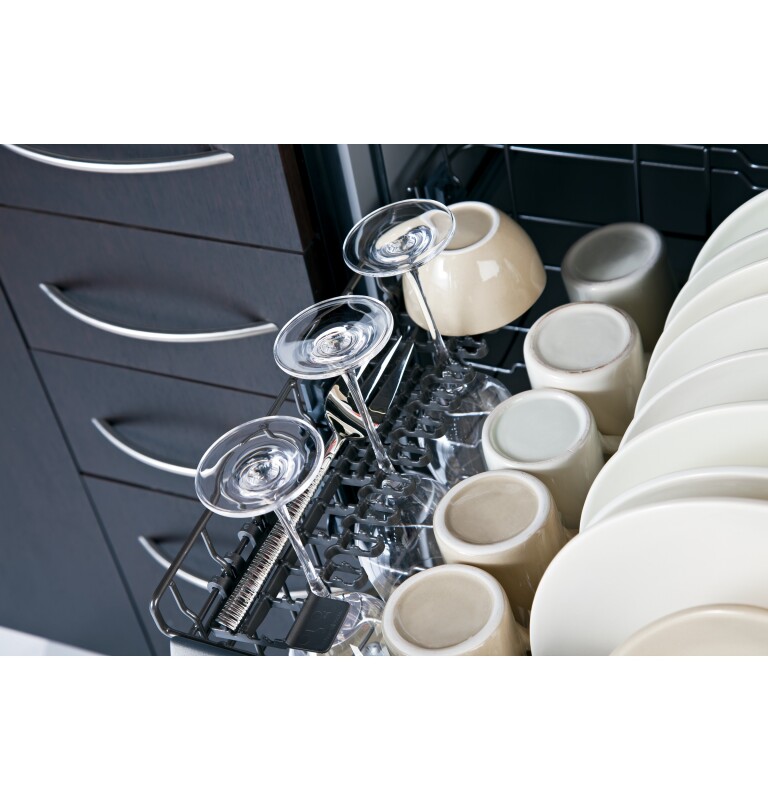

Rack Features2 Utility Shelves with Stem Safe - Upper
Racking SystemPearlescent Dark Gray
Upper RackBall-Tip Tines
Wash Arms3 Wash Levels
Wash ArmsMiddle
Wash System FeaturesDual Pumps and Motors
Wash System FeaturesDrain Pump
Wash System FeaturesAutomatic HotStart

ECONOMICAL / QUIET

Door InsulationMastic
Quiet Package54 dBA
Outer WrapInsulation Blanket
Motor TypeSingle Speed
Quiet FeaturesSealed Toe Kick
Door InsulationInsulation
Quiet FeaturesQuiet Water Valve

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

APPEARANCE

Handle ColorColor-Matched
Door StyleLong Door
Door AppearanceContour door
Color AppearanceBisque
Control Panel ColorBisque
Handle DesignRecessed
InstallationFlush Cabinet Installation
InstallationSide or Top Mount Install Brackets Included
InstallationBuilt-Up Floor Capable

POWER / RATINGS

Calrod Heater Watts415/800
Volts/Hertz/Amps120v; 60Hz; 7.1A
