Dishwasher with Front Controls - GDF520PSDSS

This product has been discontinued by the manufacture and is no longer available.

Dishwasher with Front Controls

Model: GDF520PSDSS

Dishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSSDishwasher with Front Controls GDF520PSDSS
Dishwasher with Front Controls GDF520PSDSS
Dishwasher with Front Controls GDF520PSDSS
Dishwasher with Front Controls GDF520PSDSS
Dishwasher with Front Controls GDF520PSDSS
Dishwasher with Front Controls GDF520PSDSS
+23more

Color : Stainless Steel

Dishwasher with Front Controls GDF520PSDSS
Stainless Steel

Key Features

  • GE’s most advanced wash system

  • Piranha hard food disposer with removable filter

  • Steam PreWash

  • Sanitize option (NSF Certified)

  • SpaceMaker silverware basket

  • Pearlescent dark gray racks with ball tip tines

  • 2/4/8-hour Delay Start

  • Dedicated Silverware Jets

Read More

Description

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms.Loosens tough soils before any cycle, virtually eliminating the need for soaking or pre-rinsing dishes.34 H x 23 3/4 W x 24 D
Read More

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

GE’s most advanced wash system

Consistently clean and dry dishes are ensured with GE’s most advanced wash system, featuring 65% more wash power.* *Wash power delivered to each rack. Compared to previous GE models

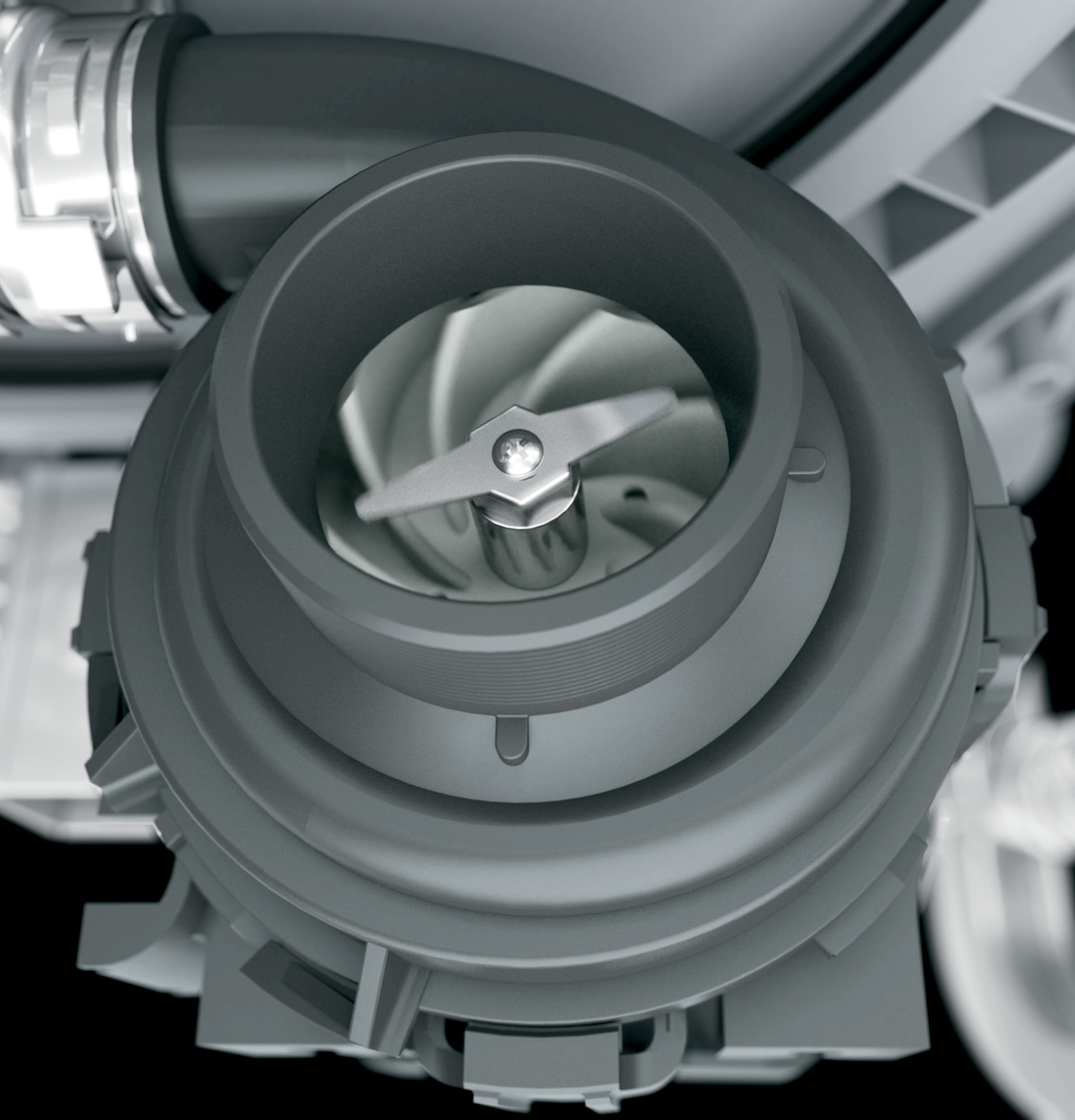

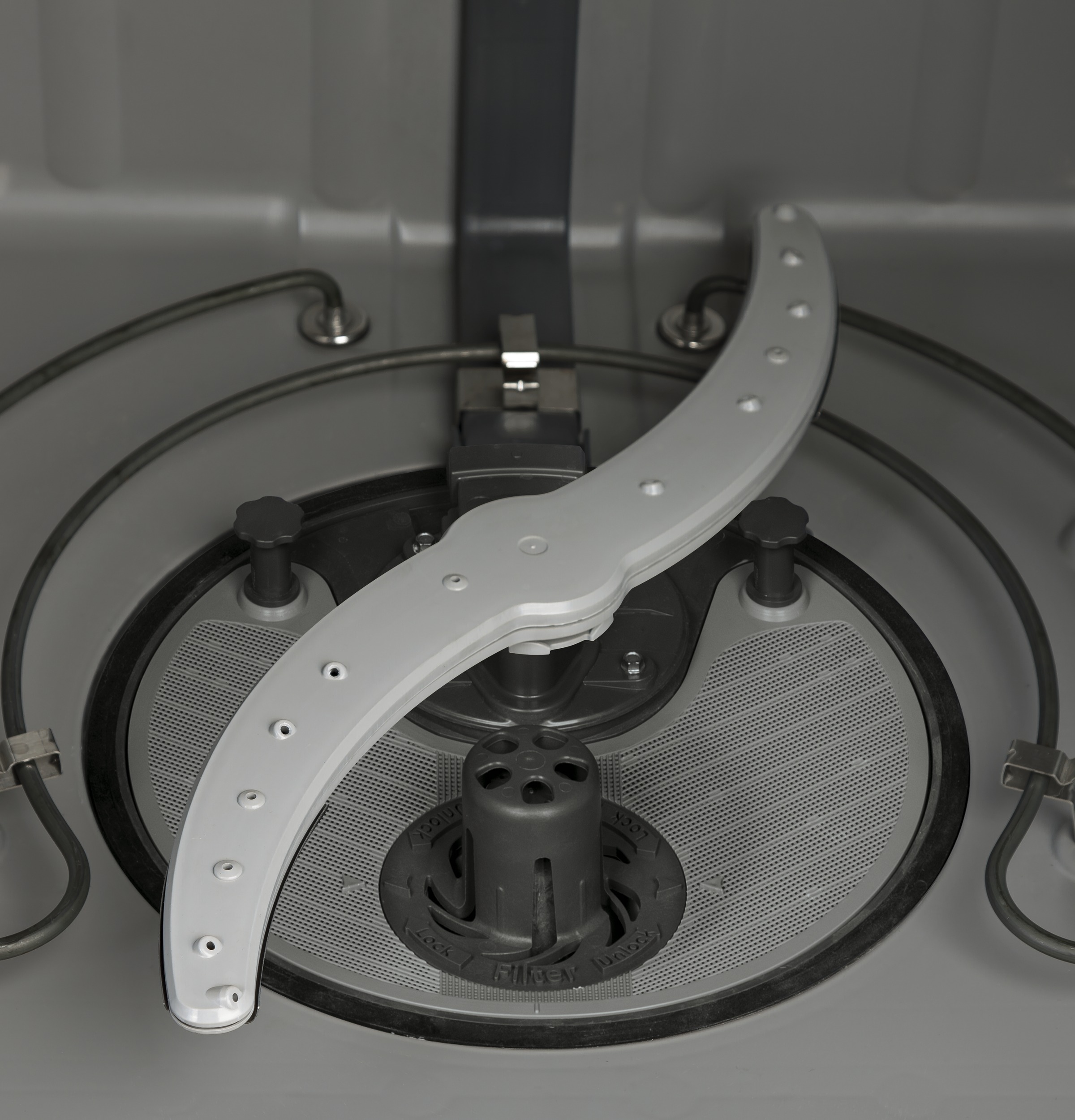

Piranha hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

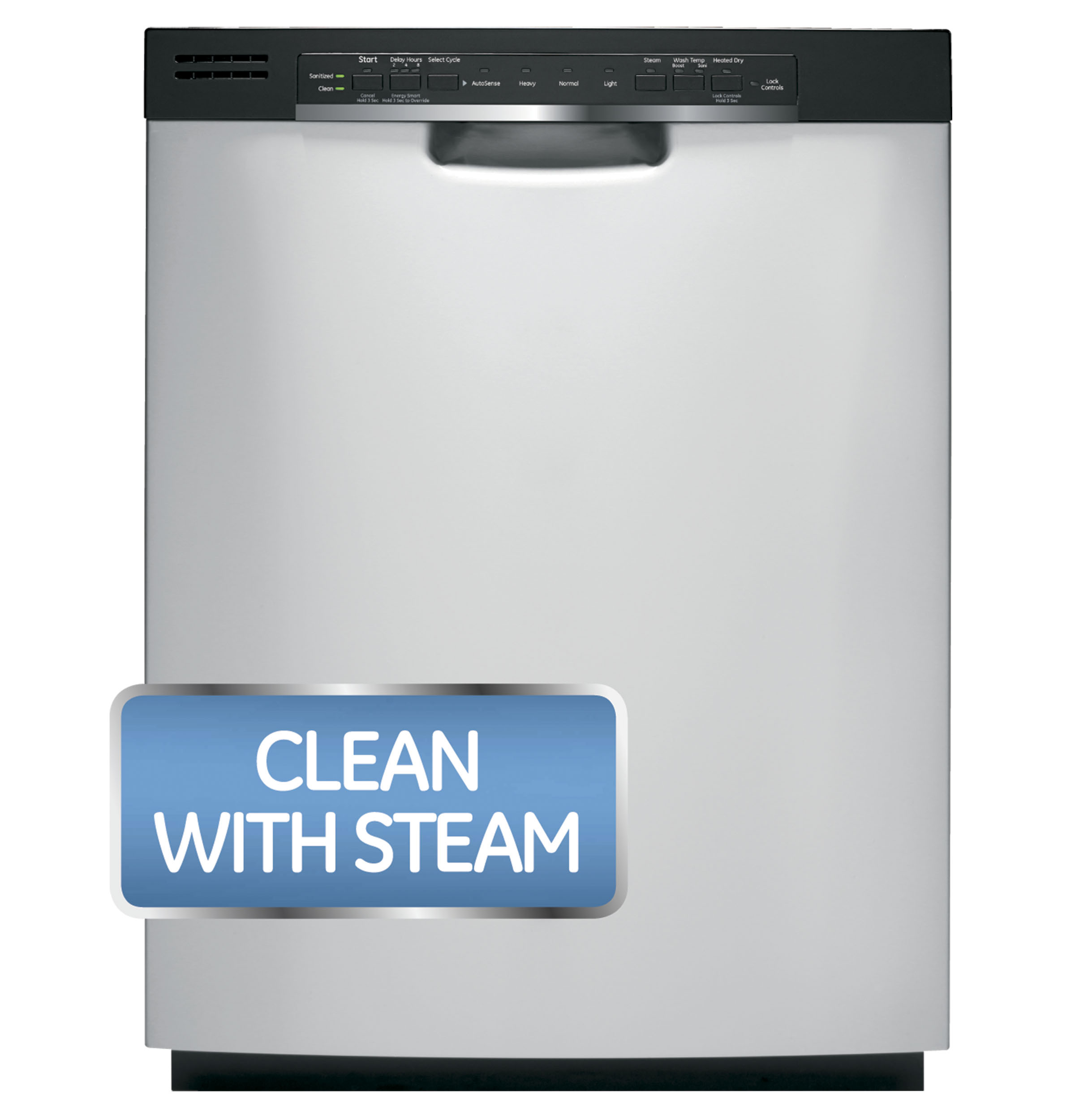

Steam PreWash

Loosens tough soils before any cycle, virtually eliminating the need for soaking or pre-rinsing dishes

Sanitize option (NSF Certified)

High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes

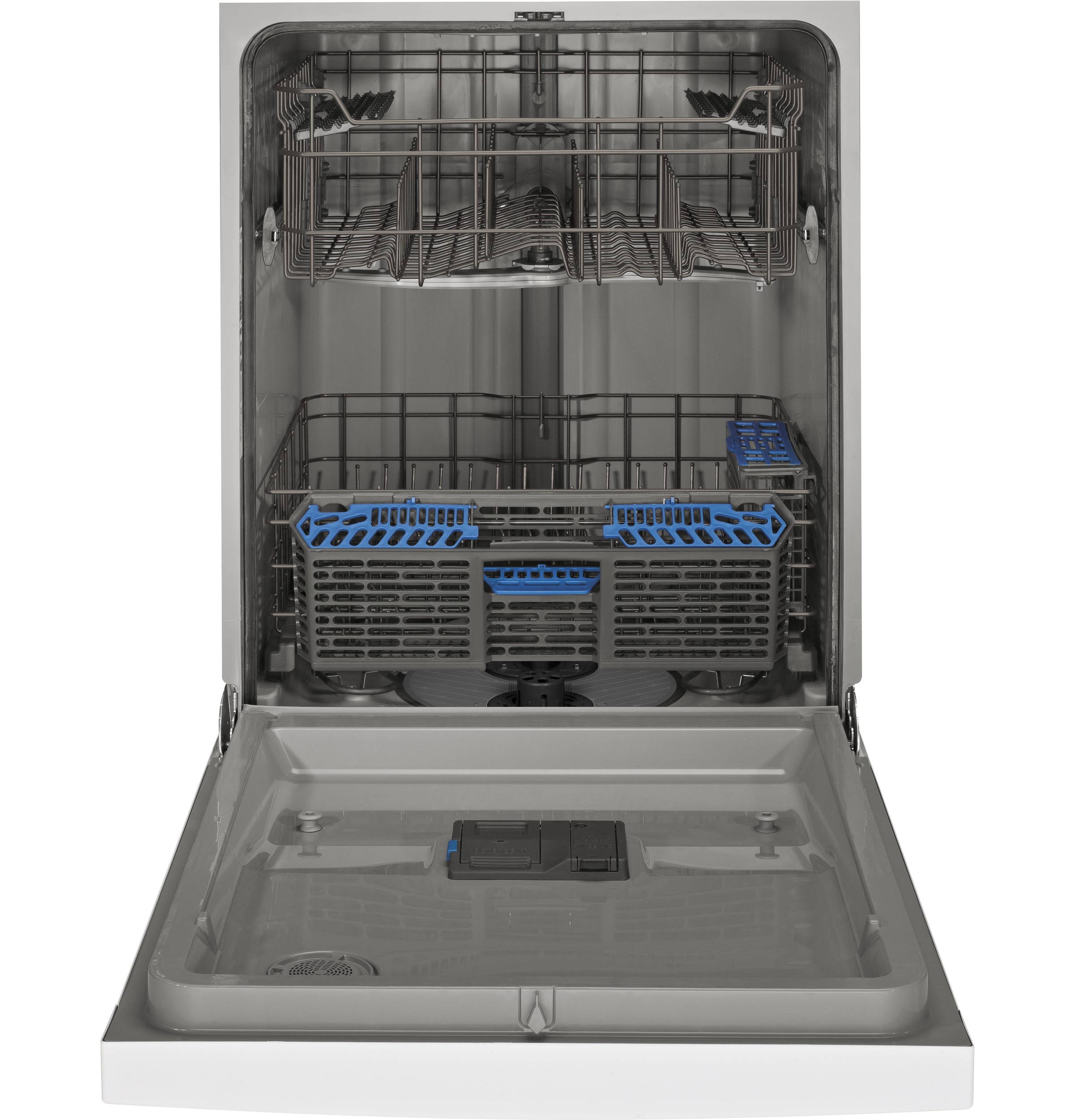

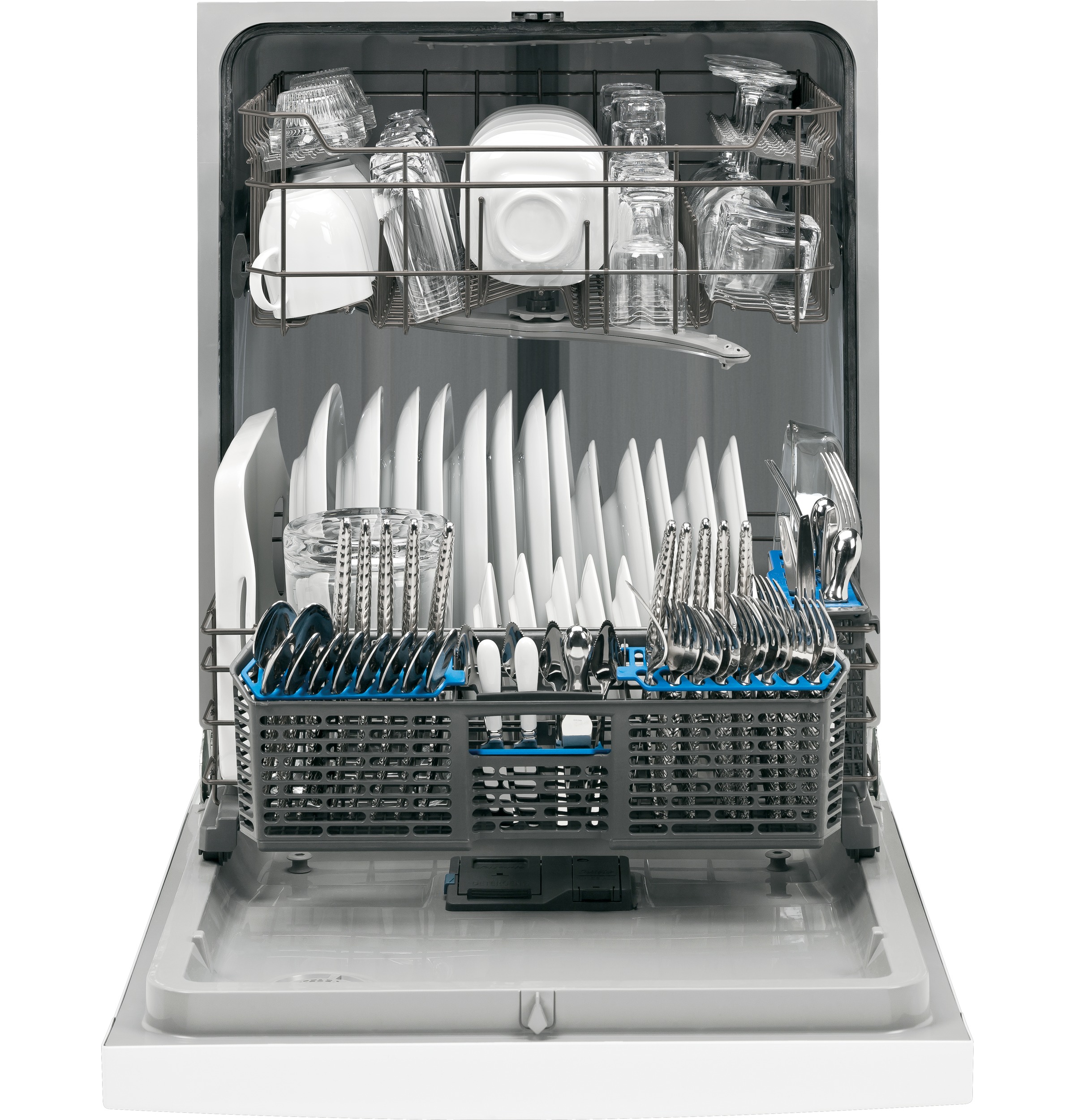

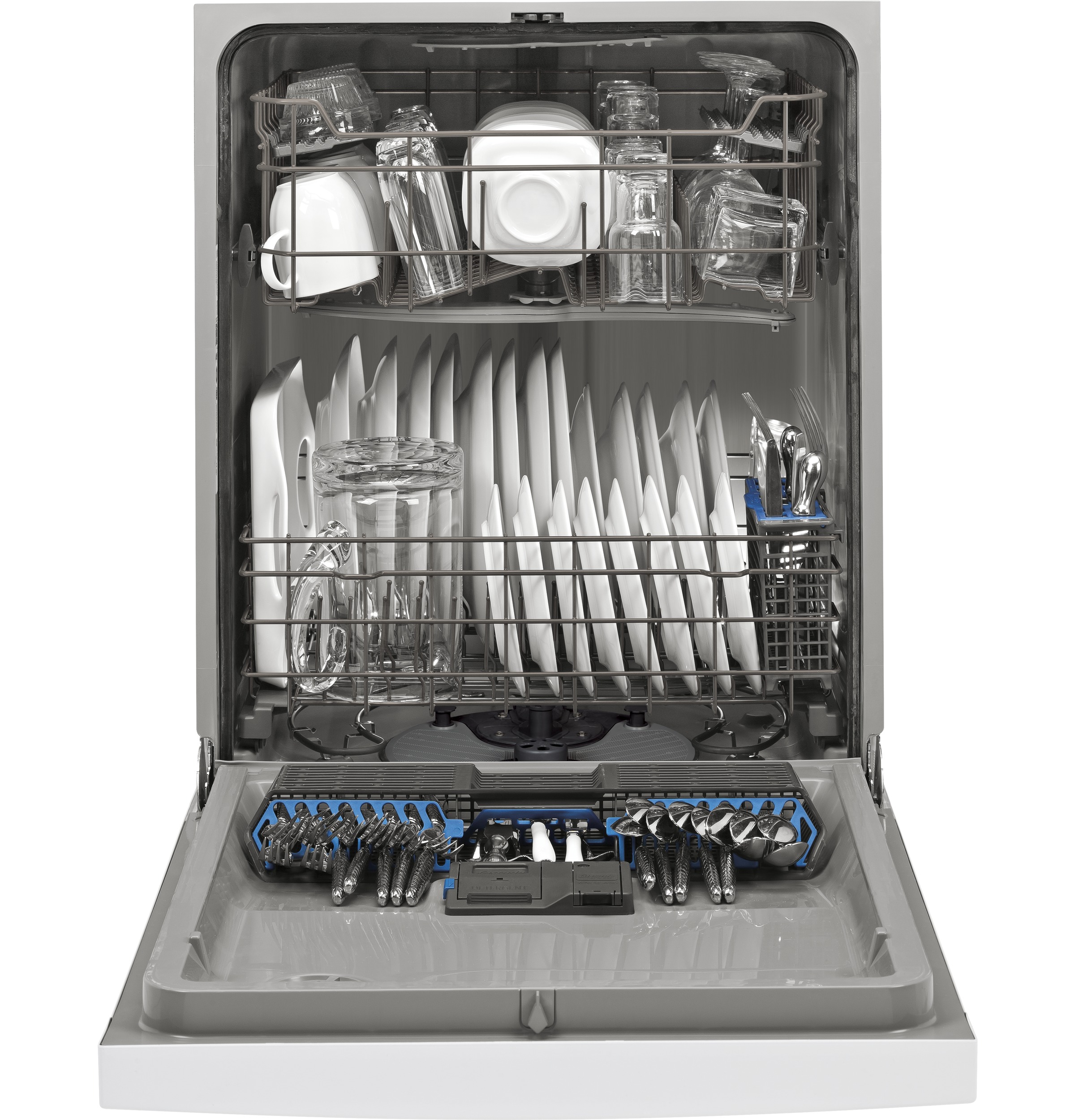

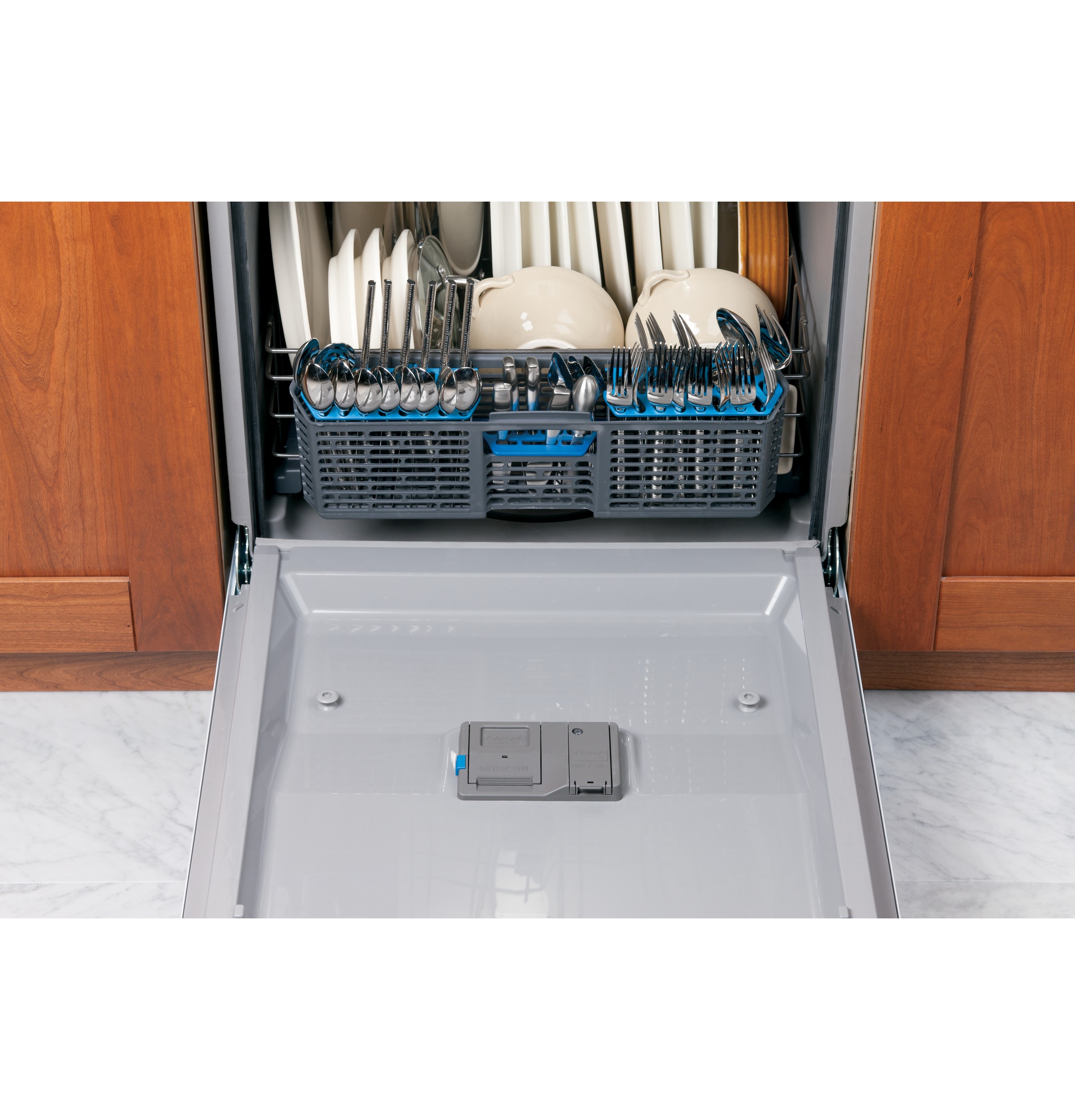

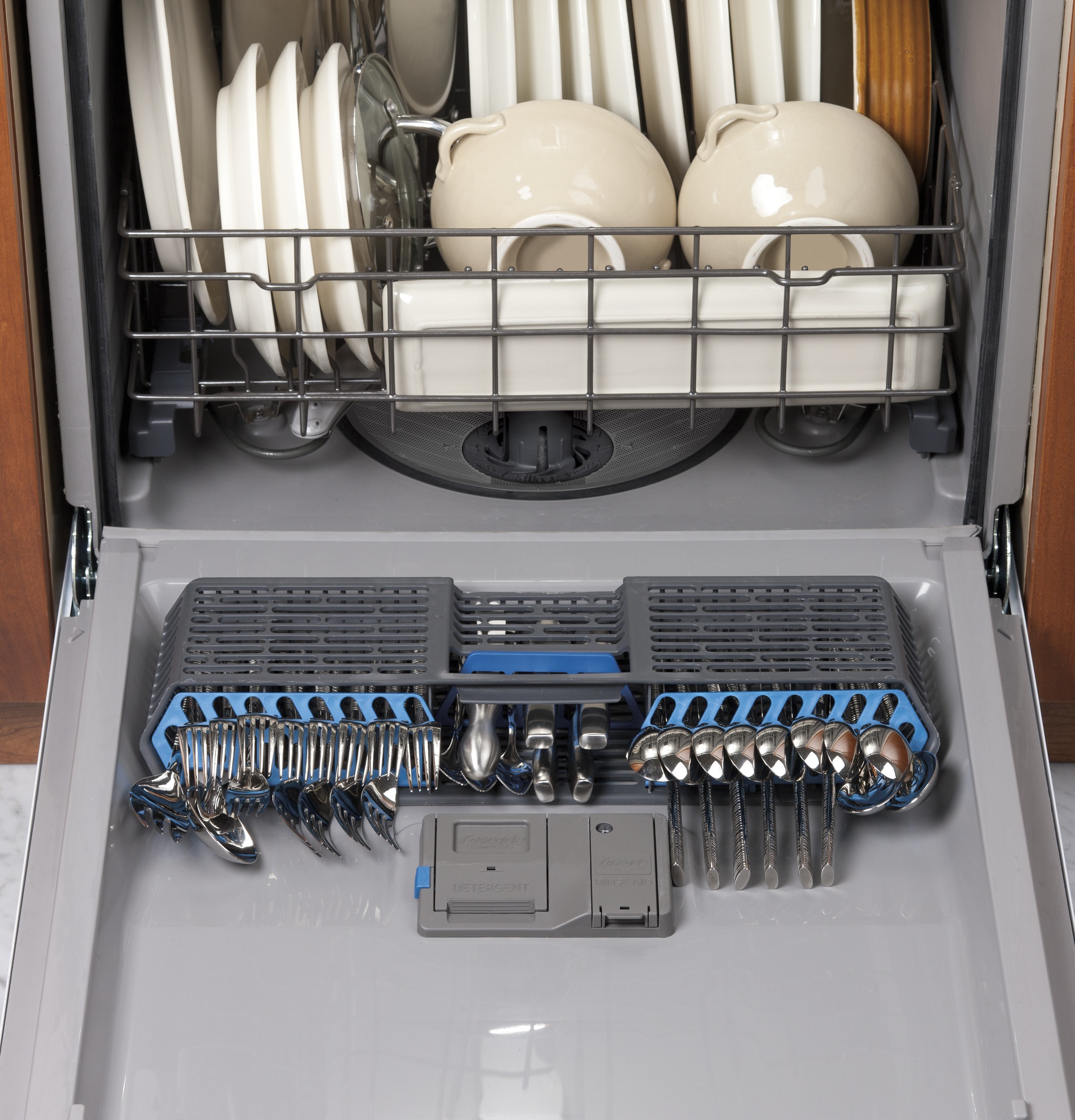

SpaceMaker silverware basket

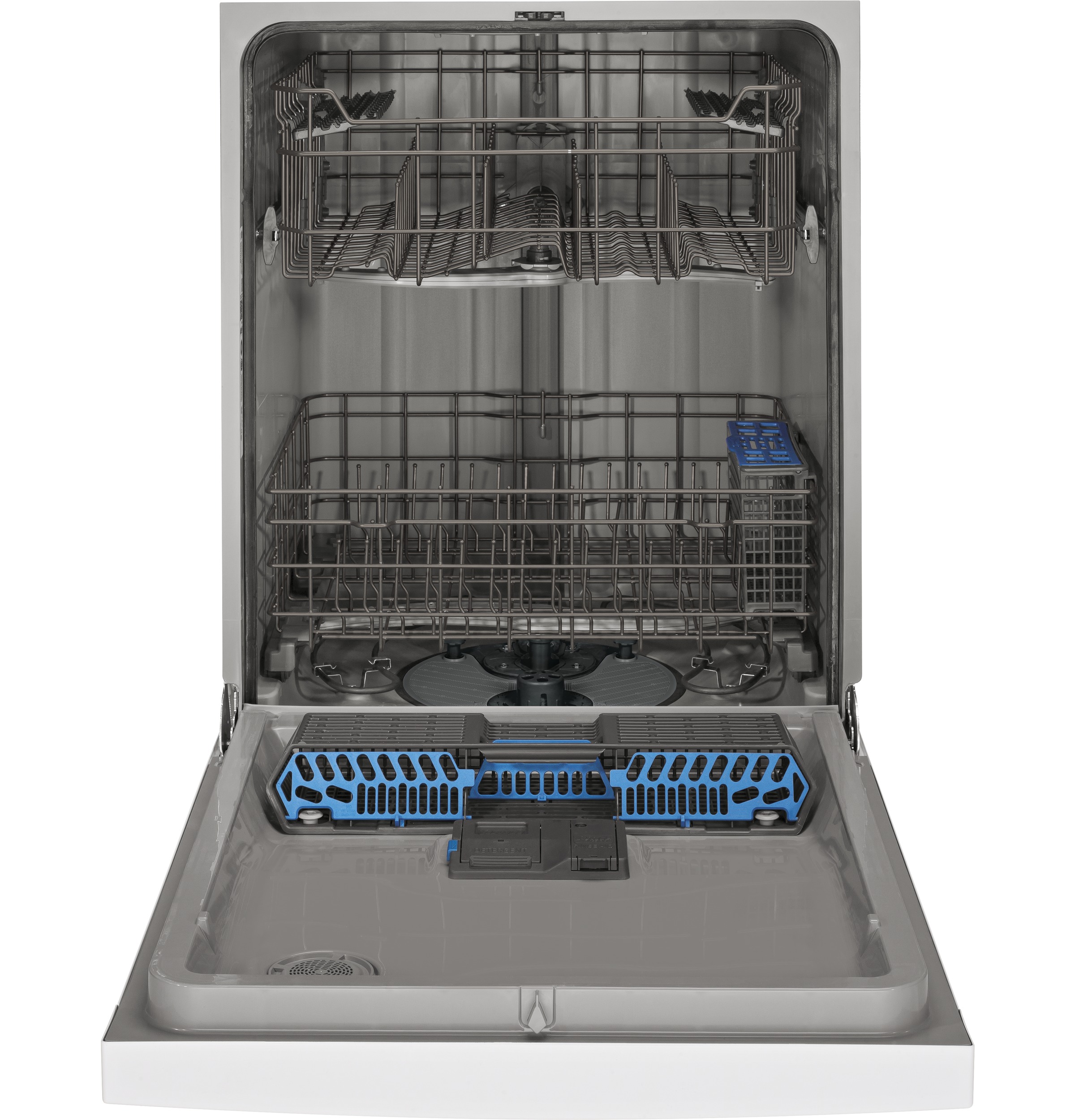

Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door

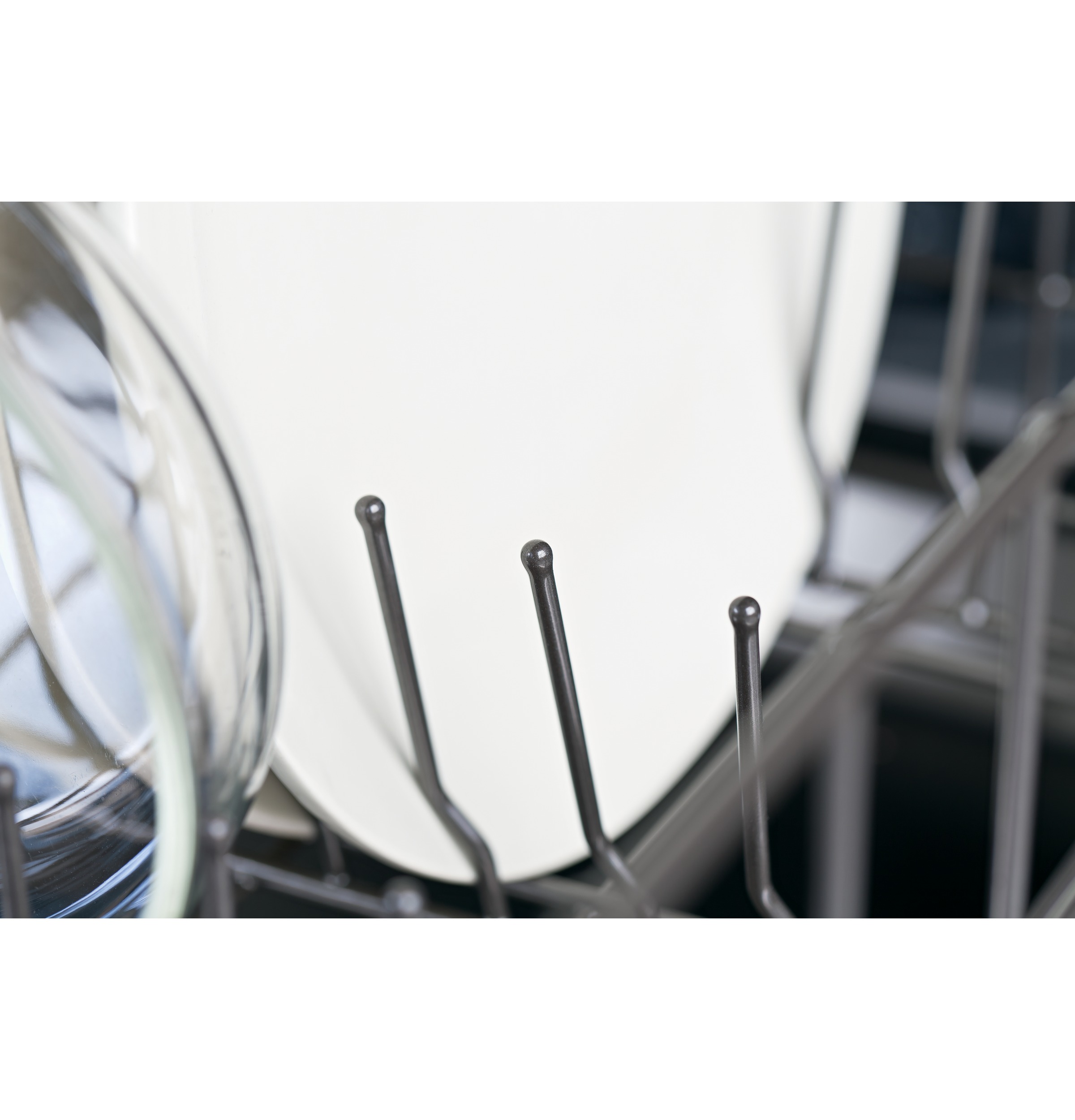

Pearlescent dark gray racks with ball tip tines

Offer durability and secure dishes

2/4/8-hour Delay Start

Wash dishes at your convenience

Dedicated Silverware Jets

Get table-ready silverware thanks to powerful jets that focus on silverware baskets in multiple locations

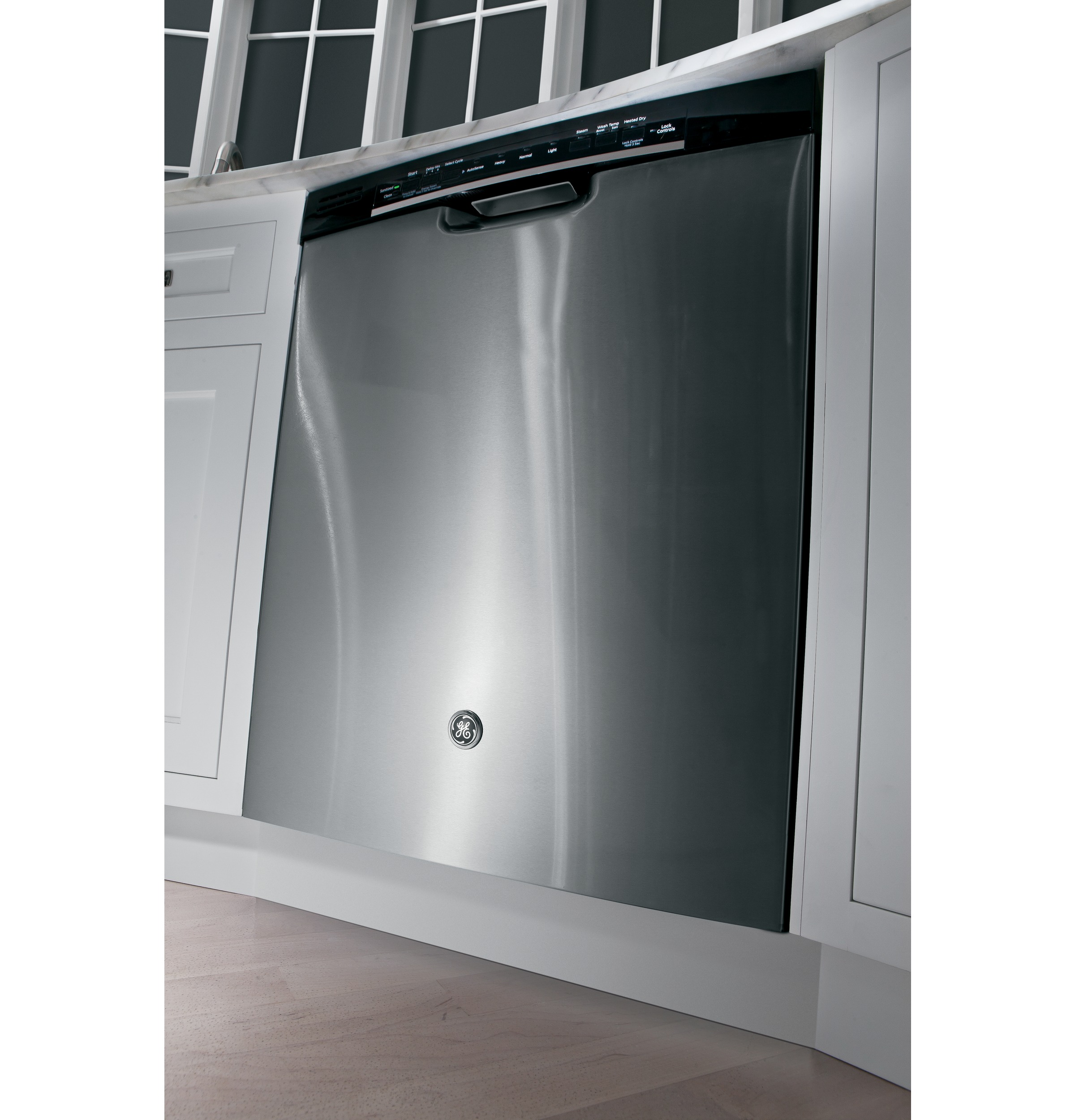

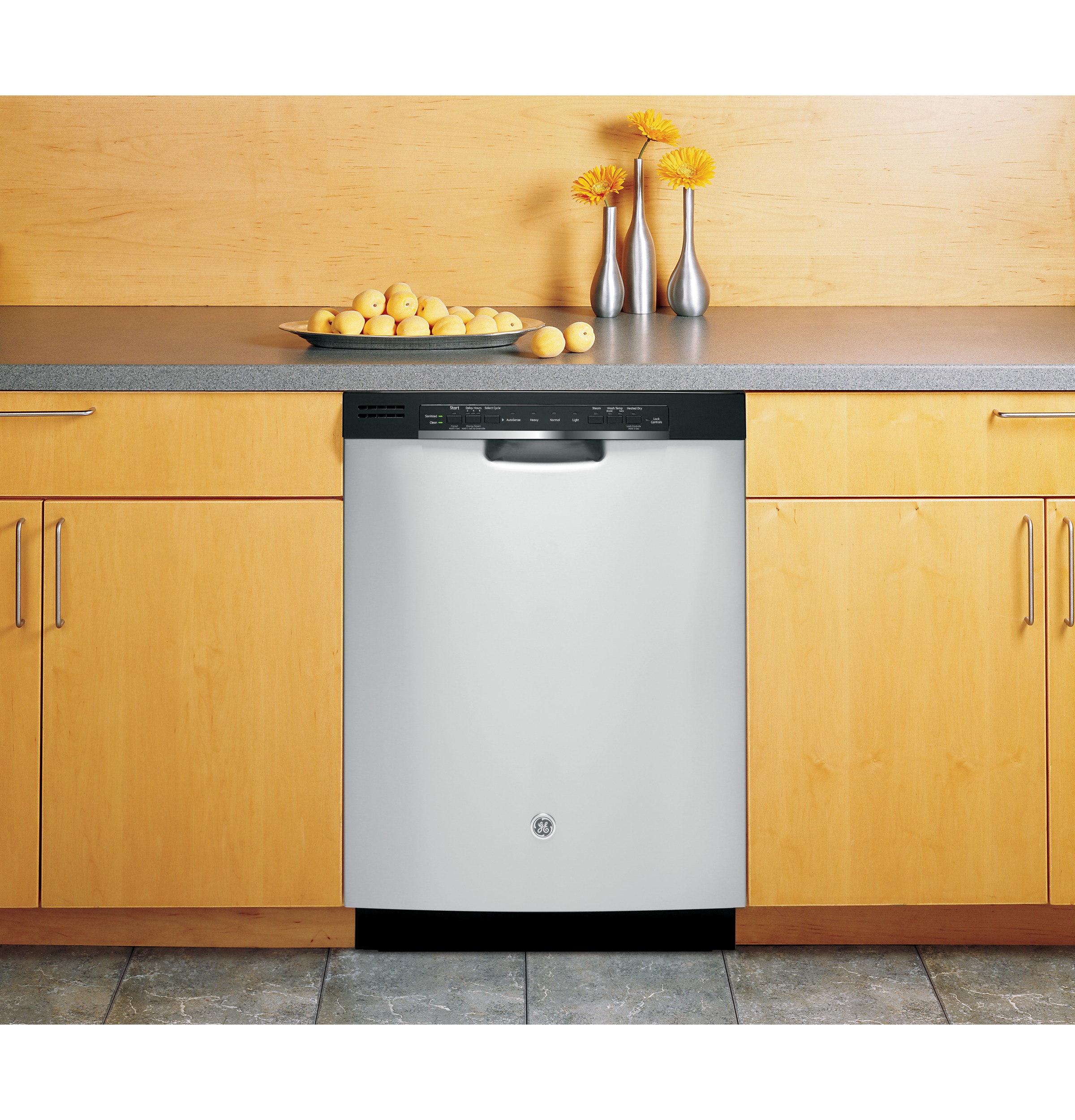

Cabinet depth installation

Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity

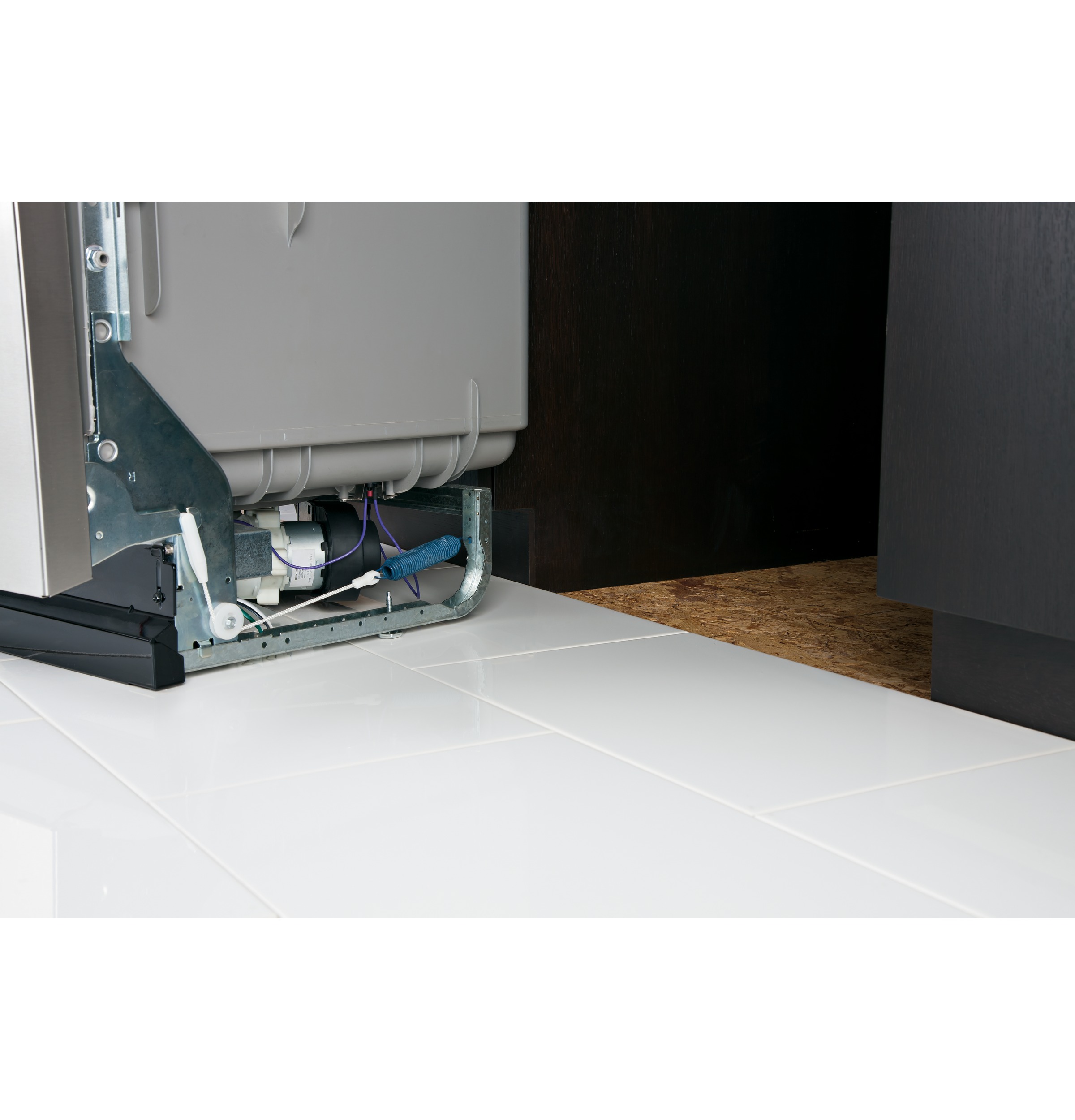

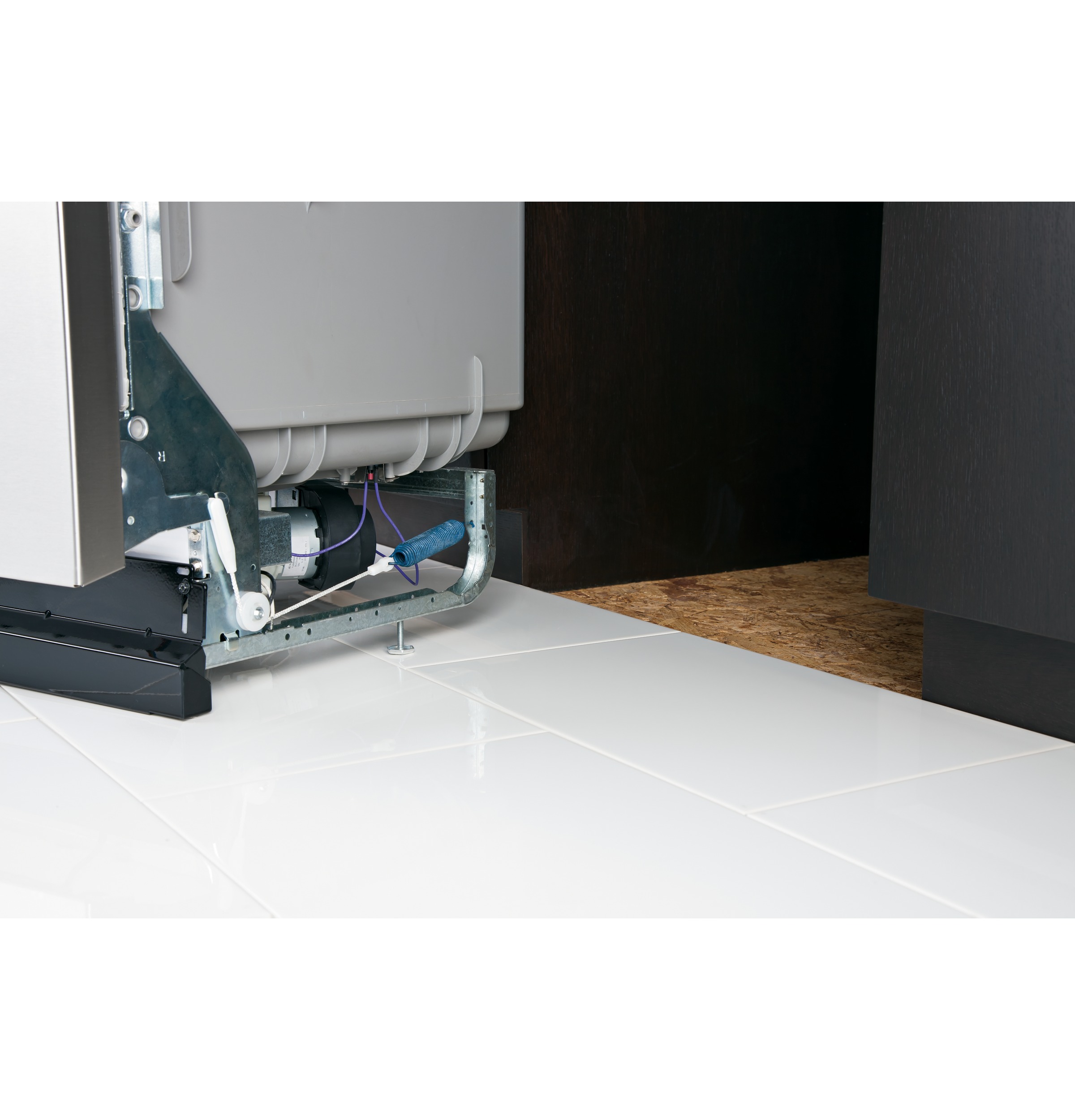

Built-up floor capable

Installation over built-up floors is simple with the ability to adjust the dishwasher height

Clean design inner door

The clean, attractive appearance features no visible hardware, so it’s also easy to maintain

54 dBA with status light on door

A dishwasher this quiet has a multi-colored status light to let you know it is running

American gray plastic interior

Heavy-duty material is designed for years of dependability and has an attractive finish

Auto sense cycle

Automatically adjusts to soil level to maximize energy savings and ensure clean dishes

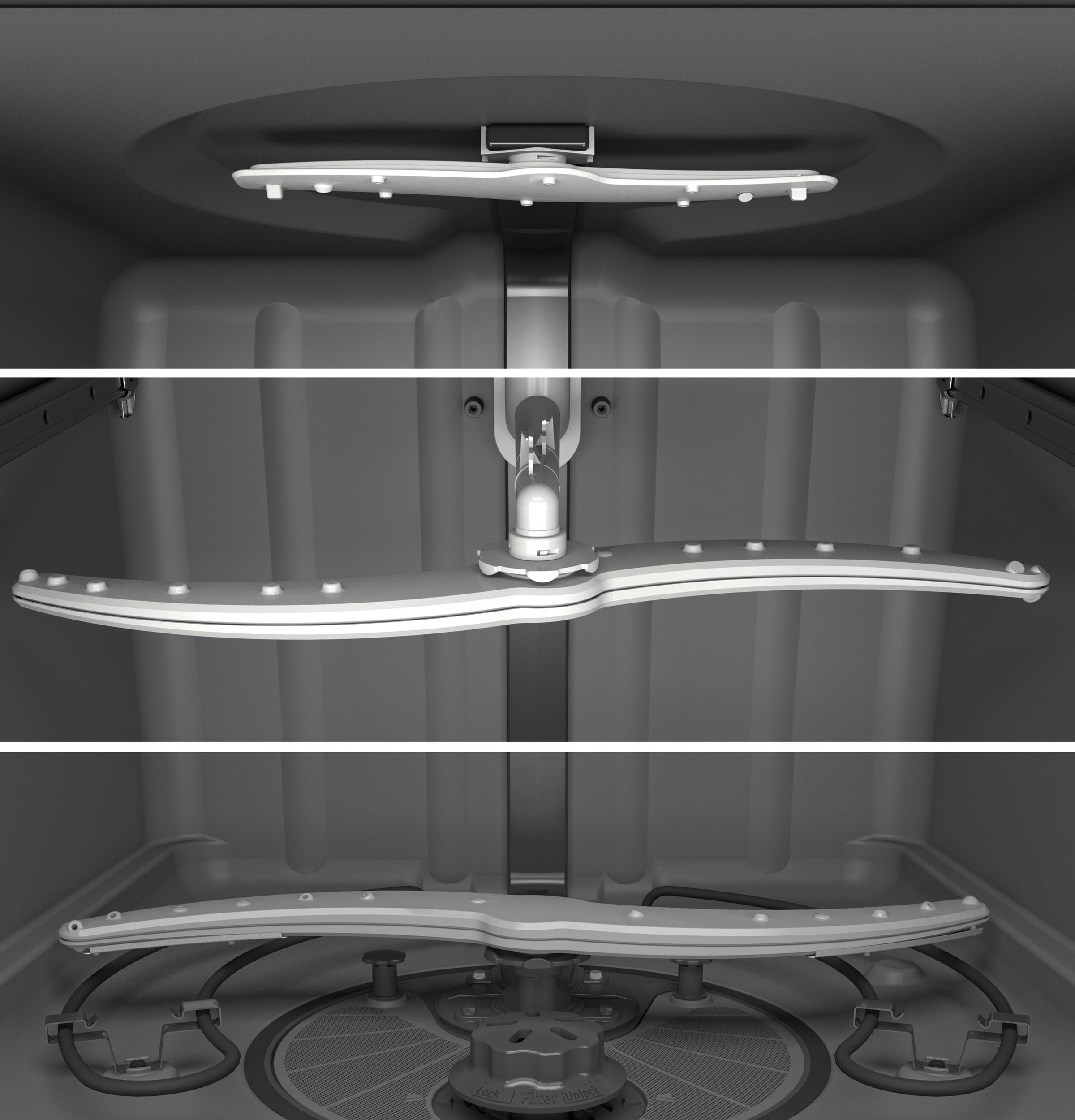

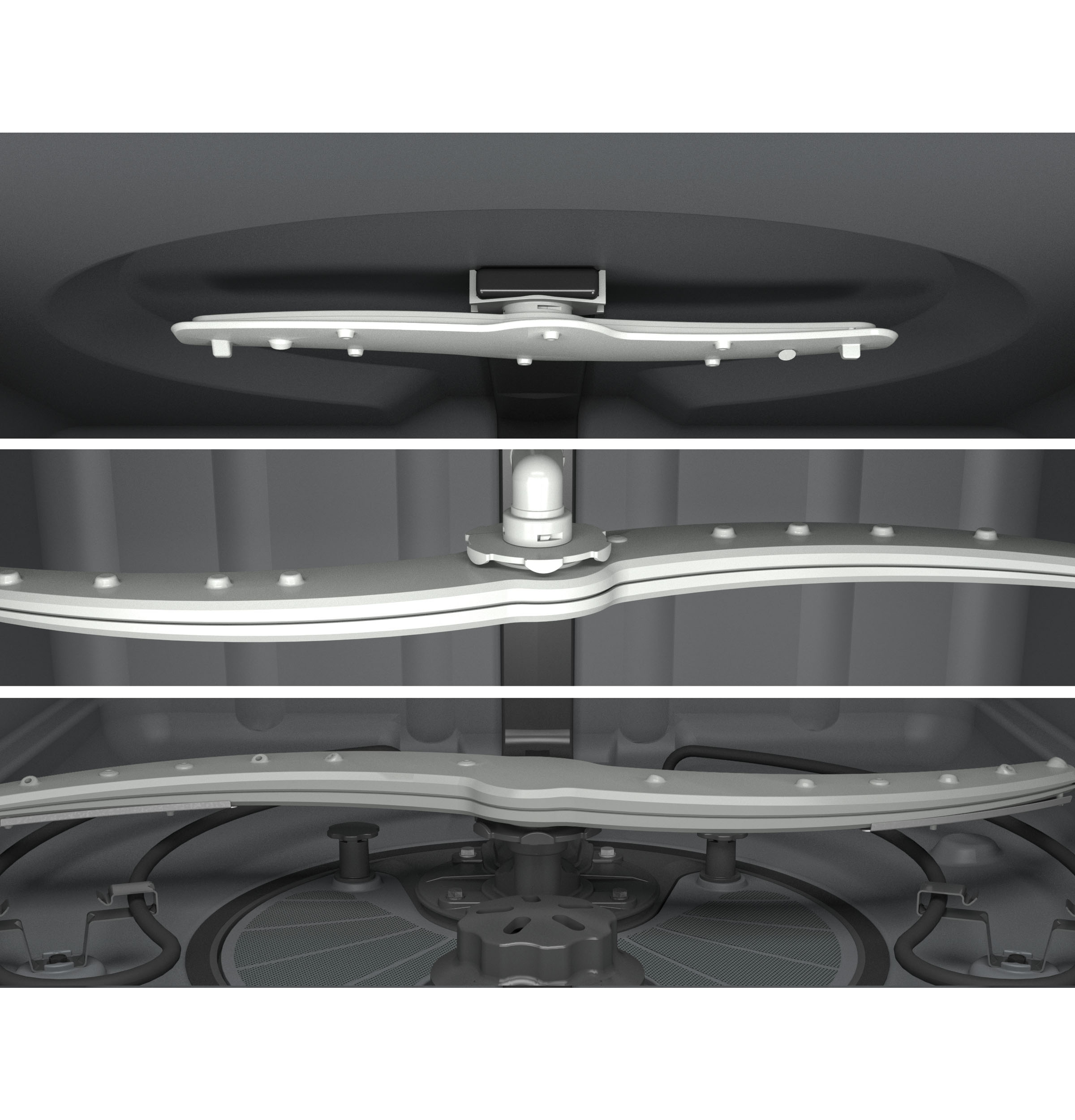

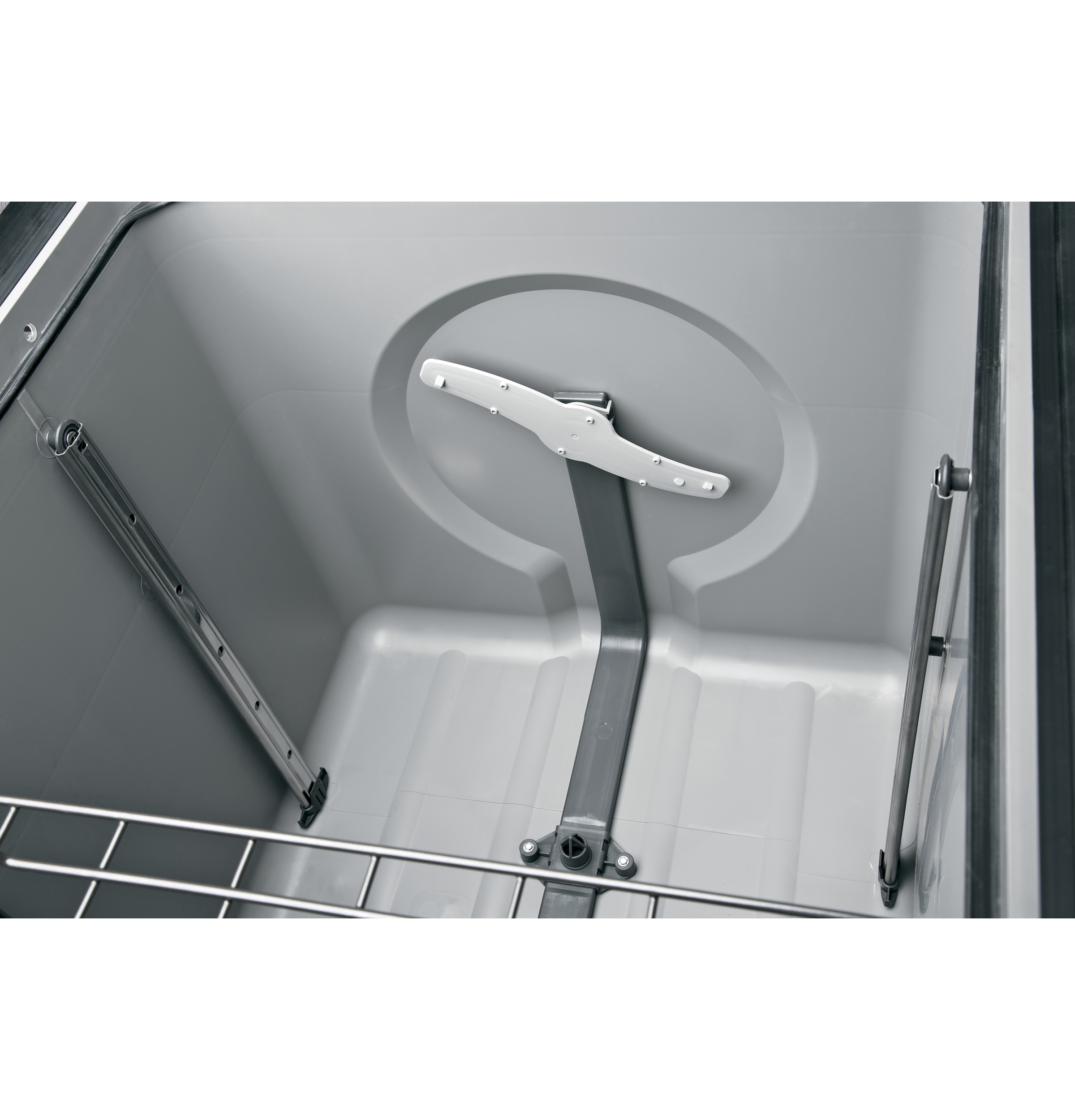

3 pressurized, full-coverage wash arms

Expect exceptionally clean and table-ready dishes with powerful wash arms that deliver 65% more wash power to the top and bottom racks compared to previous GE models* (*Delivered separately to the upper and lower racks)

Piranhaā„¢ hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

SpaceMakerĀ® silverware basket

Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door

Certifications

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

NSF Certified certification

NSF Certified

Specifications

Warranty

Parts1 Year
Labor1 Year

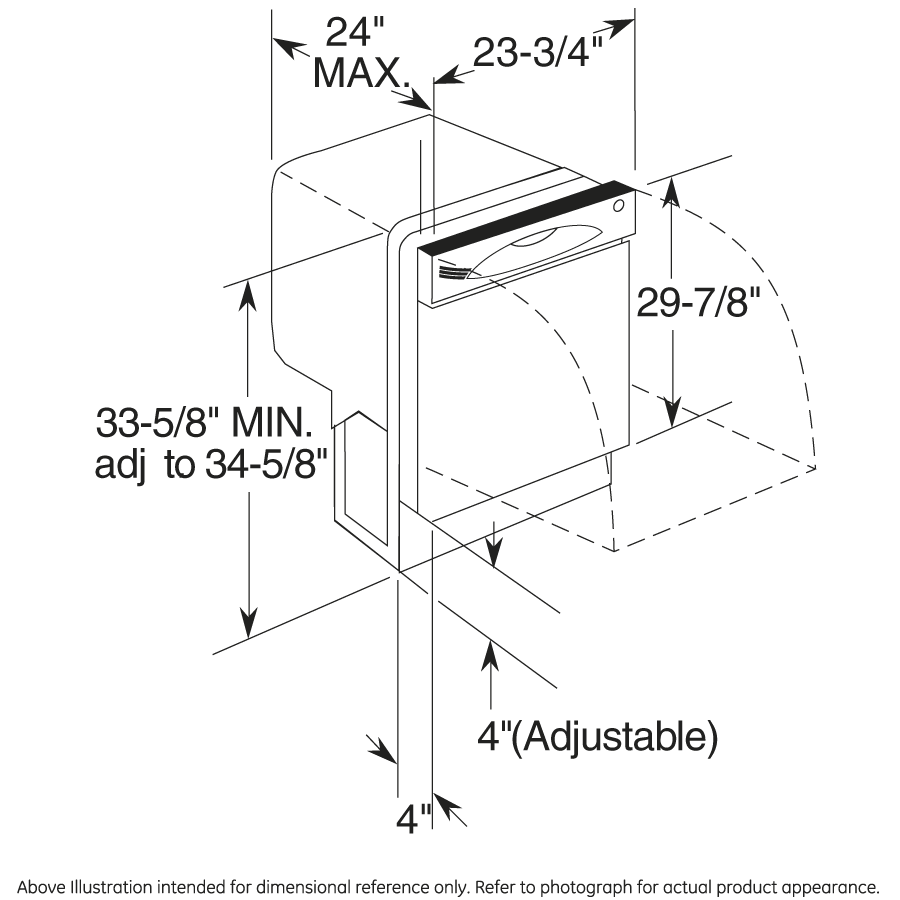

WEIGHTS & DIMENSIONS

Overall Height34 in
Overall Depth24 in
Height w/ Legs Retracted - Minimum Height33.375 in
Cabinet Width24 in
Net Weight62 lb
Approximate Shipping Weight77 lb
Height w/Legs Extended - Maximum Height34.625 in
Overall Width23 3/4 in

FEATURES

Wash SystemInfiniCleanā„¢ Wash System
SensorClean Sensor
Lower RackSpaceMaker Silverware Basket
Tub TypeTall Tub
Leveling System4 Leveling Legs
Number of Place Settings16
Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
Tub LinerPlastic
Rack FeaturesSpaceMaker Silverware Basket in door with cell covers
Upper RackBall-Tip Tines
Dishwasher OptionsWash TempBoost
LatchCenter Pull
Wash ArmsUpper
Number of Options8
StyleBuilt-In
Dishwasher Control FeaturesLast Cycle Memory
Wash System FeaturesPiranhaā„¢ Hard Food Disposer with removable filter
Door LinerClean Design with Plastic
Dishwasher CyclesNormal Wash
Number of Cycles4
Tub and Door LinerAmerican Gray Plastic Tub Interior
Rack ColorPearlescent Dark Gray
DispenserRinse Aid with Indicator and Adjustment
Exterior StyleTraditional
Dishwasher Drying FeaturesHeated Dry - On/Off

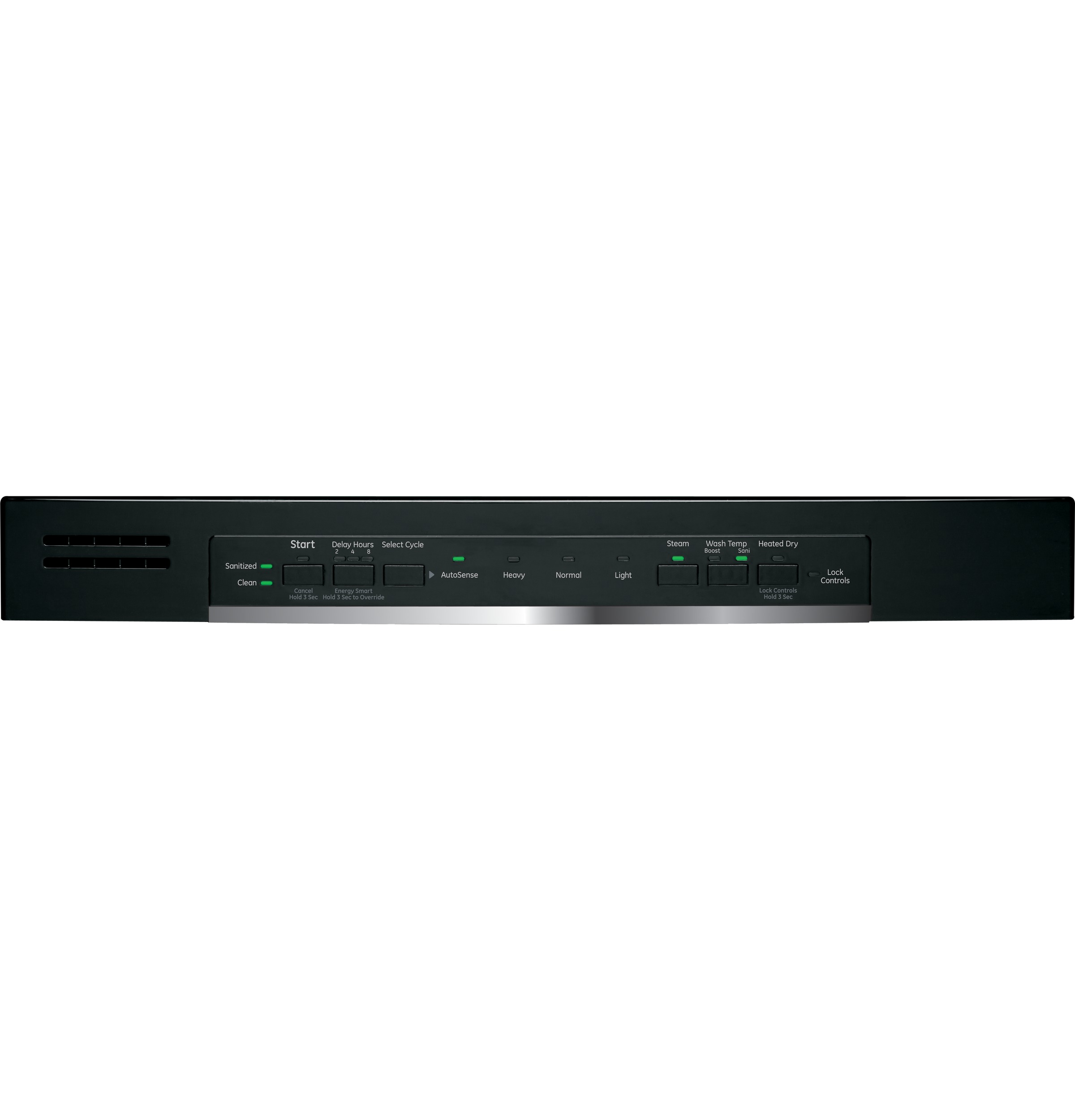

Control TypeFront Controls
Racking SystemTowerless
Control TypeElectronic Tactile Buttons
Dishwasher Control Features1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Dishwasher Control FeaturesAudible End-of-Cycle Signal
Dishwasher CyclesAutoSense
Dishwasher CyclesHeavy Wash
Dishwasher CyclesLight Wash
Dishwasher Drying Features4-Pass Multi-Wattage Wash & Dry Element
Dishwasher OptionsChild Lock
Dishwasher OptionsDelay Start 2/4/8 Hr.
Dishwasher OptionsSani (Certified to NSF Standard 184)
Dishwasher OptionsHeated Dry
Dishwasher OptionsSteam PreWash
Dishwasher OptionsStart/Reset
Dishwasher OptionsEnergy Smart
Lower RackBall-Tip Tines

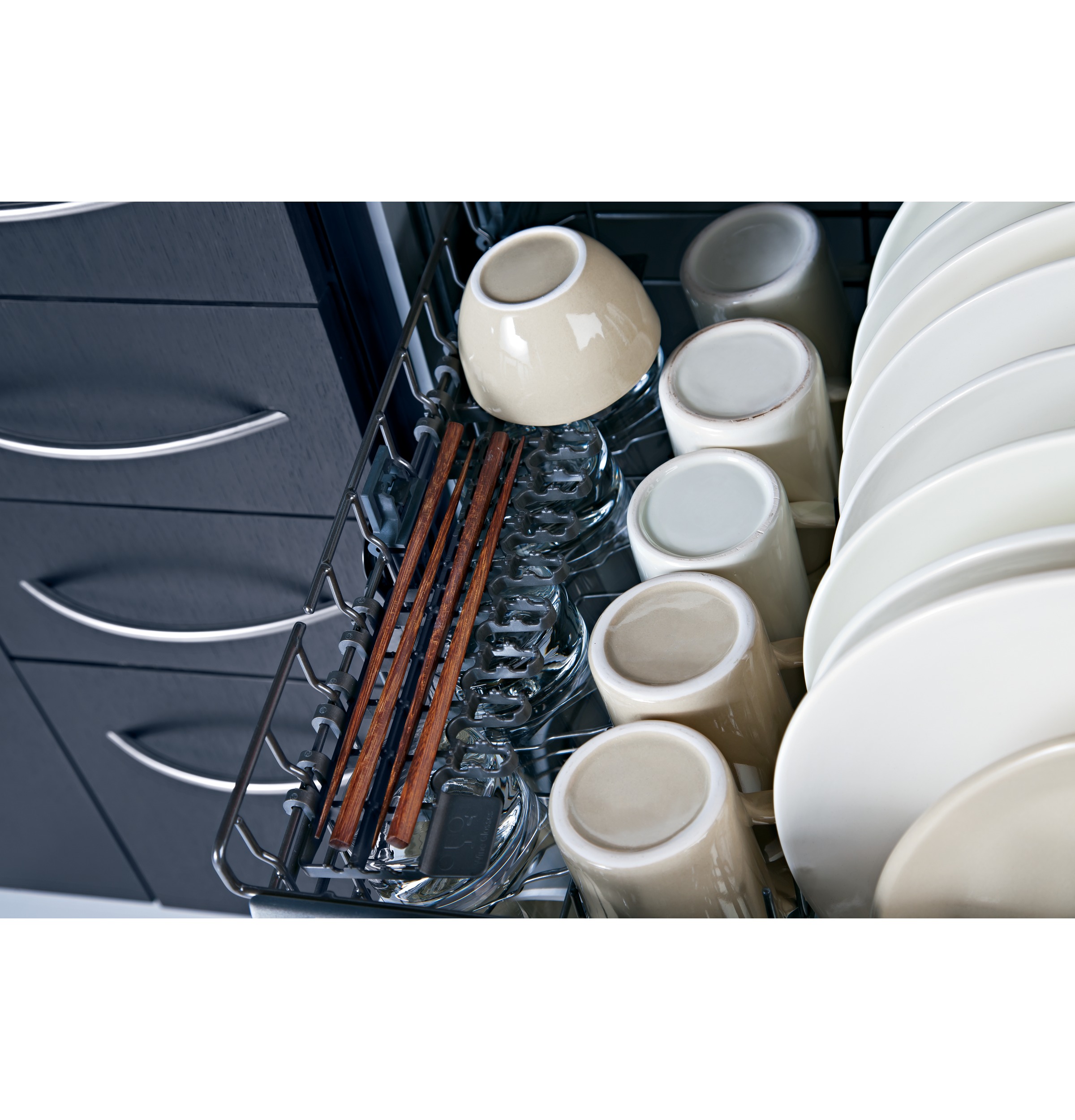

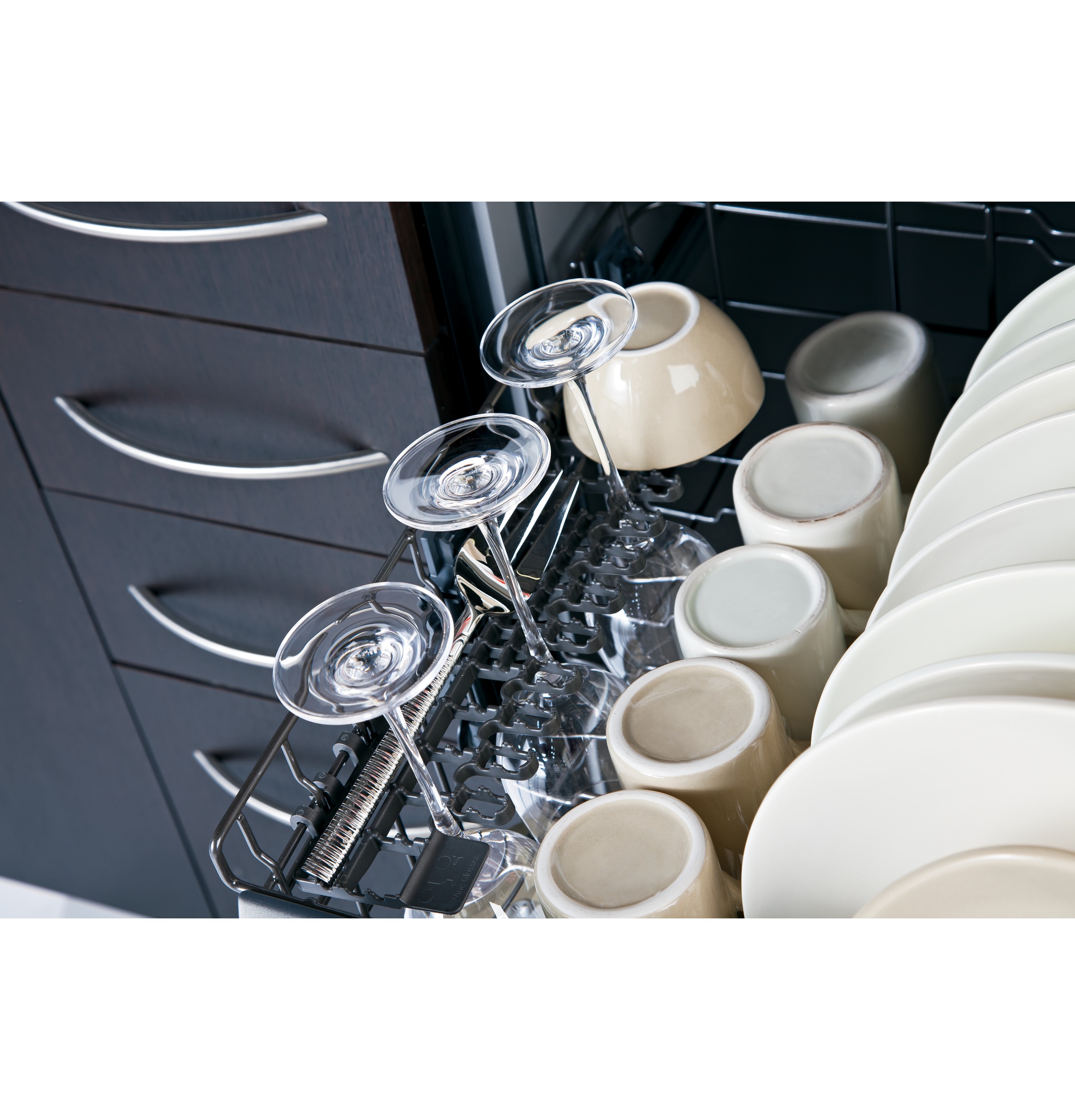

Rack Features2 Utility Shelves with Stem Safe - Upper
Rack FeaturesBall-Tipped Tines
Rack FeaturesSmall Items Basket
Racking SystemPearlescent Dark Gray
Upper Rack2 Stem Safe Shelves
Wash Arms3 Pressurized Wash Arms
Wash ArmsLower
Wash ArmsMiddle
Wash System FeaturesDual Pumps and Motors
Wash System FeaturesAutomatic Temperature Control
Wash System FeaturesDrain Pump
Wash System FeaturesDedicated Silverware Jets

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance

POWER / RATINGS

Calrod Heater Watts415/800
Volts/Hertz/Amps120v; 60Hz; 7.1A

ECONOMICAL / QUIET

Door InsulationMastic
Quiet Package54 dBA
Motor TypeSingle Speed
Quiet FeaturesSealed Toe Kick
Door InsulationInsulation

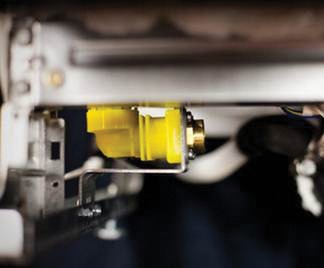

Quiet FeaturesQuiet Water Valve

APPEARANCE

Door AppearanceContour door
InstallationSide or Top Mount Install Brackets Included
Handle ColorColor-Matched
Door StyleLong Door
Color AppearanceStainless Steel
Handle DesignRecessed
Control Panel ColorBlack
InstallationBuilt-Up Floor Capable

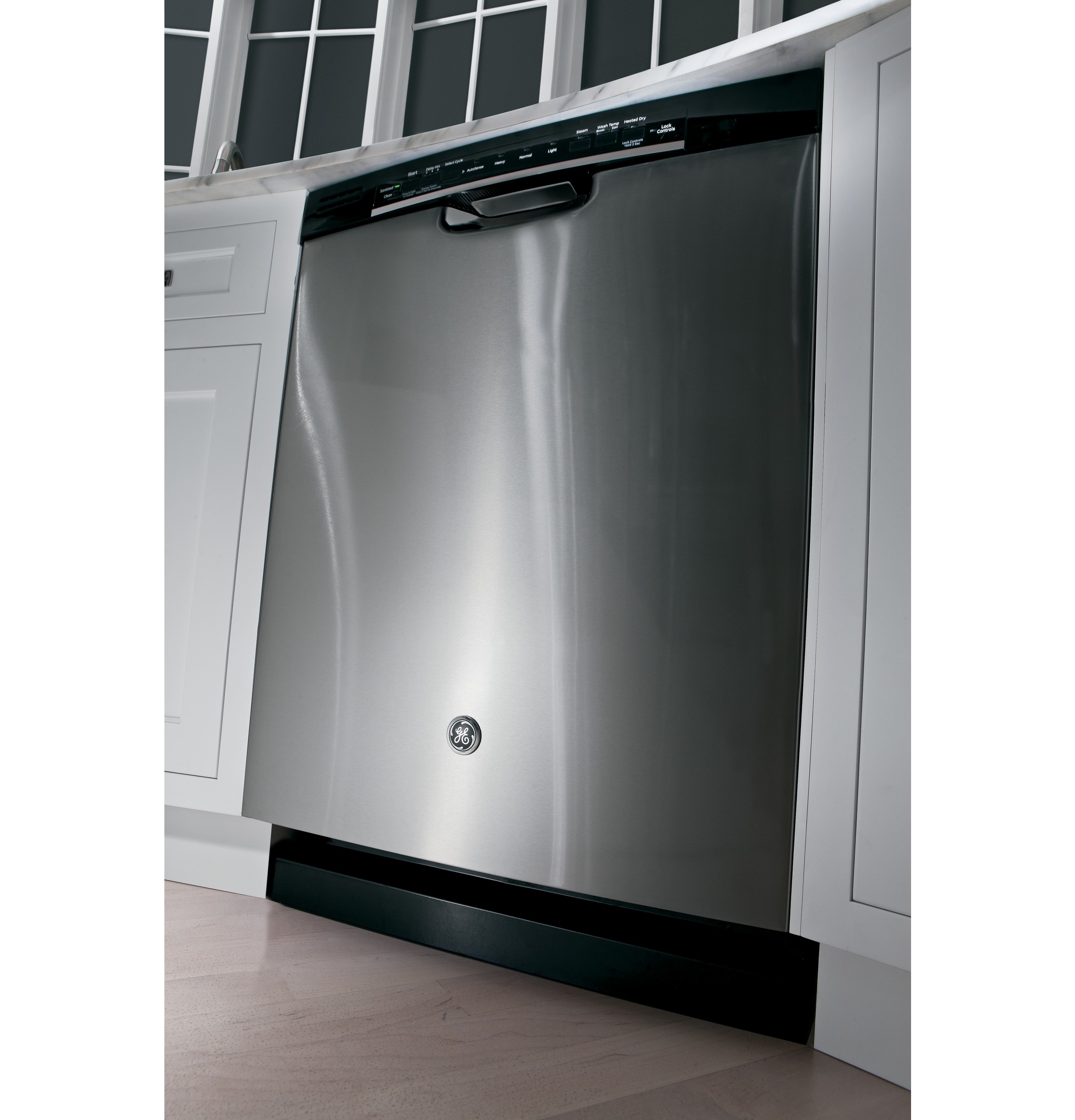

InstallationFlush Cabinet Installation

Dimensions & Weight

Width23.75 in.
Height34 in.
Length24 in.
Weight62 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.75 in.
Shipping Height39 in.
Shipping Length29 in.
Shipping Weight102 lbs.
Total of Shipping Weight102 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.22 ft³
Dimensional Weight139.42 lbs.
Total of Cubes11.22 ft³
Total of Dimensional Weight139.42 lbs.
