Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC - 194

BroanBroan brand logo

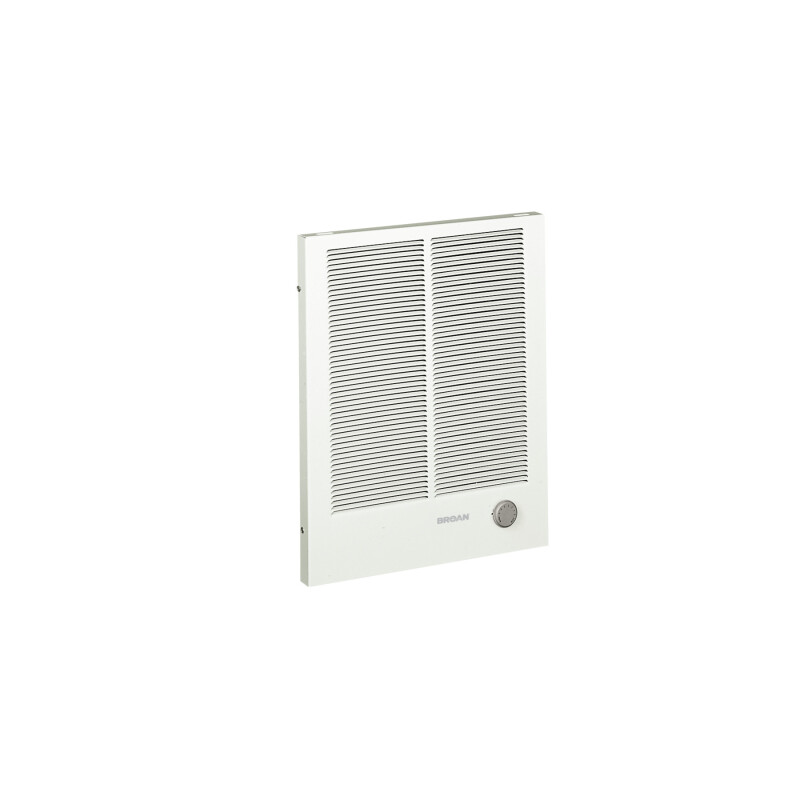

Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC

Model: 194

Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC 194Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC 194
Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC 194
Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC 194

Color : White

Wall Heater, High Capacity, 1500/3000W 240VAC, 1125/2250W 208VAC 194
White

Key Features

  • 3,000-watt heater at 240 volts can be converted to produce 1,125 watts at 208 VAC, 1,500 watts at 240 VAC or 2,250 watts at 208 VAC

  • Adjustable, built-in heavy-duty disc-type thermostat with a security cover

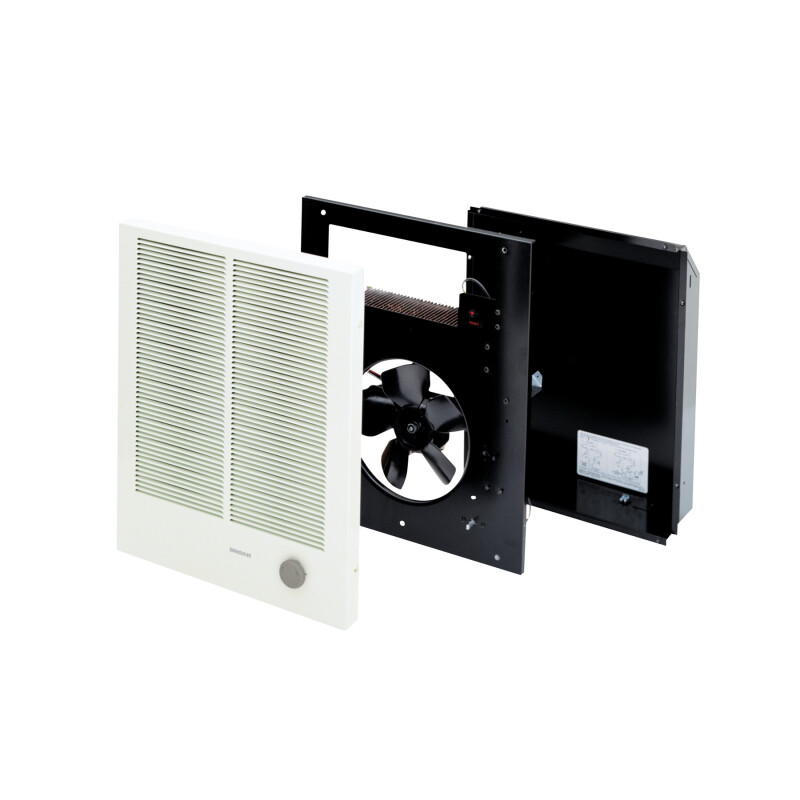

  • Steel-sheathed, plate-finned, heavy-duty enclosed heating element provides quick and quiet heat

  • High-capacity, factory-wired design

  • Lubricated motor helps provide years of trouble-free operation

  • UL listed

Description

The 16-13/32 in. x 20-19/64 in. 3,000-Watt White High-Capacity Wall Heater comes with an adjustable, built-in heavy-duty disc-type thermostat for temperature regulation and a protective security cover. This wall heater offers a lubricated motor that helps provide years of convenient maintenance-free operation.
Read More

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications

Features

3,000-watt heater at 240 volts can be converted to produce 1,125 watts at 208 VAC, 1,500 watts at 240 VAC or 2,250 watts at 208 VAC

Adjustable, built-in heavy-duty disc-type thermostat with a security cover

Steel-sheathed, plate-finned, heavy-duty enclosed heating element provides quick and quiet heat

High-capacity, factory-wired design

Lubricated motor helps provide years of trouble-free operation

UL listed

Specifications

Product Details

Auto Shut-offYes
cUL ListedNo
Heater TypeFan-Forced Wall
Number Of Heat SettingsVariable (Infinite)
Project PackNo
ThermostatYes
UL ListedYes
Coverage Area (sq ft)200-300
BTU/hr at 120 Volts0
BTU/hr at 208 Volts7680
BTU/hr at 240 Volts10204
Grille Dimensions - Width16.375
Housing Length/Depth3.75
Watts And Amps At 208 Volts10.82
Watts And Amps At 240 Volts12.5
Watts at 208 VAC2250
Watts at 240 VAC3000
Manufacturer Warranty1 Year

Dimensions & Weight

Width16.38 in.
Height-
Length3.75 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width21.38 in.
Shipping Height-
Shipping Length8.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
