8-Inch 200 CFM Vertical Discharge Fan, Square Plastic Grille, 8.5 Sones - 505

BroanBroan brand logo

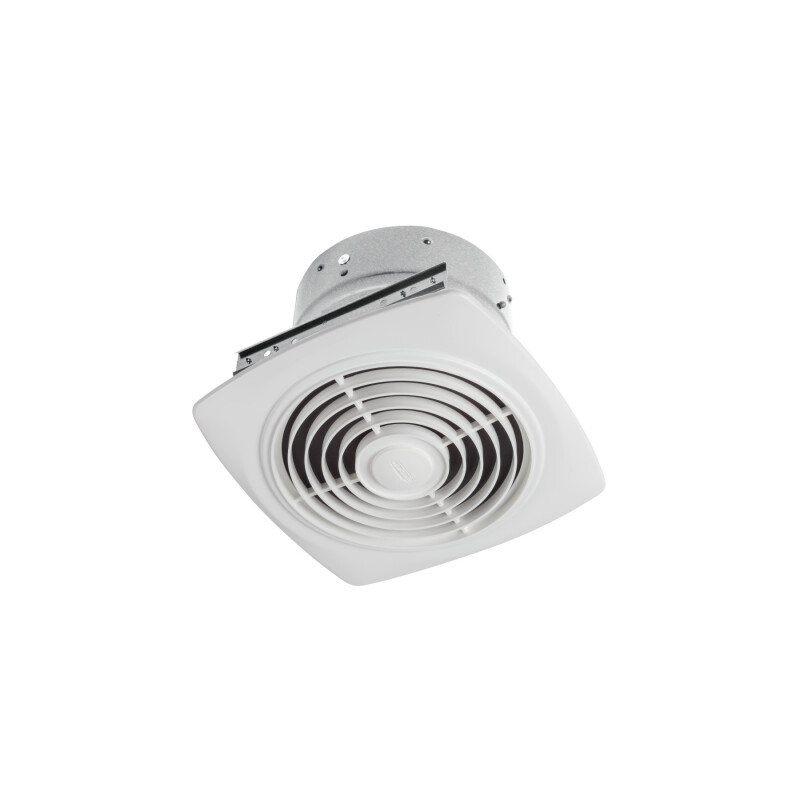

8-Inch 200 CFM Vertical Discharge Fan, Square Plastic Grille, 8.5 Sones

Model: 505

8-Inch Vertical Discharge Fan, 200 CFM 5058-Inch Vertical Discharge Fan, 200 CFM 5058-Inch Vertical Discharge Fan, 200 CFM 5058-Inch Vertical Discharge Fan, 200 CFM 5058-Inch Vertical Discharge Fan, 200 CFM 505
8-Inch Vertical Discharge Fan, 200 CFM 505
8-Inch Vertical Discharge Fan, 200 CFM 505
8-Inch Vertical Discharge Fan, 200 CFM 505
8-Inch Vertical Discharge Fan, 200 CFM 505
8-Inch Vertical Discharge Fan, 200 CFM 505

Color : White

8-Inch Vertical Discharge Fan, 200 CFM 505
White

Key Features

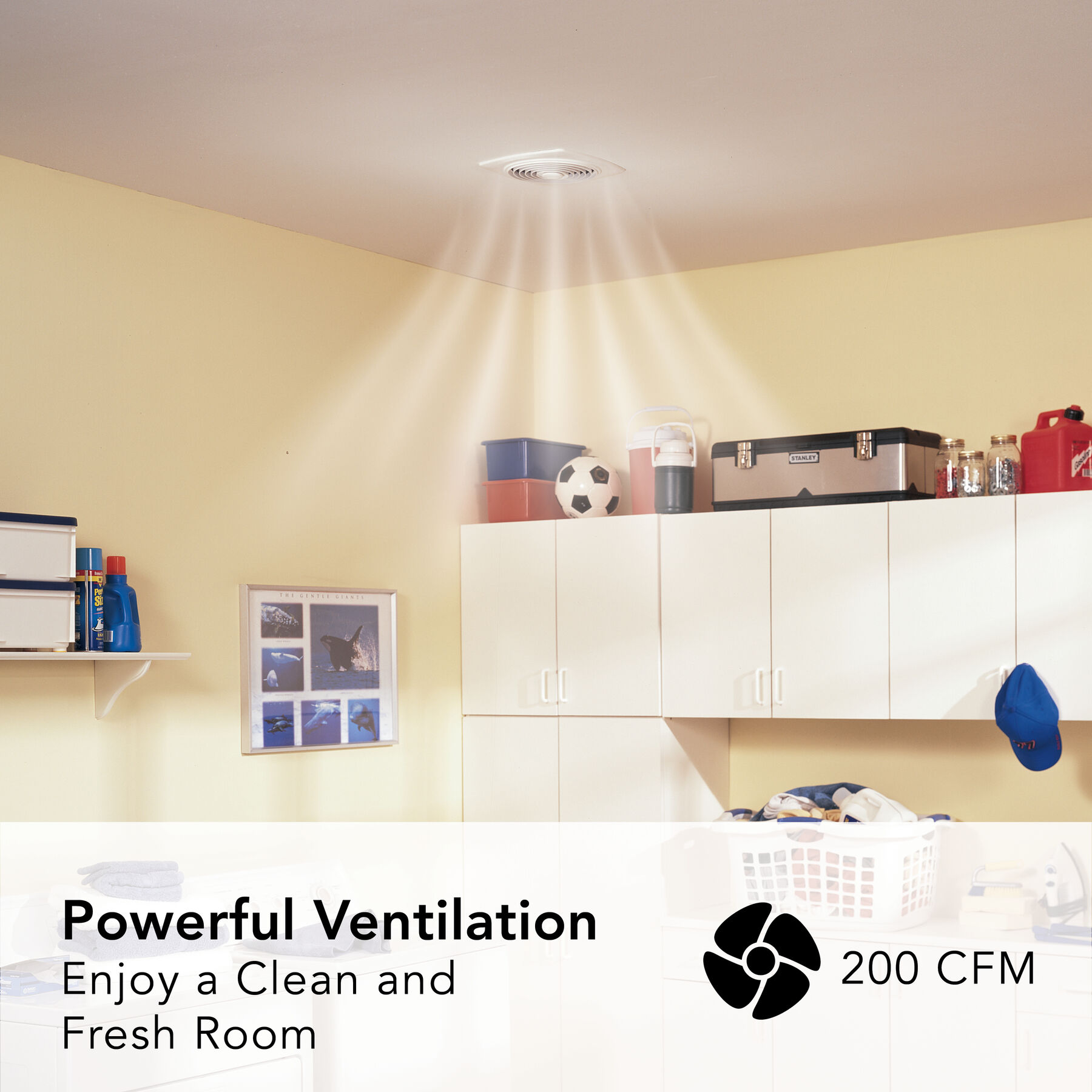

  • 200 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms

  • 8.5 audible sones provides powerful ventilation

  • Permanently lubricated motor

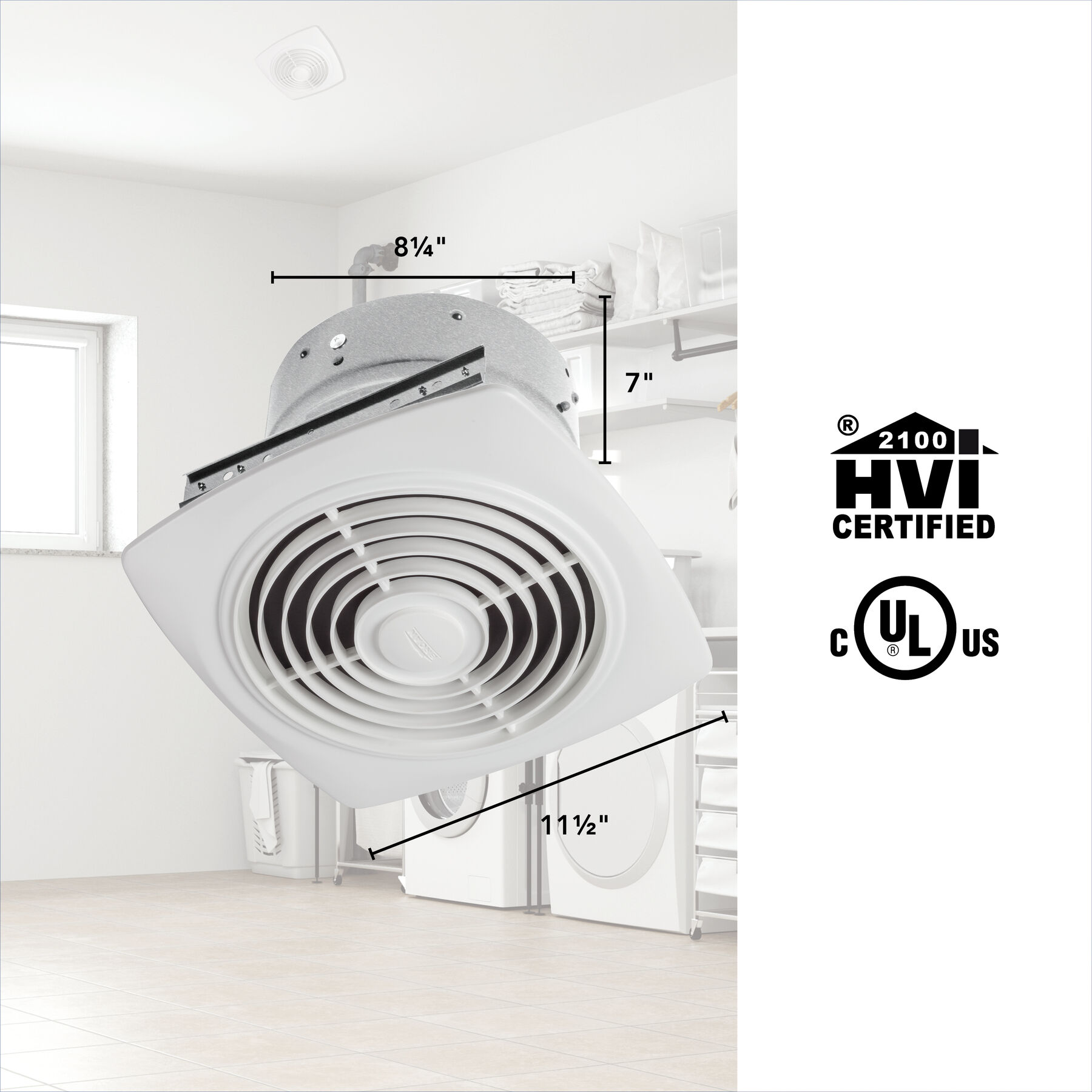

  • Housing 8-1/4 in. Dia x 7 in. high

  • Duct size 8 in. Dia

  • Grille - 11.5 square

  • Steel mounting brackets with keyhole slots for fast installation

  • UL listed

Read More

Description

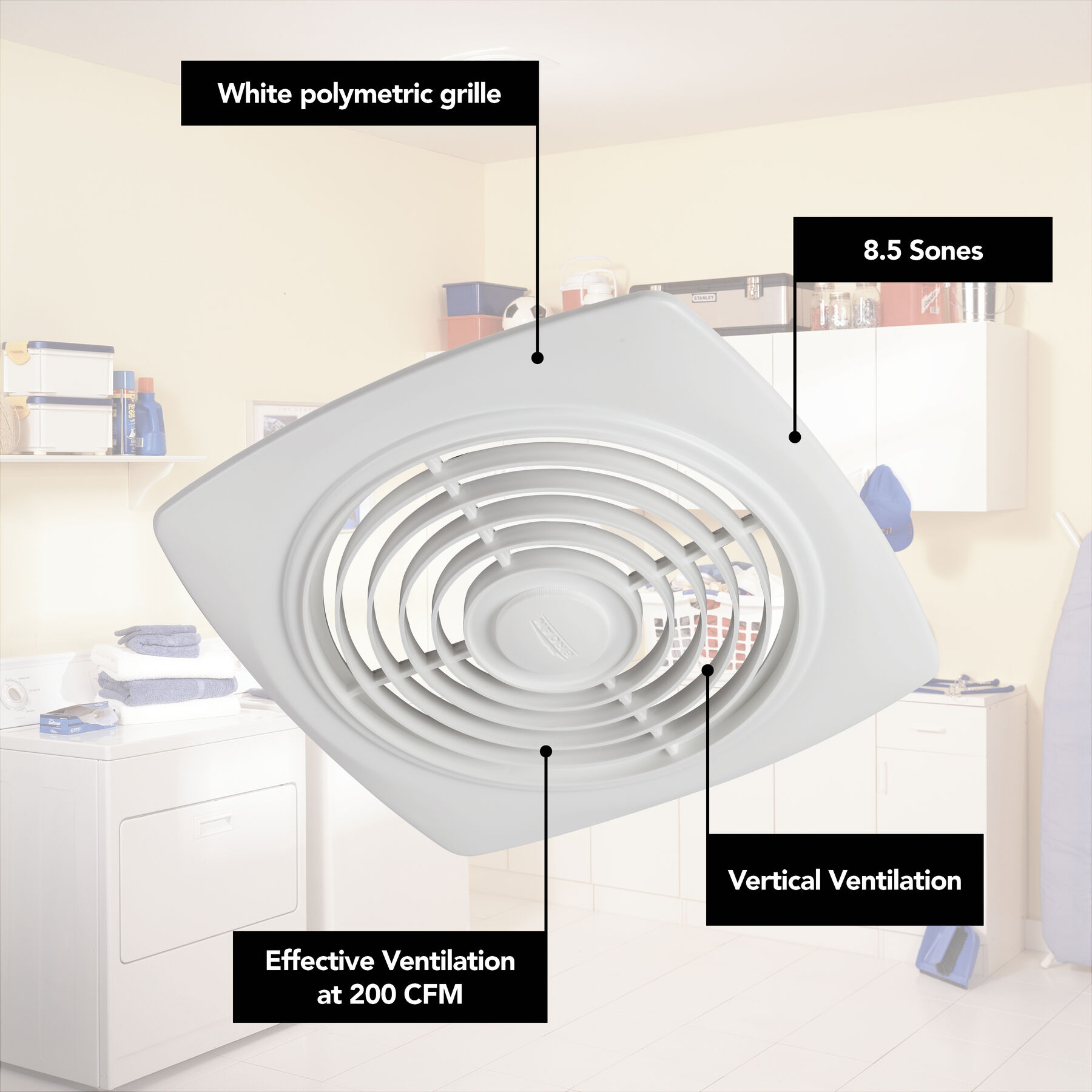

The Broan-NuTone® 200 CFM Exhaust Fan in problem rooms, such as laundry rooms, kitchens or recreational rooms. The fan's permanently-lubricated motor operates at 8.5 sones for limited distribution. The fan features durable galvanized steel housing and a white polymeric grille that can be painted to match any room's decor. For fast installation, the fan offers steel mounting brackets with keyhole slots.
Read More

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications

Features

200 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms

8.5 audible sones provides powerful ventilation

Permanently lubricated motor

Housing 8-1/4 in. Dia x 7 in. high

Duct size 8 in. Dia

Grille - 11.5 square

Steel mounting brackets with keyhole slots for fast installation

UL listed

Galvanized steel housing for superior durability

Specifications

Product Details

CFM200
Duct Size8
ENERGY STAR® certifiedNo
Grille Length11.5
Grille Width11.5
Housing Dimensions8-1/4" Round x 7"
Sound Level (Sones)8.5
UL ListedYes
Grille FinishWhite
Humidity SensingNo
Motion SensingNo
Motor Engineered For Continuous OperationNo
Night LightNo
Radiation Damper AvailableNo
Room Side InstallationNo
UL Listed for use over bathtubs or showers when connected to a GFCI circuitNo
Heater Wattage0
Rated Amps1.5
Voltage120
Can Be Used To Comply With Title 24No
Minimum Construction Space Required2" x 8"
Manufacturer Warranty1 Year
High Efficiency LuminaireNo

Dimensions & Weight

Width11.5 in.
Height8.25 in.
Length-
Weight-
Housing Dimensions8-1/4" Round x 7"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width16.5 in.
Shipping Height13.25 in.
Shipping Length-
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
