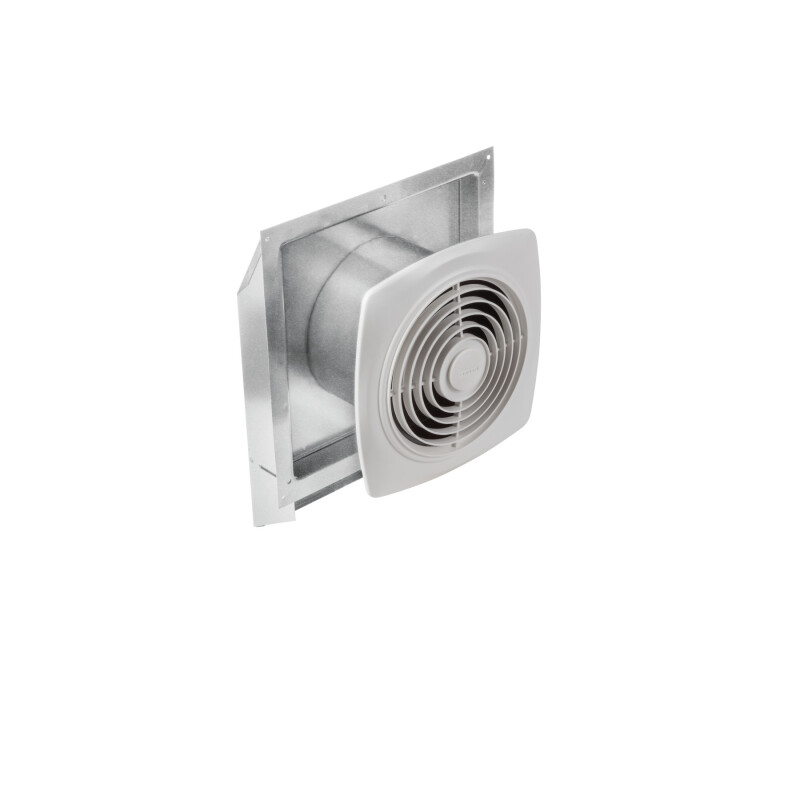

290 CFM Through-Wall Ventilation Fan - 508

290 CFM Through-Wall Ventilation Fan

Model: 508

290 CFM Through-Wall Ventilation Fan 508290 CFM Through-Wall Ventilation Fan 508290 CFM Through-Wall Ventilation Fan 508290 CFM Through-Wall Ventilation Fan 508290 CFM Through-Wall Ventilation Fan 508
290 CFM Through-Wall Ventilation Fan 508
290 CFM Through-Wall Ventilation Fan 508
290 CFM Through-Wall Ventilation Fan 508
290 CFM Through-Wall Ventilation Fan 508
290 CFM Through-Wall Ventilation Fan 508

Color : White

290 CFM Through-Wall Ventilation Fan 508
White

Key Features

  • 290 CFM - ventilate up to 285 sq. ft.

  • 7.5 Audible Sones

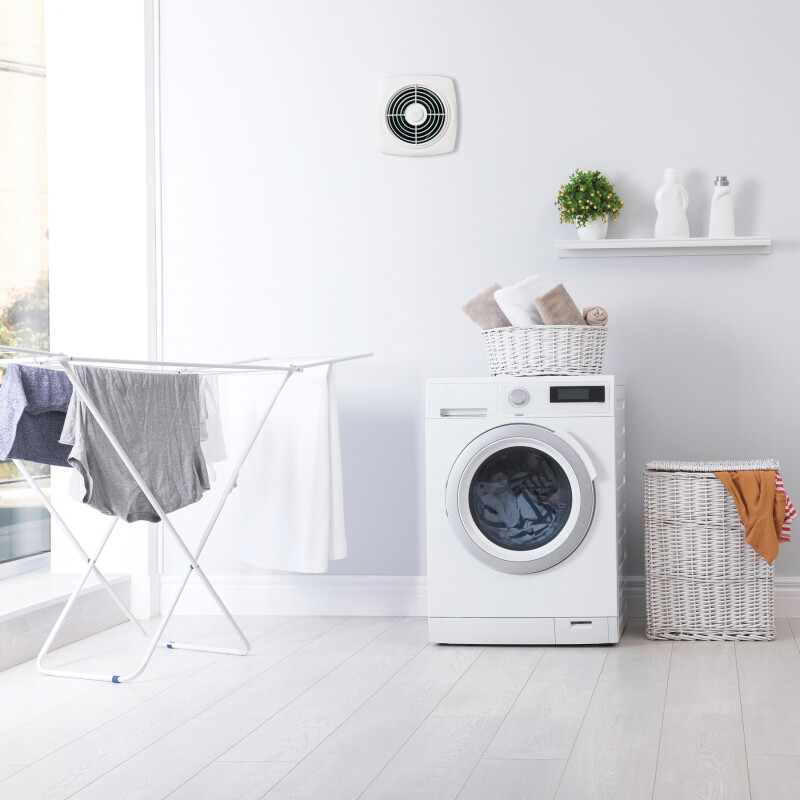

  • Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

  • Built-in exterior wall cap/vent, no ducting needed for installation

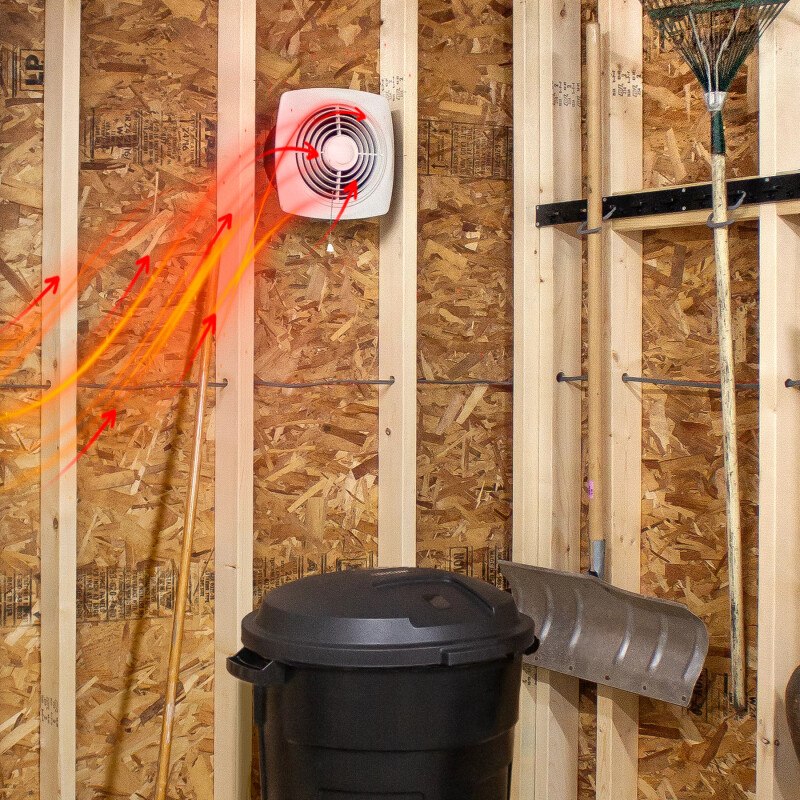

  • Effectively ventilate a one or two car garage, either attached or detached from the home

  • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage

  • Tested and approved for extreme hot and cold weather

  • Motor assembly offers a fast and easy twist-lock installation

Read More

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

290 CFM - ventilate up to 285 sq. ft.

7.5 Audible Sones

Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

Built-in exterior wall cap/vent, no ducting needed for installation

Effectively ventilate a one or two car garage, either attached or detached from the home

Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage

Tested and approved for extreme hot and cold weather

Motor assembly offers a fast and easy twist-lock installation

Housing adjusts to fit walls from 4½"–9½" thick

Galvanized steel housing for superior protection against the elements and wear and tear

Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)

Pair this fan with a Broan-NuTone® motion or humidity sensing wall control to provide automatic ventilation (sold separately)

Certifications

UL Listed certification

UL Listed

Specifications

Product Details

CFM290
Duct Size10
ENERGY STAR® certifiedNo

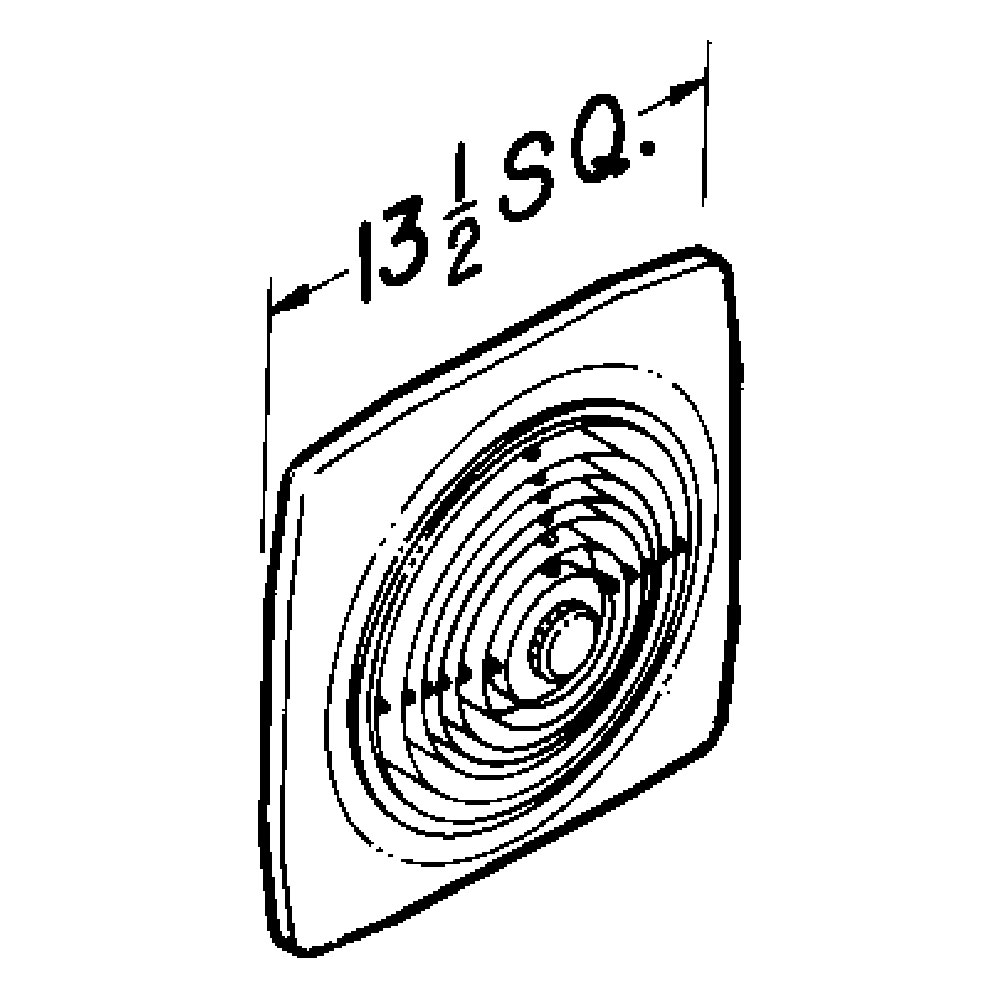

Grille Length13.5
Grille Width13.5

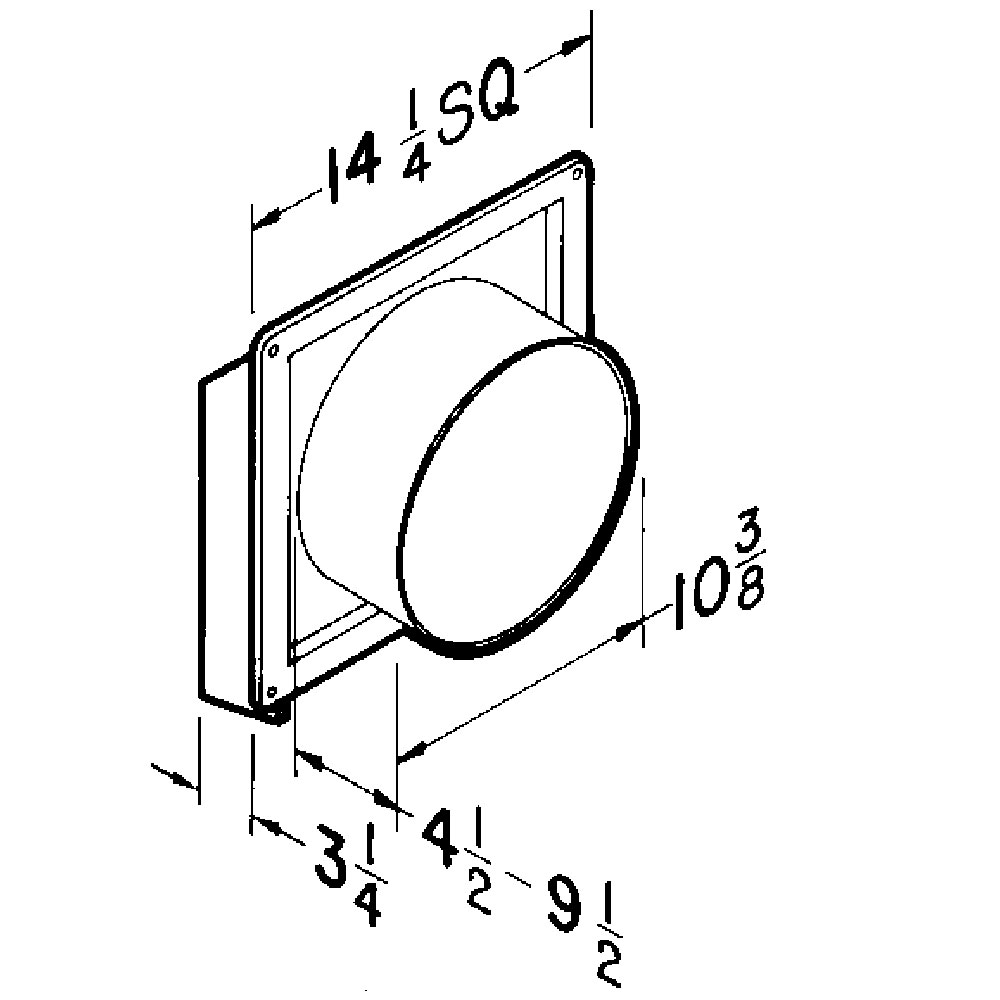

Housing Dimensions14-1/4" x 14-1/4" x 9-1/2"
Sound Level (Sones)7.5
UL ListedYes
Grille FinishWhite
Humidity SensingNo
Motion SensingNo
Motor Engineered For Continuous OperationNo
Night LightNo
Radiation Damper AvailableNo
Room Side InstallationNo
UL Listed for use over bathtubs or showers when connected to a GFCI circuitNo
Heater Wattage0
Rated Amps1.7
Voltage120
Can Be Used To Comply With Title 24No
Manufacturer Warranty1 Year
High Efficiency LuminaireNo

Dimensions & Weight

Width13.5 in.
Height14.25 in.
Length9.5 in.
Weight-
Housing Dimensions14-1/4" x 14-1/4" x 9-1/2"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width18.5 in.
Shipping Height19.25 in.
Shipping Length14.5 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.06 ft³
Dimensional Weight13.15 lbs.
Total of Cubes1.06 ft³
Total of Dimensional Weight13.15 lbs.
