200 CFM Through-Wall Ventilation Fan - 509
Color : White
Key Features
200 CFM - ventilate up to 195 sq. ft.
8.5 Audible Sones
Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

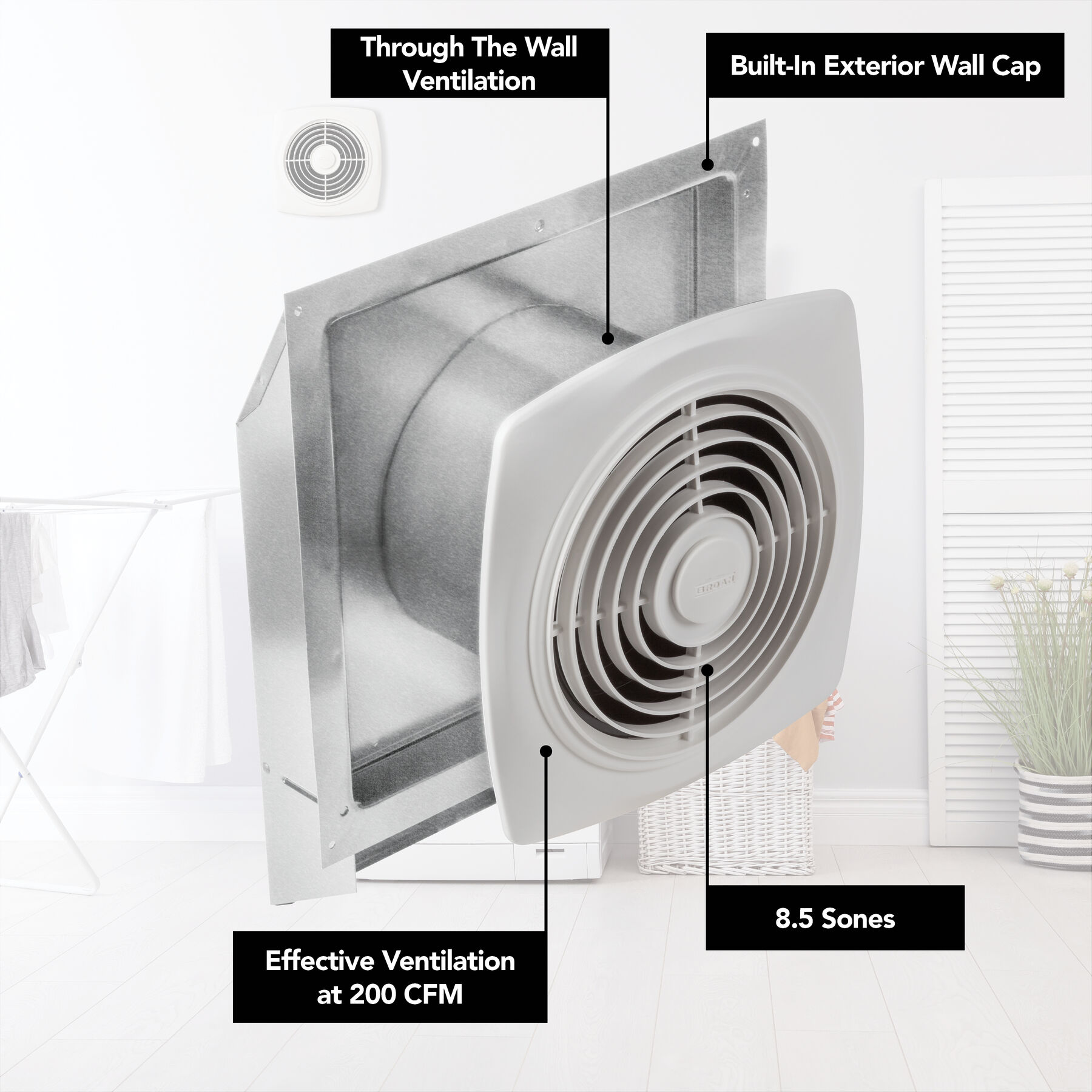

Built-in exterior wall cap/vent, no ducting needed for installation
Effectively ventilate a one car garage, either attached or detached from the home
Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
Tested and approved for extreme hot and cold weather
Motor assembly offers a fast and easy twist-lock installation
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
200 CFM - ventilate up to 195 sq. ft.
8.5 Audible Sones
Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
Built-in exterior wall cap/vent, no ducting needed for installation
Effectively ventilate a one car garage, either attached or detached from the home
Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
Tested and approved for extreme hot and cold weather
Motor assembly offers a fast and easy twist-lock installation

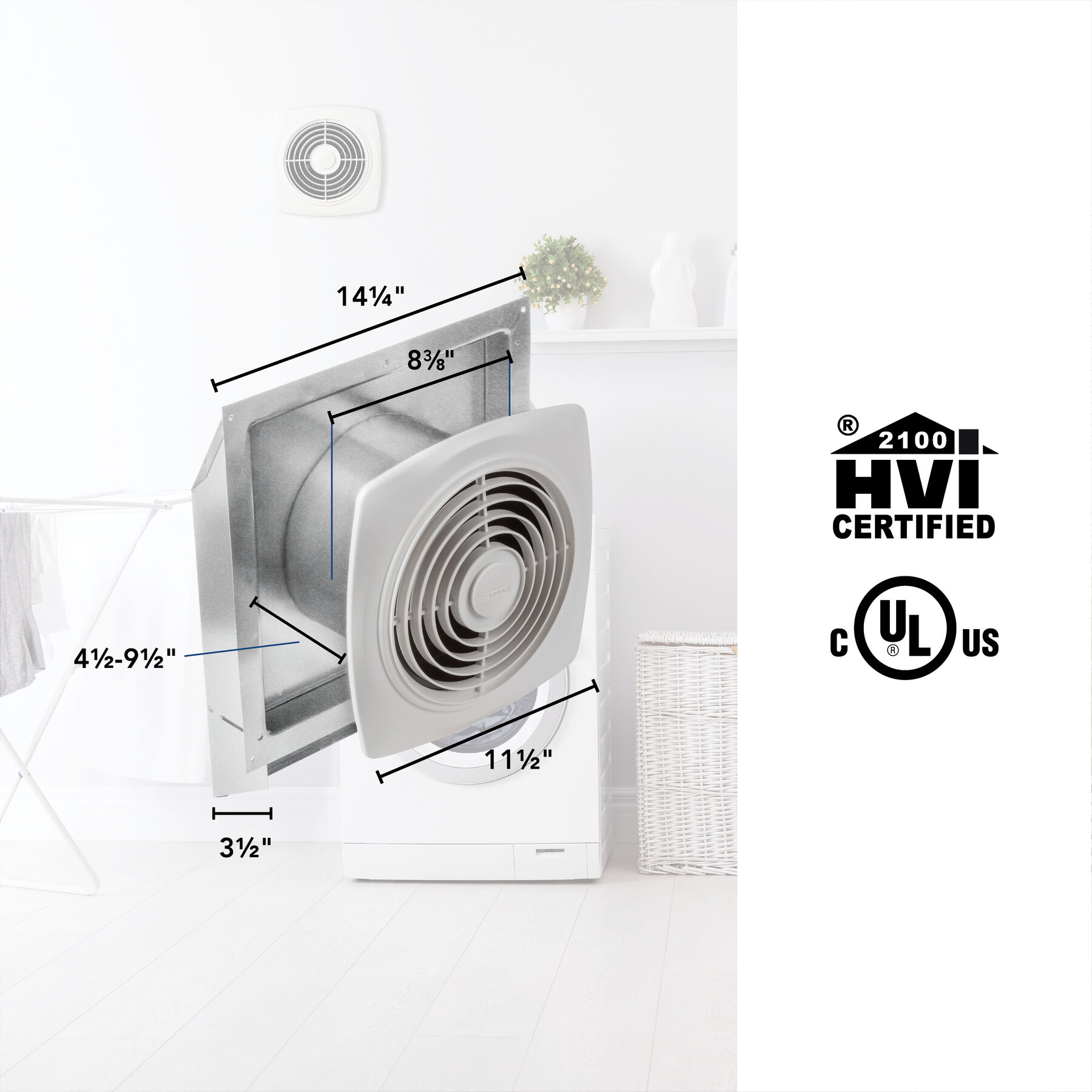

Housing adjusts to fit walls from 4½"–9½" thick
Galvanized steel housing for superior protection against the elements and wear and tear
Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (wall control sold separately)
Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (wall control sold separately)
Specifications
Product Details
| CFM | 200 |
| Duct Size | 8 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 11.5 |
| Housing Dimensions | 14-1/4" x 14-1/4" x 9-1/2" |
| Sound Level (Sones) | 8.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 170 |
| Rated Amps | 1.8 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 11.5 in. |
| Height | 14.25 in. |
| Length | 9.5 in. |
| Weight | - |
| Housing Dimensions | 14-1/4" x 14-1/4" x 9-1/2" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 16.5 in. |
| Shipping Height | 19.25 in. |
| Shipping Length | 14.5 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.9 ft³ |
| Dimensional Weight | 9.38 lbs. |
| Total of Cubes | 0.9 ft³ |
| Total of Dimensional Weight | 9.38 lbs. |
