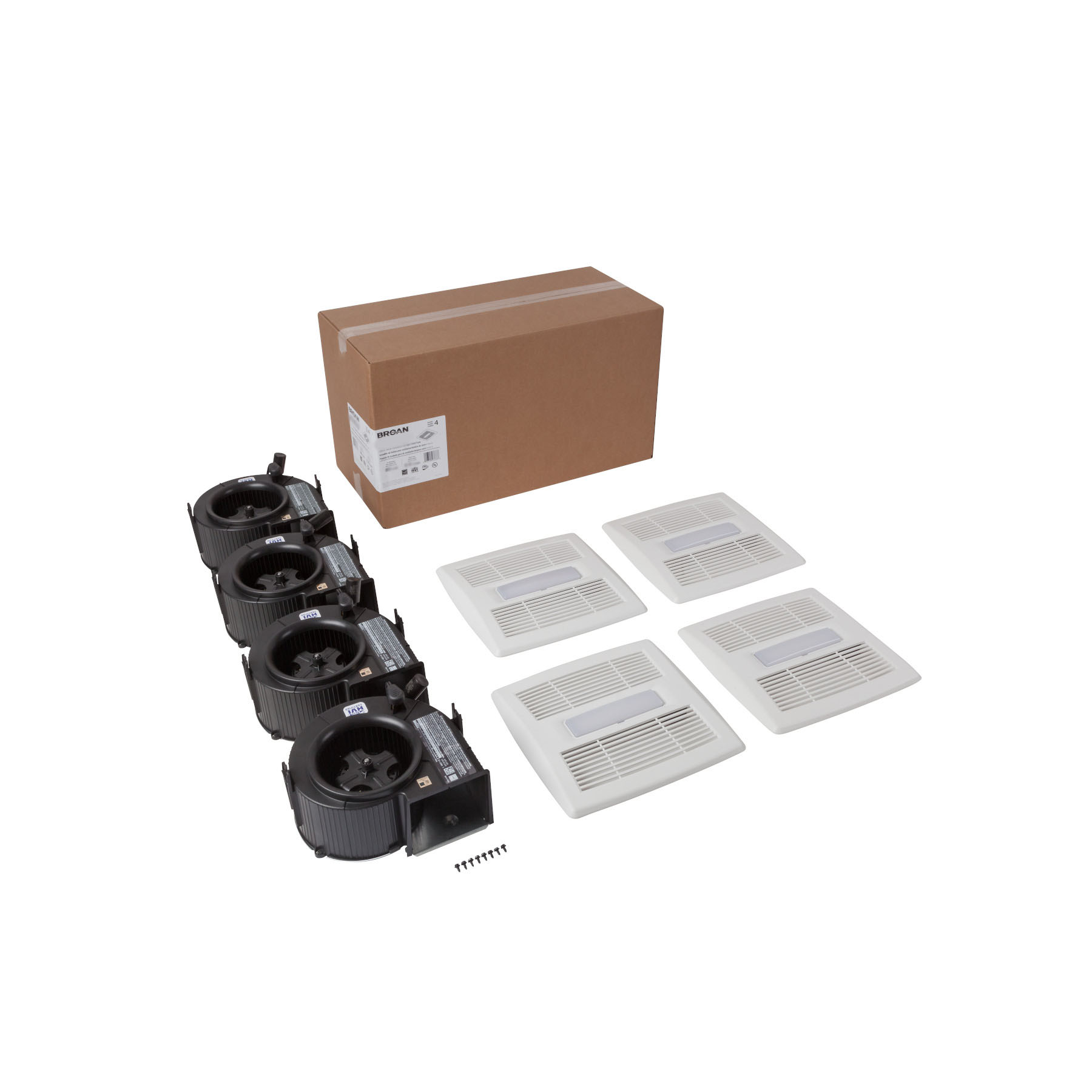

Flex Series 80 CFM 0.7 Sones Ventilation Fan Light Finish Pack Energy Star - AE80BLF1
Flex Series 80 CFM 0.7 Sones Ventilation Fan Light Finish Pack Energy Star
Model: AE80BLF1
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
0.7 Sones for Quiet performance, enough sound to know your fan is on.
Bright 3500K energy efficient LED lighting to help illuminate your room
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match the most common ceiling paint
Permanently lubricated AC motor engineered for continuous operation
*Testing reflects total fan housing airtightness.
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
0.7 Sones for Quiet performance, enough sound to know your fan is on.
Bright 3500K energy efficient LED lighting to help illuminate your room
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match the most common ceiling paint
Permanently lubricated AC motor engineered for continuous operation
*Testing reflects total fan housing airtightness.
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
EzDuct™ connector can be installed from the room side, with no attic access required
TrueSeal™ Damper technology reduces air leakage up to 50%
ENERGY STAR® Certified product
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.5 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.5 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.38 ft³ |
| Dimensional Weight | 4.01 lbs. |
| Total of Cubes | 0.38 ft³ |
| Total of Dimensional Weight | 4.01 lbs. |
