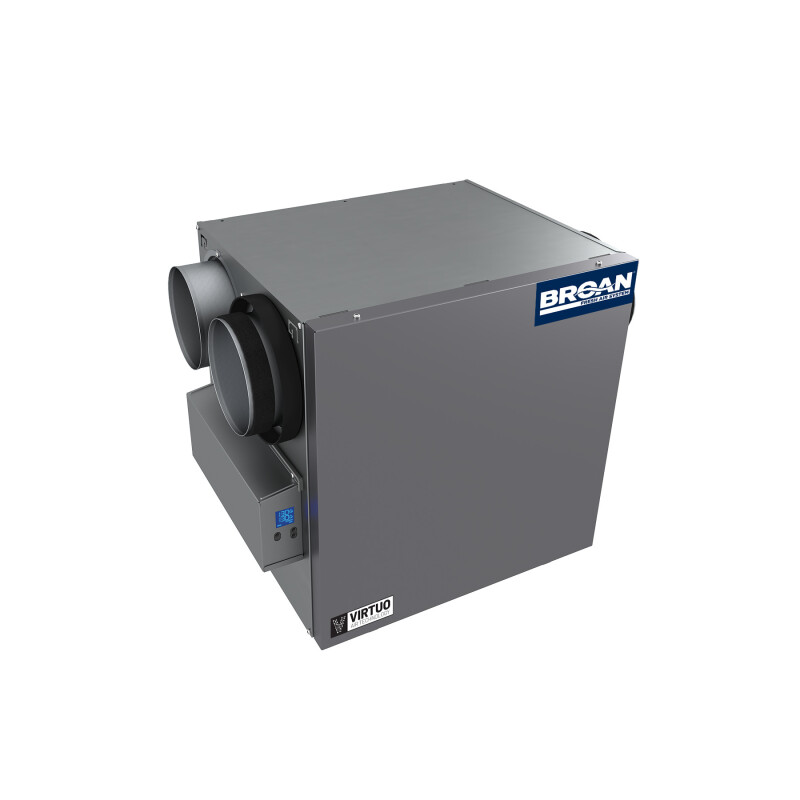

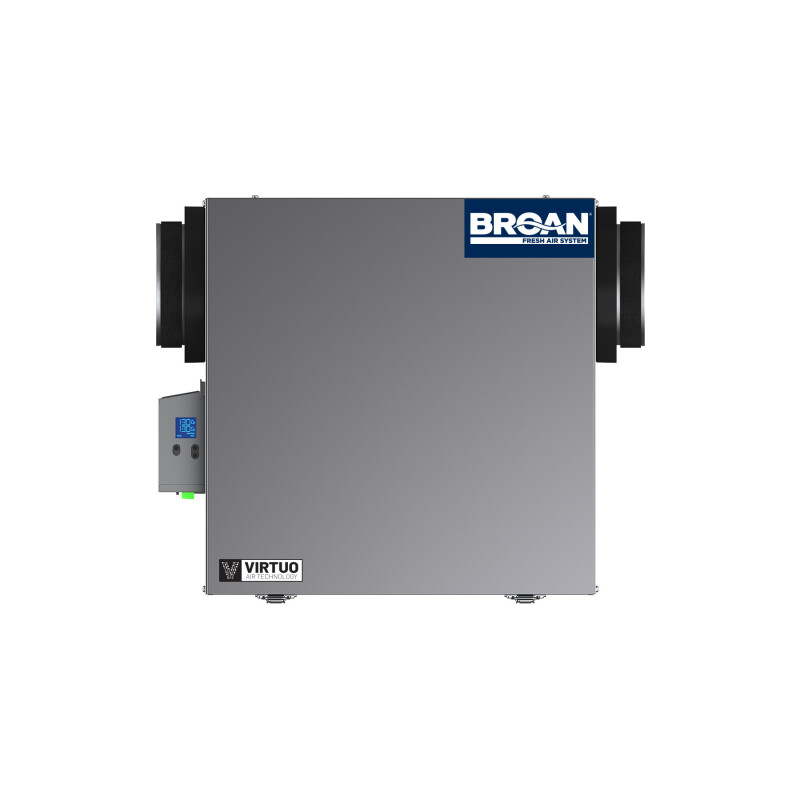

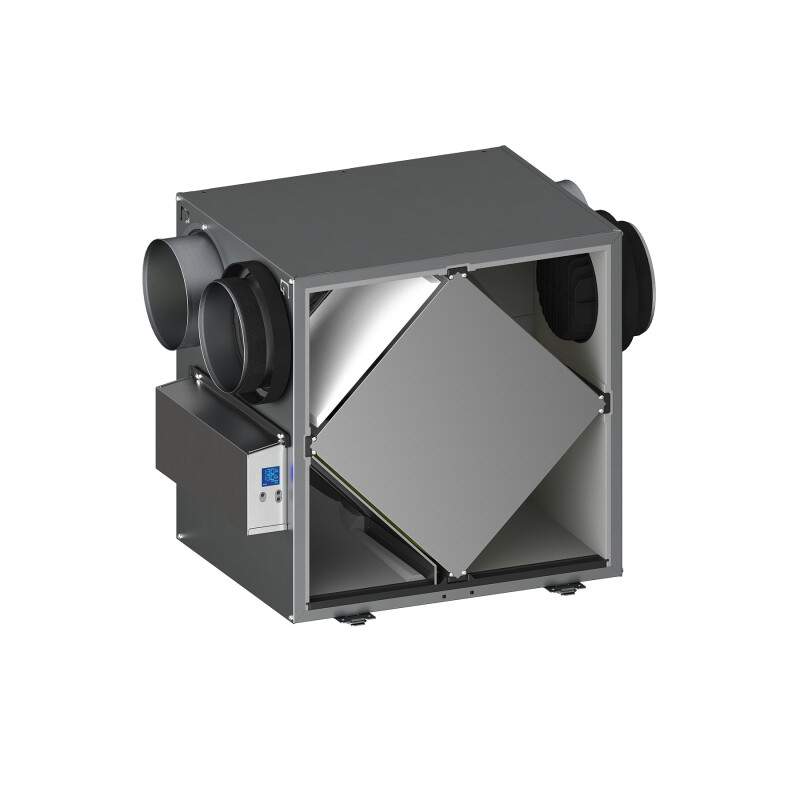

AI Series™ 130 CFM Heat Recovery Ventilator (HRV) - B130H65RS
Color : Other
Key Features
MERV 8 filters are installed standard. Capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort. Even more powerful filtration is available with an optional MERV 13 filter upgrade
Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market
Developed on a compact, universal platform with several mounting and port options to save space and reduce install time
With a selectable airflow speed range from 35 – 130 CFM, this AI Series model will meet the needs of a small to medium size home

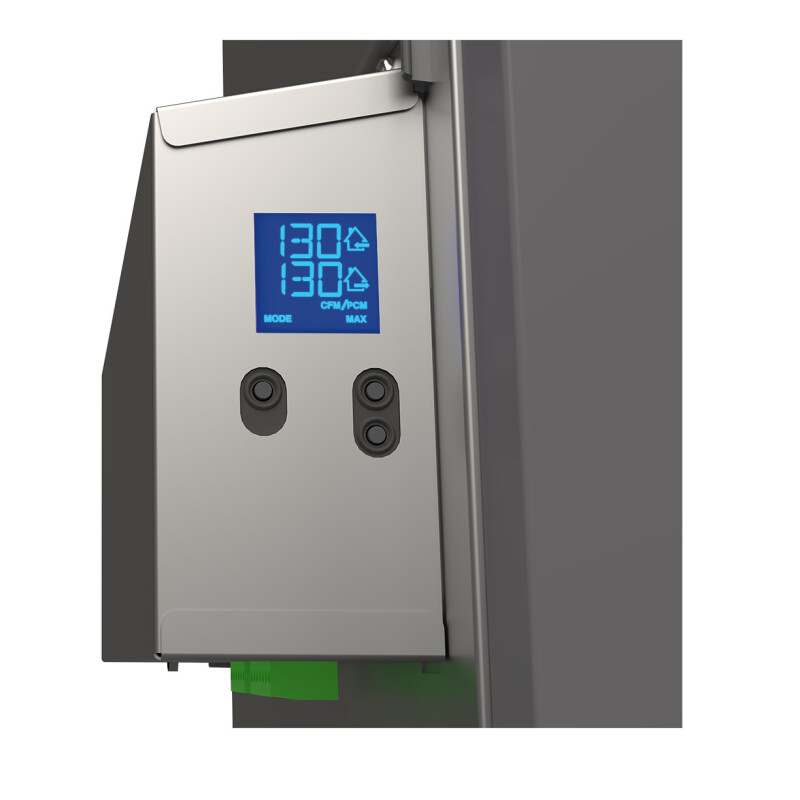

Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real-time airflow measurements, automatic system balancing and simple diagnostic codes
By continuously monitoring changing indoor and outdoor conditions, the AI Series with VIRTUO™ Air Technology, provides fresh, filtered and healthy air throughout the home
Can be used to comply with California Title 24, Part 6 Fault Indicator Display Requirements when paired with any of these Broan main controls: VTTOUCHW, VAUTOW, VTSPEEDW, VTDEHUMW
Available from Southern Appliance, serving customers throughout Georgia.
Features
MERV 8 filters are installed standard. Capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort. Even more powerful filtration is available with an optional MERV 13 filter upgrade
Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market
Developed on a compact, universal platform with several mounting and port options to save space and reduce install time
With a selectable airflow speed range from 35 – 130 CFM, this AI Series model will meet the needs of a small to medium size home
Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real-time airflow measurements, automatic system balancing and simple diagnostic codes
By continuously monitoring changing indoor and outdoor conditions, the AI Series with VIRTUO™ Air Technology, provides fresh, filtered and healthy air throughout the home
Can be used to comply with California Title 24, Part 6 Fault Indicator Display Requirements when paired with any of these Broan main controls: VTTOUCHW, VAUTOW, VTSPEEDW, VTDEHUMW
Certifications
HVI Certified
Specifications
Product Details
| Sensible recovery efficiency at 32°F | 68% (64 CFM) |
| Sensible recovery efficiency at -13°F | 60% (64 CFM) |
| Apparent sensible efficiency at 32°F | 73% (64 CFM) |
| Product Height | 19.12 |
| Product Width | 23.78 |
| Product Length | 16.14 |
| Ports Location | Side |
| Ports Size | 5" Round |
| Filtration Level | MERV 8 |
| ENERGY STAR® certified | No |
| HVI Certified | Yes |
| cUL Listed | Yes |
| UL Listed | Yes |
| Core Warranty | Limited Lifetime |
| Parts Warranty | 5 Years |
Dimensions & Weight
| Width | 23.78 in. |
| Height | 19.12 in. |
| Length | - |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.78 in. |
| Shipping Height | 24.12 in. |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
