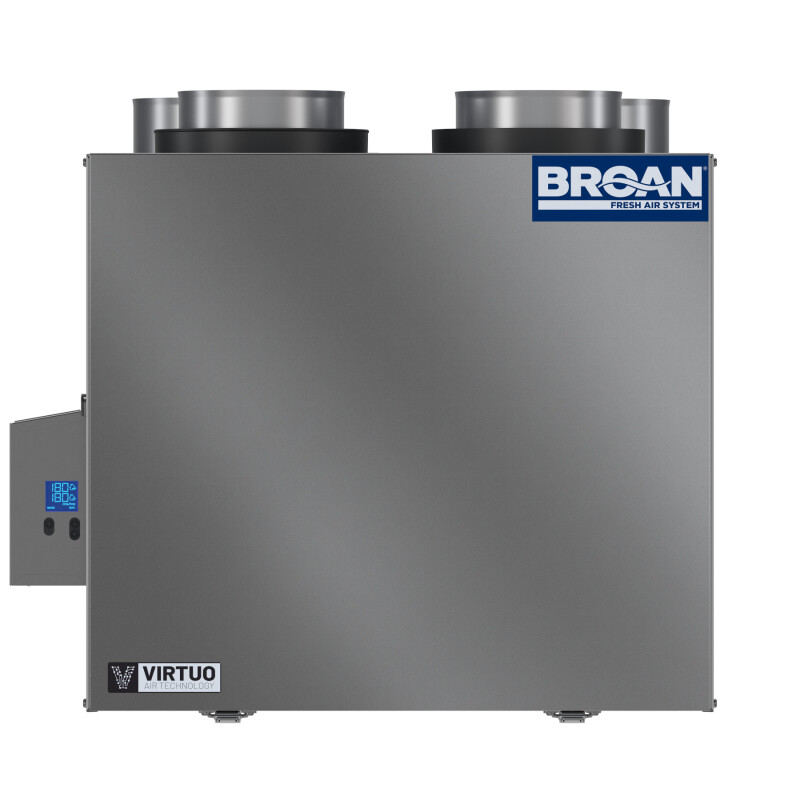

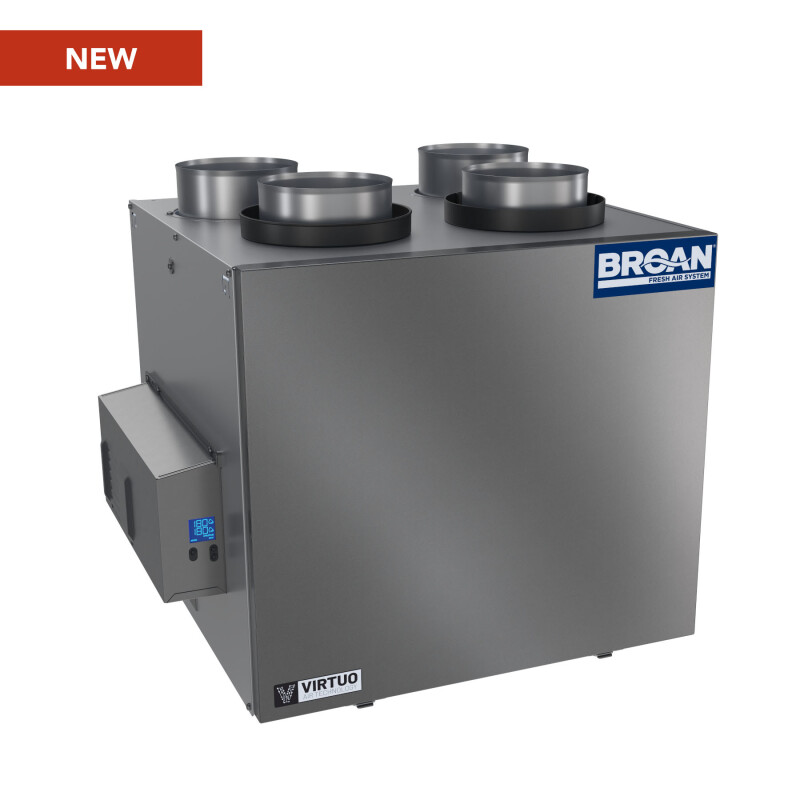

AI Series 230 CFM Heat Recovery Ventilator (HRV) - B230H75RT
Color : Other
Key Features
Consistent results with airflow verification, auto-balancing, and self-adjustment technology maintains the quality initial configuration in all dwelling types
Installing a Heat Recovery Ventilator (HRV) improves indoor air quality of your home by providing a supply of tempered, filtered outdoor fesh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable
Equipped with powerful and energy efficient ECM PMSM motors delivering up to 231 CFM. Our proprietary design is the most reliable on the market

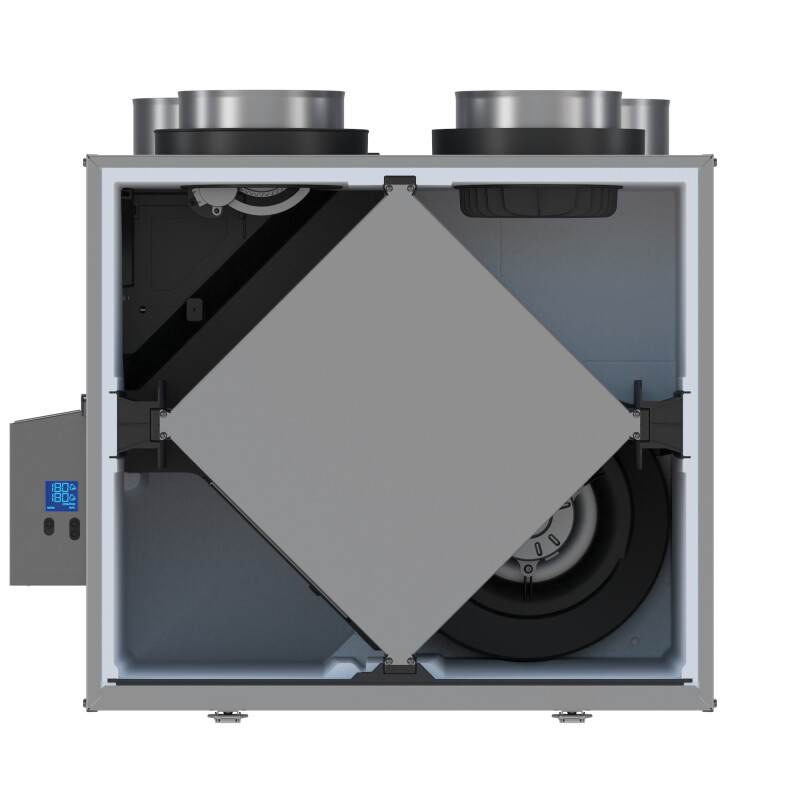

Superior HRV core performance and durability reaching up to 78% SRE 32°F at 66 CFM and Certified at 67% SRE -13°F at 81 CFM
Delivers superior air quality with an included MERV 8 filter or the optional MERV 13 #V24300

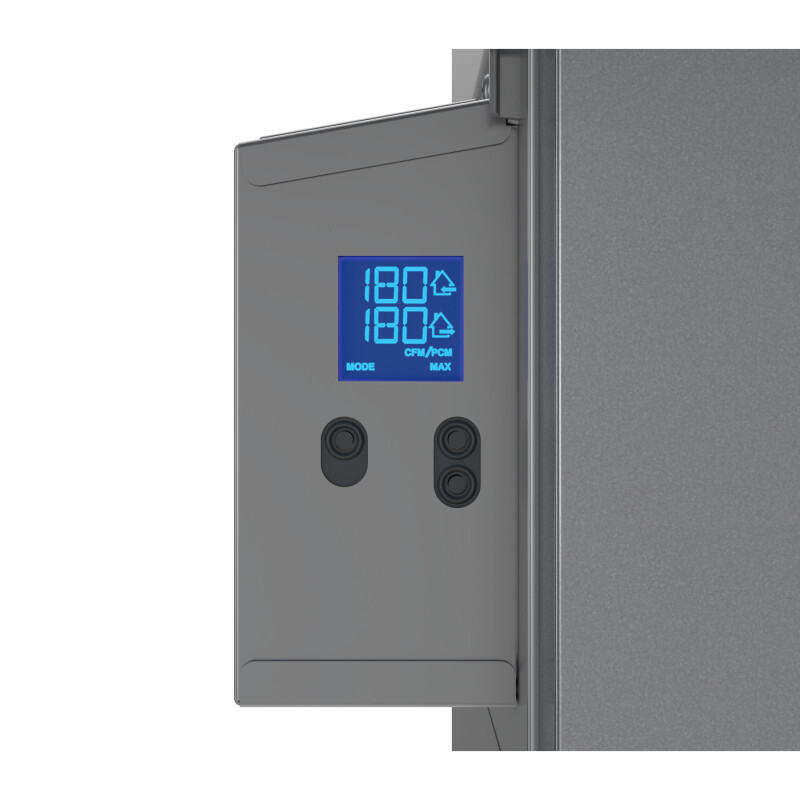

Integrated LCD screen to easily set the desired CFM. Display real time airflows, power consumption and act as diagnostic error tool
Universal platform offers both top & side port configurations to accommodate different installation locations (180 CFM models only available in top ports)

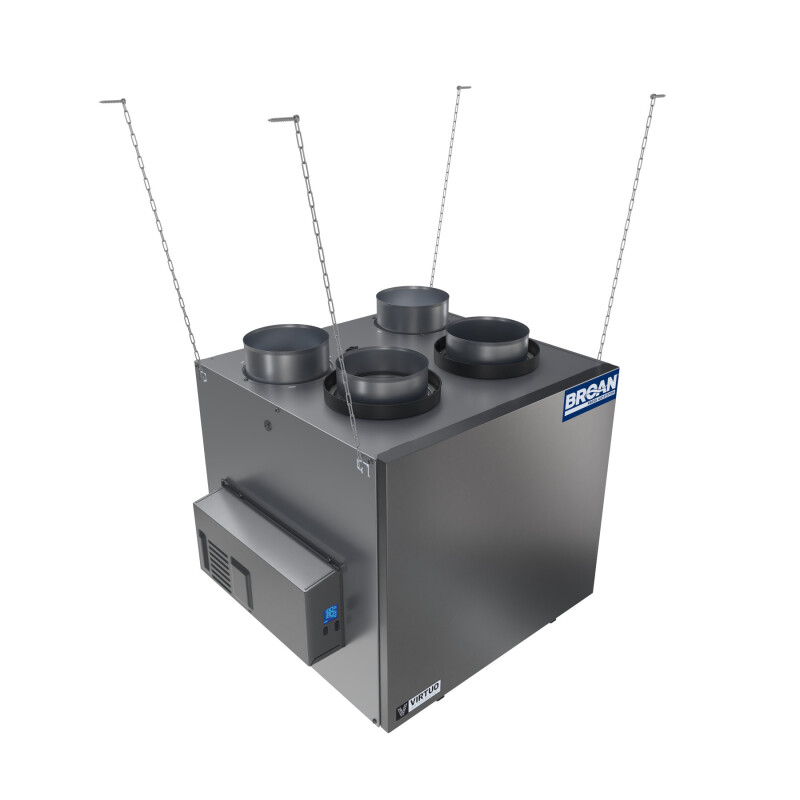

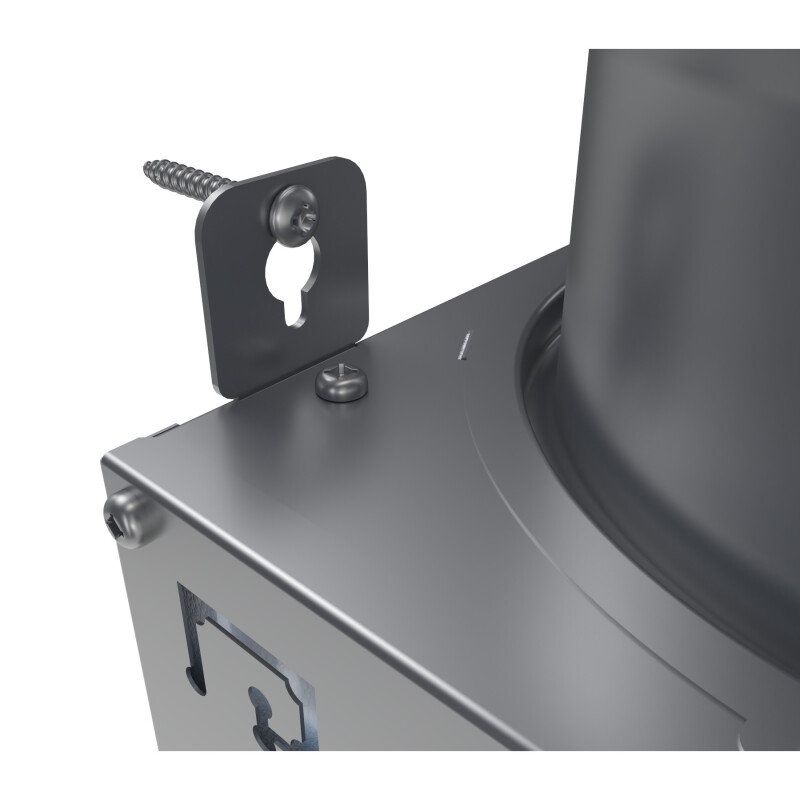

Suspended installation (chains included) or Wall-mount installation with 2 or 4 brackets (universal brackets included)
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
Consistent results with airflow verification, auto-balancing, and self-adjustment technology maintains the quality initial configuration in all dwelling types
Installing a Heat Recovery Ventilator (HRV) improves indoor air quality of your home by providing a supply of tempered, filtered outdoor fesh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable
Equipped with powerful and energy efficient ECM PMSM motors delivering up to 231 CFM. Our proprietary design is the most reliable on the market
Superior HRV core performance and durability reaching up to 78% SRE 32°F at 66 CFM and Certified at 67% SRE -13°F at 81 CFM
Delivers superior air quality with an included MERV 8 filter or the optional MERV 13 #V24300
Integrated LCD screen to easily set the desired CFM. Display real time airflows, power consumption and act as diagnostic error tool
Universal platform offers both top & side port configurations to accommodate different installation locations (180 CFM models only available in top ports)
Suspended installation (chains included) or Wall-mount installation with 2 or 4 brackets (universal brackets included)
Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
Quick setup with VIRTUO™ technology, which does the airflow verification and balancing for you, eliminating a complex part of the installation process. Set it and forget it
Certifications
HVI Certified
Specifications
Product Details
| Sensible recovery efficiency at 32°F | 78% (66 CFM) |
| Sensible recovery efficiency at -13°F | 67% (81 CFM) |
| Apparent sensible efficiency at 32°F | 82% (65 CFM) |
| Product Height | 20.8 |
| Product Width | 24.8 |
| Product Length | 21 |
| Ports Location | Top |
| Ports Size | 6" |
| Core Type | HRV |
| Filtration Level | MERV 8 |
| ENERGY STAR® certified | No |
| HVI Certified | Yes |
| cUL Listed | Yes |
| UL Listed | Yes |
| Core Warranty | 10 Years |
| Parts Warranty | 5 Years |
Dimensions & Weight
| Width | 24.8 in. |
| Height | 20.8 in. |
| Length | - |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 29.8 in. |
| Shipping Height | 25.8 in. |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
