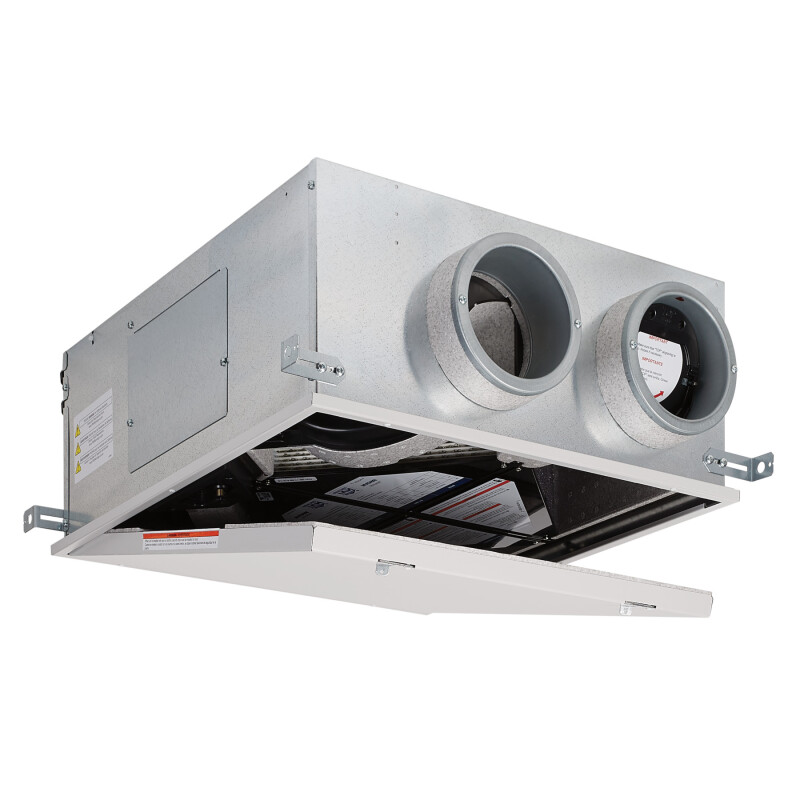

ERVS100S Energy Recovery Ventilator - ERVS100S
Color : Other
Key Features
Integrated humidity sensor limiting the ventilation during periods of excessive outdoor humidity, contributing to a comfortable indoor environment
65 to 105 CFM at 0.4 in. w.g;

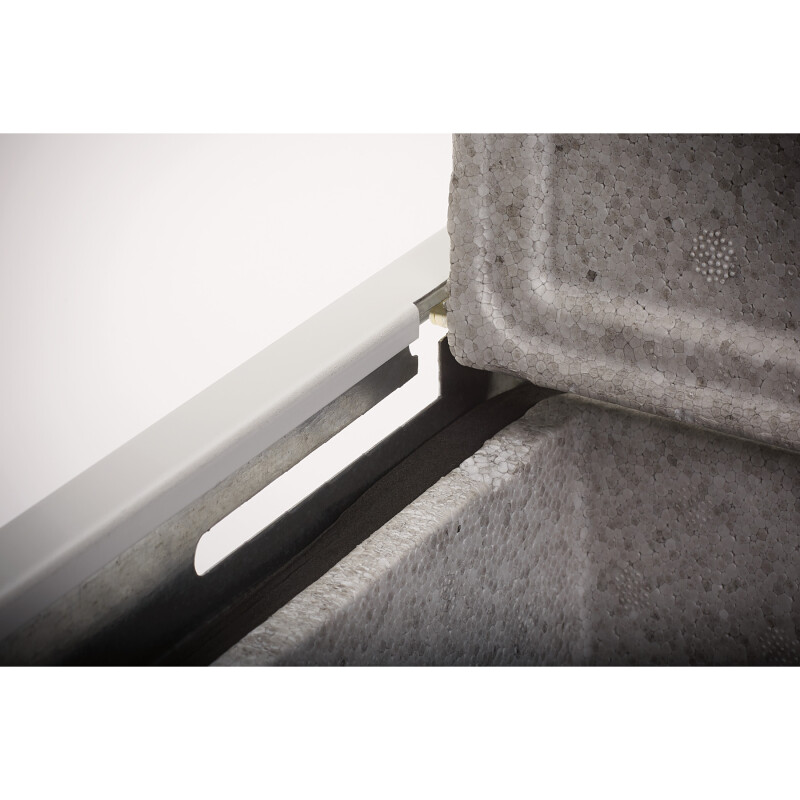

Energy recovery core recovering up to 51% of the excess moisture and up to 71% of the apparent heat or coolness

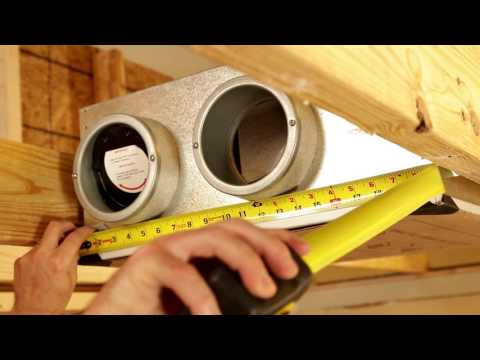

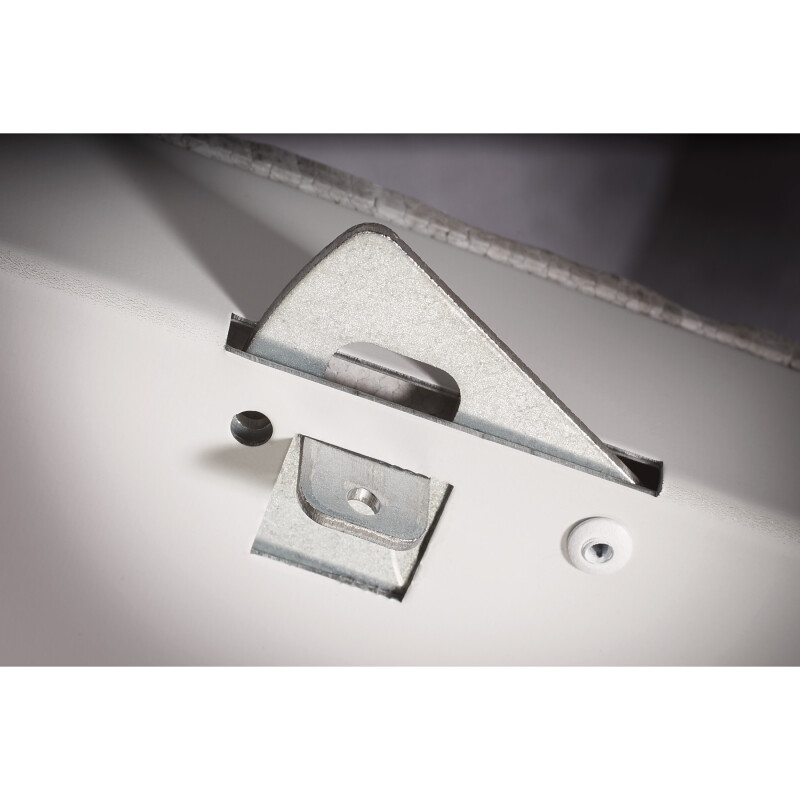

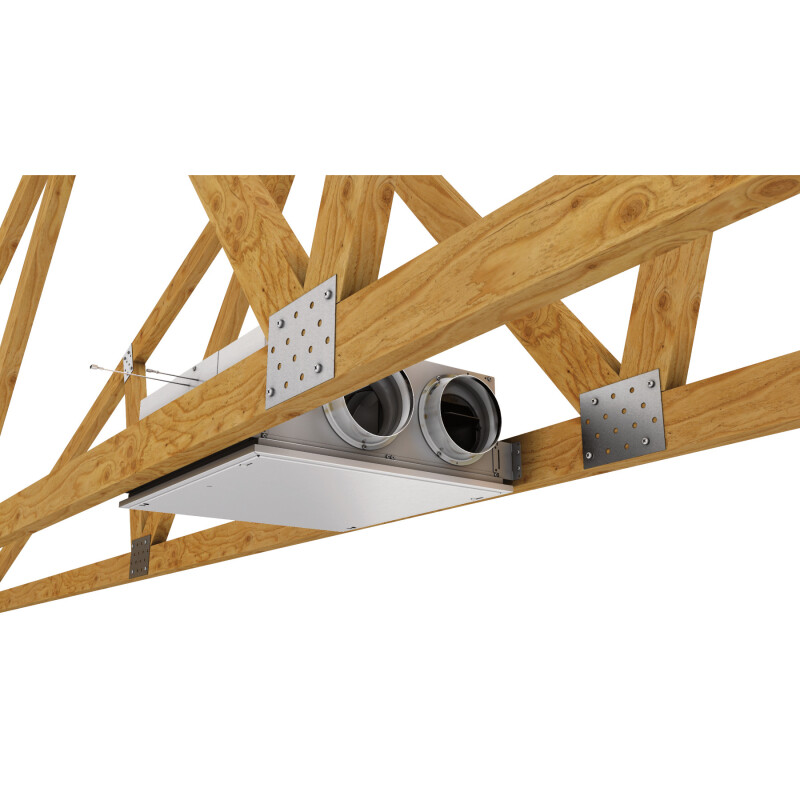

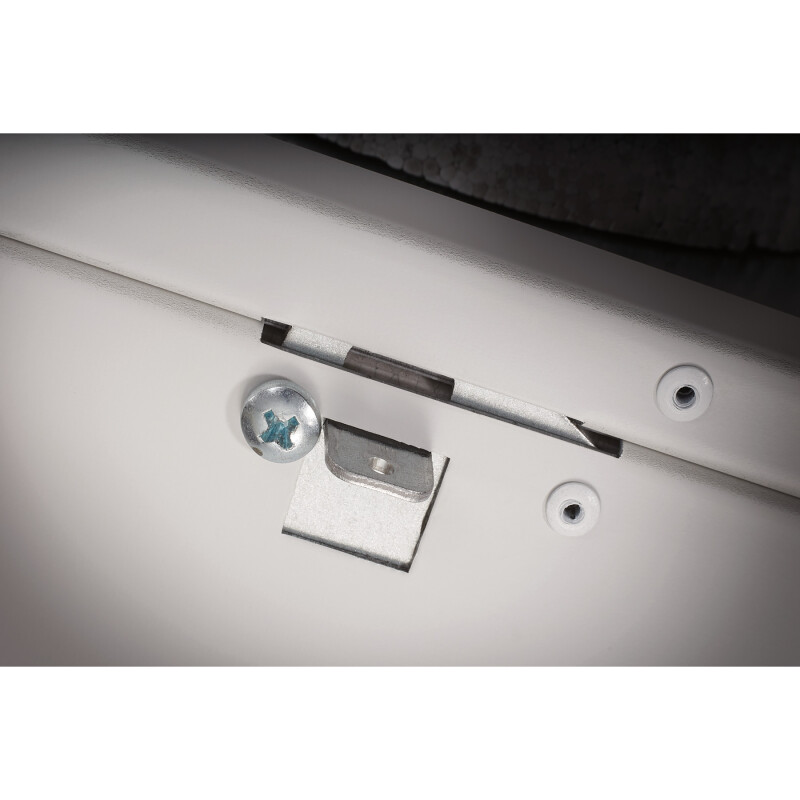

Exclusive mounting bracket system providing a faster and easier installation in the ceiling, an attic, or a small closet
Integrates with existing forced-air furnace ducting for easy installation but runs independently to limit energy consumption related to ventilation
Built-in damper on fresh air supply port to prevent outdoor air infiltration when the unit is turned off
Integrated control to easily set the unit at installation
Available from Southern Appliance, serving customers throughout Georgia.
Features
Integrated humidity sensor limiting the ventilation during periods of excessive outdoor humidity, contributing to a comfortable indoor environment
65 to 105 CFM at 0.4 in. w.g;
Energy recovery core recovering up to 51% of the excess moisture and up to 71% of the apparent heat or coolness
Exclusive mounting bracket system providing a faster and easier installation in the ceiling, an attic, or a small closet
Integrates with existing forced-air furnace ducting for easy installation but runs independently to limit energy consumption related to ventilation
Built-in damper on fresh air supply port to prevent outdoor air infiltration when the unit is turned off
Integrated control to easily set the unit at installation
Certifications
HVI Certified
UL Listed
Specifications
Product Details
| Sensible recovery efficiency at 32°F | 64 |
| Apparent sensible efficiency at 32°F | 68 |
| Product Height | 9.125 |
| Product Width | 25.6875 |
| Product Length | 20 |
| Ports Location | Side |
| Ports Size | 6" Round |
| Filtration Level | 20 PPI |
| ENERGY STAR® certified | No |
| cUL Listed | No |
| UL Listed | Yes |
| Core Warranty | 5 Years |
| Parts Warranty | 5 Years |
| HVI Certified | No |
Dimensions & Weight
| Width | 25.69 in. |
| Height | 9.13 in. |
| Length | - |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 30.69 in. |
| Shipping Height | 14.13 in. |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
