30" Built-In Knob Control Electric Cooktop - JP3030TJWW
Color : White
Key Features
Four radiant cooking elements
Melt Setting
Hot surface indicator lights
Cooktop "On" indicator light
Power Boil Elements
Keep Warm Setting
Fit Guarantee
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Fit Guarantee

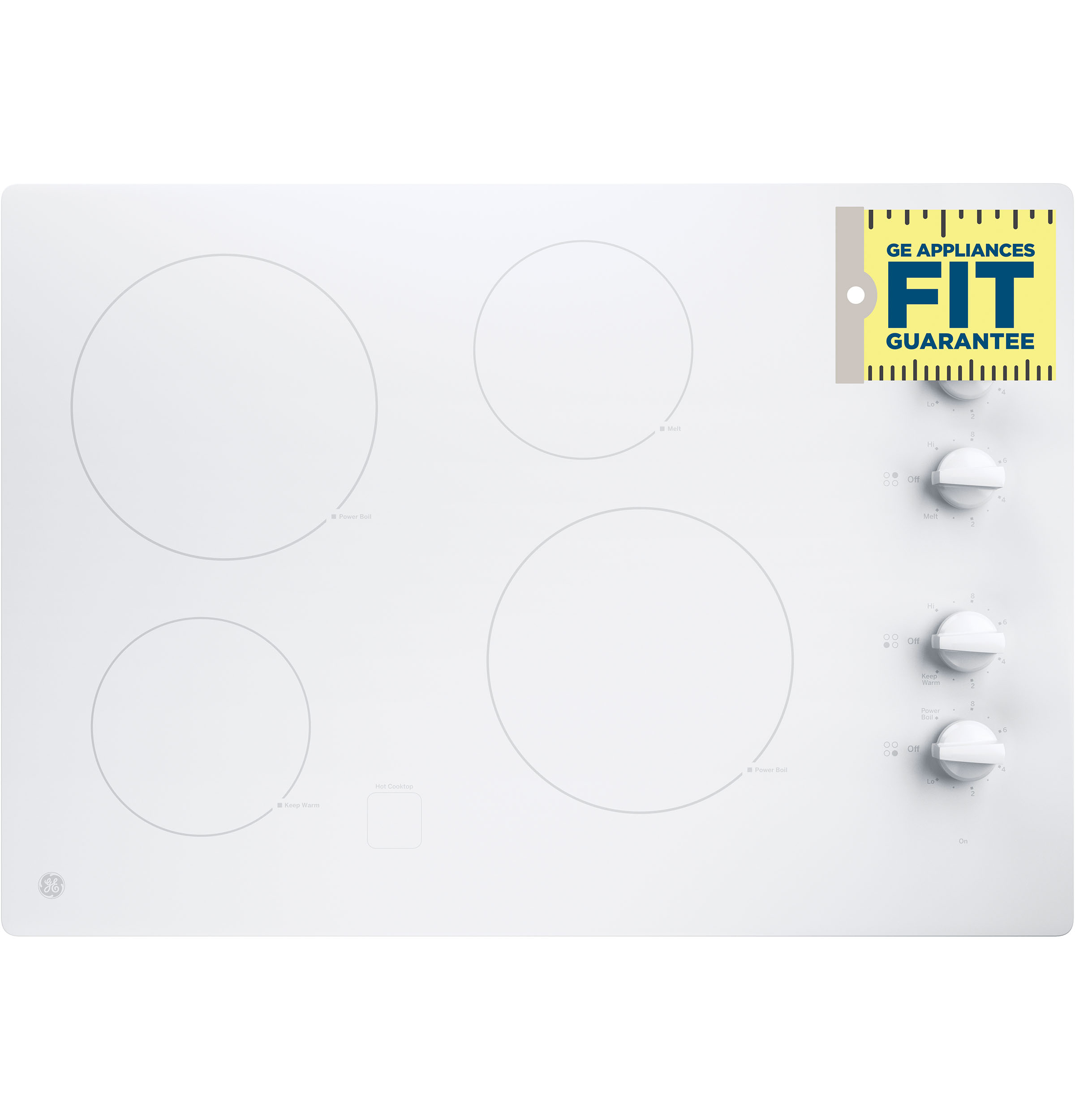

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Certifications
ADA Compliant
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32W |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 6" 1200W |
| Element - Right Front | 8" 2500W Power Boil |
| Indicator Lights | Surface Element "ON" |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | True White Ceramic Glass |
| Cooktop Control Features | Melt Setting |
| Element - Left Rear | 8" 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6" 1200W |
| Product Type | Cooktop |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | Keep-Warm Setting |
| Indicator Lights | 4 Hot Surface |
| Indicator Lights | Red |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.4 |
| Max. Current Draw (Amps) at 240V | 30.8 |
| Max. Connected Load (kW) at 208V | 5.6 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 26.7 |

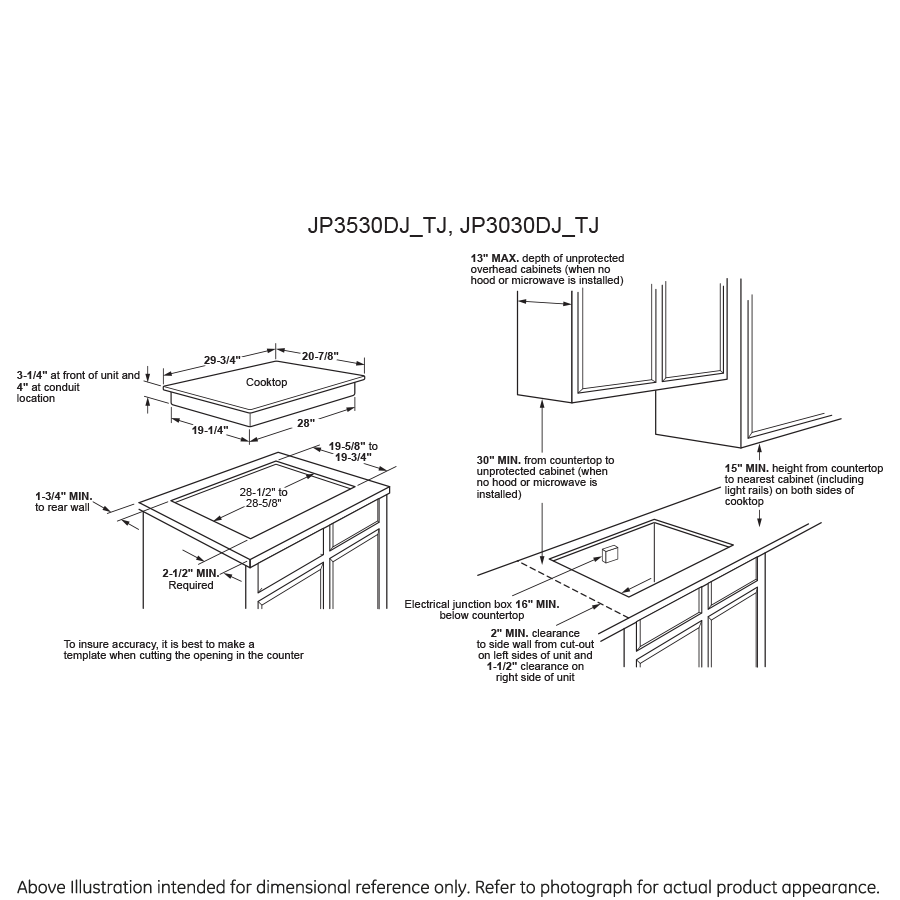

WEIGHTS & DIMENSIONS
| Cooktop Size | 30 in |
| Overall Height | 4 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Overall Width | 29.75 in |
| Net Weight | 37 lb |
| Overall Depth | 20.875 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | True White |
| Frameless | Yes |
| Control Knobs | Gloss White |
| Control Knobs | Color-Matched |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 4 in. |
| Length | 20.88 in. |
| Weight | 37 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 9 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 77 lbs. |
| Total of Shipping Weight | 77 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.87 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.87 lbs. |
