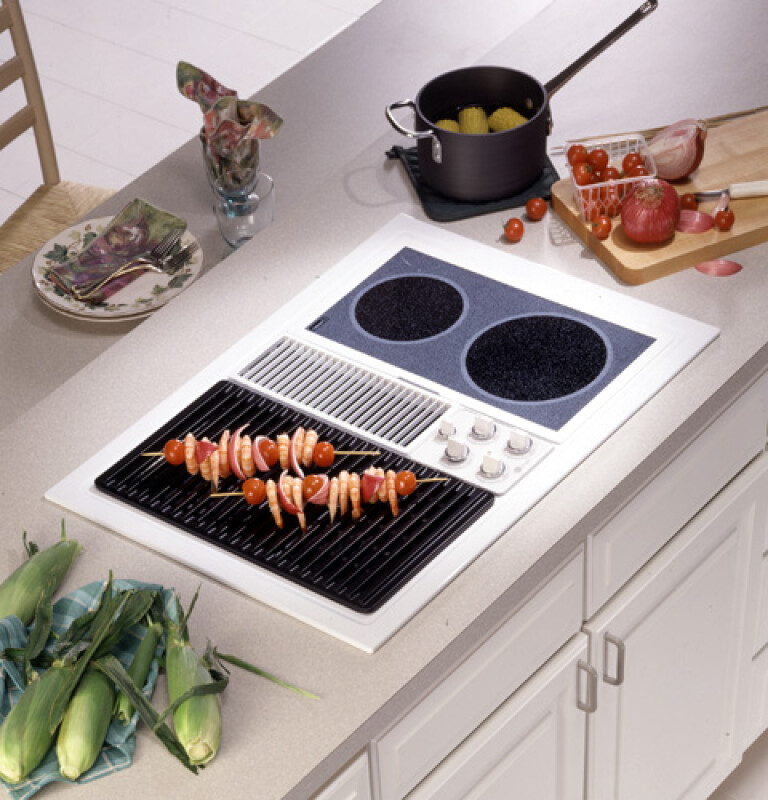

Select-Top Modular Downdraft Cooktop - JP389WVWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

Select-Top Modular Downdraft Cooktop

Model: JP389WVWW

Select-Top Modular Downdraft Cooktop JP389WVWW
Select-Top Modular Downdraft Cooktop JP389WVWW

Color : White

Select-Top Modular Downdraft Cooktop JP389WVWW
White

Key Features

  • Modular cooktop options

  • Downdraft exhaust

  • Three speed downdraft fan

  • Heating element "On" light

Description

Powerful exhaust system effectively pulls smoke and steam out of the kitchen.Powerful three speed exhaust system effectively pulls smoke and vapors out of the kitchen.19 H x 29 7/8 W x 21 9/16 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Modular cooktop options

Allows the cooktop to be customized to suit individual cooking styles and tastes. Modules sold separately

Downdraft exhaust

Powerful exhaust system effectively pulls smoke and steam out of the kitchen

Three speed downdraft fan

Powerful three speed exhaust system effectively pulls smoke and vapors out of the kitchen

Heating element "On" light

Illuminates when the cooking surface is activated

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Height19 in
Net Weight52 lb
Cooktop Size30 in
Approximate Shipping Weight74 lb
Cabinet Width30 in
Overall Depth21 9/16 in
Overall Width29 7/8 in
Cutout Width (in)28.875
Cutout Depth (in)20.625

FEATURES

StyleDowndraft
Cooktop Burner TypeBoth Sides Accept Optional Cooking Modules
Calrod™ Module (One 8" & One 6" w/drip bowls)JXDC44RWH (Optional White Porcelain-Enameled)
Downdraft Vent Fan Speeds3
Cooktop SurfaceWhite Porcelain-Enamel
Indicator LightsSurface Element "ON"
ConfigurationDual Modular - Both sides accept optional modules
Control TypeInfinite Heat Rotary
Grill CoverJXDM3 (Optional; White on White)
Grill ModuleJXDL44N (Optional)
Control LocationUpfront
Downdraft Exhaust (CFM)400

POWER / RATINGS

KW Rating at 240V8.0
Amp Rating at 240V40

ACCESSORIES

Griddle AccessoryJXDD44R (Use With Optional Grill Module)
Ribbon Element Module (One 8" & One 6")JXDR50VW (Optional)

WARRANTY

Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance

APPEARANCE

Color AppearanceWhite on White

Other

Cooktop Size30 in

Dimensions & Weight

Width29.88 in.
Height19 in.
Length21.56 in.
Weight52 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height24 in.
Shipping Length26.56 in.
Shipping Weight92 lbs.
Total of Shipping Weight92 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement7.08 ft³
Dimensional Weight88.05 lbs.
Total of Cubes7.08 ft³
Total of Dimensional Weight88.05 lbs.
