Built-In Gas Cooktop - JGP321EJWH

This product has been discontinued by the manufacture and is no longer available.

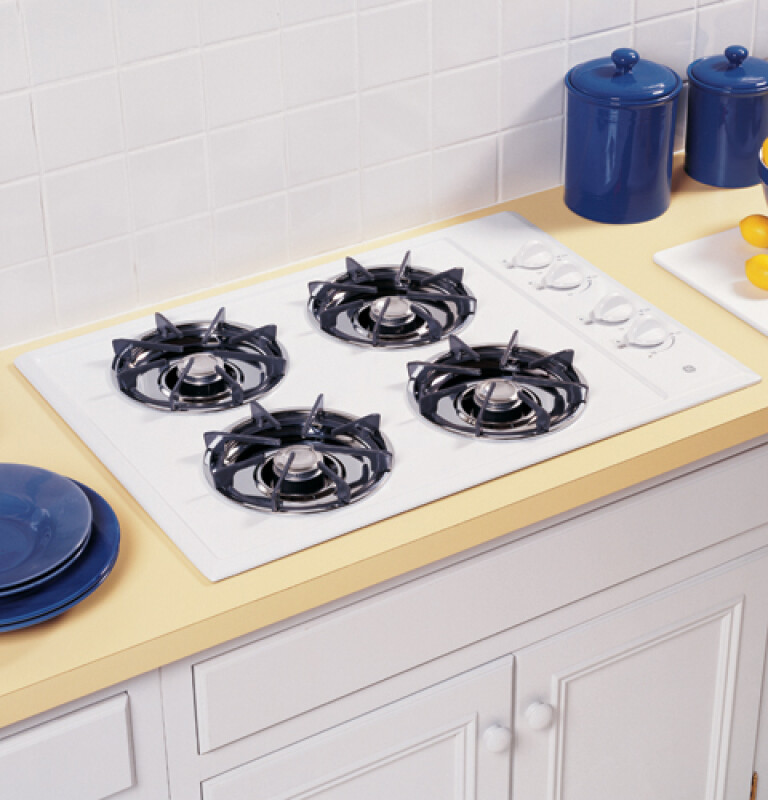

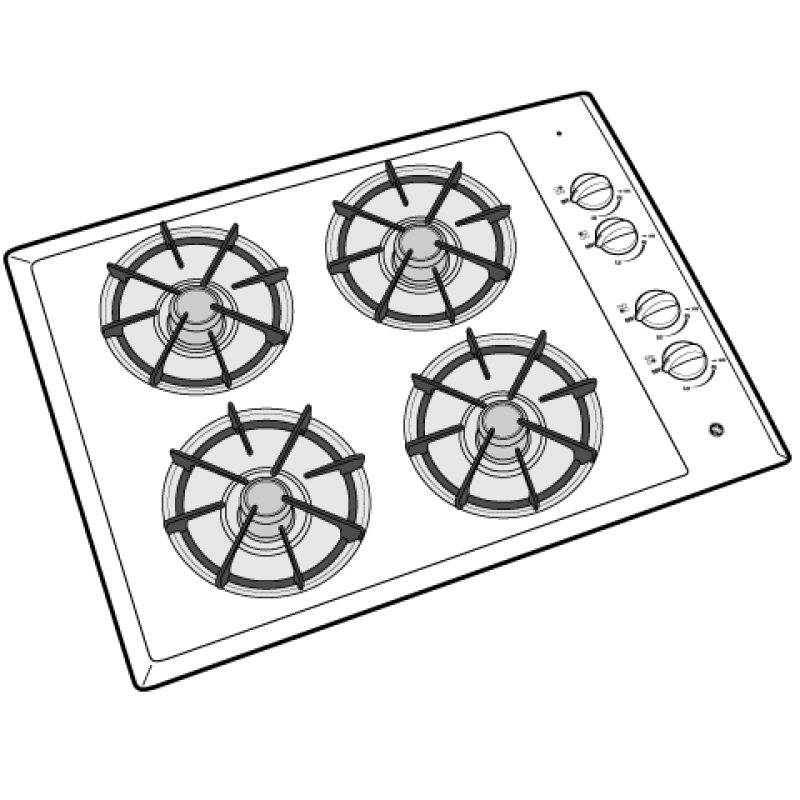

Built-In Gas Cooktop

Model: JGP321EJWH

GE Built-In Gas Cooktop Other JGP321EJWH Picture

Color : Other

Built-In Gas Cooktop JGP321EJWH
Other

Key Features

  • Chrome drip bowls

  • Standard grates

  • Electronic pilotless ignition

  • Standard burners

Description

Quality grates keep pots and pans securely in place over the burners.Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation.3 9/16 H x 30 1/4 W x 21 1/4 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Chrome drip bowls

Spills are easily contained and quickly cleaned thanks to removable bowls

Standard grates

Quality grates keep pots and pans securely in place over the burners

Electronic pilotless ignition

Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation

Standard burners

These medium-sized burners provide the reliable and consistent heat ideal for everyday cooking

Certifications

California Prop 65 certification

California Prop 65

Specifications

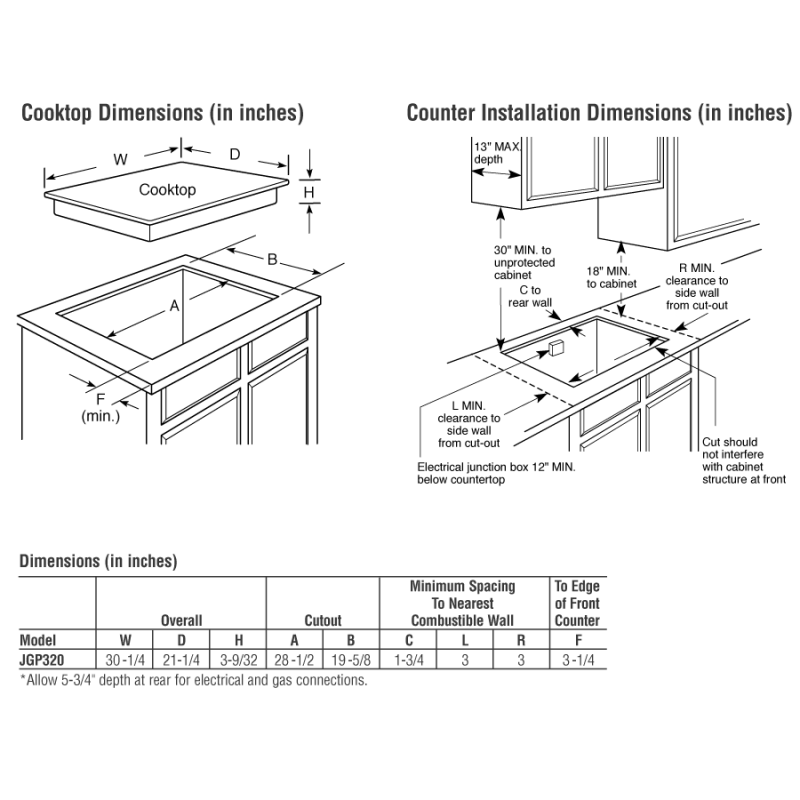

WEIGHTS & DIMENSIONS

Overall Height3.5625 in
Overall Width30.25 in
Overall Depth21.25 in
Cutout Depth (in)19-5/8
Cabinet Width30 in
Approximate Shipping Weight35 lb
Net Weight30 lb
Cutout Width (in)28-1/2

Dimensions & Weight

Width30.25 in.
Height3.56 in.
Length21.25 in.
Weight30 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35.25 in.
Shipping Height8.56 in.
Shipping Length26.25 in.
Shipping Weight70 lbs.
Total of Shipping Weight70 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.33 ft³
Dimensional Weight16.47 lbs.
Total of Cubes1.33 ft³
Total of Dimensional Weight16.47 lbs.

FEATURES

Cooktop Burner Type4 Standard
All-Purpose Burners(4) 9,100/8,000 BTU
Valves (Degree of Turn)140
Fuel TypeNatural Gas
One-Piece Drip PansChrome
Control LocationRight Side
Ignition SystemElectronic
Cooktop SurfacePorcelain-Enamel
Space Required Below Cooktop0.4375 in
Cooktop Burner Grate MaterialStandard Steel

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(4) 8.0
Burner BTU Ratings (000's/BTU) - Natural Gas(4) 9.1
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance

ACCESSORIES

LP Conversion KitIncluded

APPEARANCE

Color AppearanceWhite
