30" Built-In Gas Cooktop - JGP328WECWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Built-In Gas Cooktop

Model: JGP328WECWW

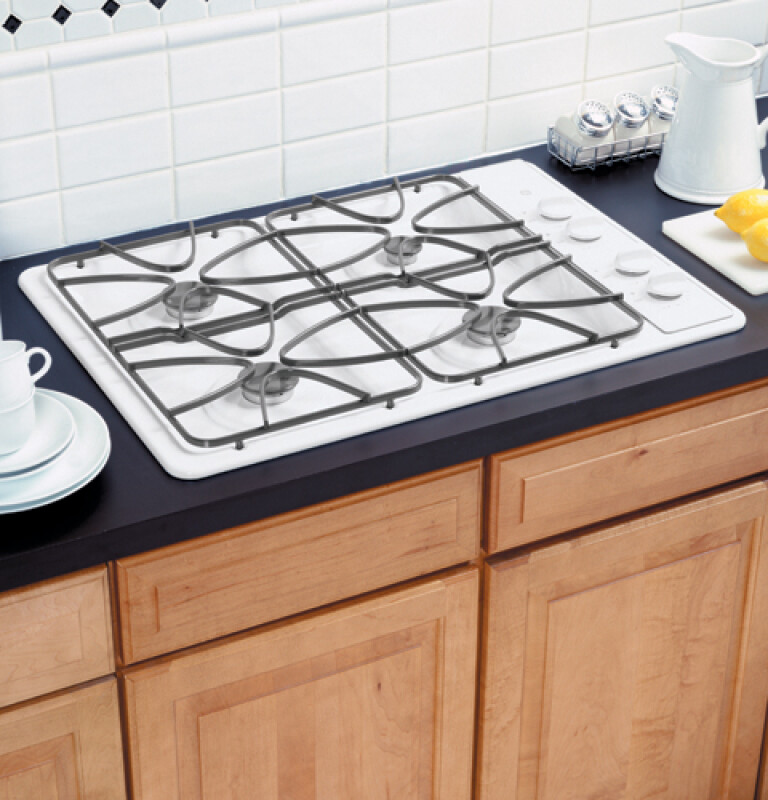

GE 30" Built-In Gas Cooktop Other JGP328WECWW Picture

Color : Other

30" Built-In Gas Cooktop JGP328WECWW
Other

Key Features

  • Sealed cooktop burners

  • Precise Simmer burner

  • Continuous grates

  • Electronic pilotless ignition

Description

Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.Provide a flat, sturdy surface allowing easy movement of pans between burners.3 3/16 H x 30 W x 21 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Precise Simmer burner

Delivers a low setting of 140 degrees, ideal for delicate foods and sauces

Continuous grates

Provide a flat, sturdy surface allowing easy movement of pans between burners

Electronic pilotless ignition

Provides reliable burner ignition operation, eliminating the need for a standing pilot

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Height3.1875 in
Overall Width30 in
Overall Depth21 in
Cutout Depth (in)19-5/8
Cabinet Width30 in
Approximate Shipping Weight44 lb
Net Weight39 lb
Cutout Width (in)28-1/2

Dimensions & Weight

Width30 in.
Height3.19 in.
Length21 in.
Weight39 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height8.19 in.
Shipping Length26 in.
Shipping Weight79 lbs.
Total of Shipping Weight79 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.16 ft³
Dimensional Weight14.45 lbs.
Total of Cubes1.16 ft³
Total of Dimensional Weight14.45 lbs.

FEATURES

Cooktop Burner Type4 Sealed
Fuel TypeNatural Gas
Control LocationRight Side
Ignition SystemElectronic
Cooktop SurfaceDeep Porcelain-Enamel
Space Required Below Cooktop0.4375 in
Cooktop Burner Grate FeaturesContinuous Grates
Precise Simmer BurnerYes

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(3) 8.1; (1) 6.0
Burner BTU Ratings (000's/BTU) - Natural Gas(3) 9.1; (1) 6.0
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance

ACCESSORIES

LP Conversion KitIncluded

APPEARANCE

Color AppearanceWhite on White
