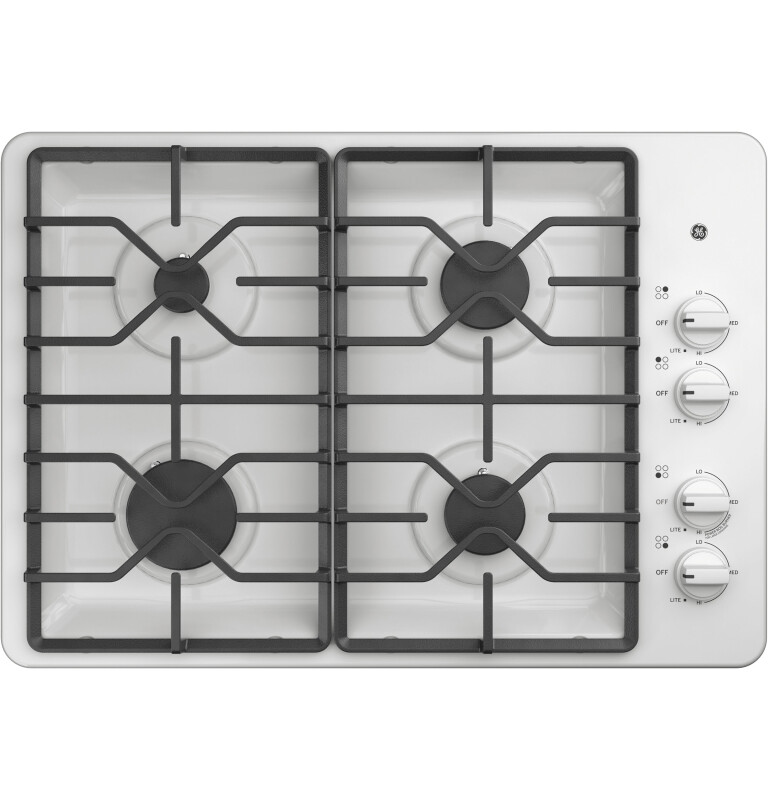

30" Built-In Gas Cooktop - JGP3530DLWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Built-In Gas Cooktop

Model: JGP3530DLWW

30" Built-In Gas Cooktop JGP3530DLWW30" Built-In Gas Cooktop JGP3530DLWW30" Built-In Gas Cooktop JGP3530DLWW
30" Built-In Gas Cooktop JGP3530DLWW
30" Built-In Gas Cooktop JGP3530DLWW
30" Built-In Gas Cooktop JGP3530DLWW

Product Video

GE 30" Built-In Gas Cooktop White JGP3530DLWW Picture
2 Videos

Color : White

30" Built-In Gas Cooktop JGP3530DLWW
White

Key Features

  • Fit Guarantee

  • Start Cooking Faster with Power Boil

  • Precise Simmer Burner

  • Spend Less Time Cleaning Up

  • Dishwasher-Safe Grates

  • Designed for Easy Cleaning

  • MAX Burner System

Description

18,000 BTU Power Boil burner delivers intense heat for faster boiling.Protect delicate foods with low, even heating.4 3/4 H x 30 W x 21 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

Start Cooking Faster with Power Boil

18,000 BTU Power Boil burner delivers intense heat for faster boiling

Precise Simmer Burner

Protect delicate foods with low, even heating

Spend Less Time Cleaning Up

Sealed cooktop burners contain spills and make cleaning quick and easy

Dishwasher-Safe Grates

Heavy-duty grates are easy to clean in the dishwasher

Designed for Easy Cleaning

Recessed surface helps contain spills and make cleaning easy

MAX Burner System

Delivers the same maximum BTU power to propane and natural gas cooktops

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth21 in
Cabinet Width30 in
Approximate Shipping Weight44 lb
Net Weight38 lb
Overall Height4 3/4 in

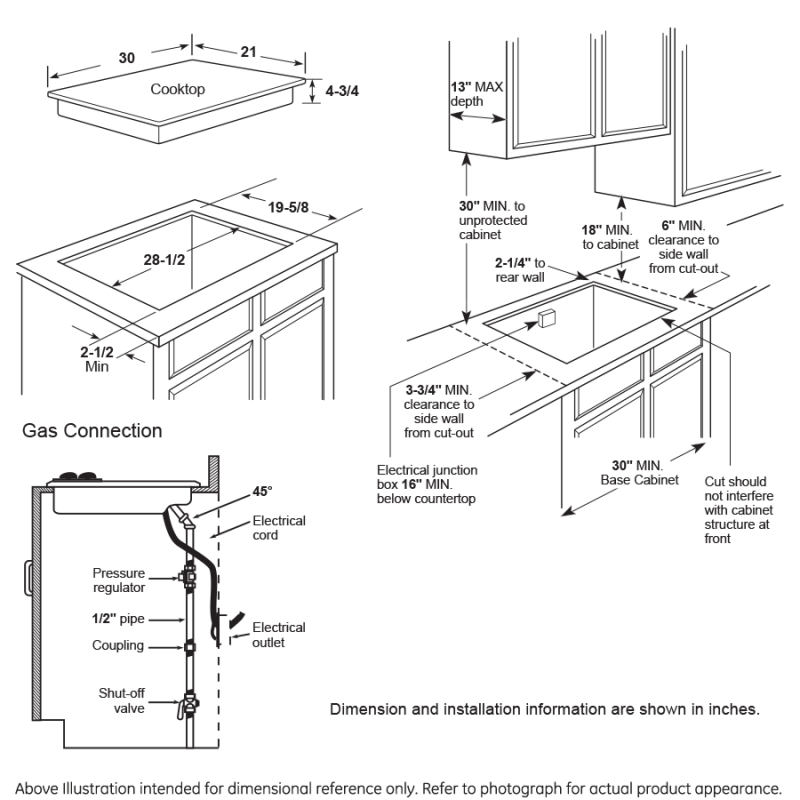

Cutout Width (in)28.5
Cutout Depth (in)19.625

Dimensions & Weight

Width30 in.
Height4.75 in.
Length21 in.
Weight38 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height9.75 in.
Shipping Length26 in.
Shipping Weight78 lbs.
Total of Shipping Weight78 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.73 ft³
Dimensional Weight21.53 lbs.
Total of Cubes1.73 ft³
Total of Dimensional Weight21.53 lbs.

FEATURES

Cooktop Burner Type4 Sealed
Valves (Degree of Turn)270
Burner - Right Rear9,500 BTU
Burner - Right Front12,000 BTU
Fuel TypeNatural Gas
Control LocationRight Side
Cooktop TypeContinuous Grates
Ignition SystemElectronic
Cooktop SurfaceWhite
Burner - Left Rear5,000 BTU
Control TypeKnob
Cooktop Burner Grate MaterialStandard Cast
Cooktop Burner Grate FeaturesDishwasher Safe
Burner - Left Front18,000 BTU Power Boil
Cooktop Burner Grate FeaturesContinuous Grates
Cooktop SurfaceDeep Porcelain-Enamel

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas(1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance

APPEARANCE

Color AppearanceWhite
Cooktop Burner Grate ColorMatte Black
Control KnobsGloss White
Control KnobsDishwasher Safe
