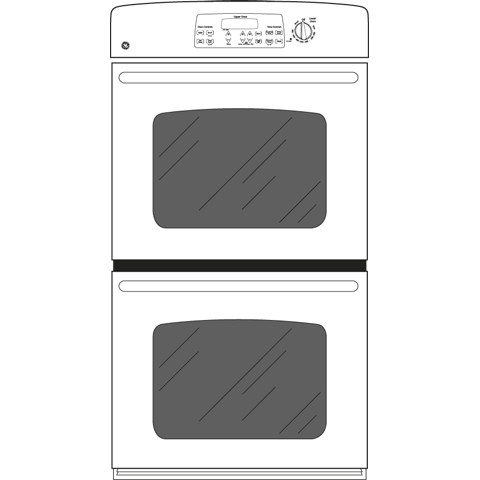

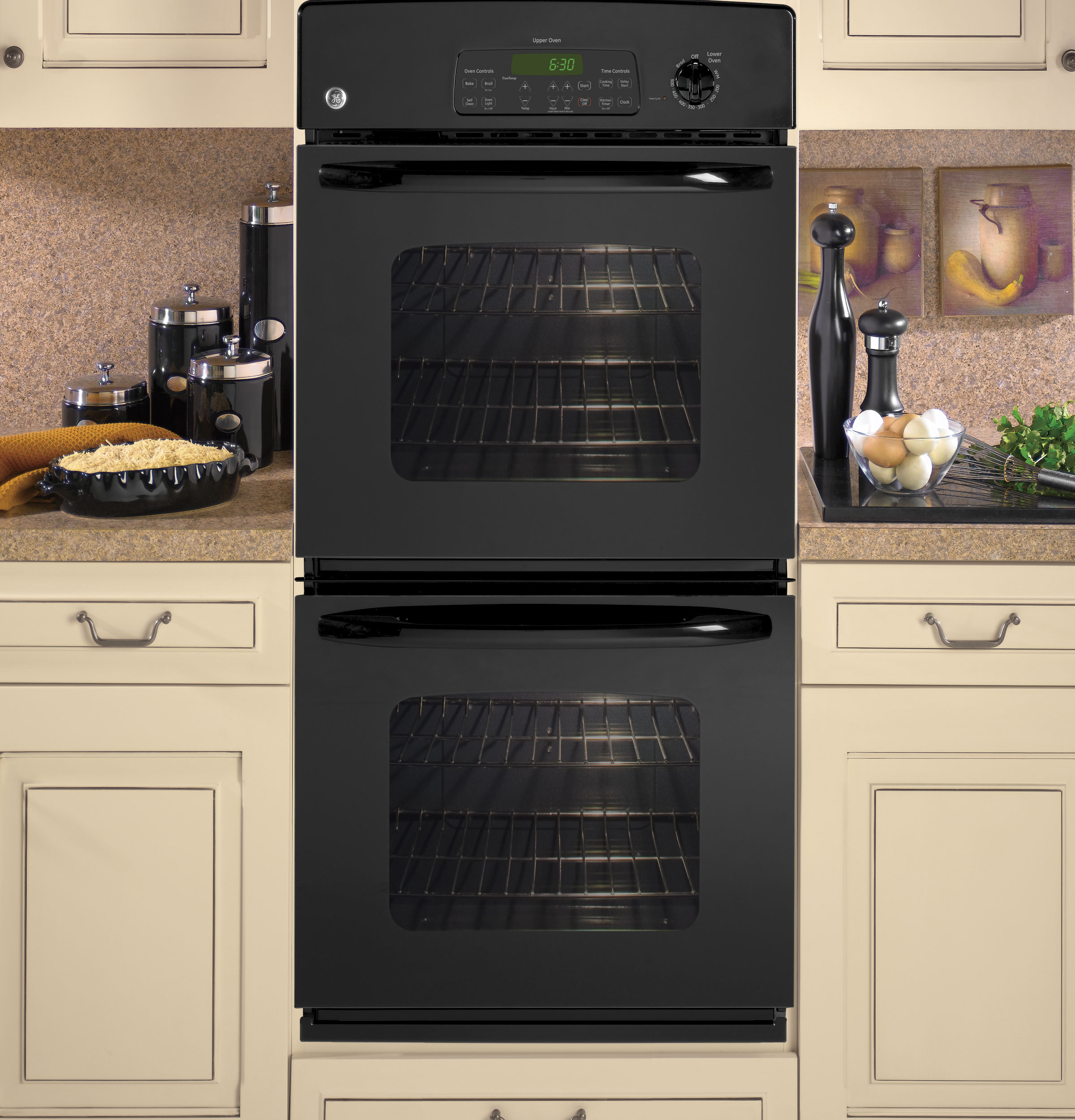

27" Built-In Double Wall Oven - JKP35DPBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

27" Built-In Double Wall Oven

Model: JKP35DPBB

27" Built-In Double Wall Oven JKP35DPBB27" Built-In Double Wall Oven JKP35DPBB
27" Built-In Double Wall Oven JKP35DPBB
27" Built-In Double Wall Oven JKP35DPBB

Product Video

GE 27" Built-In Double Wall Oven Black JKP35DPBB Picture

Color : Black

27" Built-In Double Wall Oven JKP35DPBB
Black

Key Features

  • Double oven 7.6 cu. ft. total oven capacity (3.8 cu. ft. upper / 3.8 cu. ft. lower)

  • Electronic oven controls

  • TrueTemp oven system (upper oven)

  • Interior oven light

  • Four-pass broil element

  • Hidden bake oven interior

  • Four-pass bake element

  • Self-clean oven (upper oven)

Description

More room for cooking more dishes at once.Electronic touch pads are easy to operate.51 H x 26 5/8 W x 23 5/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Double oven 7.6 cu. ft. total oven capacity (3.8 cu. ft. upper / 3.8 cu. ft. lower)

More room for cooking more dishes at once

Electronic oven controls

Electronic touch pads are easy to operate

TrueTemp oven system (upper oven)

Even heat distribution and maximum oven control

Interior oven light

Illuminates the oven interior

Four-pass broil element

Provides more even coverage of the food on the broiler pan

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

Four-pass bake element

Powerful heating element delivers fast response and superior heat distribution

Self-clean oven (upper oven)

Cleans the upper oven cavity without need of scrubbing

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Height51 in
Cabinet Width27 in
Net Weight163 lb
Oven Interior Dimensions (upper)21 1/2 x 17 x 18 1/4
Cutout Dimensions (w x h x d) (in.)25 x 50-1/8 x 23-1/2
Oven Interior Dimensions (lower)21 1/2 x 17 x 18 1/4
Approximate Shipping Weight184 lb
Overall Depth23 5/8 in
Overall Width26 5/8 in

POWER / RATINGS

Bake Wattage2100W
KW Rating at 240V6.8
Amp Rating at 208V30
Broiler Wattage3400W
Amp Rating at 240V30
KW Rating at 208V5.1

FEATURES

Oven Cooking ModesThermal Bake
Oven InteriorHidden Bake
Cooking TechnologyTraditional
Oven Features4-Pass Broil Element
Cleaning TimeVariable with Delay Clean Option (Upper)
ConfigurationDouble Oven
Oven Rack Positions (Single or Upper/Lower)4
Oven Control FeaturesVariable Broil (Upper)
Temperature Management SystemTrue Temp System (Upper)
Oven Rack FeaturesEmbossed Rack Positions
Self-Clean Oven Door LockAutomatic
Oven Cleaning TypeSelf-Clean Upper; Standard Clean (Lower)
Oven Control FeaturesAudible Preheat Signal (Upper)
Oven Control FeaturesAuto Oven Shut-Off with Override (Upper)
Oven Control FeaturesC° or F° Programmable (Upper)
Oven Control FeaturesSabbath Mode (Upper)
Oven Control FeaturesControl Lock Capability (Upper)
Oven Control FeaturesDelay Bake Option With Cook & Hold (Upper)
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesLight Self Clean Mode (Upper)
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesOven Light Pad
Oven Control FeaturesStart Pad (Upper)
Oven Control FeaturesTemperature Display (Upper)
Oven Features4-Pass Bake Element
Oven InteriorAuto Halogen Oven Interior Light
Oven Rack Features2 Heavy-Duty Oven Racks (Both Ovens)

APPEARANCE

Frameless Oven Door(s)Black Glass
Oven Door FeaturesBig Hearth Oven Window
Handle ColorColor-Matched
Color AppearanceBlack
InstallationAbove Warming Drawer
Handle DesignD-shaped

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

CAPACITY

Capacity (Cu. Ft.)3.8 Upper / 3.8 Lower

Other

Oven Interior Dimensions (upper)21 1/2 x 17 x 18 1/4
Cutout Dimensions (w x h x d) (in.)25 x 50-1/8 x 23-1/2

Dimensions & Weight

Width26.63 in.
Height51 in.
Length23.63 in.
Weight163 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.63 in.
Shipping Height56 in.
Shipping Length28.63 in.
Shipping Weight203 lbs.
Total of Shipping Weight203 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement18.56 ft³
Dimensional Weight230.79 lbs.
Total of Cubes18.56 ft³
Total of Dimensional Weight230.79 lbs.
