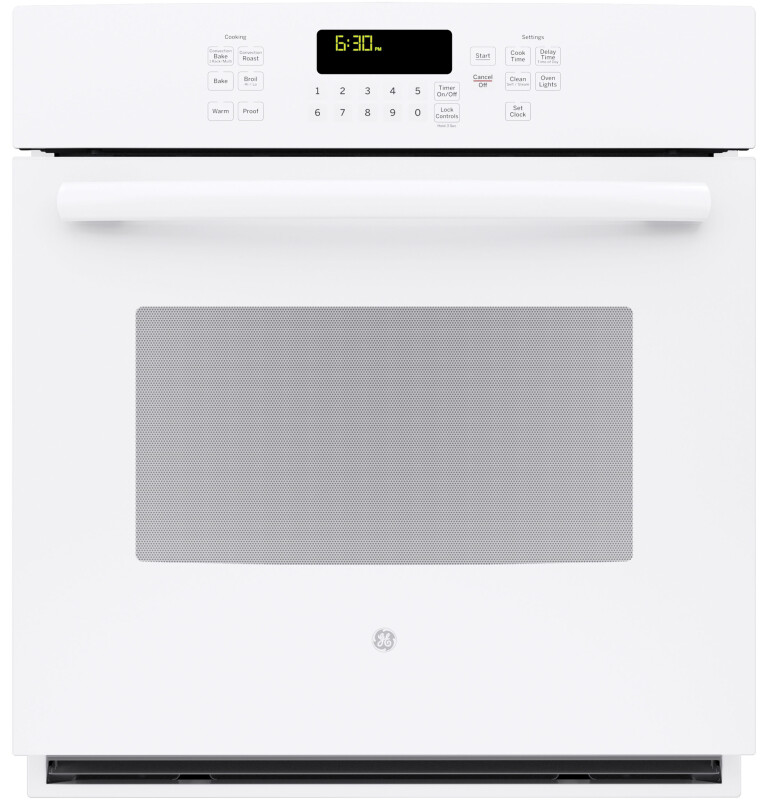

27" Built-In Single Convection Wall Oven - JK5000DFWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

27" Built-In Single Convection Wall Oven

Model: JK5000DFWW

27" Built-In Single Convection Wall Oven JK5000DFWW27" Built-In Single Convection Wall Oven JK5000DFWW27" Built-In Single Convection Wall Oven JK5000DFWW27" Built-In Single Convection Wall Oven JK5000DFWW27" Built-In Single Convection Wall Oven JK5000DFWW
27" Built-In Single Convection Wall Oven JK5000DFWW
27" Built-In Single Convection Wall Oven JK5000DFWW
27" Built-In Single Convection Wall Oven JK5000DFWW
27" Built-In Single Convection Wall Oven JK5000DFWW
27" Built-In Single Convection Wall Oven JK5000DFWW

Product Video

GE 27" Built-In Single Convection Wall Oven White JK5000DFWW Picture
4 Videos

Color : White

27" Built-In Single Convection Wall Oven JK5000DFWW
White

Key Features

  • Fit Guarantee

  • True European Convection

  • Self-clean with Steam Clean option

  • Self-clean, heavy-duty oven racks

  • Glass touch controls

  • Halogen oven lighting

  • Ten-pass bake element

  • Eight-pass broil element

Read More

Description

Achieve delicious results from a third heating element and fan combination.Clean your oven the way you want.28 7/8 H x 26 3/4 W x 26 5/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

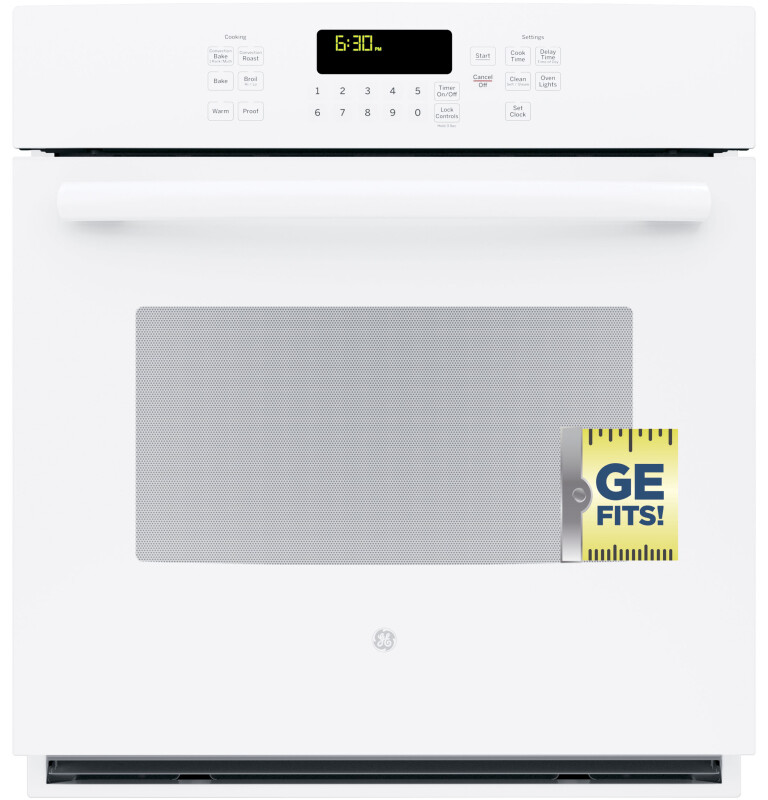

Fit Guarantee

Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

True European Convection

Achieve delicious results from a third heating element and fan combination

Self-clean with Steam Clean option

Clean your oven the way you want

Self-clean, heavy-duty oven racks

Conveniently clean your oven and racks together

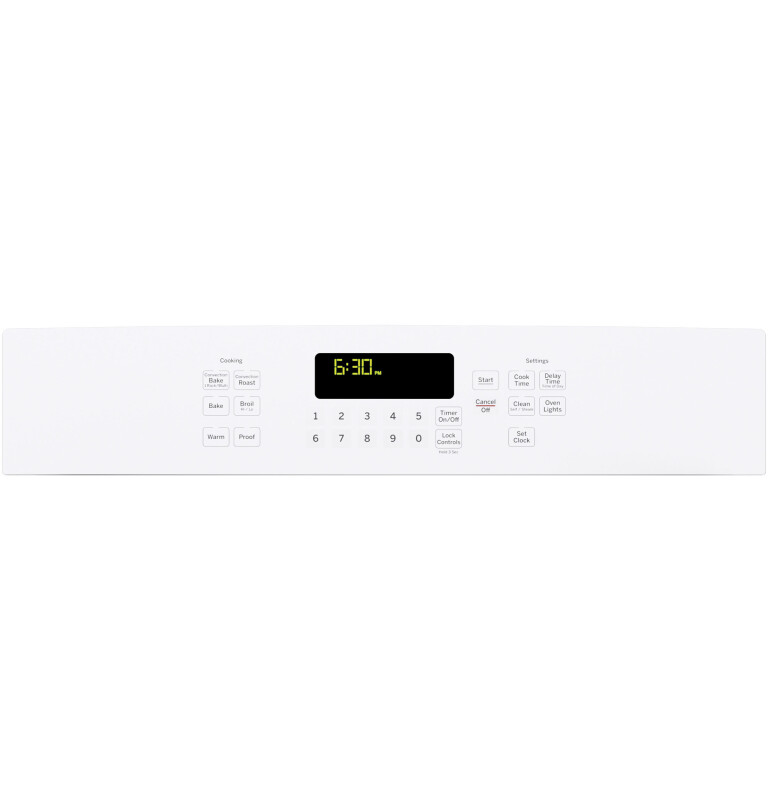

Glass touch controls

Set temperatures quickly and clean with little effort

Halogen oven lighting

Easily see how your food is baking

Ten-pass bake element

Even baking is assured with heat that covers more surface area

Eight-pass broil element

Get full broil coverage and even browning from edge to edge

4.3 cu. ft. oven capacity

Cook more dishes at once

Black gloss oven interior

Enjoy a clean and sleek appearance

Hidden bake oven interior

Make cleanup easy by eliminating hard-to-reach areas

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

MADE IN AMERICA: 70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

UL certification

UL

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width26.75 in.
Height28.88 in.
Length26.63 in.
Weight115 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.75 in.
Shipping Height33.88 in.
Shipping Length31.63 in.
Shipping Weight155 lbs.
Total of Shipping Weight155 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.9 ft³
Dimensional Weight147.95 lbs.
Total of Cubes11.9 ft³
Total of Dimensional Weight147.95 lbs.

POWER / RATINGS

Bake Wattage2600W
Convection Wattage2400W
KW Rating at 240V3.6
Amp Rating at 208V20
Broiler Wattage3400W
Amp Rating at 240V20
KW Rating at 208V2.7

APPEARANCE

Frameless Oven Door(s)White Glass
Oven Door FeaturesBig View Oven Window
Color AppearanceWhite
HandleHigh-Gloss Color-Matched
InstallationSide-by-Side
InstallationUndercounter
HandleDesigner Style
InstallationUnder Cooktop
InstallationAbove Warming Drawer

FEATURES

Cooking TechnologyConvection
Cleaning TimeVariable with Delay Clean Option
ConfigurationSingle Oven
Oven Rack Positions (Single or Upper/Lower)6
Oven Rack FeaturesEmbossed Rack Positions
Self-Clean Oven Door LockAutomatic
Cooking SystemTrue European Convection
Control TypeLED
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Cooking ModesConvection Roast
Oven Features8-Pass Broil Element
Oven InteriorBlack Gloss Finish
Oven Cooking ModesThermal Broil
Oven InteriorHidden Bake
Oven FeaturesClosed Door Broiling
Oven Control FeaturesWarm Mode
Control TypeGlass Touch
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesCook Time
Oven Control FeaturesDelay Time
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesProof Mode
Oven Control FeaturesTemperature Display
Oven Cooking ModesConvection Bake Multi-Rack
Oven Cooking ModesThermal Bake
Oven Features10-Pass Bake Element
Oven Interior2 Halogen Interior Oven Lights
Oven Rack Features3 Self-Clean Heavy-Duty Oven Racks

WEIGHTS & DIMENSIONS

Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17-1/4 x 20
Cabinet Width27 in
Net Weight115 lb
Cutout Dimensions (w x h x d) (in.)25-1/4 x 28-1/8 x 23-1/2
Approximate Shipping Weight130 lb
Overall Depth26 5/8 in
Overall Height28 7/8 in
Overall Width26 3/4 in

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

CAPACITY

Total Capacity (cubic feet)4.30 cu ft
