27" Built-In Single Wall Oven - JKP30CMCC

This product has been discontinued by the manufacture and is no longer available.

27" Built-In Single Wall Oven

Model: JKP30CMCC

27" Built-In Single Wall Oven JKP30CMCC27" Built-In Single Wall Oven JKP30CMCC27" Built-In Single Wall Oven JKP30CMCC
27" Built-In Single Wall Oven JKP30CMCC
27" Built-In Single Wall Oven JKP30CMCC
27" Built-In Single Wall Oven JKP30CMCC

Color : Bisque

27" Built-In Single Wall Oven JKP30CMCC
Bisque

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • Electronic oven controls

  • TrueTemp oven system

  • Hidden bake oven interior

  • Interior oven light(s)

  • Certified Sabbath mode

  • Heavy-duty oven racks

Read More

Description

Enough room to cook an entire meal at once.Electronic pads on the control panel are easy to operate with just a touch.29 H x 26 5/8 W x 23 5/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Enough room to cook an entire meal at once

Electronic oven controls

Electronic pads on the control panel are easy to operate with just a touch

TrueTemp oven system

Even heat distribution and maximum oven control

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Interior oven light(s)

Bright interior light helps you check on the progress of your cooking

Certified Sabbath mode

Convenient mode keeps the oven warm in accordance within the restrictions of the kosher kitchen

Heavy-duty oven racks

Tough, durable racks include 50% thicker crossbars for extra strength

Four-pass broil element

Provides more even coverage of the food on the broiler pan

Eight-pass bake element

Interior heating element loops eight times to distribute heat quickly and evenly for optimal baking results

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Height29 in
Approximate Shipping Weight115 lb

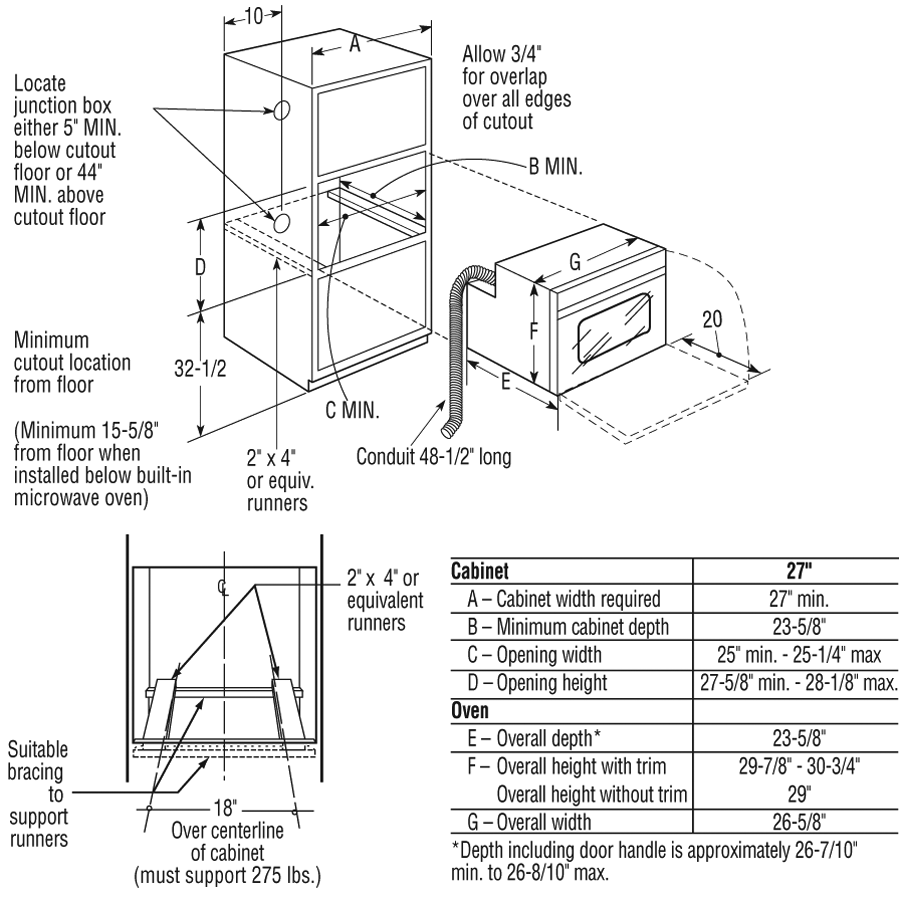

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Cabinet Width27 in
Net Weight103 lb
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4
Overall Depth23 5/8 in
Overall Width26 5/8 in

FEATURES

Cleaning TimeVariable with Delay Clean Option
ConfigurationSingle Oven
Oven Cooking ModesThermal Bake / Thermal Roast
Temperature Management SystemTrue Temp System
Oven InteriorHidden Bake
StyleBuilt-In
Oven Control FeaturesVariable Broil
Control TypeSmartSet
Self-Clean Oven Door LockAutomatic
Oven Rack Positions (Single or Upper/Lower)4
Oven Cleaning TypeSelf-Clean
Cooking TechnologyTraditional
Oven Rack FeaturesEmbossed Rack Positions
Oven FeaturesClosed Door Broiling
Interior Oven LightYes
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesOven Light Pad
Oven Control FeaturesStart Pad
Oven Control FeaturesLight Self Clean Mode
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesTemperature Display
Oven Features4-Pass Broil Element
Oven Features8-Pass Bake Element
Oven Rack Features2 Heavy-Duty Oven Racks

APPEARANCE

Frameless Oven Door(s)Color-Matched
HandlePremium
Oven Door FeaturesBig Clear View Oven Window
InstallationUndercounter
Color AppearanceBisque on Bisque
InstallationUnder Cooktop
InstallationFlush Appearance

POWER / RATINGS

Broiler Wattage3400W
Amp Rating at 208V20
KW Rating at 208V2.6
Amp Rating at 240V20
Bake Wattage2100W
KW Rating at 240V3.4

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

Other

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4

Dimensions & Weight

Width26.63 in.
Height29 in.
Length23.63 in.
Weight103 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.63 in.
Shipping Height34 in.
Shipping Length28.63 in.
Shipping Weight143 lbs.
Total of Shipping Weight143 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.56 ft³
Dimensional Weight131.23 lbs.
Total of Cubes10.56 ft³
Total of Dimensional Weight131.23 lbs.

CAPACITY

Total Capacity (cubic feet)3.90 cu ft
