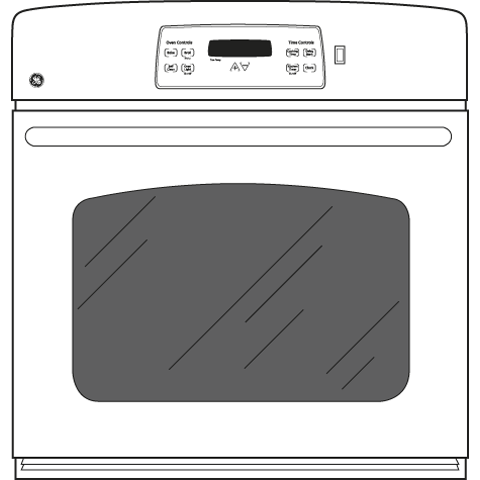

27" Built-In Single Wall Oven - JKS10DPBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

27" Built-In Single Wall Oven

Model: JKS10DPBB

27" Built-In Single Wall Oven JKS10DPBB27" Built-In Single Wall Oven JKS10DPBB27" Built-In Single Wall Oven JKS10DPBB
27" Built-In Single Wall Oven JKS10DPBB
27" Built-In Single Wall Oven JKS10DPBB
27" Built-In Single Wall Oven JKS10DPBB

Color : Black

27" Built-In Single Wall Oven JKS10DPBB
Black

Key Features

  • Standard clean oven

  • 3.8 cu. ft. capacity

  • Electronic oven controls

  • Interior oven light

  • Hidden bake oven interior

  • Heavy-duty oven racks

  • Variable broil

  • Certified Sabbath mode

Description

Enough room to cook an entire meal at once.Electronic touch pads are easy to operate.29 H x 26 5/8 W x 23 5/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Standard clean oven

Smooth surface makes cleaning by hand easier

3.8 cu. ft. capacity

Enough room to cook an entire meal at once

Electronic oven controls

Electronic touch pads are easy to operate

Interior oven light

Illuminates the oven interior

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

Heavy-duty oven racks

Thicker racks offer additional strength

Variable broil

Broil settings provide added flexibility

Certified Sabbath mode

Prepared foods can stay warm in accordance with kosher restrictions

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Height29 in
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4
Cabinet Width27 in
Net Weight87 lb

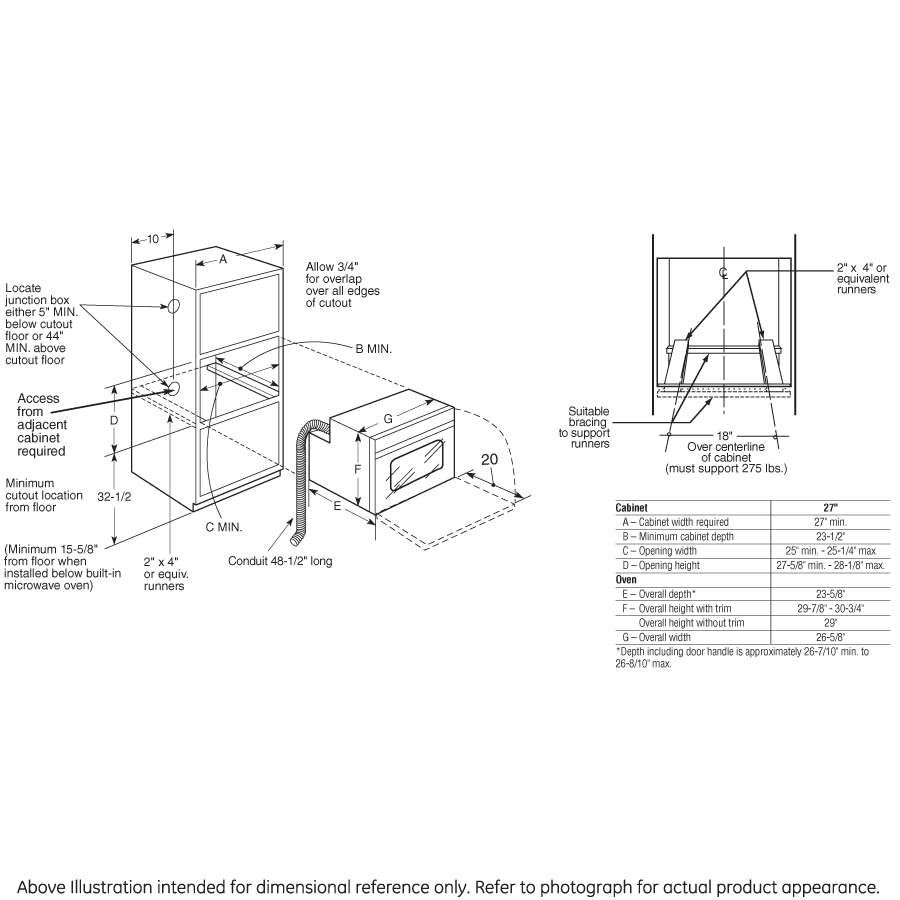

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-1/2
Approximate Shipping Weight97 lb
Overall Depth23 5/8 in
Overall Width26 5/8 in

POWER / RATINGS

Bake Wattage2100W
KW Rating at 240V3.4
Amp Rating at 208V20
Broiler Wattage3400W
Amp Rating at 240V20
KW Rating at 208V2.6

APPEARANCE

Frameless Oven Door(s)Black Glass
Oven Door FeaturesBig Hearth Oven Window
Handle ColorColor-Matched
Color AppearanceBlack
InstallationUndercounter
Handle DesignD-shaped
InstallationUnder Cooktop
InstallationAbove Warming Drawer

FEATURES

Oven Cooking ModesThermal Bake
Oven InteriorHidden Bake
Cooking TechnologyTraditional
Oven Features4-Pass Broil Element
ConfigurationSingle Oven
Oven Rack Positions (Single or Upper/Lower)4
Oven Control FeaturesOptional Clock Display
Temperature Management SystemTrue Temp System
Oven Rack FeaturesEmbossed Rack Positions
Oven Cleaning TypeStandard Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesDelay Bake Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Features4-Pass Bake Element
Oven InteriorHalogen Oven Interior Light (switch)
Oven Rack Features2 Heavy-Duty Oven Racks

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

Other

Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4
Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-1/2

Dimensions & Weight

Width26.63 in.
Height29 in.
Length23.63 in.
Weight87 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.63 in.
Shipping Height34 in.
Shipping Length28.63 in.
Shipping Weight127 lbs.
Total of Shipping Weight127 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.56 ft³
Dimensional Weight131.23 lbs.
Total of Cubes10.56 ft³
Total of Dimensional Weight131.23 lbs.

CAPACITY

Total Capacity (cubic feet)3.80 cu ft
