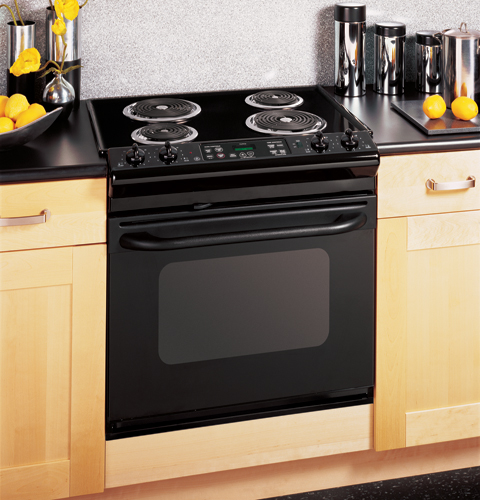

30" Drop-In Electric Range with Self-Cleaning Oven - JDP39BKBB

This product has been discontinued by the manufacture and is no longer available.

30" Drop-In Electric Range with Self-Cleaning Oven

Model: JDP39BKBB

30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB
30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB

Color : Black

30" Drop-In Electric Range with Self-Cleaning Oven JDP39BKBB
Black

Key Features

  • Self-clean oven

  • Electronic oven controls

  • Coil heating elements

  • Lift-up porcelain cooktop

  • Chrome drip bowls

  • Control lock capability

  • Multiple oven rack positions

  • Two oven racks

Read More

Description

One-touch electronic pads are easy-to-use and allow for simple oven operation.Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning.27 H x 30 W x 28 1/4 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without need of scrubbing

Electronic oven controls

One-touch electronic pads are easy-to-use and allow for simple oven operation

Coil heating elements

Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning

Lift-up porcelain cooktop

Makes spills and messes under the cooktop easily accessible and within reach

Chrome drip bowls

Contain spills and remove for easy cleaning

Control lock capability

Provides the ability to lock controls, helping protect from unintentional activation

Multiple oven rack positions

Delivers flexibility and allows consumers to make the most of available oven capacity

Two oven racks

Feature a durable construction to help accommodate any size or type of cookware

Audible preheat signal

Features an audible signal that activates when the oven has reached the desired cooking temperature

Dual-element bake

Alternates the upper broiling element and the lower baking element for even heating and optimal baking results

Frameless glass oven door

Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Height27 in
Net Weight127 lb
Depth Without Handle26.5 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Cabinet Width30 in
Approximate Shipping Weight137 lb
Overall Depth28 1/4 in

POWER / RATINGS

KW Rating at 240V10.8
Amp Rating at 208V40
KW Rating at 208V8.1
Amp Rating at 240V40

FEATURES

Oven Features6-Pass Broil Element
Cleaning TimeVariable with Delay Clean Option
Removable One-Piece Drip BowlsChrome
Interior Oven LightYes
Oven Control FeaturesMis-Wire Detection
Cooktop Burner TypeCoil
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
6" Heating Element(s)2 Plug-In
Oven Cleaning TypeSelf-Clean
StyleCoil
Heating Element "ON" Indicator LightYes
Cooktop SurfaceLift-Up Overhanging Cooktop Black Porcelain Enamel
Control LocationUpfront
8" Heating Element (s)2 Plug-In
Dishwasher Safe KnobsYes
Cooking TechnologyTraditional
Oven Control FeaturesSabbath Mode
Cooktop Burner Type4 Plug-In Coil
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesControl Lock Capability

ACCESSORIES

Optional Maintop FillerJXS66BB (Black)
Optional BackguardJXS32BB (Black)

APPEARANCE

Oven Door FeaturesBig Clear View Oven Window
HandleColor-Matched
Color AppearanceBlack on Black

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4

Dimensions & Weight

Width30 in.
Height27 in.
Length28.25 in.
Weight127 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height32 in.
Shipping Length33.25 in.
Shipping Weight167 lbs.
Total of Shipping Weight167 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement13.24 ft³
Dimensional Weight164.62 lbs.
Total of Cubes13.24 ft³
Total of Dimensional Weight164.62 lbs.
