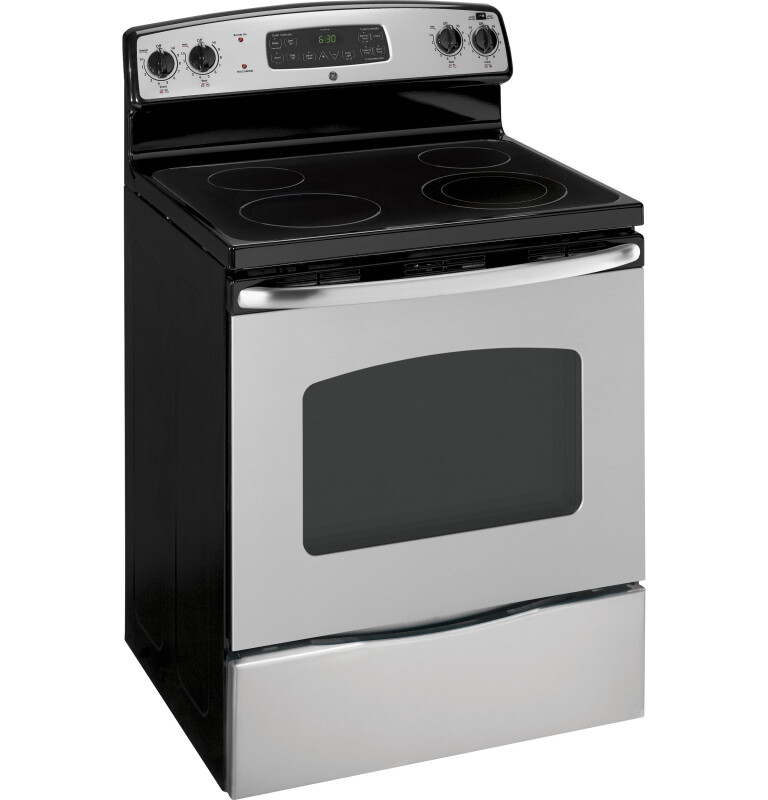

Name: 30" Free-Standing Electric Range
Brand: GE
SKU: JB400SPSS
Availability: BackOrder

30" Free-Standing Electric Range

Model : #JB400SPSS

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JB400SPSS

+5more

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JB400SPSS

Color : Stainless Steel

Type : Electric

Electric Gas

Key Features

Steam clean
Hidden bake oven interior
5.3 cu. ft. oven capacity
9"/6" Power Boil element
TrueTemp oven system
Big hearth window

Description

Conceals the lower oven element to simplify cleaning.Enough room to cook an entire meal at once.46 7/8 H x 29 7/8 W x 27 3/4 D

Documents

Installation Instructions

View | Download

PDF, 625.03 KB

Quick Specs

View | Download

PDF, 226.31 KB

Use and Care Manual

View | Download

PDF, 2.40 MB

Available from Southern Appliance, serving customers throughout Georgia.

Features

Specifications

Certifications

Features

Steam clean

Helps to clean with the power of steam

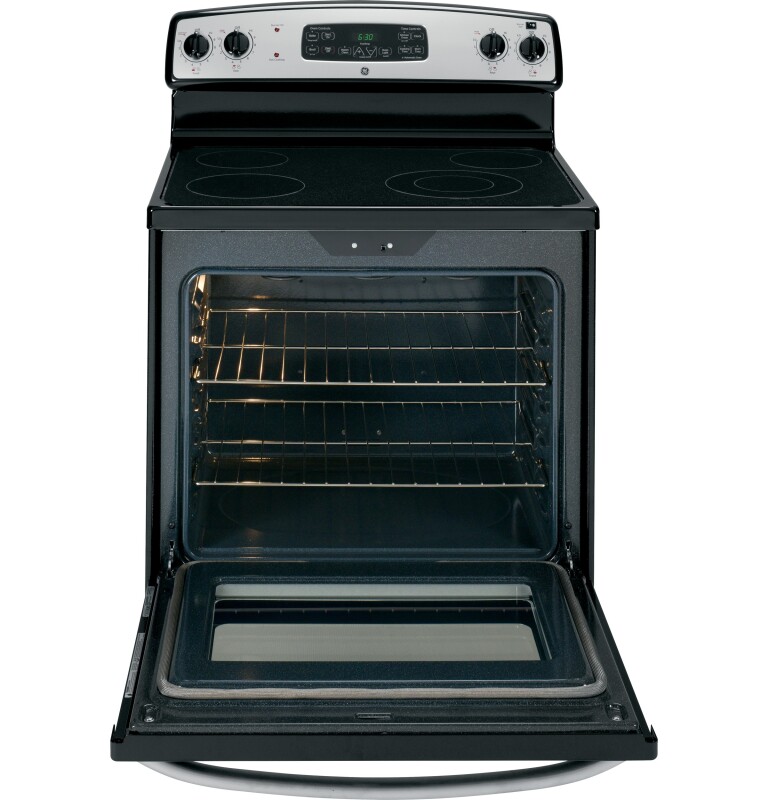

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

9"/6" Power Boil element

Produces rapid, powerful heat

TrueTemp oven system

Even heat distribution and maximum oven control

Big hearth window

Makes monitoring of foods easy

Certifications

California Prop 65

Specifications

Other

Oven Interior Dimensions (W x H x D) (in.)

24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width	29.88 in.
Height	46.88 in.
Length	27.75 in.
Weight	141 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	51.88 in.
Shipping Length	32.75 in.
Shipping Weight	181 lbs.
Total of Shipping Weight	181 lbs.
Source	Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	22.49 ft³
Dimensional Weight	279.57 lbs.
Total of Cubes	22.49 ft³
Total of Dimensional Weight	279.57 lbs.

FEATURES

Configuration	Range with Storage Drawer
Element - Right Front	9"/6" 3000W Power Boil
Oven Features	Dual-Element Bake

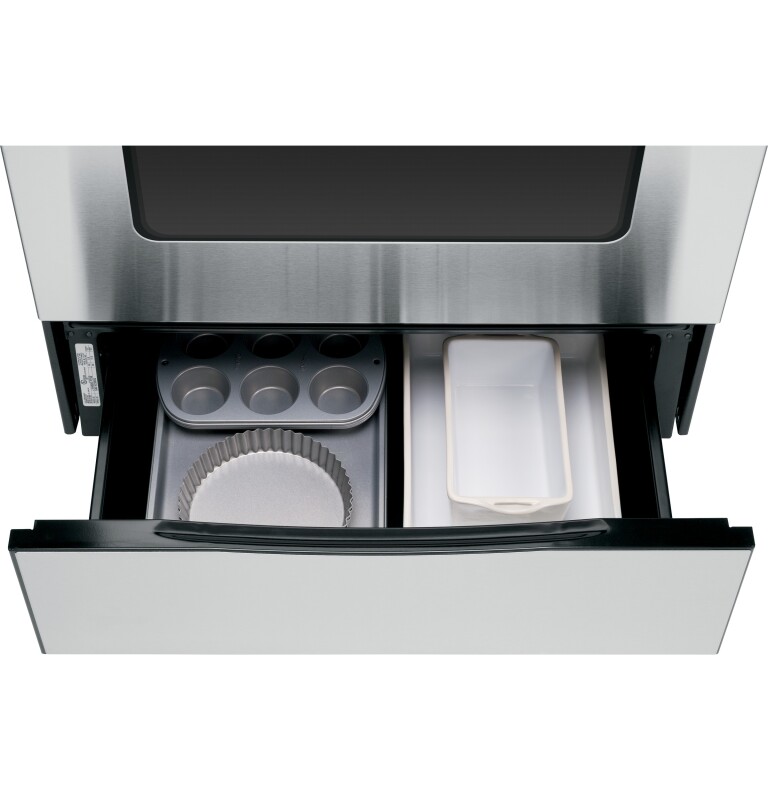

Storage Drawer Features	Removable Full-Width
Oven Interior	Interior Oven Light
Cooktop Burner Type	Smoothtop
Oven Rack Features	2 Oven Racks
Element - Left Front	8" 2000W
Infinite Heat Controls	Yes
Temperature Management System	True Temp System
Oven Cleaning Type	Standard Clean with Steam Option
Hot Surface Indicator Lights	1
Heating Element "ON" Indicator Light	2
Element - Left Rear	6" 1500W
Element - Right Rear	6" 1500W

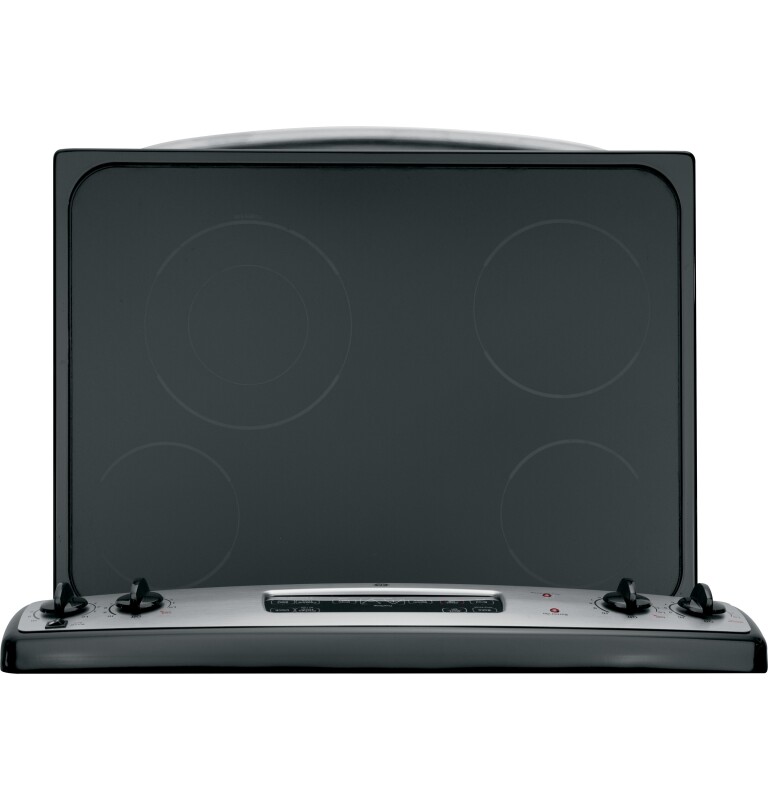

Cooktop Surface	Patterned Graphite on Black Glass Ceramic
Preheated Oven Light	Display
Control Location	Backsplash
Dishwasher Safe Knobs	Yes
Cooking Technology	Traditional

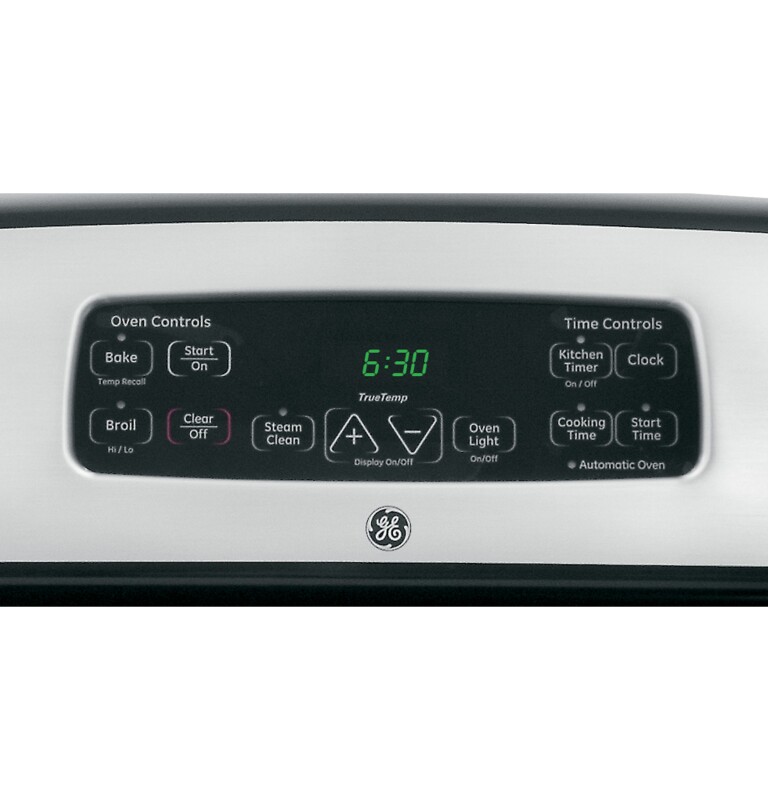

Control Type	Electronic
Oven Control Features	Auto Oven Shut-Off with Override
Oven Control Features	Start Pad
Control Type	Touchpads
Control Type	DigiTemp Temperature Display
Cooktop Burner Type	Radiant
Cooktop Surface	One-Piece Upswept
Oven Control Features	Audible Preheat Signal
Oven Control Features	Automatic Oven Timer (Time Bake)
Oven Control Features	Sabbath Mode
Oven Control Features	Electronic Clock & Kitchen Timer
Oven Control Features	Hi / Low Broil
Oven Control Features	Mis-Wire Detection
Oven Control Features	Oven "ON" Light
Oven Interior	Hidden Bake

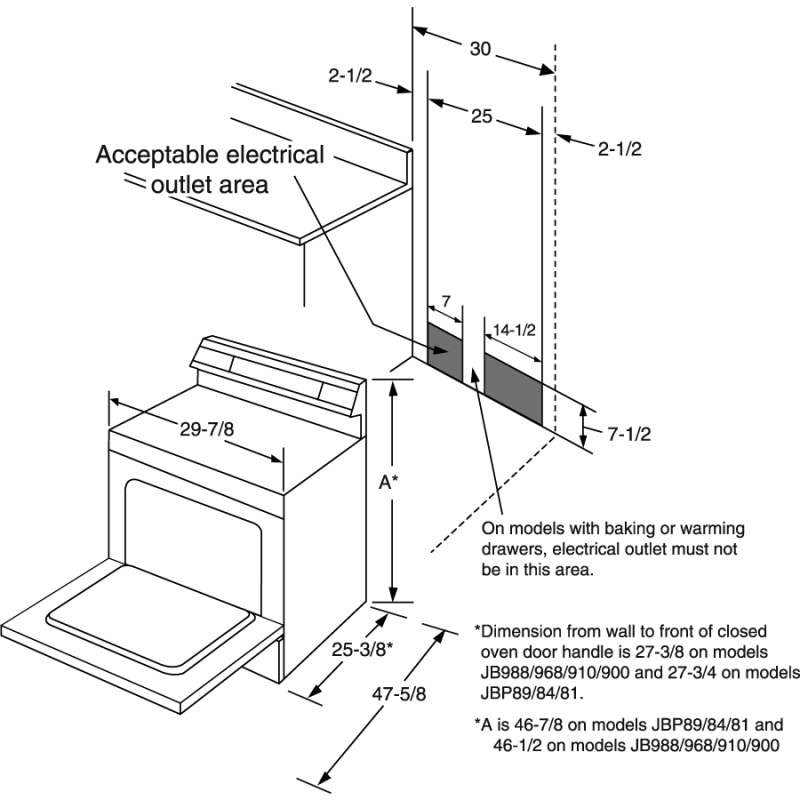

WEIGHTS & DIMENSIONS

Net Weight	141 lb
Depth Without Handle	25.375 in
Oven Interior Dimensions (W x H x D) (in.)	24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open	47.625 in
Cabinet Width	30 in
Approximate Shipping Weight	161 lb
Overall Depth	27 3/4 in
Overall Height	46 7/8 in
Overall Width	29 7/8 in

POWER / RATINGS

KW Rating at 240V	10.5
Bake Wattage	2850W
Amp Rating at 208V	40
Broiler Wattage	3800W
KW Rating at 208V	7.9
Amp Rating at 240V	40

APPEARANCE

Oven Door Features	Frameless Lift-off Oven Door
Textured Steel Side Panels	Yes
Handle Design	D-shaped
Handle Color	Stainless Steel
Color Appearance	Stainless Steel
Oven Door Features	Clear View Oven Window
