30" Free-Standing Electric Convection Range - JB690SFSS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

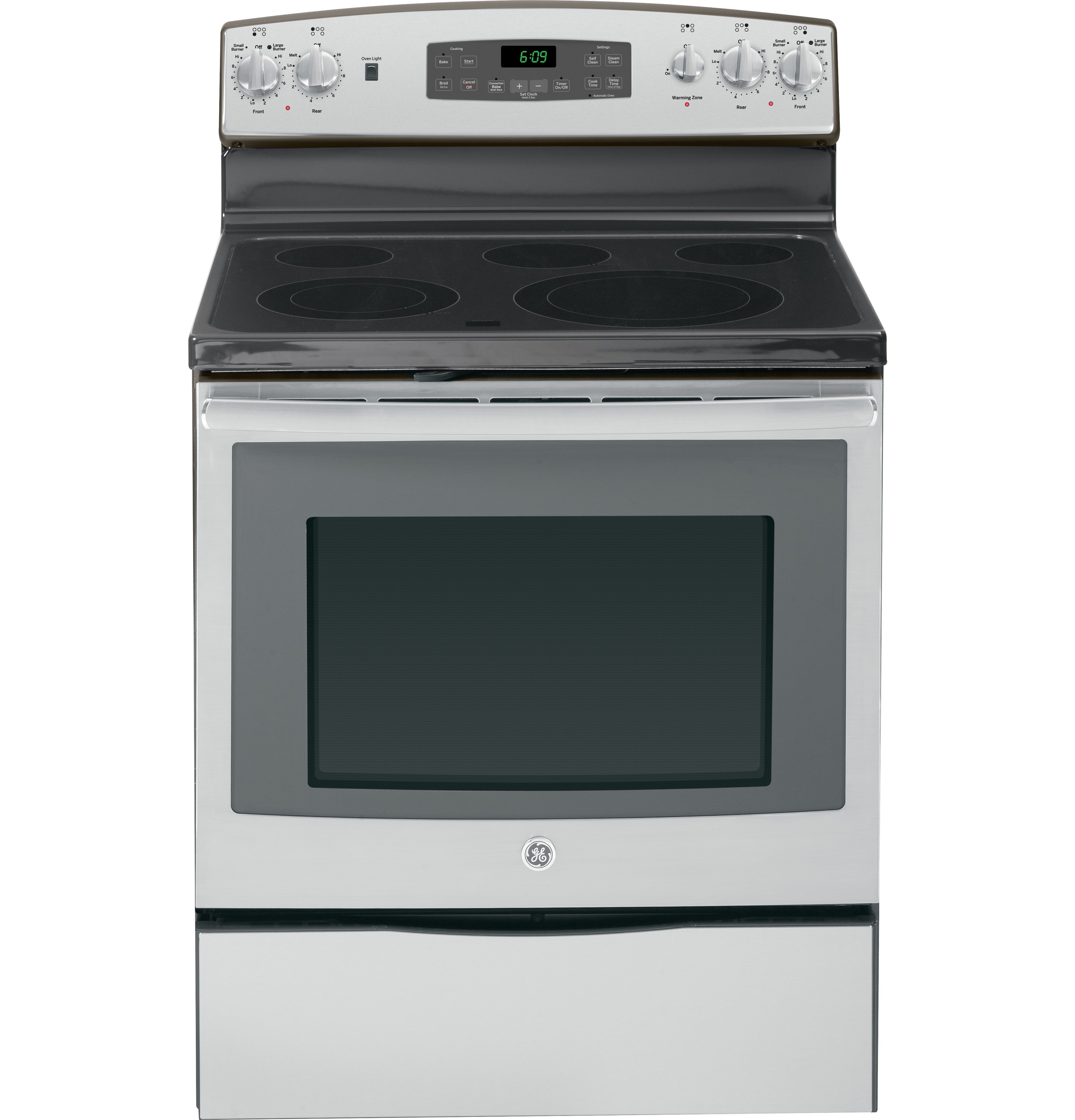

30" Free-Standing Electric Convection Range

Model: JB690SFSS

30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS30" Free-Standing Electric Convection Range JB690SFSS
30" Free-Standing Electric Convection Range JB690SFSS
30" Free-Standing Electric Convection Range JB690SFSS
30" Free-Standing Electric Convection Range JB690SFSS
30" Free-Standing Electric Convection Range JB690SFSS
30" Free-Standing Electric Convection Range JB690SFSS
+10more

Product Video

GE 30" Free-Standing Electric Convection Range Stainless Steel JB690SFSS Picture
3 Videos

Color : Stainless Steel

30" Free-Standing Electric Convection Range JB690SFSS
Stainless Steel

Key Features

  • 12"/9" dual element

  • 9"/6" Power Boil element

  • Self-clean with Steam Clean option

  • Hidden bake oven interior

  • Black gloss oven interior

  • Convection

  • Fifth element warming zone

  • Fast preheat

Description

Produces rapid, powerful heat.Provides low heat capability for foods.47 H x 29 7/8 W x 28 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

12"/9" dual element

Choose a 12" or 9" heating element

9"/6" Power Boil element

Produces rapid, powerful heat

Self-clean with Steam Clean option

Clean your oven the way you want

Hidden bake oven interior

Make cleanup easy by eliminating hard-to-reach areas

Black gloss oven interior

Enjoy a clean and sleek appearance

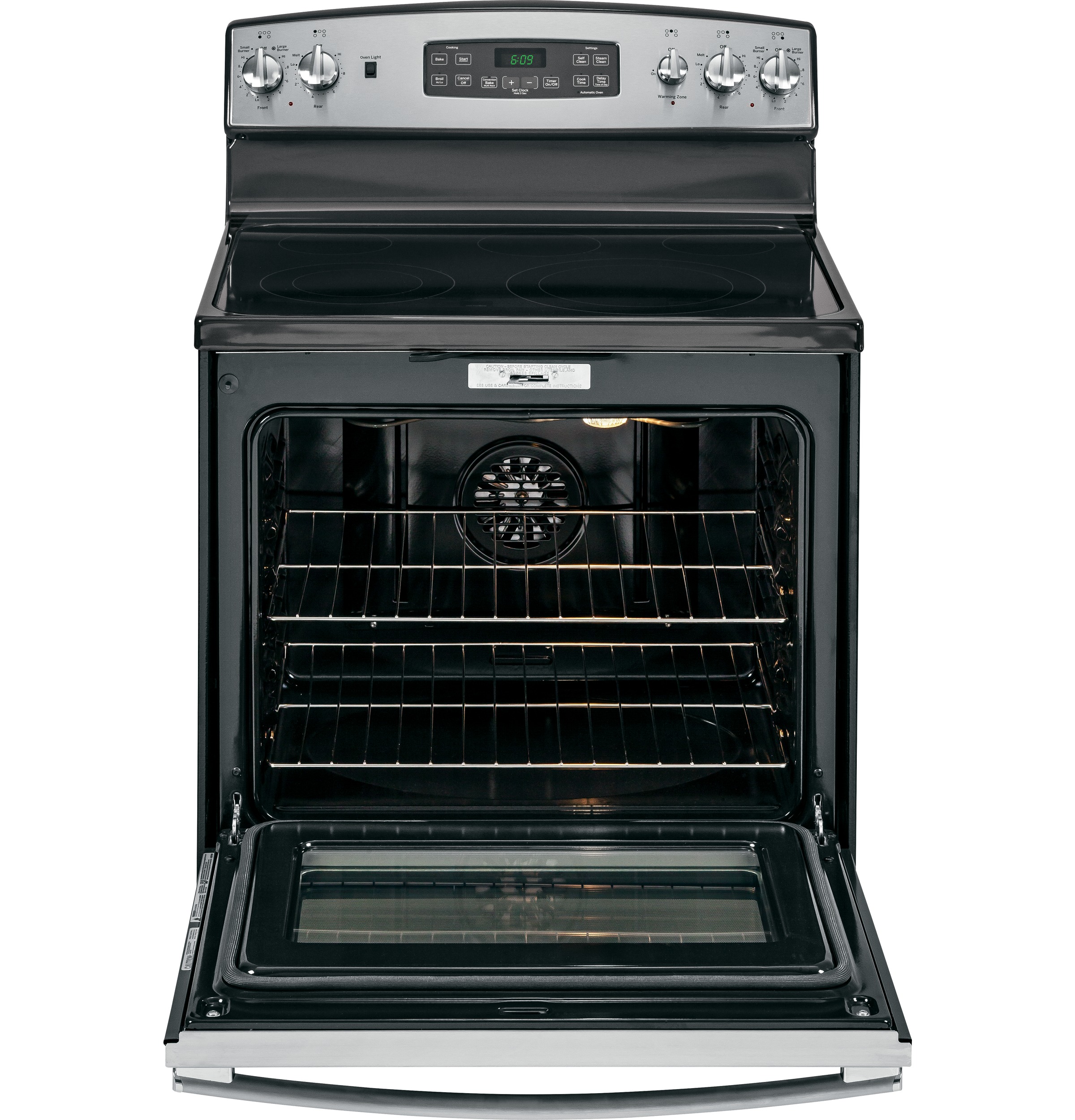

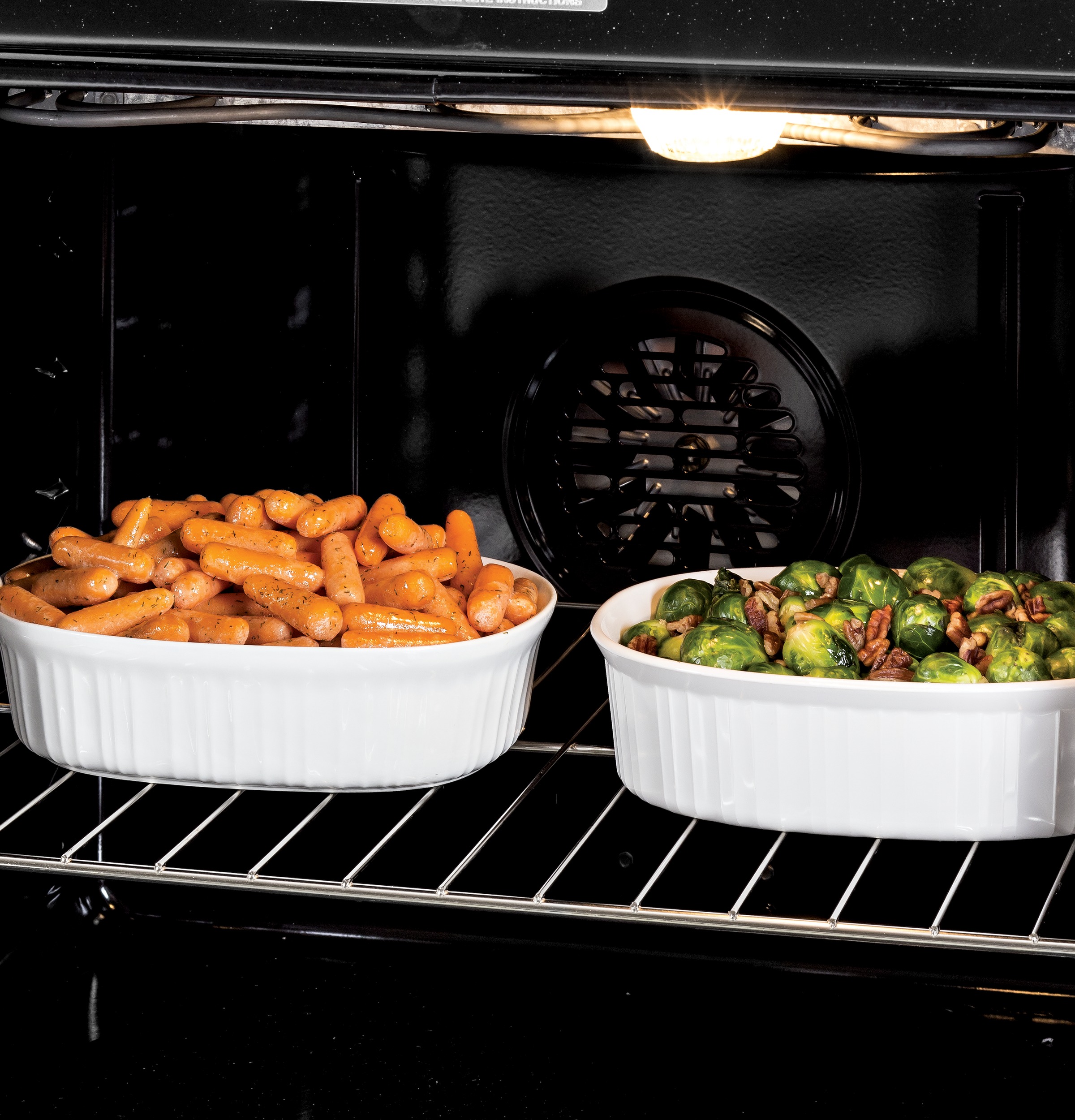

Convection

Enjoy even baking without turning the pan

Fifth element warming zone

Provides low heat capability for foods

Fast preheat

Make hot meals in a hurry with less time preheating

Certifications

California Prop 65 certification

California Prop 65

MADE IN AMERICA: 70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

Specifications

Warranty

Parts1 Year
Labor1 Year

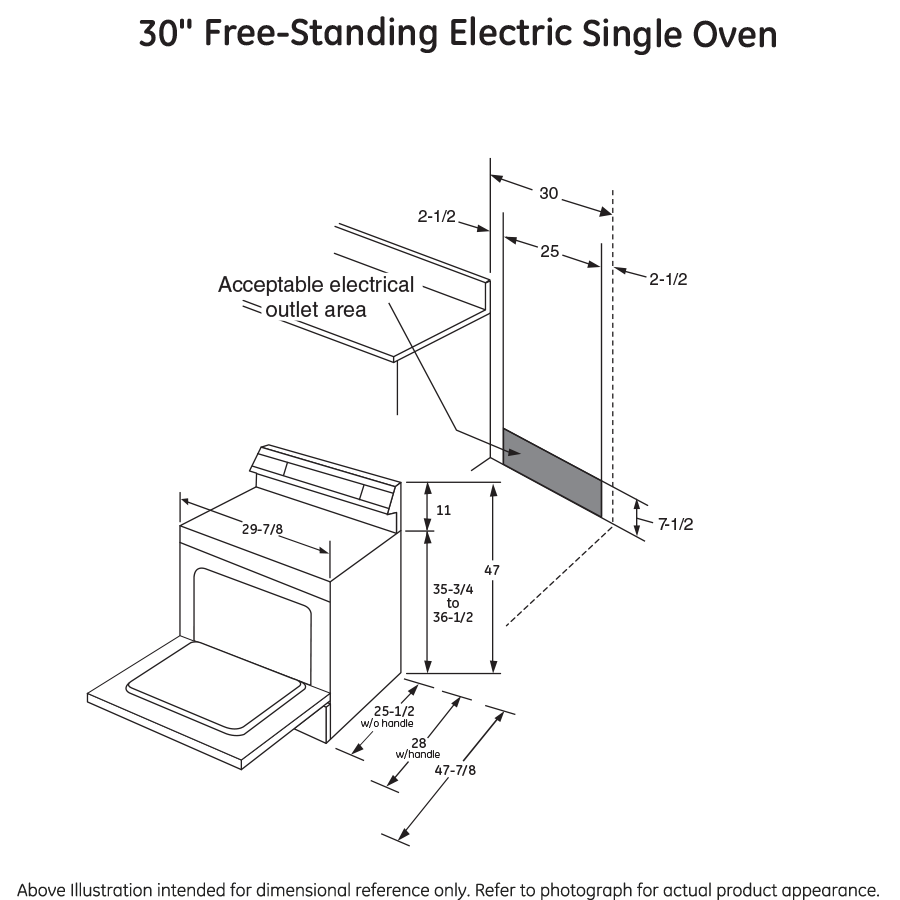

WEIGHTS & DIMENSIONS

Overall Height47 in
Overall Depth28 in
Net Weight161 lb
Depth Without Handle25.5 in
Cabinet Width30 in
Approximate Shipping Weight181 lb
Depth with Door Open47.875 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Overall Width29 7/8 in
Height to Cooking Surface (in.)35.75 - 36.5

FEATURES

Cooking SystemConvection
Storage Drawer FeaturesRemovable Full-Width
Element - Center6" 80W Warming Zone
Oven Control FeaturesSteam Clean
Oven Rack Features2 Oven Racks
Element - Left Front9"/6" 3000W Power Boil
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Product TypeFree-Standing Single Oven
Heating Element "ON" Indicator Light3
Element - Right Front12"/9" 3000W
Interior Oven Light1 Halogen

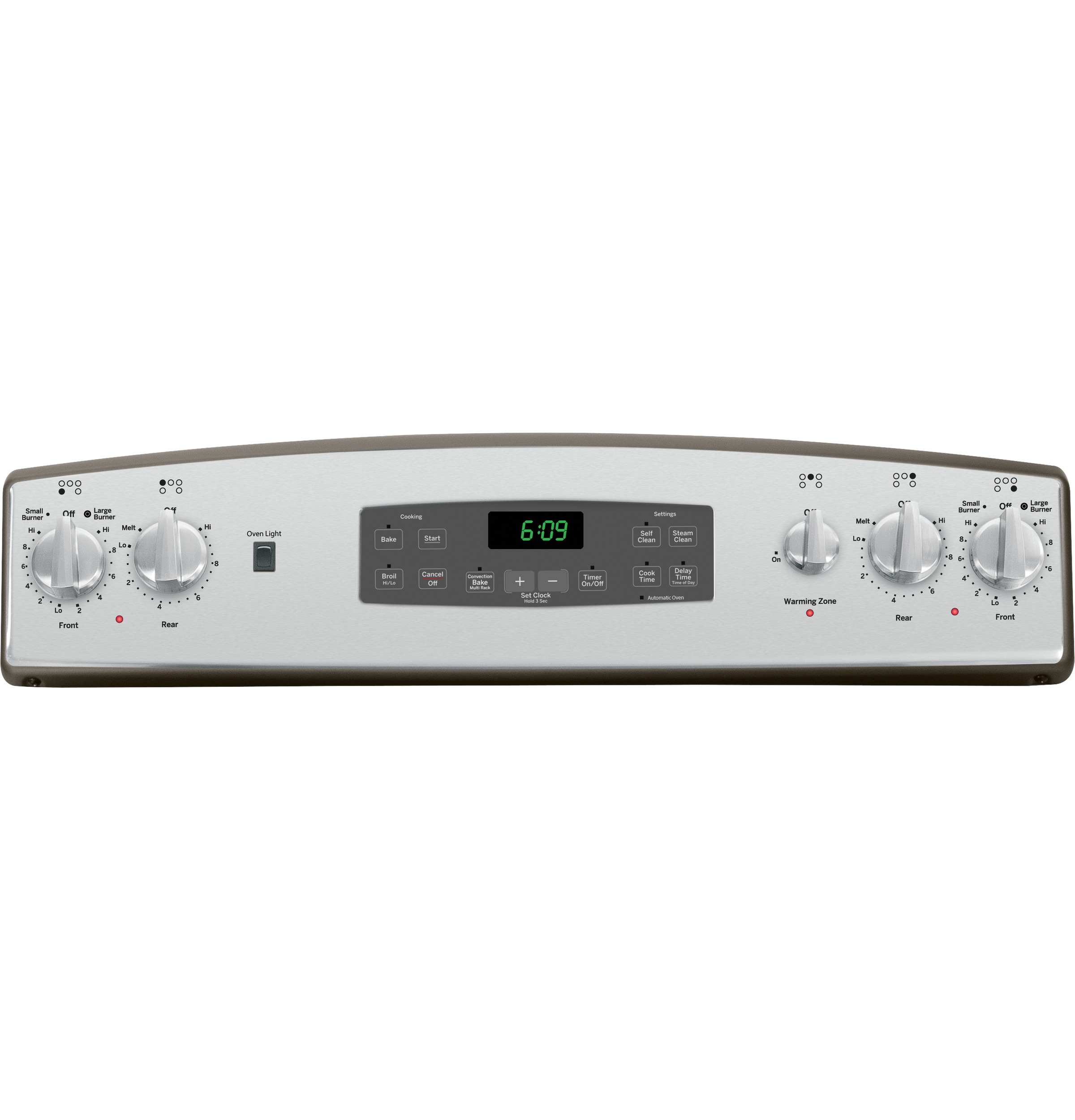

Control LocationBacksplash
Control TypeTouchpads

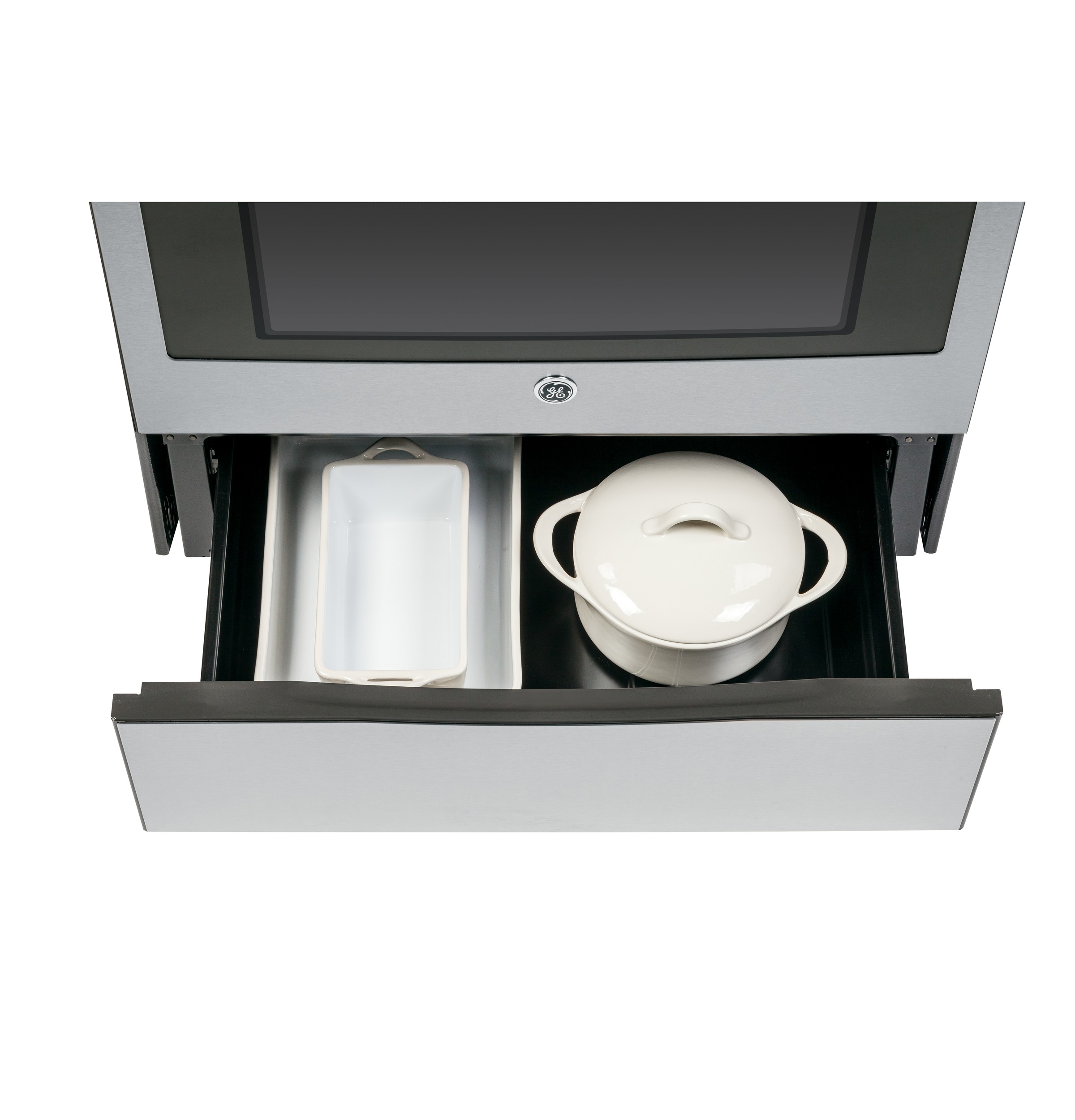

Drawer TypeStorage
Hot Surface Indicator Lights1
Element - Left Rear6" 1200W
Cooking TechnologyConvection
ConfigurationRange with Storage Drawer
Oven FeaturesHidden Bake
Melt SettingYes
Cooktop Burner TypeSmoothtop
Element - Right Rear6" 1200W
Cooktop SurfaceOne-Piece Upswept
Oven Rack Positions (Single or Upper/Lower)6
Control TypeDigital Temperature Display
Control TypeElectronic
Cooktop Burner TypeRadiant

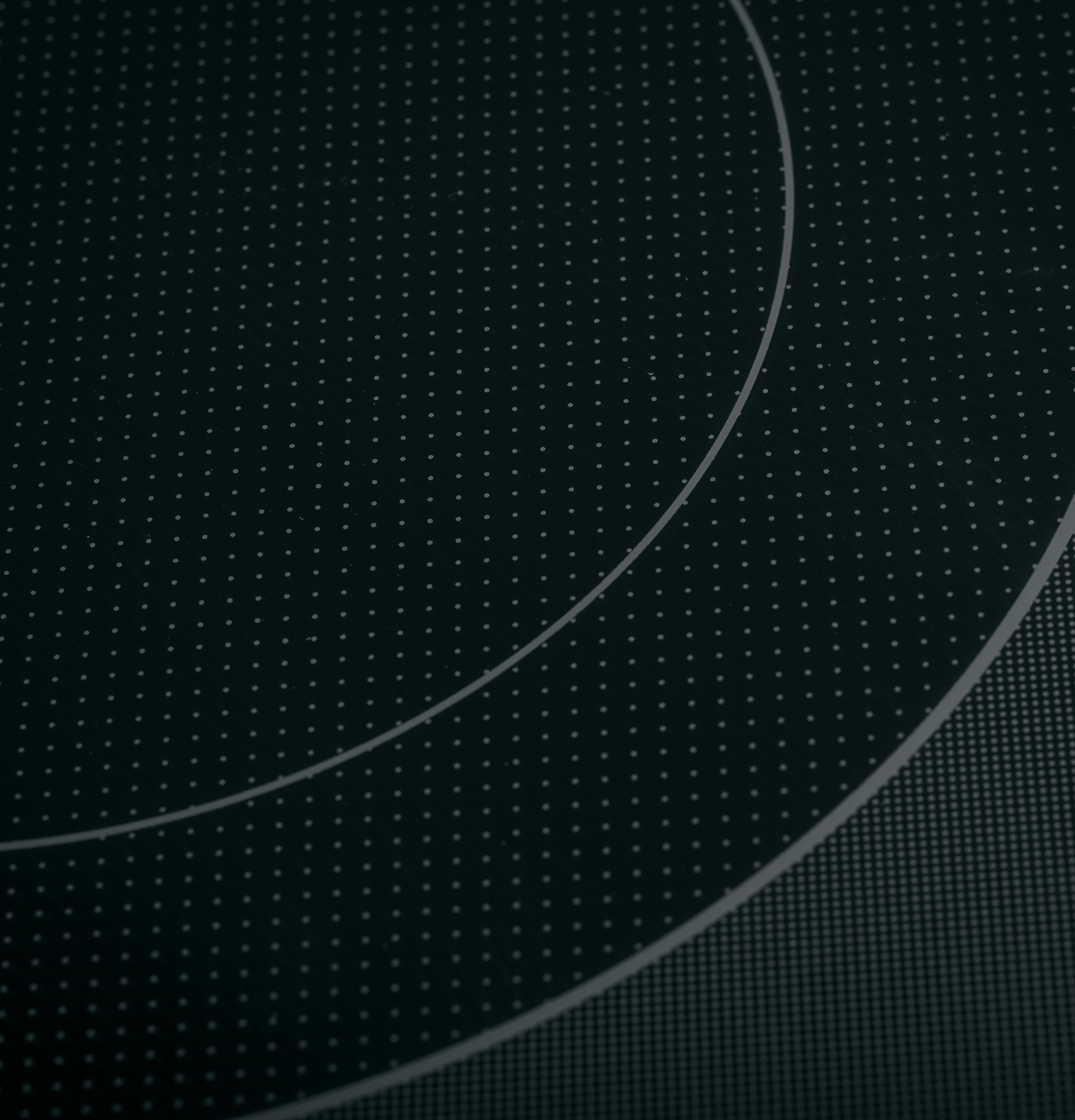

Cooktop SurfaceGray Patterned Ceramic Glass
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Bake Option (Time Cook)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesConvection Bake
Oven Control FeaturesFast Preheat
Oven Features8-Pass Broil Element

APPEARANCE

HandleStainless Steel
Textured Steel Side PanelsYes
Oven Door FeaturesStainless Overlay
Control KnobsStainless Steel Appearance
Color AppearanceStainless Steel/Gray
HandleDesigner Style
Oven Door FeaturesBig View Oven Window
Oven Door FeaturesGlass Door

POWER / RATINGS

Amp Rating at 208V40
Broiler Wattage3800W
Amp Rating at 240V40
KW Rating at 240V12.4
Bake Wattage2850W
KW Rating at 208V9.3

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

ACCESSORIES

Cooktop CleaningSponge
Cooktop CleaningCream
Cooktop CleaningIncluded

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height47 in.
Length28 in.
Weight161 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52 in.
Shipping Length33 in.
Shipping Weight201 lbs.
Total of Shipping Weight201 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.75 ft³
Dimensional Weight282.85 lbs.
Total of Cubes22.75 ft³
Total of Dimensional Weight282.85 lbs.

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
