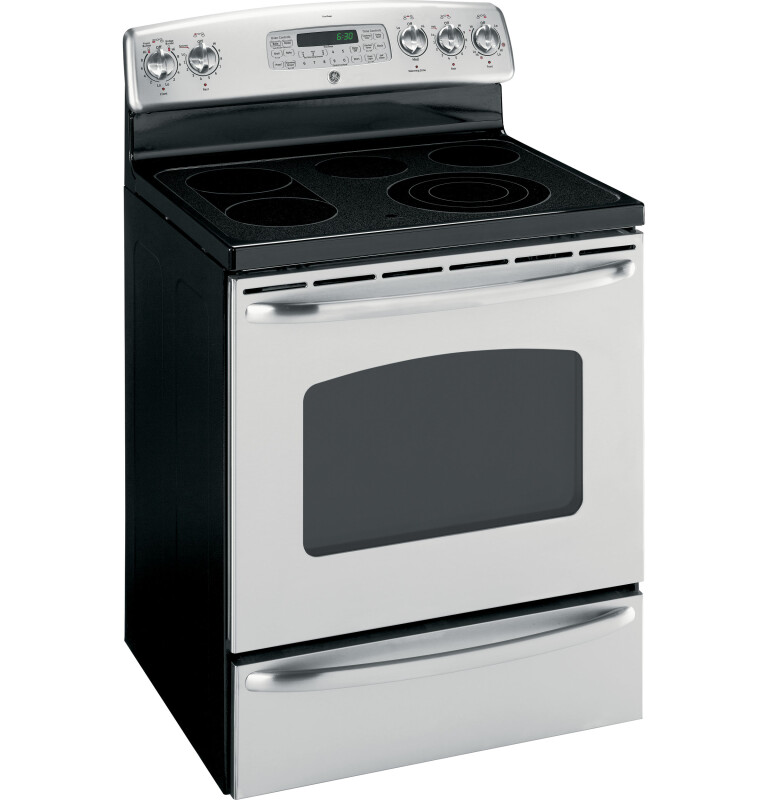

30" Free-Standing Electric Convection Range with Warming Drawer - JB840SPSS

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Convection Range with Warming Drawer

Model: JB840SPSS

30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS
30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS
30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS
30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS

Color : Stainless Steel

30" Free-Standing Electric Convection Range with Warming Drawer JB840SPSS
Stainless Steel

Type : Electric

Key Features

  • True European Convection with Precise Air

  • Single / multi-rack Convection Bake

  • Super-large 5.3 cu. ft. oven capacity

  • Hidden bake oven interior

  • 12"/9"/6" tri-ring element

  • Warming drawer

  • Bridge element

  • Self-clean, heavy-duty oven racks

Read More

Description

Provides ideal airflow throughout the oven, ensuring optimal results on both racks.Provides an impressively large oven interior to cook more dishes and large meals at once.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

True European Convection with Precise Air

A reversing fan circulates heat and air for evenly browned and baked foods

Single / multi-rack Convection Bake

Provides ideal airflow throughout the oven, ensuring optimal results on both racks

Super-large 5.3 cu. ft. oven capacity

Provides an impressively large oven interior to cook more dishes and large meals at once

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

12"/9"/6" tri-ring element

Choose a 12"/9"/6" heating element to accommodate the size of your pan

Warming drawer

The convenient drawer keeps foods warm and ready to serve

Bridge element

Combines three cooktop elements into one large cooking area, ideal for griddles and gourmet pans

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

Warming zone (fifth element warming zone)

Simplify meals by keeping foods fresh from the oven warm and ready to serve

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight208 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight248 lbs.
Total of Shipping Weight248 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Warming Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Interior Oven LightYes
Oven InteriorHidden Bake
Warming Zone1-6" Ribbon (120W)
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features3 Self-Clean Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)1 Ribbon (1,500 watt)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1, Cooktop
6"/9"/12" Tri-Ring Element1 Ribbon (3,000W)
StyleSmoothtop
Heating Element "ON" Indicator LightYes
Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Warming Drawer FeaturesInfinite Control Knob
Bridge Element1 (800W)
Melt/Simmer SettingYes
Dishwasher Safe KnobsYes
7" Heating Element(s)2 Ribbon (1,800W)
Self-Clean Oven Door LockAutomatic
Cooking TechnologyConvection
Control TypeQuickSet V
Cooking SystemTrue European Convection
Oven Control FeaturesAuto Oven Shut-Off with Override
Cooking SystemTrue European Convection with Precise Air
Oven Control FeaturesVariable Broil
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooking SystemFlat Back Convection
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesConvection Conversion
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Control FeaturesOven Function Icons
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Cooking ModesConvection Bake
Oven Features6-Pass Power Bake Element

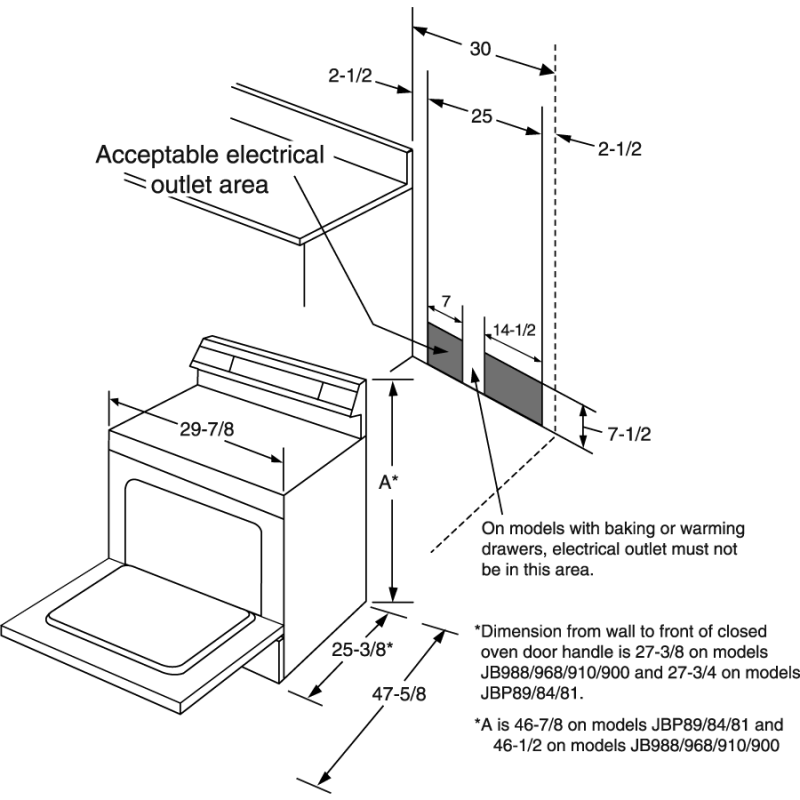

WEIGHTS & DIMENSIONS

Net Weight208 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight228 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V13.7
Amp Rating at 208V40
KW Rating at 208V10.3
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesFrameless Lift-off Oven Door
HandleStainless Steel
Textured Steel Side PanelsYes
Color AppearanceStainless Steel
Oven Door FeaturesBig Hearth Oven Window

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
