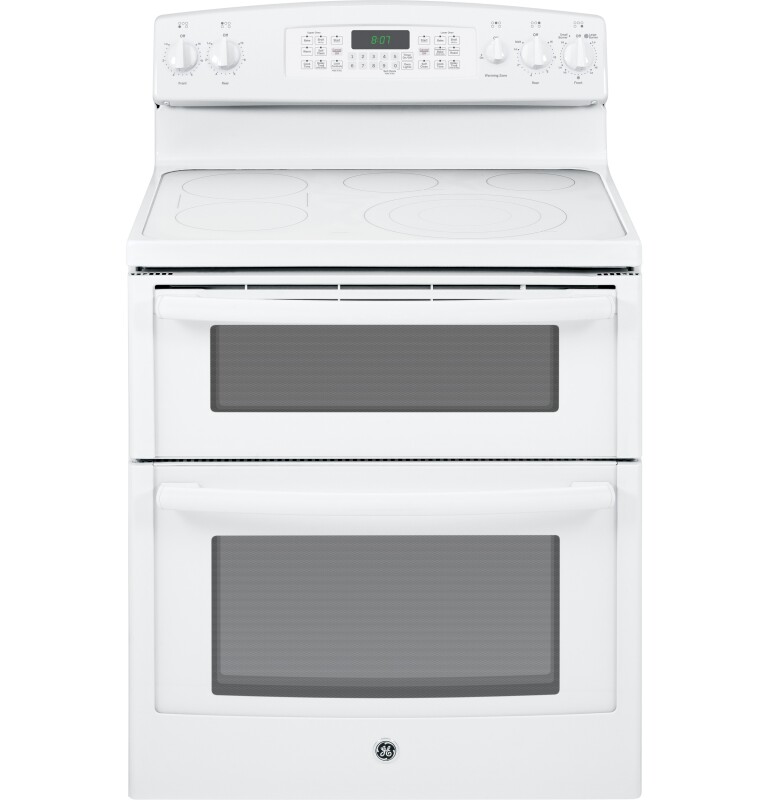

30" Free-Standing Electric Double Oven Range with Convection - JB870TFWW
30" Free-Standing Electric Double Oven Range with Convection
Model: JB870TFWW
Product Video
30" Free-Standing Electric Double Oven Range with Convection
Model: JB870TFWW
Color : White
Key Features
6.6 cu. ft. total oven capacity
12"/9"/6" 3,600W Power Boil
Bridge zone
Fast preheat
Fifth element warming zone
Hidden bake oven interior
Self-clean oven
Black gloss oven interior
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
6.6 cu. ft. total oven capacity
Large capacity is ideal for big meals
12"/9"/6" 3,600W Power Boil
Pots and pans fit perfectly on the flexible heating element
Bridge zone
Cook griddle favorites from the convenience of your range
Fast preheat
Make hot meals in a hurry with less time preheating
Fifth element warming zone
Provides low heat capability for foods
Hidden bake oven interior
Make cleanup easy by eliminating hard-to-reach areas
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Black gloss oven interior
Enjoy a clean and sleek appearance
Convection
Enjoy even baking without turning the pan
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 47 in |
| Net Weight | 214 lb |
| Oven Interior Dimensions (upper) | 24 x 8-7/8 x 18-1/4 |
| Depth Without Handle | 25.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 235 lb |
| Depth with Door Open | 45 in |
| Oven Interior Dimensions (lower) | 24 x 17 1/2 x 18 1/4 |
| Overall Depth | 28 1/4 in |
| Overall Width | 29 7/8 in |
| Height to Cooking Surface (in.) | 35.75 - 36.5 |
FEATURES
| Cooking System | Convection (Lower) |
| Element - Center | 6" 80W Warming Zone |
| Oven Rack Features | 3 Heavy-Duty Oven Racks |
| Element - Left Front | 8" 2000W Bridge |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Product Type | Free-Standing Double Oven |
| Heating Element "ON" Indicator Light | 3 |
| Interior Oven Light | 1 Incandescent (Upper) |
| Control Location | Backsplash |
| Hot Surface Indicator Lights | 1 |
| Element - Left Rear | 8" 2000W Bridge |
| Cooking Technology | Traditional Upper; Convection Lower |
| Configuration | Double Oven Range |
| Oven Features | Hidden Bake (Both Ovens) |
| Melt Setting | Yes |
| Cooktop Burner Type | Smoothtop |
| Element - Right Rear | 6" 1200W |
| Cooktop Surface | True White Ceramic Glass |
| Oven Rack Positions (Single or Upper/Lower) | 2 / 7 |
| Control Type | Electronic |
| Element - Right Front | 12”/9”/6” 3600W Power Boil |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Warm Mode |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Interior Oven Light | 1 Halogen (Lower) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Recipe Conversion |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Convection Roast |
| Oven Control Features | Delay Bake Option (Time Cook) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Fast Preheat |
| Oven Features | 8-Pass Broil Element (Both Ovens) |
APPEARANCE
| Handle | White |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Full-Wrapped Metal Frame |
| Control Knobs | White |
| Color Appearance | True White |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
POWER / RATINGS
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3000W Upper / 3600W Lower |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 15.2 |
| Bake Wattage | 2650W Upper / 2650W Lower |
| KW Rating at 208V | 11.4 |
CAPACITY
| Capacity (Cu. Ft.) | 2.2 Upper / 4.4 Lower |
| Total Capacity (cubic feet) | 6.60 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (upper) | 24 x 8-7/8 x 18-1/4 |
| Oven Interior Dimensions (lower) | 24 x 17 1/2 x 18 1/4 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47 in. |
| Length | 28.25 in. |
| Weight | 214 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.25 in. |
| Shipping Weight | 254 lbs. |
| Total of Shipping Weight | 254 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.96 ft³ |
| Dimensional Weight | 285.37 lbs. |
| Total of Cubes | 22.96 ft³ |
| Total of Dimensional Weight | 285.37 lbs. |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
