30" Free-Standing Electric Range - JBP15DMBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

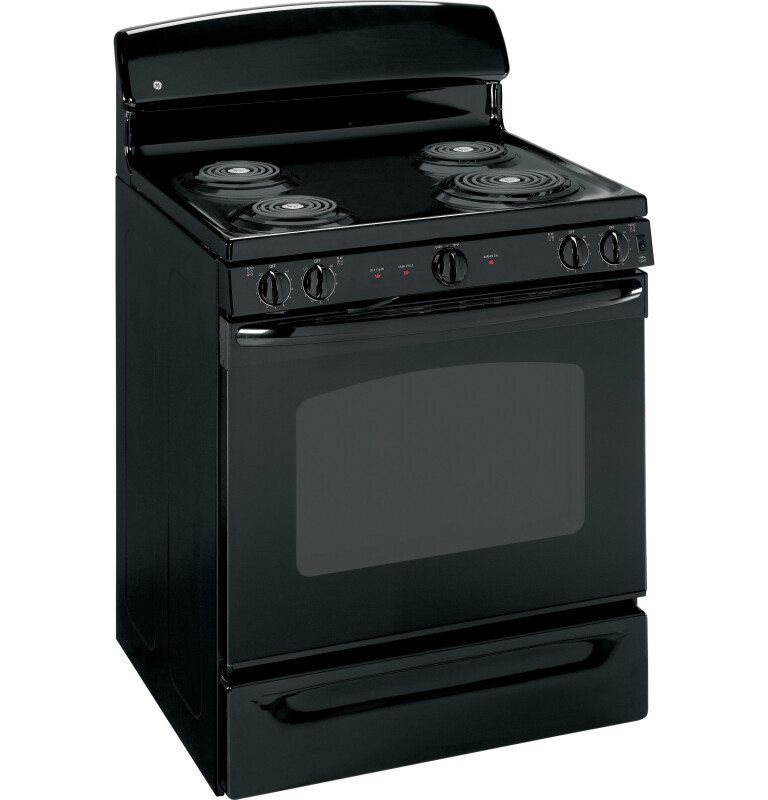

30" Free-Standing Electric Range

Model: JBP15DMBB

30" Free-Standing Electric Range JBP15DMBB30" Free-Standing Electric Range JBP15DMBB30" Free-Standing Electric Range JBP15DMBB
30" Free-Standing Electric Range JBP15DMBB
30" Free-Standing Electric Range JBP15DMBB
30" Free-Standing Electric Range JBP15DMBB

Product Video

GE 30" Free-Standing Electric Range Black JBP15DMBB Picture

Color : Black

30" Free-Standing Electric Range JBP15DMBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Upfront controls

  • 5.0 cu. ft. oven capacity

  • Coil heating elements

  • Big hearth window

Description

Controls are within easy reach.Enough room to cook an entire meal at once.46 7/8 H x 29 7/8 W x 27 1/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Upfront controls

Controls are within easy reach

5.0 cu. ft. oven capacity

Enough room to cook an entire meal at once

Coil heating elements

Provide even heat and easy cleanup

Big hearth window

Makes monitoring of foods easy

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

FEATURES

ConfigurationRange with Storage Drawer
Element - Right Front8" 2600W 5-turn
Oven FeaturesDual-Element Bake
Lift-Up Cooktop With Support RodsYes
Removable One-Piece Drip BowlsBlack Porcelain Enameled
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorInterior Oven Light
Cooktop Burner TypeCoil
Oven Rack Features2 Oven Racks
Element - Left Front6" 1500W 3-turn
Infinite Heat ControlsYes
Oven Cleaning TypeSelf-Clean
Heating Element "ON" Indicator LightYes
Element - Left Rear6" 1500W 3-turn
Element - Right Rear6" 1500W 3-turn
Cooktop SurfacePorcelain-Enamel
Cooking TechnologyTraditional
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesVariable Broil
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesOven "ON" Light

WEIGHTS & DIMENSIONS

Net Weight149 lb
Depth Without Handle26.25 in
Oven Interior Dimensions (W x H x D) (in.)22-3/4 x 15-3/4 x 17
Depth with Door Open46.25 in
Cabinet Width30 in
Approximate Shipping Weight170 lb
Overall Depth27 1/8 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V9.8
Amp Rating at 208V40
KW Rating at 208V7.4
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesBlack Glass Frameless Lift-off Oven Door
Textured Steel Side PanelsYes
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBlack on Black
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.)22-3/4 x 15-3/4 x 17

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.13 in.
Weight149 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.13 in.
Shipping Weight189 lbs.
Total of Shipping Weight189 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.98 ft³
Dimensional Weight273.28 lbs.
Total of Cubes21.98 ft³
Total of Dimensional Weight273.28 lbs.

CAPACITY

Total Capacity (cubic feet)5.00 cu ft
