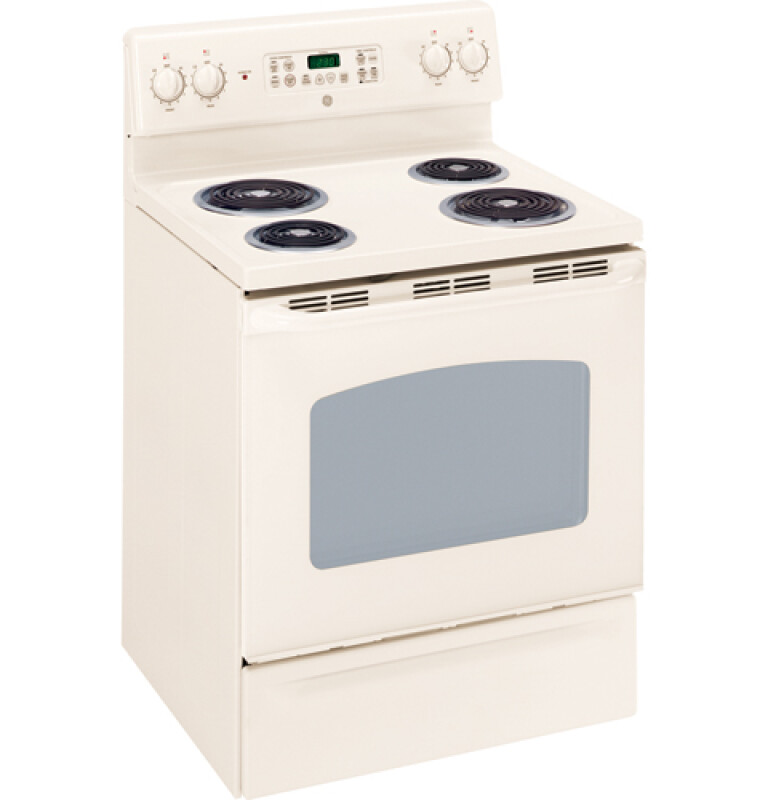

30" Free-Standing Electric Range - JBP27CKCC

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP27CKCC

30" Free-Standing Electric Range JBP27CKCC
30" Free-Standing Electric Range JBP27CKCC

Color : Other

30" Free-Standing Electric Range JBP27CKCC
Other

Type : Electric

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • TrueTemp system

  • QuickSet IV oven controls

  • Coil heating elements

  • Dual-element bake

  • Preheat oven light

  • Interior oven light

Read More

Description

Provides an impressively large oven interior for cooking more dishes and large meals at once.Delivers even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without the need for scrubbing

Super-large oven capacity

Provides an impressively large oven interior for cooking more dishes and large meals at once

TrueTemp system

Delivers even heat distribution and maximum oven control

QuickSet IV oven controls

Feature an easy to use design which allows you to set precise cooking temperatures

Coil heating elements

Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning

Dual-element bake

Alternates the upper broiling element and the lower baking element for even heating and optimal baking results

Preheat oven light

Illuminates to conveniently inform when the oven is preheating

Interior oven light

Supplies light to make viewing the progress of cooking easy and convenient

Audible preheat signal

Features an audible signal that activates when the oven has reached the desired cooking temperature

Porcelain upswept cooktop

Features raised edges to help contain spills and make clean-up easy

Six rack positions

Provides flexibility and allows consumers to make the most of available oven capacity

Designer-style handle

Exudes a clean style that adds to the modern appearance of the range

Chrome drip bowls

Contain spills and remove for easy cleaning

Big hearth window

Features an enhanced shape to add an elegant appearance and make viewing trouble-free

Certifications

California Prop 65 certification

California Prop 65

Specifications

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

Oven Door FeaturesBig Hearth Oven Window
Oven Door FeaturesBisque Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
HandleColor-Matched High-Gloss
Textured Steel Side PanelsYes
Color AppearanceBisque on Bisque

POWER / RATINGS

KW Rating at 240V11.7
KW Rating at 208V8.8
Amp Rating at 208V40
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

FEATURES

8" Heating Element (s)2 Plug-In (2,600W)
Preheated Oven LightYes
Control LocationBacksplash
Oven Rack Features2 Oven Racks
Broiler Pan and GridYes
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfacePorcelain-Enamel
Lift-Up Cooktop With Support RodsYes
Control TypeDigiTemp Temperature Display
Control TypeQuickSet IV
Control TypeTouchpads
Cleaning TimeVariable with Delay Clean Option
Oven Cleaning TypeSelf-Clean
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesVariable Broil
StyleCoil
Interior Oven LightYes
ConfigurationRange with Storage Drawer
Heating Element "ON" Indicator LightYes
Cooking TechnologyTraditional
Oven FeaturesDual-Element Bake
Temperature Management SystemTrue Temp System
Removable One-Piece Drip BowlsChrome
Storage Drawer FeaturesRemovable Full-Width
6" Heating Element(s)2 Plug-In (1,500W)
Dishwasher Safe KnobsYes
Cooktop Burner TypeCoil
Infinite Heat ControlsYes
Oven Control FeaturesSabbath Mode

WEIGHTS & DIMENSIONS

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Approximate Shipping Weight172 lb
Cabinet Width30 in
Net Weight151 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in
Depth Without Handle25.375 in
Depth with Door Open47.625 in

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight151 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight191 lbs.
Total of Shipping Weight191 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.
