30" Free-Standing Gas Range - JGB285DETWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: JGB285DETWW

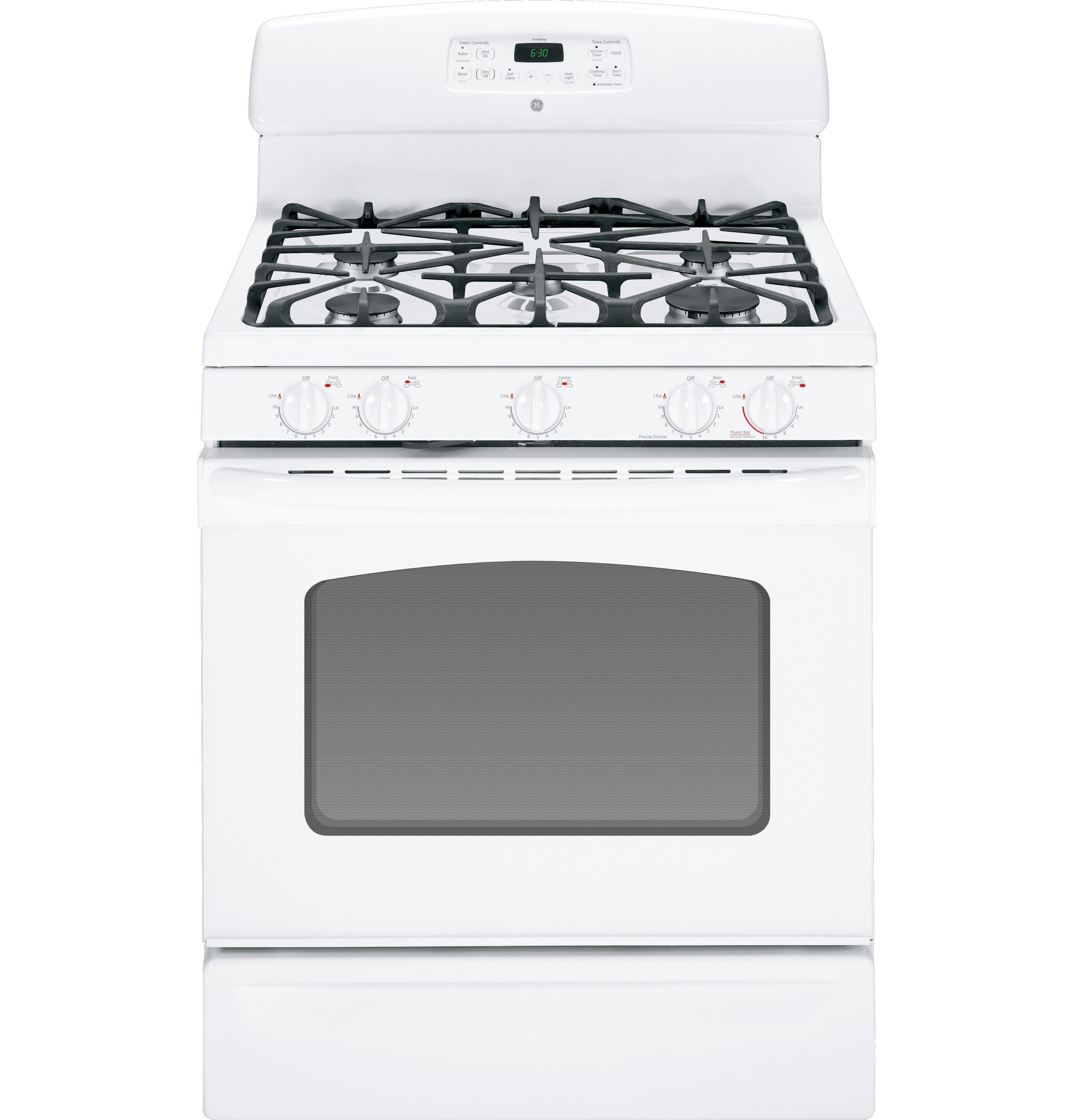

30" Free-Standing Gas Range JGB285DETWW
30" Free-Standing Gas Range JGB285DETWW

Color : White

30" Free-Standing Gas Range JGB285DETWW
White

Type : Gas

GasElectric

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • Power Boil 15,000 BTU burner

  • Center round burner

  • Precise Simmer burner

  • Self-cleaning oven racks

  • Deep-recessed cooktop

Description

Provides a large oven interior ideal for cooking more items at once.This powerful element instantly supplies the intense heat need for boiling, sautéing and stir frying.47 H x 30 W x 26 5/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

Power Boil 15,000 BTU burner

This powerful element instantly supplies the intense heat need for boiling, sautéing and stir frying

Center round burner

Round fifth burner allows for low, even heat distribution that is ideal for delicate foods and sauces

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

Self-cleaning oven racks

Porcelain-coated racks are designed to be left in the oven during the self-clean cycle for effortless cleaning

Deep-recessed cooktop

Contains spills for quick and easy cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

FEATURES

ConfigurationRange with Storage Drawer
Cleaning TimeVariable
Fuel TypeNatural Gas
Ignition SystemElectronic
Oven InteriorInterior Oven Light
Cooktop Burner TypeSealed
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 15,000 BTU
Temperature Management SystemTrue Temp System
High Output Burner(1) 11,000 BTU
Oven Cleaning TypeSelf-Clean
All-Purpose Burners(1) 9,500 BTU
Cooktop Burner Grate MaterialHeavy Cast Iron
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesContinuous Grates
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeElectronic Oven Controls
Center Round Burner(1) 5,000 BTU
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Cooking TechnologyTraditional
Control TypeDigital Temperature Display
Cooktop SurfaceColor-Matched
Cooktop SurfaceDeep Recessed
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Control FeaturesOven Cycle Light
Oven Control FeaturesOven "ON" Light
Oven Rack Features2 Self-Clean Oven Racks
BackguardPorcelain-Enameled

WEIGHTS & DIMENSIONS

Net Weight190 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight210 lb
Overall Width30 in
Overall Height47 in
Overall Depth26 5/8 in
Height to Cooking Surface (in.)36 +/- .25

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig Hearth Oven Window
HandleColor-Matched
Frameless Oven Door(s)White Glass
Control KnobsDesigner-Style
Color AppearanceWhite on White

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 15.0; (1) 11.0; (1) 9.5; (2) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (1) 10.0; (1) 9.5; (2) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Dimensions & Weight

Width30 in.
Height47 in.
Length26.63 in.
Weight190 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.63 in.
Shipping Weight230 lbs.
Total of Shipping Weight230 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.73 ft³
Dimensional Weight270.08 lbs.
Total of Cubes21.73 ft³
Total of Dimensional Weight270.08 lbs.

CAPACITY

Total Capacity (cubic feet)5.00 cu ft
