30" Free-Standing Gas Range - JGB630DEFWW
30" Free-Standing Gas Range
Model: JGB630DEFWW
Product Video

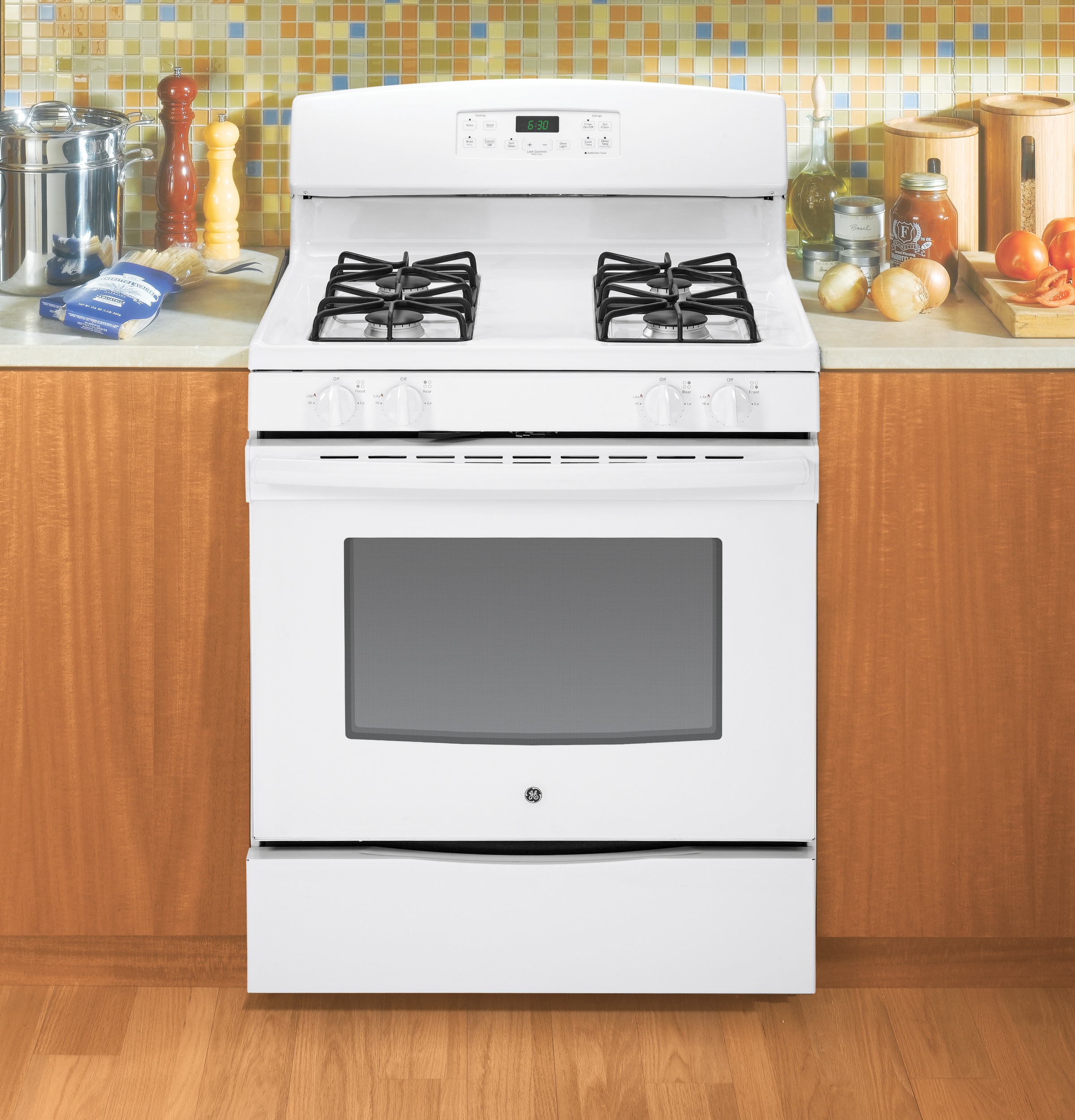

30" Free-Standing Gas Range
Model: JGB630DEFWW
Color : White
Key Features
12,500 BTU burner
5.0 cu. ft. oven capacity
Sealed cooktop burners
In-oven broil
Self-clean oven
Precise Simmer burner
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features

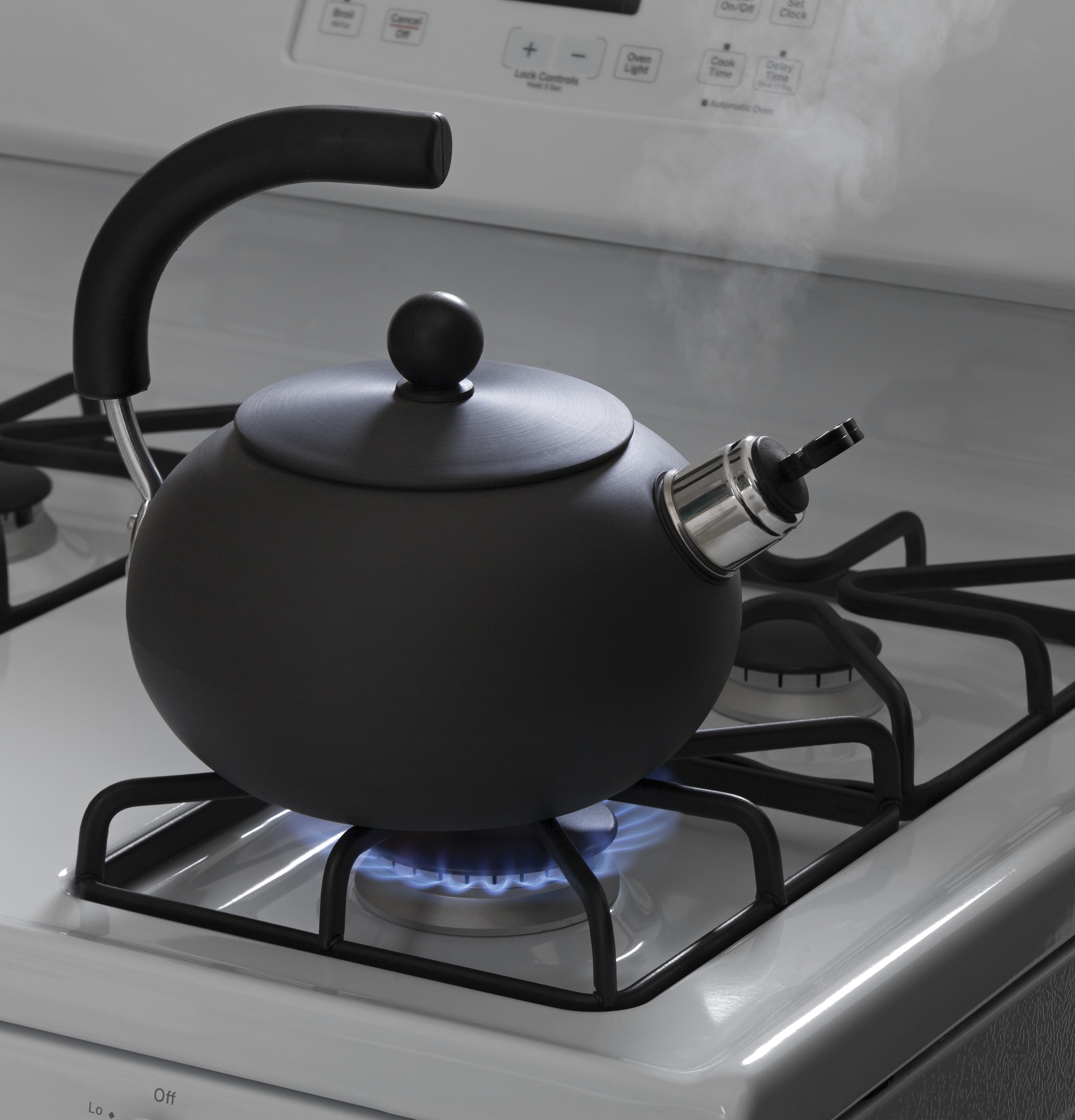

12,500 BTU burner
Quickly produces high heat

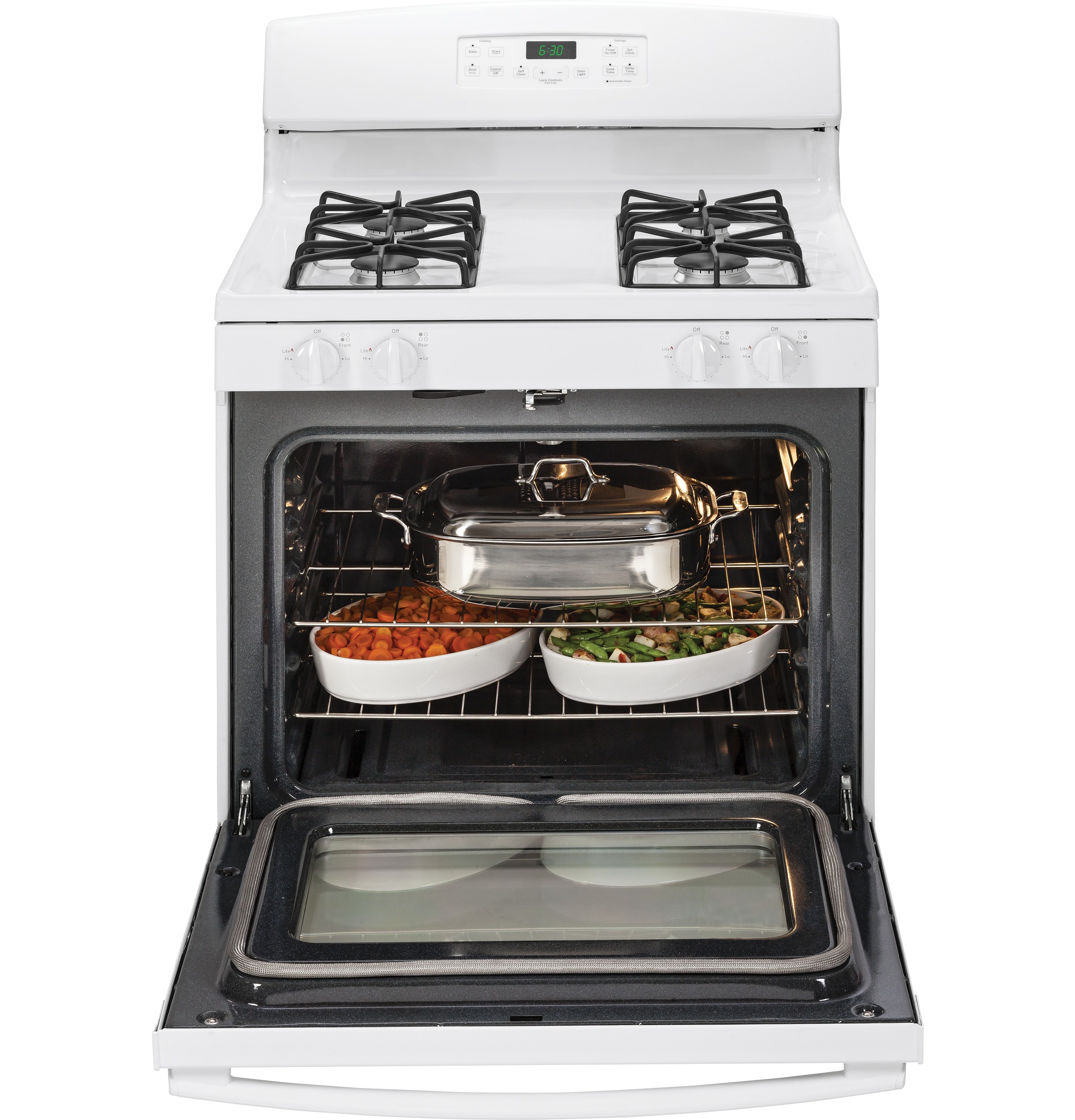

5.0 cu. ft. oven capacity
Cook more dishes at once

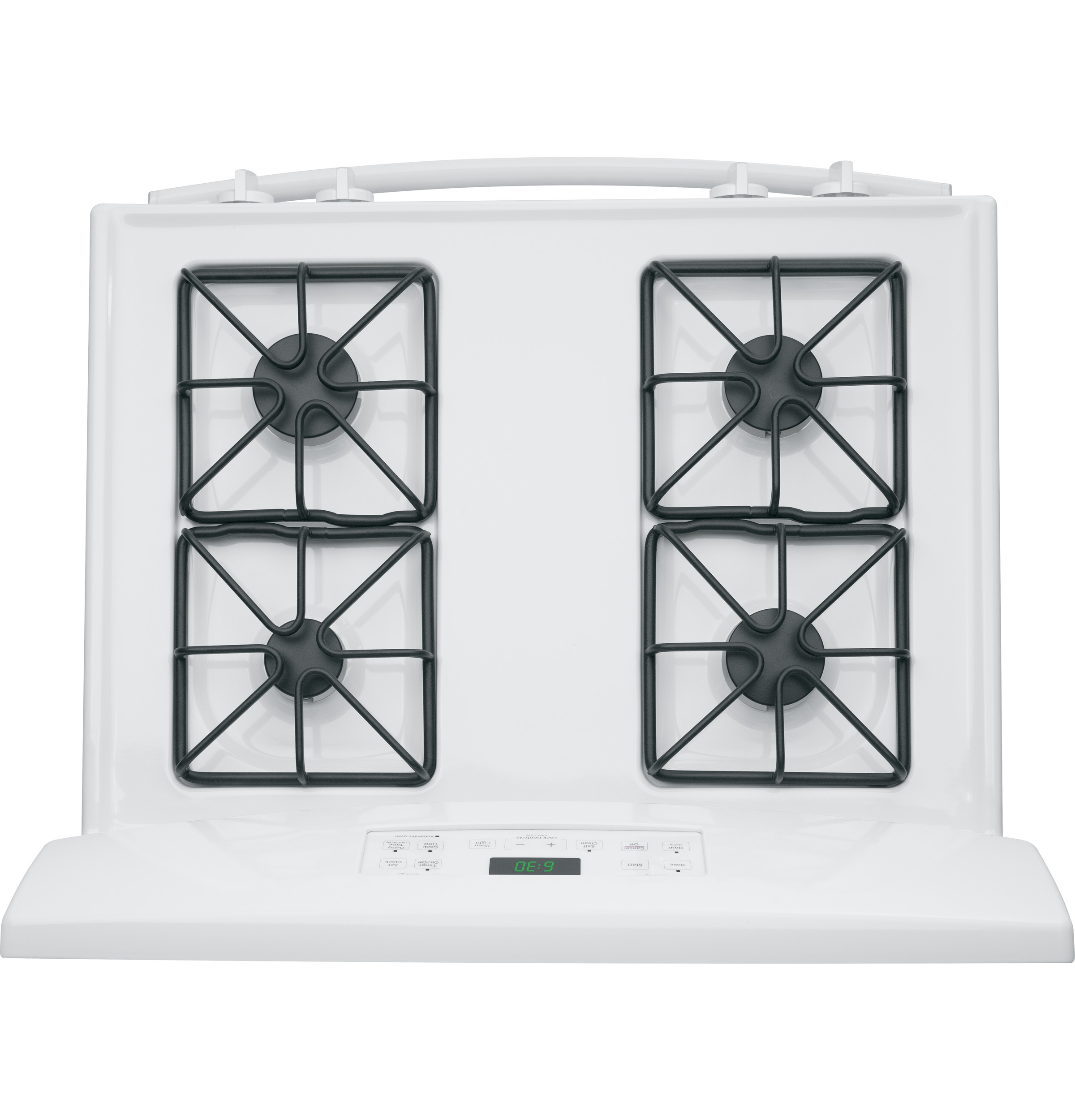

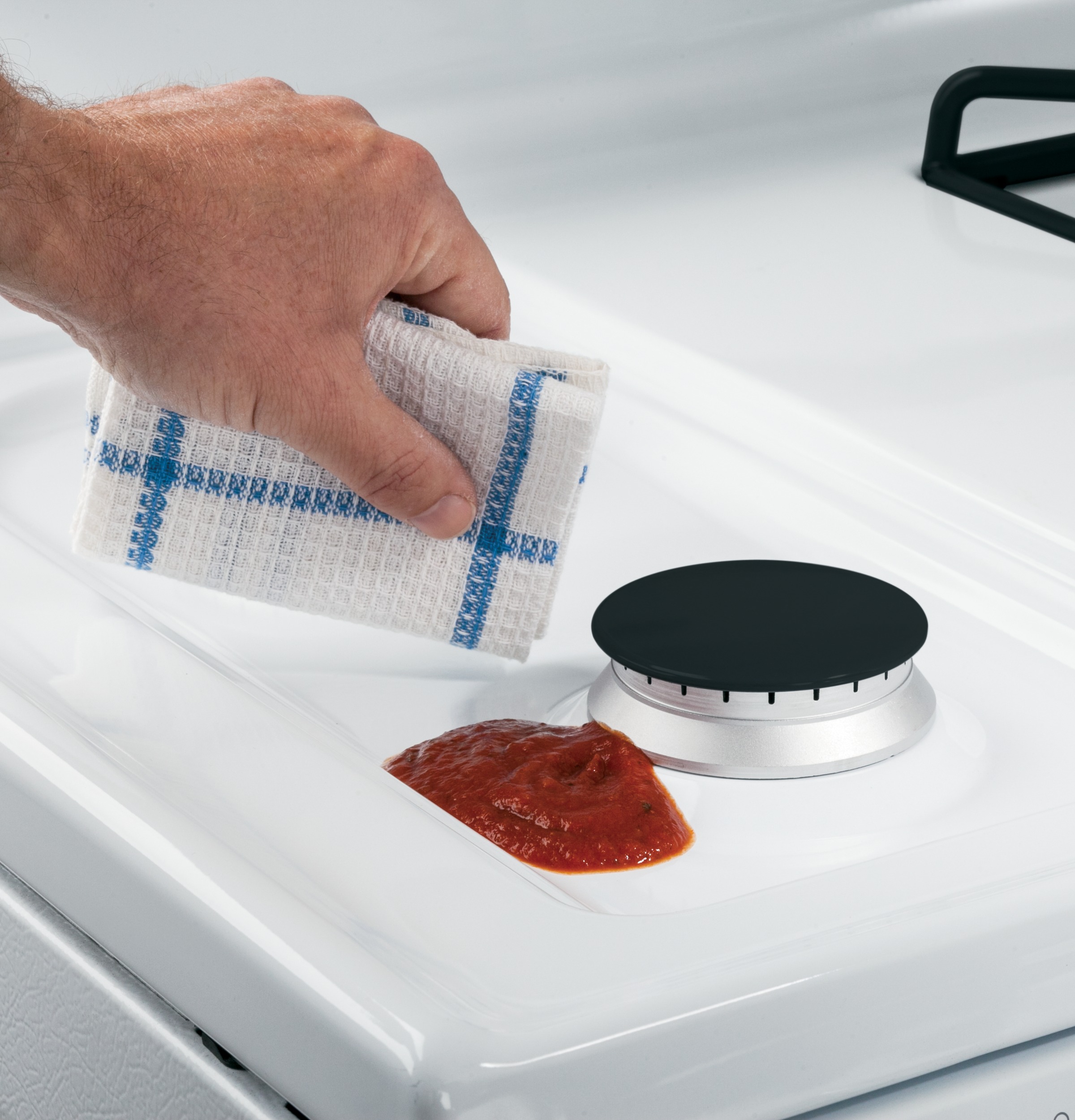

Sealed cooktop burners
Contains spills and make cleaning quick and easy
In-oven broil
Healthy meals are hassle-free with in-oven broiling

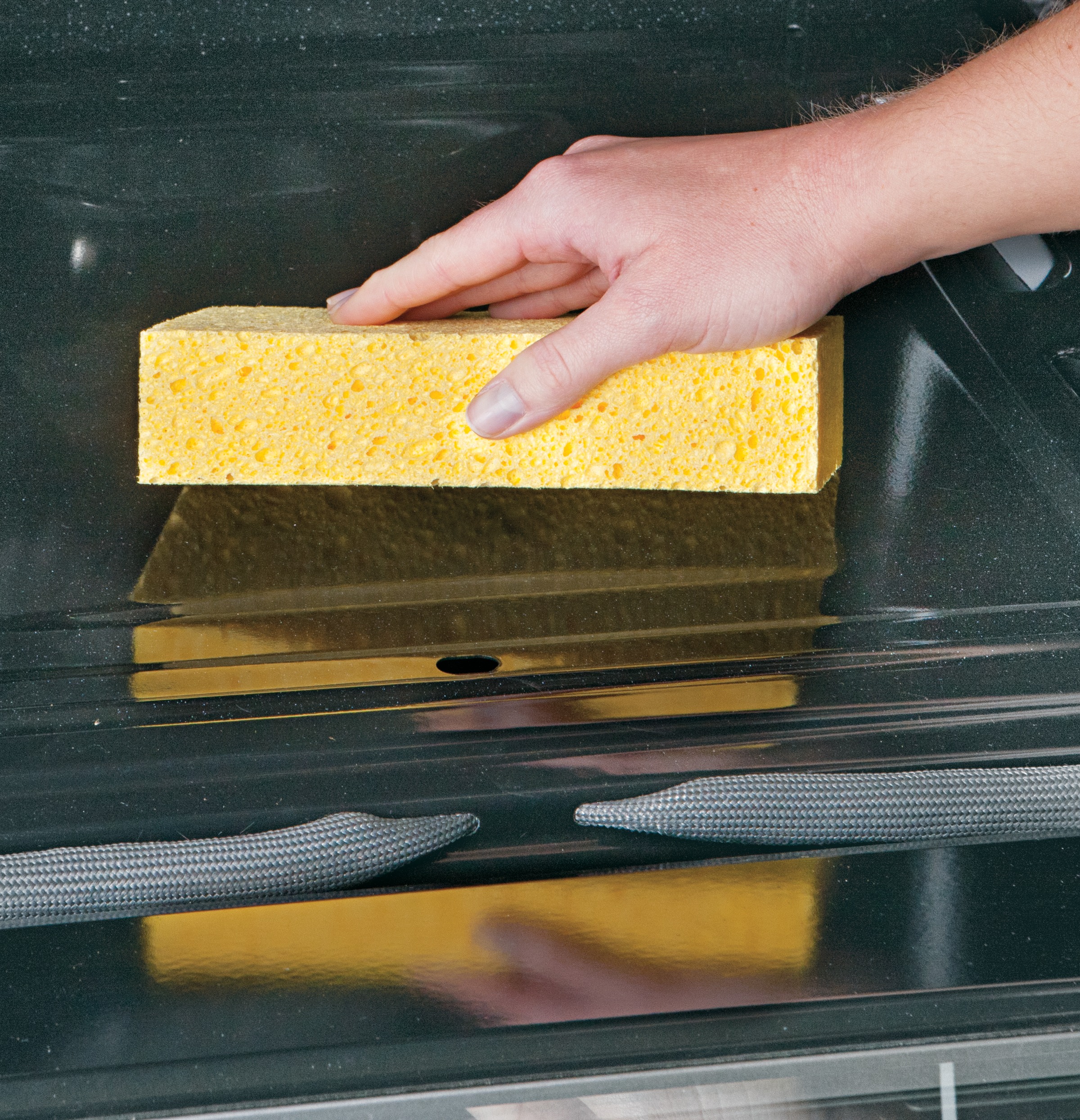

Self-clean oven
Cleans the oven cavity without the need for scrubbing

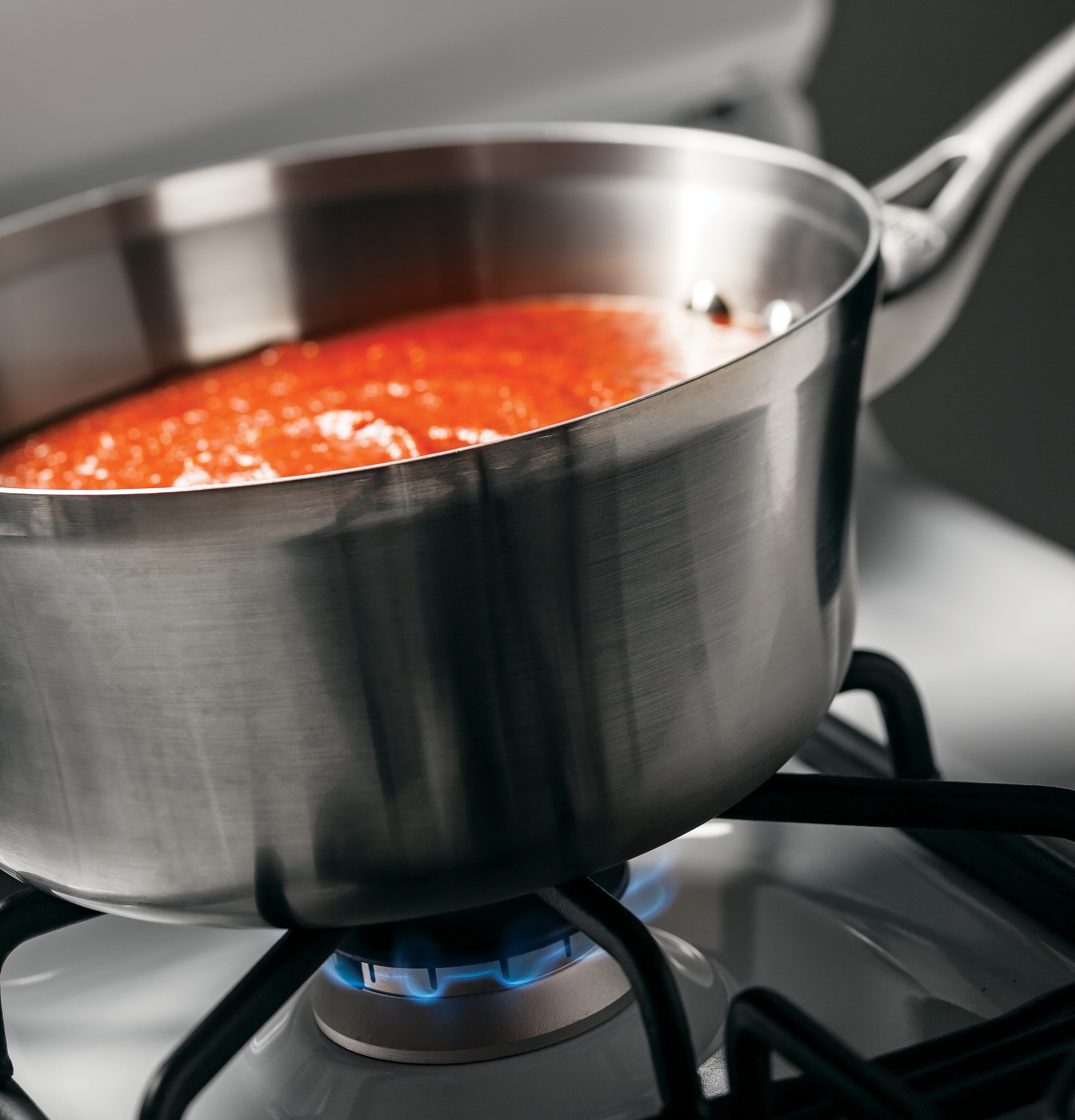

Precise Simmer burner
Delicate foods don’t burn with low, even heat
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

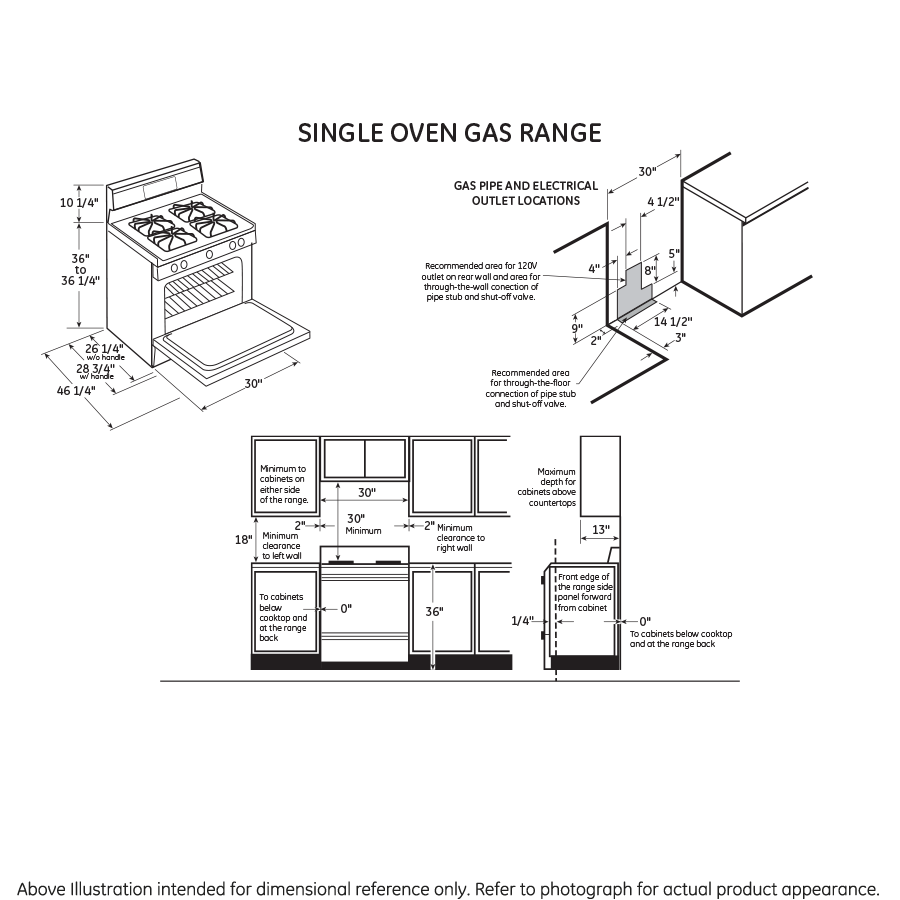

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.25 |
FEATURES
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| Oven Control Features | Delay Bake Option |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Extra-Heavy Steel |
| Burner - Right Front | 12,500 BTU |
| Cooktop Surface | White |
| Burner - Left Front | 9,500 BTU |

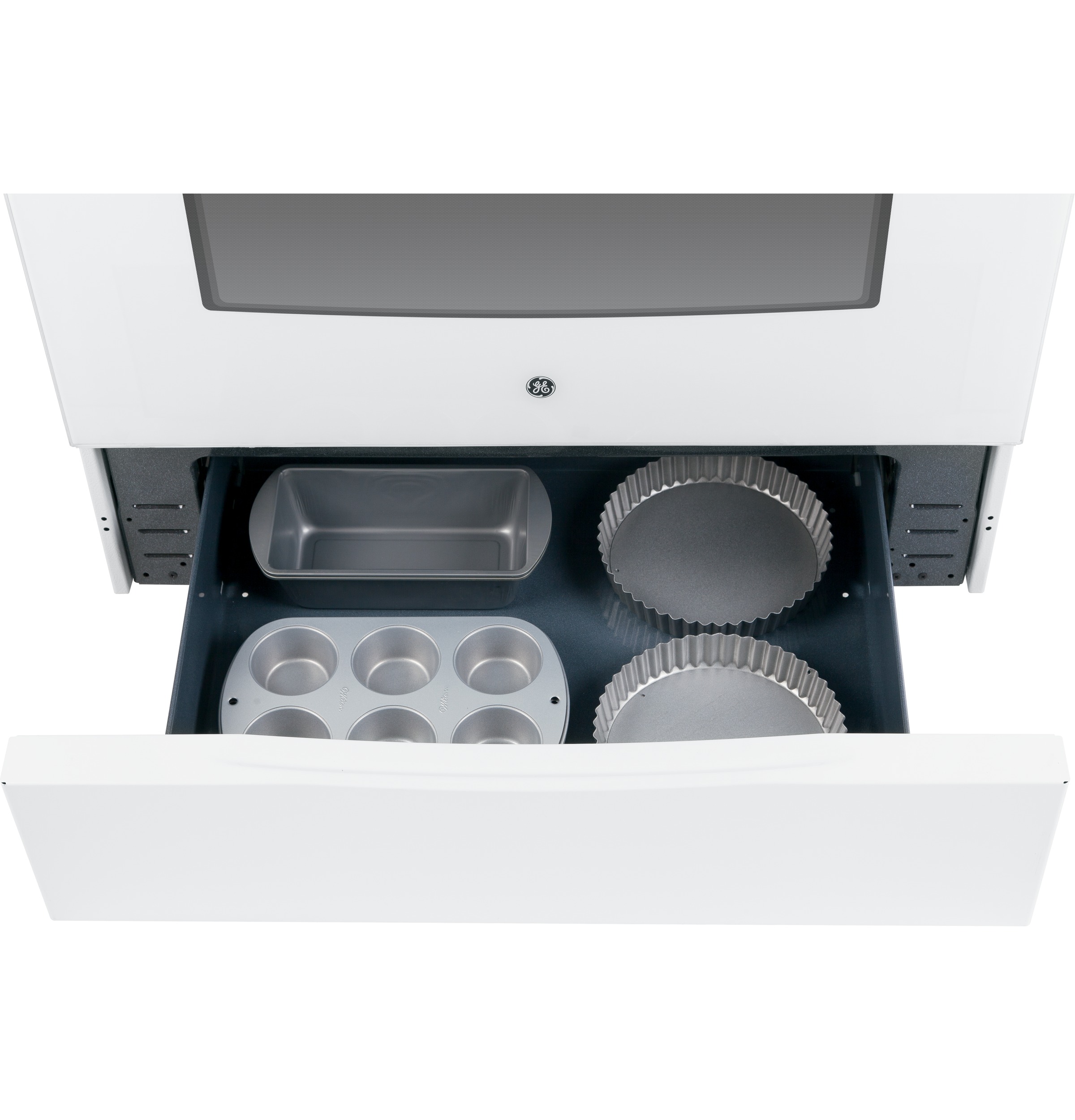

| Drawer Type | Storage |
| Control Type | Electronic Touch |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Audible Preheat Signal |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle | Designer Style |
| Control Knobs | Color-Matched |
| Color Appearance | White on White |
| Handle | Color-Matched |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
