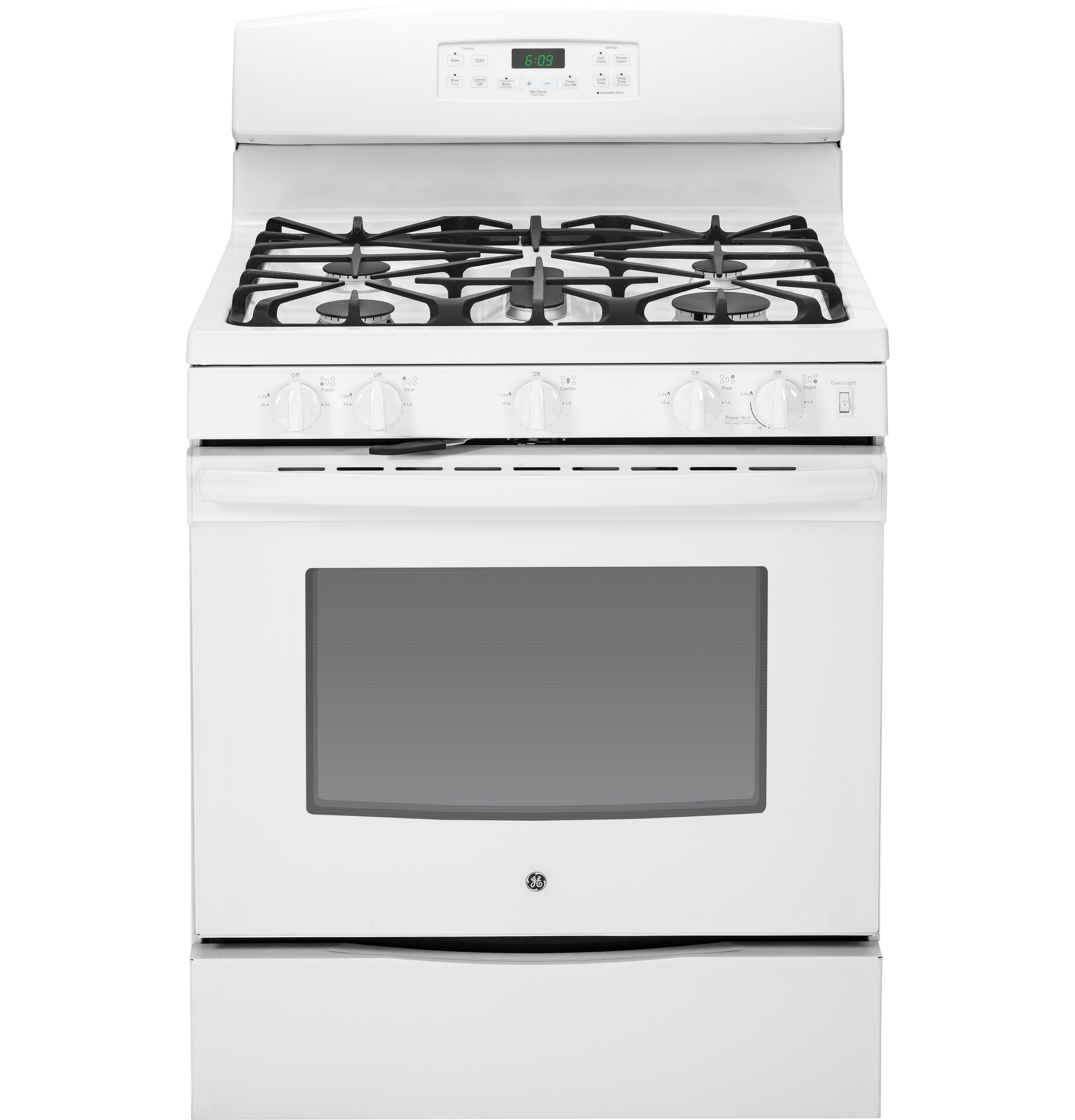

30" Free-Standing Gas Convection Range - JGB695DEFWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Convection Range

Model: JGB695DEFWW

30" Free-Standing Gas Convection Range JGB695DEFWW
30" Free-Standing Gas Convection Range JGB695DEFWW

Product Video

GE 30" Free-Standing Gas Convection Range White JGB695DEFWW Picture
2 Videos

Color : White

30" Free-Standing Gas Convection Range JGB695DEFWW
White

Type : Gas

GasElectric

Key Features

  • 17,000 BTU Power Boil burner

  • Self-clean with Steam Clean option

  • Gas convection oven

  • Self-clean, heavy-duty oven racks

  • Heavy-cast, continuous grates

  • 5.0 cu. ft. oven capacity

  • Black gloss oven interior

  • Center oval burner

Read More

Description

Large oval fifth burner is ideal for griddle or odd-size cookware.Delicate foods don’t burn with low, even heat.47 1/4 H x 30 W x 29 1/4 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

Self-clean with Steam Clean option

Clean your oven the way you want

Gas convection oven

Circulates heat for high-quality results

Self-clean, heavy-duty oven racks

Conveniently clean your oven and racks together

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

5.0 cu. ft. oven capacity

Cook more dishes at once

Black gloss oven interior

Enjoy a clean and sleek appearance

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Precise Simmer burner

Delicate foods don’t burn with low, even heat

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight190 lb
Depth Without Handle26.75 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Depth with Door Open46.75 in
Cabinet Width30 in
Approximate Shipping Weight210 lb
Overall Depth29 1/4 in
Overall Height47 1/4 in
Height to Cooking Surface (in.)36 - 36.5

FEATURES

ConfigurationRange with Storage Drawer
Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Interior Oven Light1 Auto Incandescent
Fuel TypeNatural Gas
Oven Control FeaturesCertified Sabbath Mode
Oven Cooking ModesConvection Bake
Oven Rack Features2 Self-Clean Oven Racks
Cooktop Burner TypeSealed
Burner - Left Rear9,500 BTU
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Cooktop Burner Grate MaterialHeavy Cast Iron
Cooktop Burner Grate FeaturesContinuous Grates
Burner - Center8,000 BTU Oval
Burner - Right Front17,000 BTU Power Boil
Cooktop SurfaceWhite
Burner - Left Front11,000 BTU
Control TypeElectronic Touch
Cooking TechnologyConvection
Oven Control FeaturesSabbath Mode
Cooktop SurfaceDeep Recessed
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfacePorcelain-Enamel
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesAudible Preheat Signal

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
Control KnobsColor-Matched
Color AppearanceWhite
HandleColor-Matched

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0; (1) 6.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47.25 in.
Length29.25 in.
Weight190 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length34.25 in.
Shipping Weight230 lbs.
Total of Shipping Weight230 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.99 ft³
Dimensional Weight298.29 lbs.
Total of Cubes23.99 ft³
Total of Dimensional Weight298.29 lbs.

CAPACITY

Total Capacity (cubic feet)5.00 cu ft
