Home/Cooking/Ranges/Freestanding Ranges/JGB810DETBB

30" Free-Standing Gas Range - JGB810DETBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: JGB810DETBB

30" Free-Standing Gas Range JGB810DETBB30" Free-Standing Gas Range JGB810DETBB30" Free-Standing Gas Range JGB810DETBB
30" Free-Standing Gas Range JGB810DETBB
30" Free-Standing Gas Range JGB810DETBB
30" Free-Standing Gas Range JGB810DETBB

Product Video

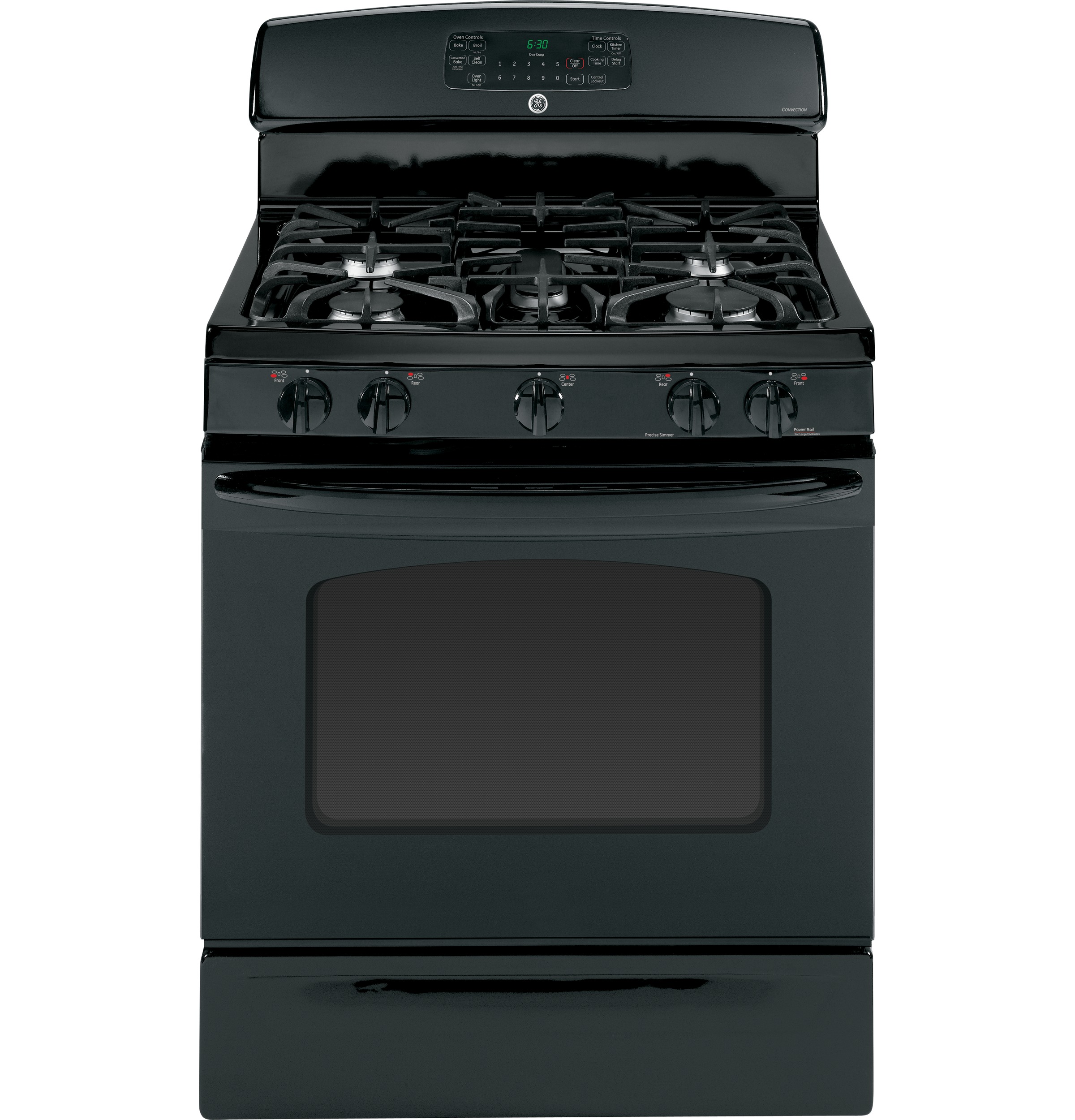

GE 30" Free-Standing Gas Range Black JGB810DETBB Picture

Color : Black

30" Free-Standing Gas Range JGB810DETBB
Black

Type : Gas

GasElectric

Key Features

  • Stainless steel, deep-recessed cooktop

  • Gas convection oven

  • Reversible cast-iron griddle/grill

  • 17,000 BTU Power Boil burner

  • Center oval burner

  • Self-clean oven

Description

Circulates heat for high-quality results.Cleans the oven cavity without the need for scrubbing.47 H x 30 W x 26 5/8 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Stainless steel, deep-recessed cooktop

Contains spills for quick and easy cleaning

Gas convection oven

Circulates heat for high-quality results

Reversible cast-iron griddle/grill

Provides the flexibility to sear meats and cook delicate meals

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

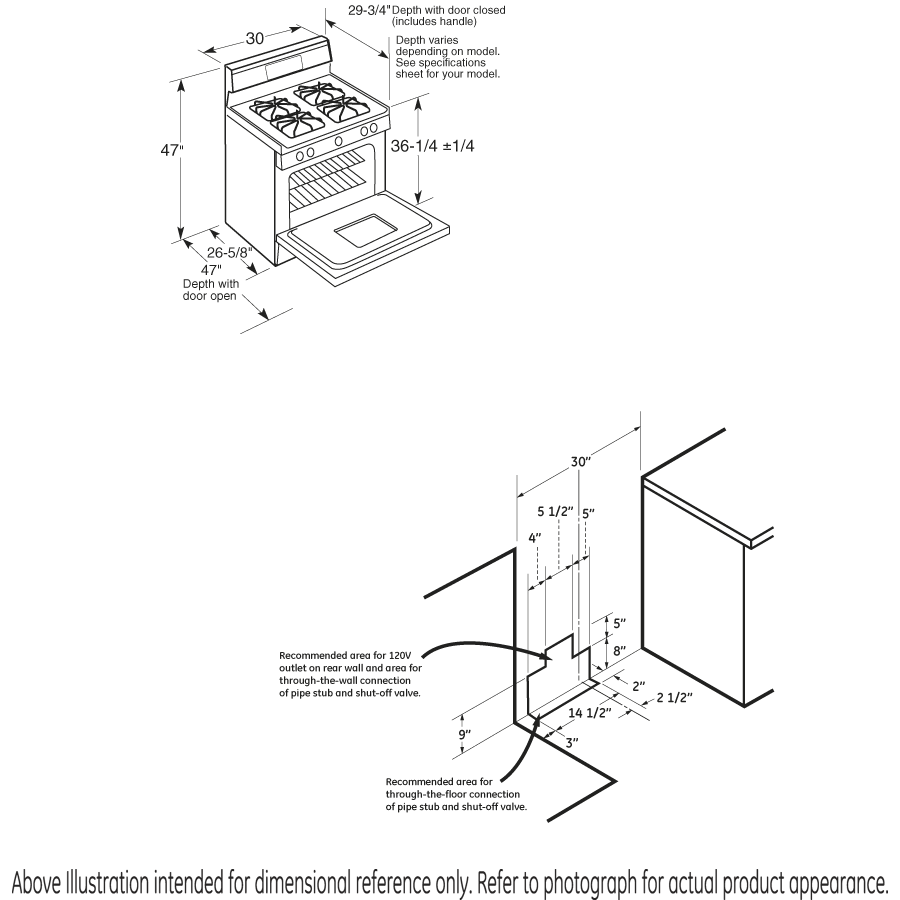

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Height47 in
Net Weight200 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight220 lb
Overall Depth26 5/8 in
Height to Cooking Surface (in.)36.25 +/- .25

FEATURES

ConfigurationRange with Storage Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Fuel TypeNatural Gas
Oven InteriorInterior Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Cooking ModesConvection Bake
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 17,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 12,000 BTU
GriddleReversible Cast Grill/Griddle
All-Purpose Burners(1) 9,500 BTU
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesContinuous Grates
BackguardScratch-Resistant
Center Oval Burner(1) 10,000 BTU
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeDigital Temperature Display
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Cooking TechnologyConvection
Cooktop SurfaceColor-Matched
Cooktop SurfaceDeep Recessed
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Control FeaturesOven Cycle Light
Oven Control FeaturesOven "ON" Light
Oven Rack Features2 Oven Racks
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig Hearth Oven Window
Frameless Oven Door(s)Black Glass
Control KnobsLarge
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBlack on Black
Control KnobsDesigner-Style

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (1) 10.0; (1) 9.5; (1) 8.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47 in.
Length26.63 in.
Weight200 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.63 in.
Shipping Weight240 lbs.
Total of Shipping Weight240 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.73 ft³
Dimensional Weight270.08 lbs.
Total of Cubes21.73 ft³
Total of Dimensional Weight270.08 lbs.

CAPACITY

Total Capacity (cubic feet)5.00 cu ft
