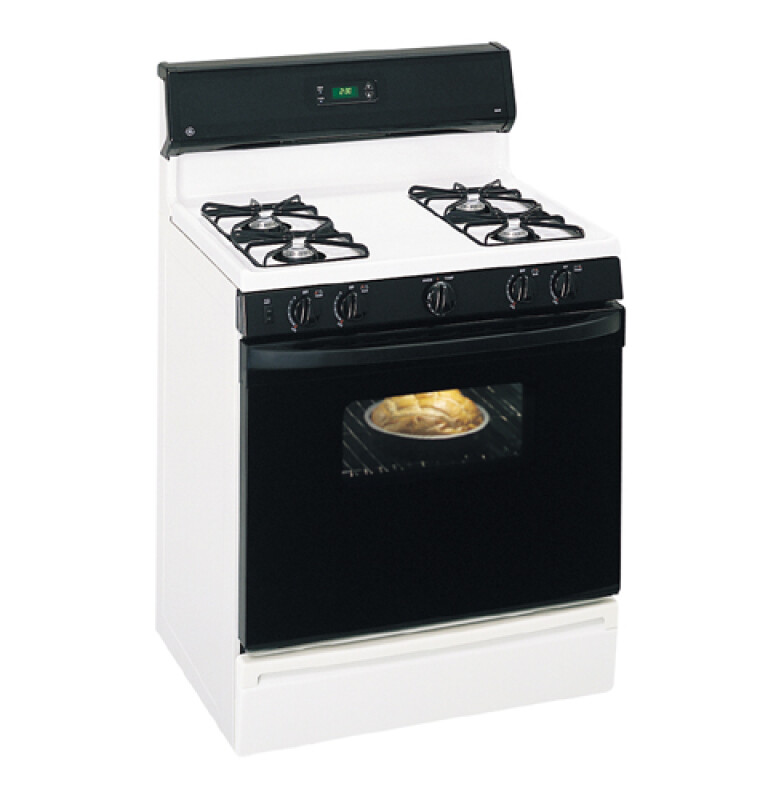

30" Free-Standing XL44 Gas Range - JGBC20BEAAD
30" Free-Standing XL44 Gas Range
Model: JGBC20BEAAD
30" Free-Standing XL44 Gas Range
Model: JGBC20BEAAD
Color : Almond
Key Features
One-piece upswept porcelain-enameled lift-up cooktop
Standard / twin cooktop burners
Black standard porcelain-steel square grates
Electronic-pilotless ignition system
Extra-large continuous clean oven
Slide out broiler drawer
Also available in standard clean oven as model JGBS20BEA
Optional accessory one-piece drip pans available at additional cost
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
One-piece upswept porcelain-enameled lift-up cooktop
Standard / twin cooktop burners
Black standard porcelain-steel square grates
Electronic-pilotless ignition system
Extra-large continuous clean oven
Slide out broiler drawer
Also available in standard clean oven as model JGBS20BEA
Optional accessory one-piece drip pans available at additional cost
Black porcelain-enameled scratch-resistant backguard
Designer-style handle
Removable frameless glass oven door with window
Electric clock and timer
Easy-clean porcelain-enameled subtop
2 oven racks / 6 embossed rack positions
Extra-large broiler pan with grid
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 29 in |
| Net Weight | 155 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 175 lb |
| Overall Height | 46 1/2 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 29 in. |
| Weight | 155 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 34 in. |
| Shipping Weight | 195 lbs. |
| Total of Shipping Weight | 195 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.41 ft³ |
| Dimensional Weight | 291.04 lbs. |
| Total of Cubes | 23.41 ft³ |
| Total of Dimensional Weight | 291.04 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Extra Large |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Electronic Clock and Timer |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Continuous Clean |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Burner Grate Material | Porcelain on Steel |
| Cooktop Surface | Lift-Up |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Oven Window |
| Handle | Designer Style |
| Frameless Oven Door(s) | Black Glass |
| Color Appearance | Almond |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.0 |
| Electrical Requirements | 120V; 60Hz; 5A |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
