30" Free-Standing Gas Range with Warming Drawer - JGBP88SEMSS

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range with Warming Drawer

Model: JGBP88SEMSS

30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS
30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS
30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS
30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS
30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS
30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS

Color : Stainless Steel

30" Free-Standing Gas Range with Warming Drawer JGBP88SEMSS
Stainless Steel

Type : Gas

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • Deep-recessed cooktop

  • Center oval burner

  • Non-stick griddle

  • Power Boil 17K burner

  • Big hearth window

  • Frameless glass oven door

Read More

Description

Enough room to cook an entire meal at once.Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean.47 H x 30 W x 26 1/4 D

Available from Southern Appliance, serving customers throughout Georgia.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Enough room to cook an entire meal at once

Deep-recessed cooktop

Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean

Center oval burner

Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles

Non-stick griddle

Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean

Power Boil 17K burner

This powerful element instantly supplies the intense heat needed for boiling, sautéing and stir frying

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

Frameless glass oven door

Simple and stylish frameless glass door creates an elegant look that blends into cabinetry, and is easy to wipe clean

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

Dishwasher-safe grates

Grates are safe for the dishwasher so cleaning is as easy as ever

Continuous grates

Connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

Warming drawer

The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier

Certifications

California Prop 65 certification

California Prop 65

Specifications

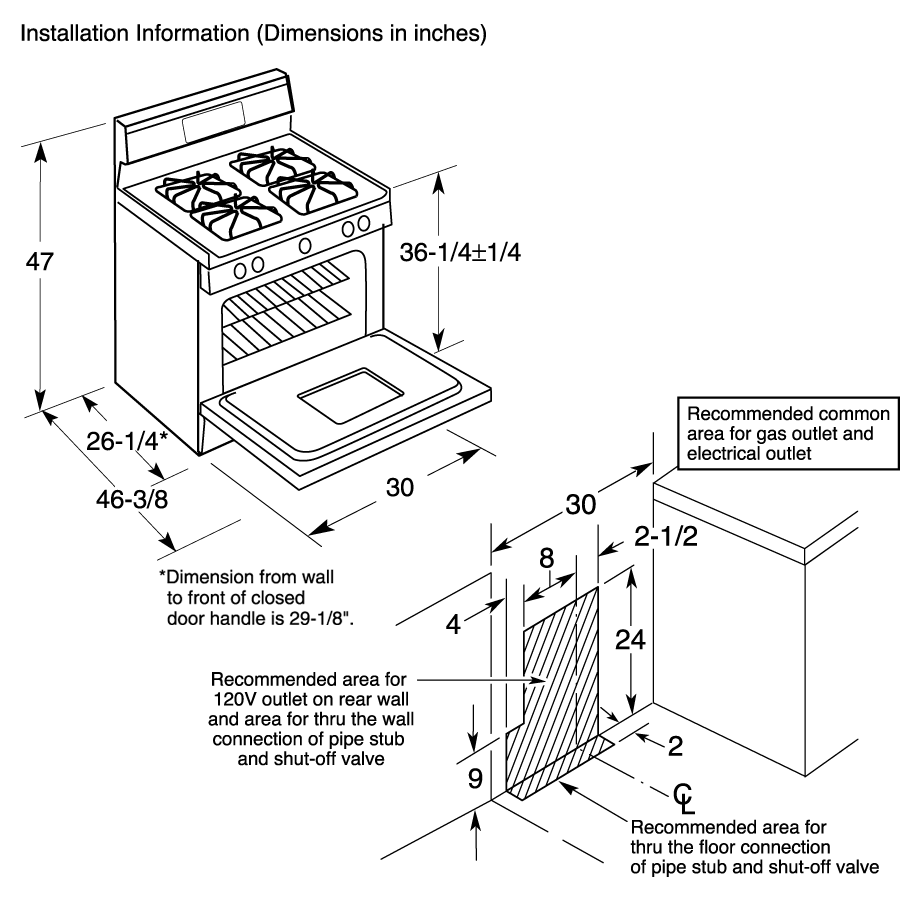

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Height47 in
Net Weight205 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight225 lb
Overall Depth26 1/4 in
Height to Cooking Surface (in.)36 +/- .25

FEATURES

ConfigurationRange with Warming Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Oven Control FeaturesIn-Oven Broiling
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 17,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 11,000 BTU/150F degree simmer
GriddleNon-Stick
All-Purpose Burners(1) 9,100 BTU/150F degree simmer
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesDishwasher Safe
BackguardScratch-Resistant
Center Oval Burner(1) 6,000 BTU
Cooktop SurfacePorcelain-Enamel Recessed
Warming Drawer FeaturesLow, Medium, High Temperature Settings
Leveling System4 Leveling Legs
Oven Rack Positions (Single or Upper/Lower)6
Control TypeQuickSet V
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Oven Control FeaturesSabbath Mode
Control TypeDigital Temperature Display
Cooktop Burner Grate FeaturesContinuous Grates
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesDigipad Numeric Entry
Oven Rack Features2 Oven Racks
Warming Drawer FeaturesElectronic Control
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig Hearth Oven Window
HandleStainless Steel Sculptured
Frameless Oven Door(s)Stainless Steel
Control KnobsDesigner-Style
Color AppearanceStainless Steel

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)5.00 cu ft

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 9A
Warming Drawer Wattage450
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height47 in.
Length26.25 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.25 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.42 ft³
Dimensional Weight266.28 lbs.
Total of Cubes21.42 ft³
Total of Dimensional Weight266.28 lbs.
