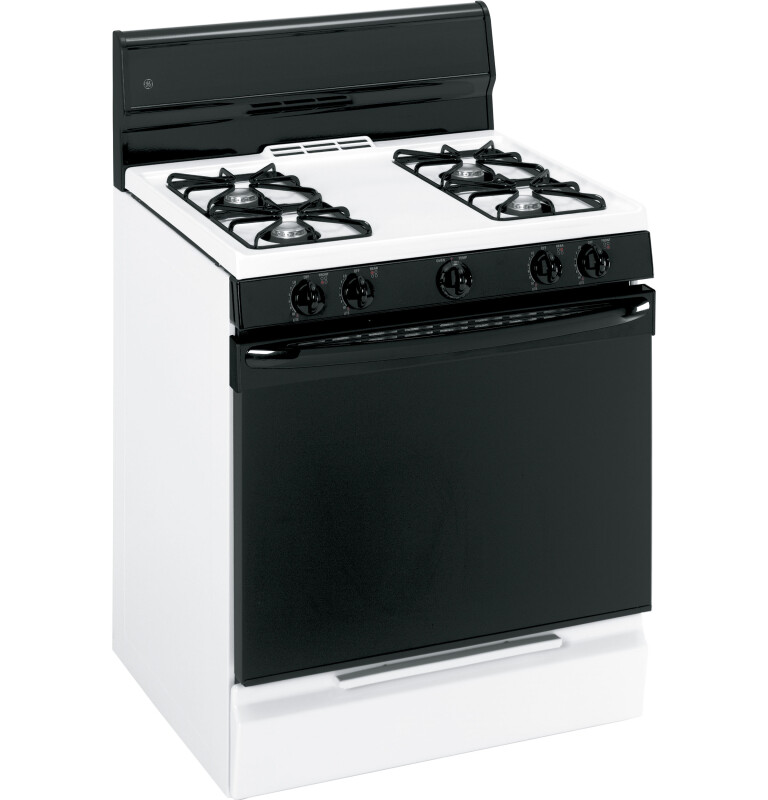

30" Free-Standing Gas Range - JGBS04BEMWH
30" Free-Standing Gas Range
Model: JGBS04BEMWH
30" Free-Standing Gas Range
Model: JGBS04BEMWH
Color : Other
Key Features
Extra-large oven capacity
Standard clean oven
All purpose burners
Standard grates
Frameless glass oven door
Two oven racks
Designer-style handle
Broiler pan with grid
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
Extra-large oven capacity
Enough room to cook an entire meal at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
All purpose burners
All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs
Standard grates
Quality grates keep pots and pans securely in place over the burners
Frameless glass oven door
Simple and stylish frameless glass door creates an elegant look that blends into cabinetry, and is easy to wipe clean
Two oven racks
Includes two oven racks that are sturdy and reliable
Designer-style handle
Sleek lines and a rounded shape that add to the modern appearance
Broiler pan with grid
This convenient pan makes it easy to crisp and brown all your favorite foods
Broiler drawer
Convenient broil drawer delivers excellent crisping and browning results, and acts as a storage drawer when not in use
Easy clean subtop
The subtop is porcelain enameled to make cleaning spills and messes quick and simple
Electronic pilotless ignition
Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation.
Certifications
ADA Compliant
California Prop 65
Specifications

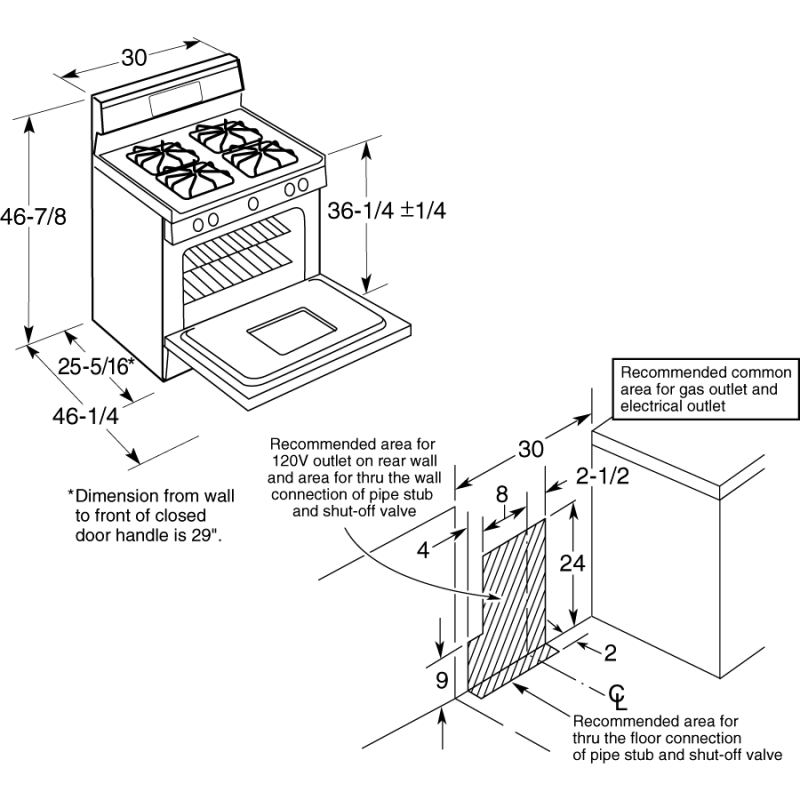

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 25.3125 in |
| Overall Height | 45.5 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height to Cooking Surface (in.) | 36 1/4 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 45.5 in. |
| Length | 25.31 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 50.5 in. |
| Shipping Length | 30.31 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20 ft³ |
| Dimensional Weight | 248.57 lbs. |
| Total of Cubes | 20 ft³ |
| Total of Dimensional Weight | 248.57 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Extra Large |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (4) 9,100/850 BTU |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Backguard | Porcelain-Enameled |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Designer-Style |
| Color Appearance | White |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.8 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
