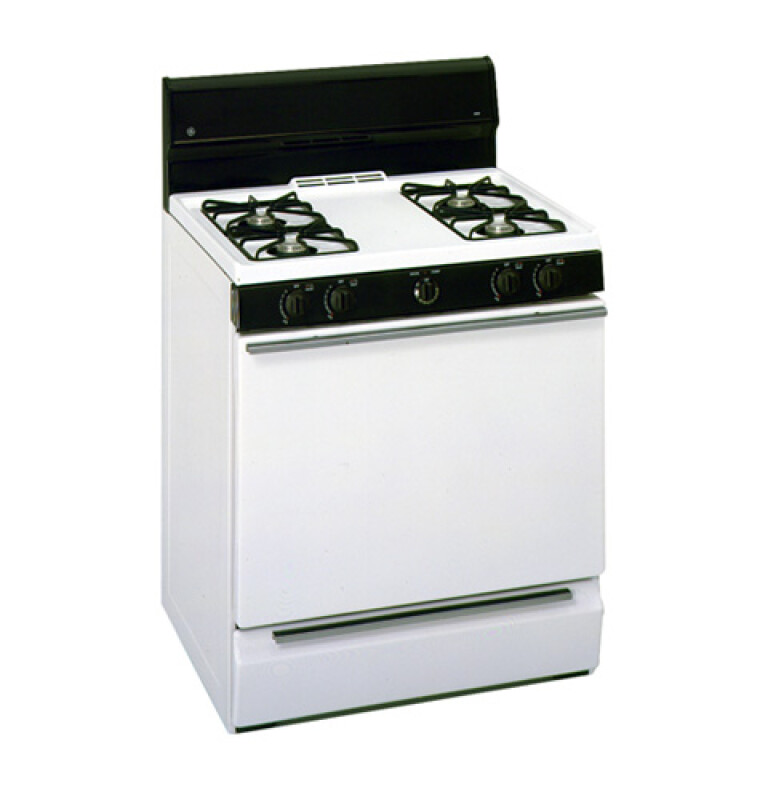

30" Free-Standing Gas Range - JGBS04PPAWH
30" Free-Standing Gas Range
Model: JGBS04PPAWH
30" Free-Standing Gas Range
Model: JGBS04PPAWH
Color : Other
Key Features
Extra-large oven capacity
All purpose burners
Standard grates
Porcelain oven door
Two oven racks
Six rack positions
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Standard grates
Provide a sturdy and convenient cookware surface for everyday cooking
Porcelain oven door
Offers a scratch-resistant porcelain coating for easy cleaning
Two oven racks
Feature a durable construction to help accommodate any size or type of cookware
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 25.3125 in |
| Overall Height | 45.5 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Depth with Door Open 90° | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
Dimensions & Weight
| Width | 30 in. |
| Height | 45.5 in. |
| Length | 25.31 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 50.5 in. |
| Shipping Length | 30.31 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20 ft³ |
| Dimensional Weight | 248.57 lbs. |
| Total of Cubes | 20 ft³ |
| Total of Dimensional Weight | 248.57 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Standing Pilot |
| Broiler Pan and Grid | Extra Large |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Handle | Chrome Visor |
| Frameless Oven Door(s) | Color-Matched Porcelain-Enameled |
| Color Appearance | White |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.0 |
| Electrical Requirements | N/A |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
