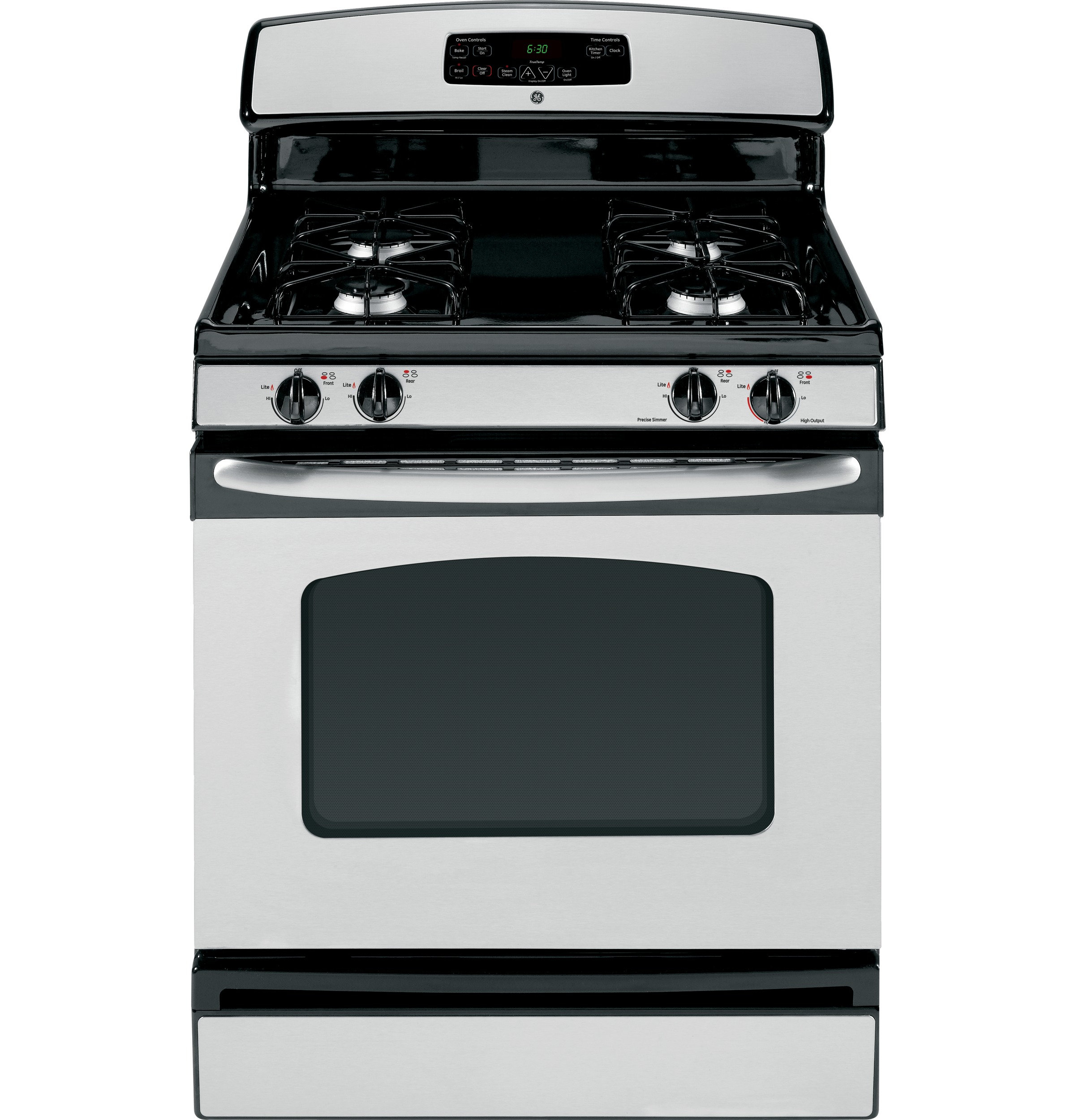

30" Free-Standing Gas Range with Steam Clean - JGBS23SETSS
30" Free-Standing Gas Range with Steam Clean
Model: JGBS23SETSS
30" Free-Standing Gas Range with Steam Clean
Model: JGBS23SETSS
Color : Stainless Steel
Key Features
4.8 cu. ft. oven capacity
Steam clean
12,500 BTU high-output burner
Precise Simmer burner
Big hearth window
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
4.8 cu. ft. oven capacity
More room for cooking more dishes at once
Steam clean
Helps to clean with the power of steam
12,500 BTU high-output burner
Quickly produces high heat
Precise Simmer burner
Delivers a low setting of 140 degrees
Big hearth window
Makes monitoring of foods easy
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 165 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open 90° | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 185 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/2 in |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 26.25 in. |
| Weight | 165 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 205 lbs. |
| Total of Shipping Weight | 205 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.19 ft³ |
| Dimensional Weight | 263.44 lbs. |
| Total of Cubes | 21.19 ft³ |
| Total of Dimensional Weight | 263.44 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Configuration | Range with Broiler Drawer |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Temperature Management System | True Temp System |
| Burner - Left Rear | 9,500 BTU |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean with Steam Option |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Right Front | 12,500 BTU |
| Burner - Left Front | 9,500 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | Electronic Oven Controls |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Sabbath Mode |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Frameless Oven Door(s) | Stainless Steel |
| Control Knobs | Designer-Style |
| Handle Design | D-shaped |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel on Black |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
