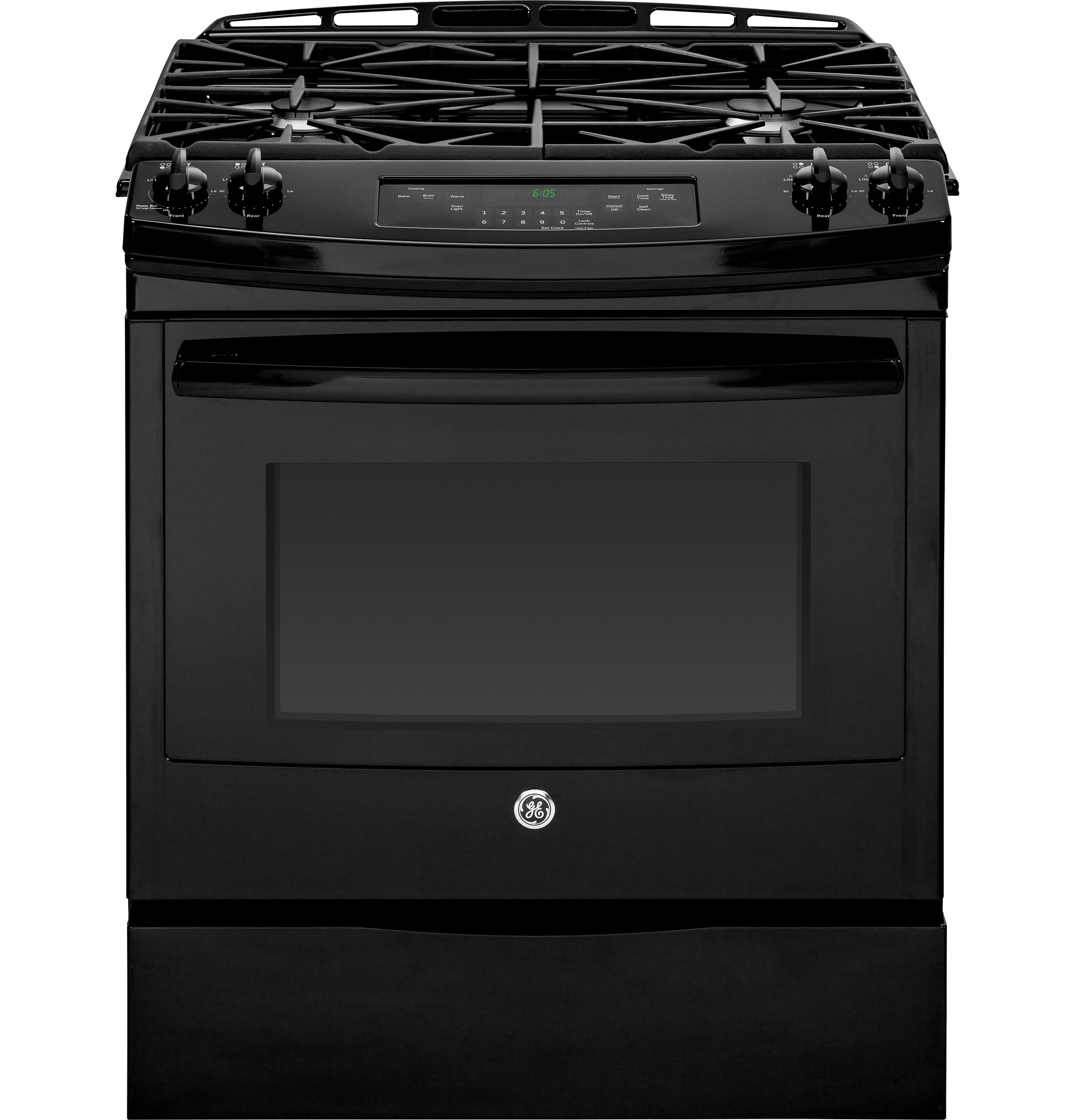

30" Slide-In Front Control Gas Range - JGS650DEFBB
30" Slide-In Front Control Gas Range
Model: JGS650DEFBB
Product Video
30" Slide-In Front Control Gas Range
Model: JGS650DEFBB
Color : Black on Black
Key Features
15,000 BTU Power Boil Burner
Heavy-cast, continuous grates
Deep-recessed cooktop
5.6 cu. ft. oven capacity
Front controls
Precise Simmer burner
Self-clean oven
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
15,000 BTU Power Boil Burner
Delivers high heat for fast boiling
Heavy-cast, continuous grates
Allow for easy movement of pans between burners
Deep-recessed cooktop
Contains spills for quick and easy cleaning
5.6 cu. ft. oven capacity
Enough room to cook an entire meal at once
Front controls
Precise Simmer burner
Delicate foods don’t burn with low, even heat
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
FILTER
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooking Technology | Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Slide-In Single Oven |
| App Filter - Drawer Type | Storage |
| App Filter - Fuel Type | Gas |
| App Filter - Convection | No |
| App Filter - Cooktop Type | Continuous Grates |
FEATURES
| Configuration | Range with Storage Drawer |
| Cooking System | Traditional |
| Ignition System | Electronic |
| Burner - Right Rear | 9,100 BTU |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| Oven Control Features | Front Controls |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Product Type | Slide-In Single Oven |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Burner - Right Front | 11,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 15,000 BTU Power Boil |
| Control Location | Front controls |
| Drawer Type | Storage |
| Control Type | Electronic |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle | Designer Style |
| Installation | Free-standing cut-out |
| Control Knobs | Weighted |
| Color Appearance | Black on Black |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional Body Sides | Included |
| Trim Kit - Island | JXS81BB |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 11.0 (1) 9.1; (1) 15.0; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 5.0; (1) 10.0; (1) 9.1 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5.6 cu ft |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Cabinet Opening | 30 in |
Dimensions & Weight
| Width | 31.25 in. |
| Height | 39.25 in. |
| Length | 29.38 in. |
| Weight | 225 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36.25 in. |
| Shipping Height | 44.25 in. |
| Shipping Length | 34.38 in. |
| Shipping Weight | 265 lbs. |
| Total of Shipping Weight | 265 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.85 ft³ |
| Dimensional Weight | 259.21 lbs. |
| Total of Cubes | 20.85 ft³ |
| Total of Dimensional Weight | 259.21 lbs. |
