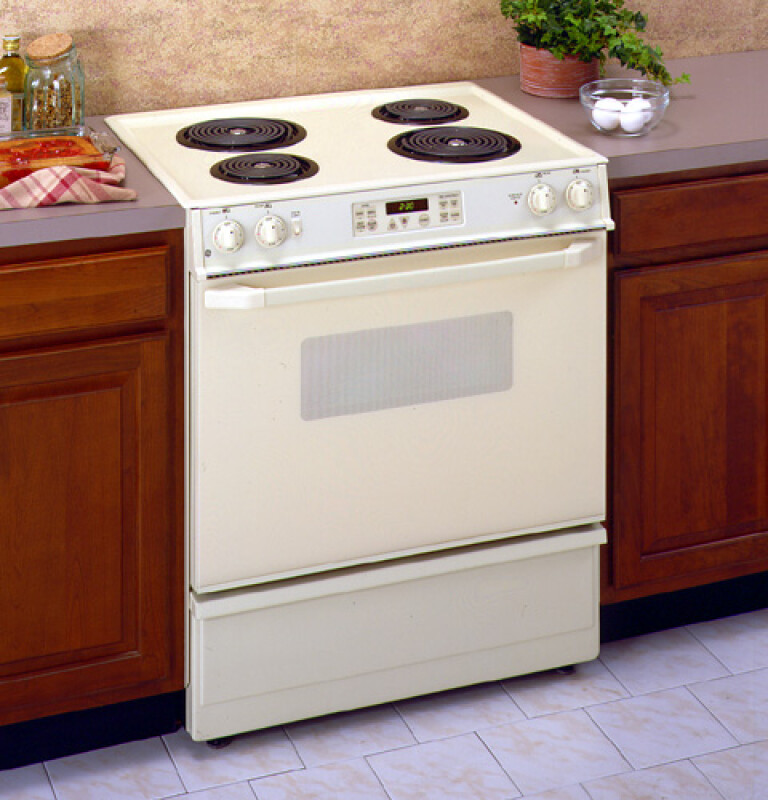

Name: 30" Slide-In Electric Range with Self-Cleaning Oven
Brand: GE
SKU: JSP34AWAA
Availability: BackOrder

30" Slide-In Electric Range with Self-Cleaning Oven

Model : #JSP34AWAA

This product has been discontinued by the manufacture and is no longer available.

30" Slide-In Electric Range with Self-Cleaning Oven

Model: JSP34AWAA

This product has been discontinued by the manufacture and is no longer available.

30" Slide-In Electric Range with Self-Cleaning Oven

Model: JSP34AWAA

Color : Almond

Key Features

Almond-on-almond model
Lift-up overhanging porcelain-enameled cooktop
Self-cleaning oven with automatic oven door lock
4.4 cu. ft. oven capacity
Two 8" and two 6" Plug-In Calrod™ heating elements
True frameless glass oven door with window
Optional backguard available at additional cost
Designer-style handle

Description

35 7/8 H x 30 W x 28 1/2 D

Documents

Installation Instructions

View | Download

PDF, 160.94 KB

Literature

View | Download

PDF, 780.48 KB

Use and Care Manual

View | Download

PDF, 1.07 MB

Quick Specs

View | Download

PDF, 81.27 KB

Available from Southern Appliance, serving customers throughout Georgia.

Features

Specifications

Certifications

Features

Almond-on-almond model

Lift-up overhanging porcelain-enameled cooktop

Self-cleaning oven with automatic oven door lock

4.4 cu. ft. oven capacity

Two 8" and two 6" Plug-In Calrod™ heating elements

True frameless glass oven door with window

Optional backguard available at additional cost

Designer-style handle

Color-matched storage drawer

Interior oven light

Frameless glass oven door with window

Auto oven shut-off with override

Delay bake option with cook and hold

Electronic clock and kitchen timer

SmartSet electronic oven controls

Certifications

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width	30 in
Net Weight	147 lb
Oven Interior Dimensions (W x H x D) (in.)	22-3/4 x 15-3/4 x 17
Depth with Door Open	45 in
Cabinet Opening	30 in
Cabinet Width	30 in
Approximate Shipping Weight	172 lb
Overall Depth	28 1/2 in
Overall Height	35 7/8 in

Other

Oven Interior Dimensions (W x H x D) (in.)	22-3/4 x 15-3/4 x 17
Cabinet Opening	30 in

Dimensions & Weight

Width	30 in.
Height	35.88 in.
Length	28.5 in.
Weight	147 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	40.88 in.
Shipping Length	33.5 in.
Shipping Weight	187 lbs.
Total of Shipping Weight	187 lbs.
Source	Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	17.75 ft³
Dimensional Weight	220.67 lbs.
Total of Cubes	17.75 ft³
Total of Dimensional Weight	220.67 lbs.

ACCESSORIES

Optional Rear Filler	JXS64AA (Almond) or JXS28 (Brushed Chrome)
Optional Endcap Kit	JXS40
Optional Toe-Kick	JXS54AA (Almond)
Optional Vertical Side Trim Kit (Brushed Chrome)	Pub. No. 3-A040
Optional Backguard	JXS33 - Almond

FEATURES

Configuration	Range with Storage Drawer
Removable One-Piece Drip Bowls	Black Porcelain Enameled
Cleaning Time	Variable with Delay Clean Option
Storage Drawer Features	Removable Full-Width
Broiler Pan and Grid	Yes
Interior Oven Light	Yes
Cooktop Burner Type	4 Plug-In Calrod™
Oven Rack Features	2 Oven Racks
Infinite Heat Controls	Yes
6" Heating Element(s)	2 Plug-In Calrod™
Oven Cleaning Type	Self-Clean
Heating Element "ON" Indicator Light	Yes
Cooktop Surface	Lift-Up Overhanging Almond Porcelain Enamel
Control Location	Upfront
8" Heating Element (s)	2 Plug-In Calrod™
Leveling System	4 Leveling Legs
Control Type	SmartSet
Self-Clean Oven Door Lock	Automatic
Cooking Technology	Traditional
Oven Control Features	Auto Oven Shut-Off with Override
Oven Control Features	Temperature Display
Oven Control Features	Delay Bake Option With Cook & Hold
Oven Control Features	C° or F° Programmable
Oven Control Features	Audible Preheat Signal
Oven Control Features	Electronic Clock & Kitchen Timer
Oven Control Features	Start Pad
Oven Control Features	Control Lock Capability
Storage Drawer Features	Almond
