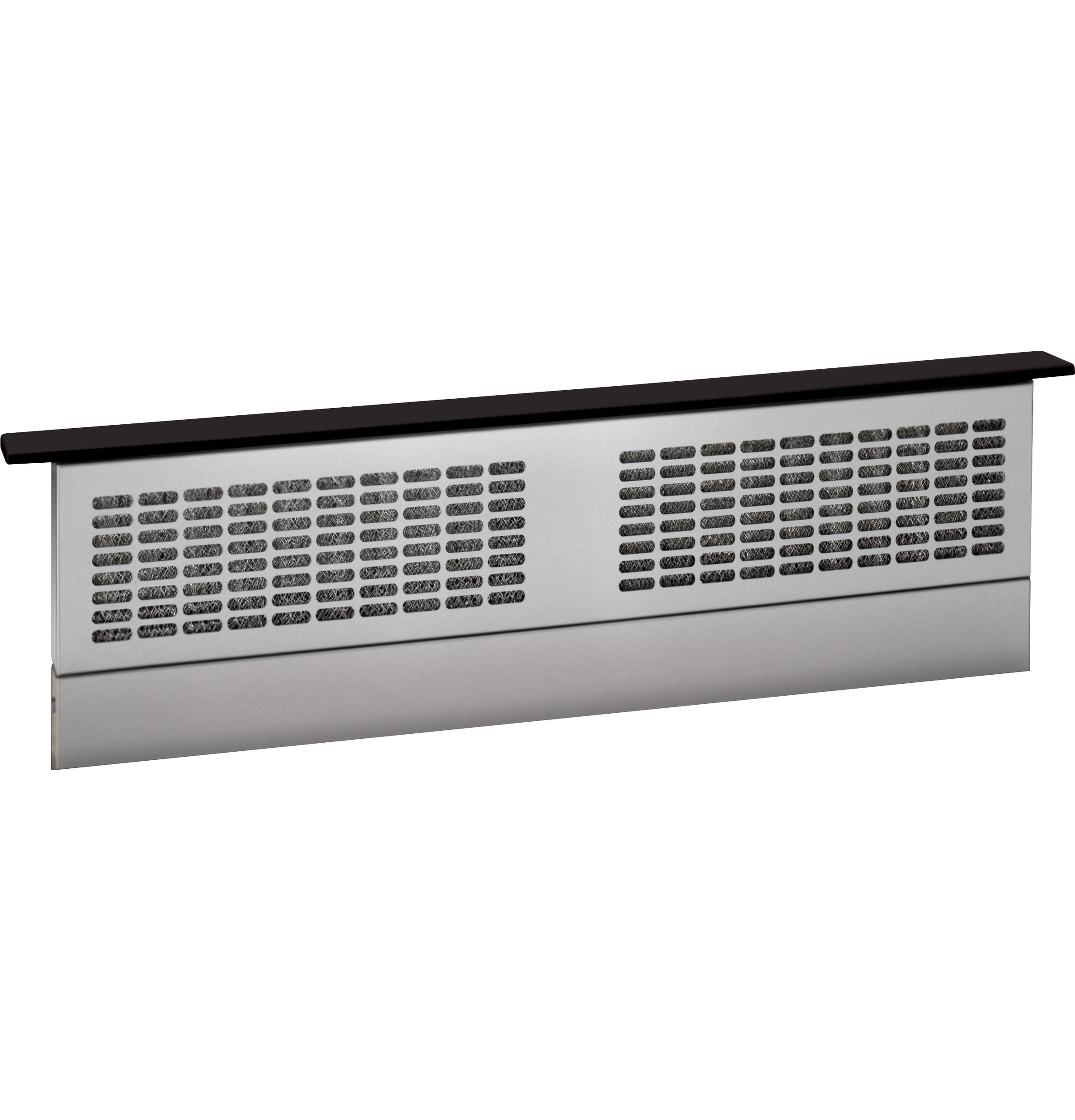

Universal 30" Telescopic Downdraft System - UVB30DKBB
Universal 30" Telescopic Downdraft System
Model: UVB30DKBB
Universal 30" Telescopic Downdraft System
Model: UVB30DKBB
Color : Black
Key Features
370-CFM venting system
Four-speed fan control
Telescopic hood
Separate remote raise/lower switch
Available from Southern Appliance, serving customers throughout Georgia.
Features
370-CFM venting system
Effectively remove smoke, grease, odor and moisture
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
Telescopic hood
Raises over cooktop surface and retracts when not in use
Separate remote raise/lower switch
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
FEATURES
| Fan Speed Control | 4-Speed |
| Max CFM | 370 |
| Optional Blower Mount Capabilities | Yes |
| Separate Remote Raise/Lower Switch | Yes |
| CFM/ Sones Rating | 370/9.0 (High Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Telescopic Downdraft |
| Control Type | Remote Control |
| Telescopic Assembly | Stainless Steel |
| Cover Plate | Black |
| Removable Grease Filter(s) | Yes |
| Exhaust Options | Downdraft |
| CFM/ Sones Rating | 140/2.5 (Working Speed) |
| Control Type | Electronic |
| Exhaust Options | 3-1/4" x 10" Rectangular Duct |
| Exhaust Options | Minimum 6" Round Duct Capability |
| Removable Grease Filter(s) | Mesh |

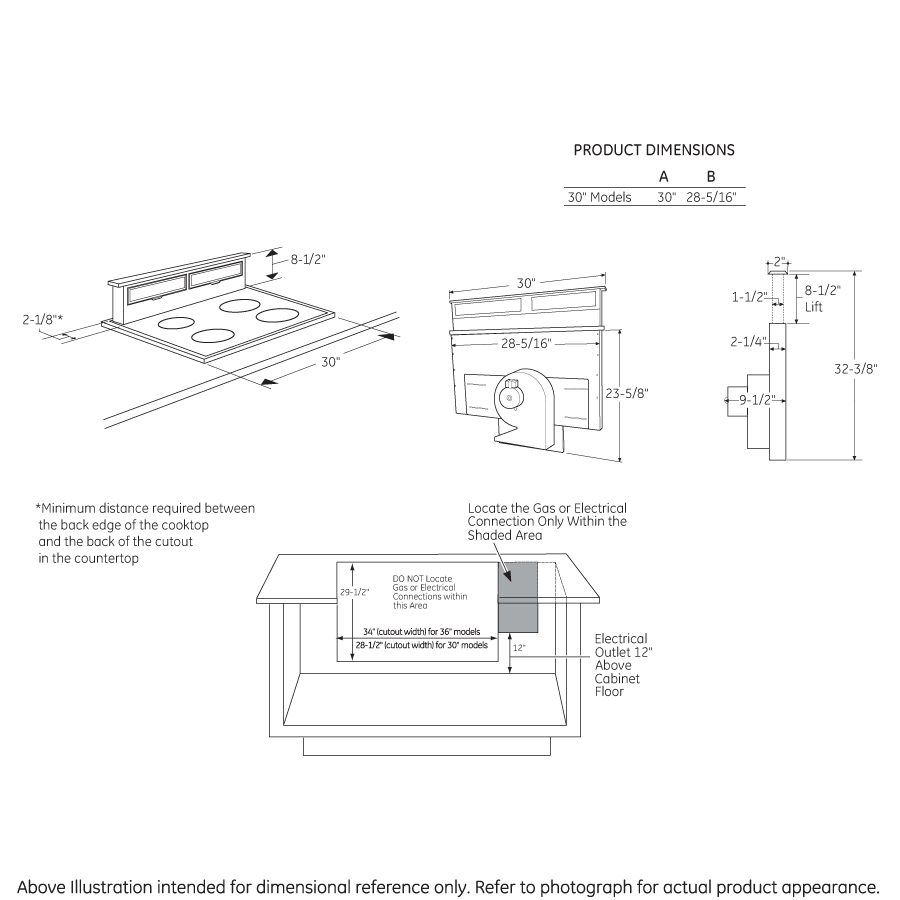

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Net Weight | 54 lb |
| Approximate Shipping Weight | 69 lb |
| Telescoping Height | 8.5 in |
| Overall Height | 27 in |
| Overall Width | 30 in |
| Overall Depth | 9 1/2 in |
ACCESSORIES
| Duct Extension | 100 ft. |
POWER / RATINGS
| Amp Rating at 120V | 4.0 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | Black |
Dimensions & Weight
| Width | 30 in. |
| Height | 27 in. |
| Length | 9.5 in. |
| Weight | 54 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 32 in. |
| Shipping Length | 14.5 in. |
| Shipping Weight | 94 lbs. |
| Total of Shipping Weight | 94 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.45 ft³ |
| Dimensional Weight | 55.36 lbs. |
| Total of Cubes | 4.45 ft³ |
| Total of Dimensional Weight | 55.36 lbs. |
