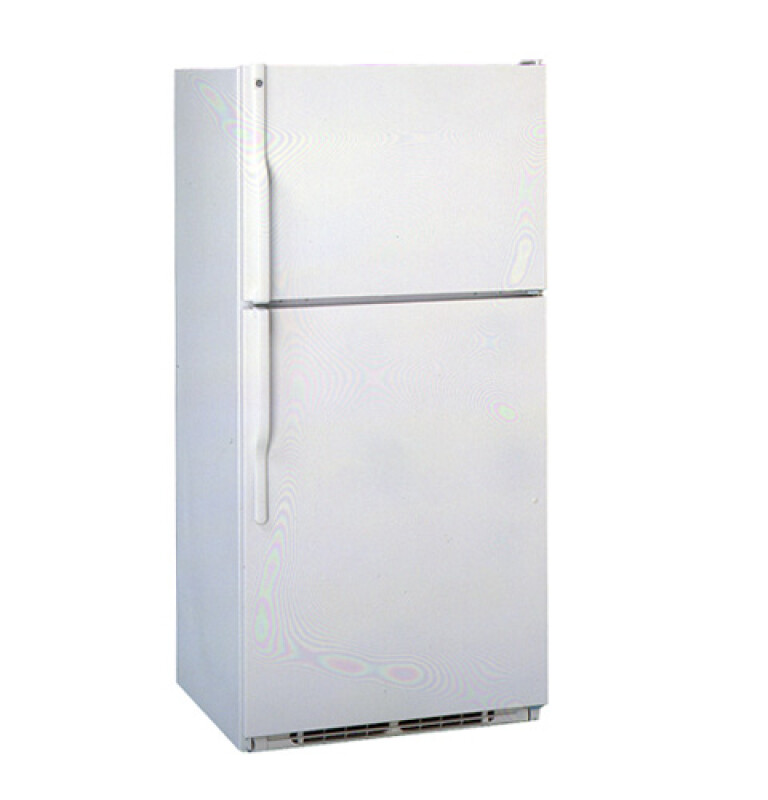

"J" Series 15.6 Cu. Ft. Top-Mount No-Frost Refrigerator - TBX16JABAA
"J" Series 15.6 Cu. Ft. Top-Mount No-Frost Refrigerator
Model: TBX16JABAA
"J" Series 15.6 Cu. Ft. Top-Mount No-Frost Refrigerator
Model: TBX16JABAA
Color : Other
Key Features
15.6 cu. ft. capacity (Fresh Food 11.69 cu. ft. / Freezer 3.86 cu. ft.)
2 sealed fruit / vegetable crispers
Snack pan
4 split, spill proof, adjustable glass fresh food cabinet shelves
Fixed fresh food gallon door storage
Dairy compartment
2 sealed deli pans with full-extension slides
Galvanized steel case and doors
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
15.6 cu. ft. capacity (Fresh Food 11.69 cu. ft. / Freezer 3.86 cu. ft.)
2 sealed fruit / vegetable crispers
Snack pan
4 split, spill proof, adjustable glass fresh food cabinet shelves
Fixed fresh food gallon door storage
Dairy compartment
2 sealed deli pans with full-extension slides
Galvanized steel case and doors
Deluxe door handles
2 Ice 'N Easy trays
Equipped for optional automatic icemaker
2 freezer door shelves
Wire everwhite freezer shelf
Utility bin
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 28 in |
| Approximate Shipping Weight | 192 lb |
| Depth Without Handle | 28 in |
| Height to Top of Case | 64 in |
| Back Air Clearances | 1 in |
| Top Air Clearances | 1 in |
| Net Weight | 175 lb |
| Width w/Door Open 90 Degrees Less Handle | 29.75 in |
| Depth with Door Open 90° | 54.5 in |
| Case Depth Without Door | 26 in |
| Overall Depth | 29 9/16 in |
| Overall Height | 64 1/2 in |
| Side Air Clearances | 3/4 in |
FEATURES
| Fresh Food Features | Dairy Compartment |
| Exterior Style | Free-Standing |
| Vegetable / Fruit Crisper(s) | 2 |
| Icemaker | Non-Icemaker |
| Door Liner | ABS |
| Snack Drawer | Yes |
| Fresh Food Cabinet Shelves | 4 Total |
| Interior Lighting | Yes |
| Freezer Cabinet Shelves (Wire) | 1 Total |
| Fresh Food Cabinet Shelf Features | Spill-Proof |
| Freezer Door Shelves | 2 Total |
| Fresh Food Door Features | Gallon Storage |
| Freezer Features | Ice Storage Bin |
| Fresh Food Door Shelves | 2 with Gallon Storage |
| Freezer Features | 2 Ice N' Easy Trays |
| Fresh Food Cabinet Shelf Features | 4 Split Adjustable |
| Fresh Food Cabinet Shelf Features | Glass |
APPEARANCE
| Textured Steel Case | Galvanized |
| Adjustable Rollers | Yes |
| Handle | Color-Matched Deluxe |
| Coil-Free Back | Yes |
| Door Swing | Reversible Hinges |
| Door Stops | Yes |
ECONOMICAL / QUIET
| Door Insulation | Foam |
| Cabinet Insulation | Foam |
| Cabinet Liner | ABS |
CAPACITY
| Fresh Food Capacity | 11.69 cu ft |
| Freezer Capacity | 3.86 cu ft |
| Shelf Area | 19.60 sq ft |
| Total Capacity (cubic feet) | 15.60 cu ft |
WARRANTY
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
Other
| Side Air Clearances | 0.75 in |
| Back Air Clearances | 1 in |
Dimensions & Weight
| Width | 28 in. |
| Height | 64.5 in. |
| Length | 29.56 in. |
| Weight | 175 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 33 in. |
| Shipping Height | 69.5 in. |
| Shipping Length | 34.56 in. |
| Shipping Weight | 215 lbs. |
| Total of Shipping Weight | 215 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 30.9 ft³ |
| Dimensional Weight | 384.1 lbs. |
| Total of Cubes | 30.9 ft³ |
| Total of Dimensional Weight | 384.1 lbs. |
