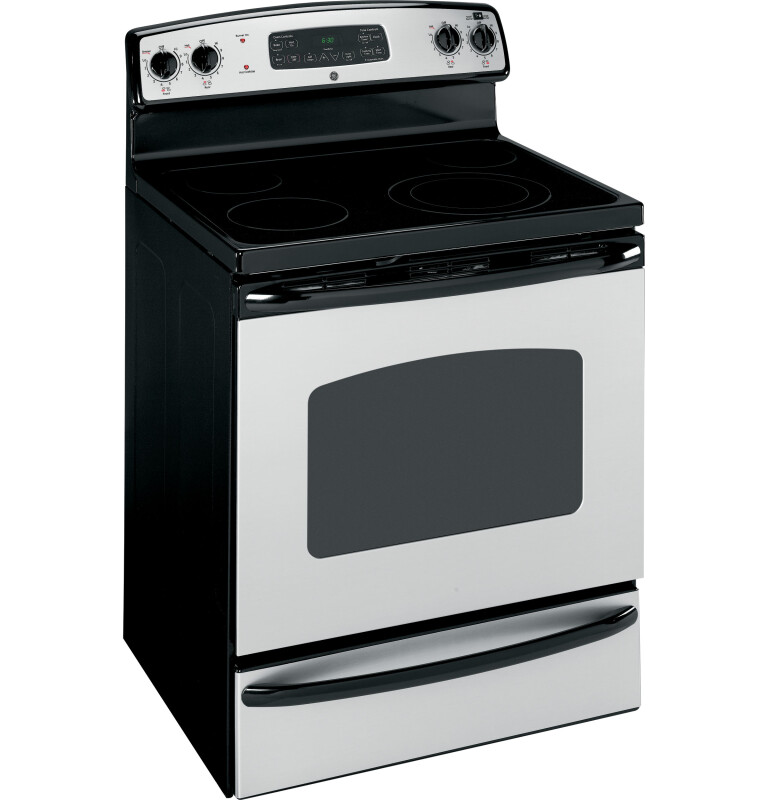

Name: 30" Free-Standing Electric Range
Brand: GE
SKU: JBP66MNBS
Availability: BackOrder

30" Free-Standing Electric Range

Model : #JBP66MNBS

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP66MNBS

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP66MNBS

Color : Other

Type : Electric

Electric Gas

Key Features

Self-clean oven
5.3 cu. ft. oven capacity
TrueTemp oven system
12"/9" dual element

Description

Enough room to cook an entire meal at once.Even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Documents

Installation Instructions for JBP66MNBS

View | Download

PDF, 624.01 KB

Quick Specs for JBP66MNBS

View | Download

PDF, 233.79 KB

Use and Care Manual for JBP66MNBS

View | Download

PDF, 2.40 MB

Available from Southern Appliance, serving customers throughout Georgia.

Features

Specifications

Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

TrueTemp oven system

Even heat distribution and maximum oven control

12"/9" dual element

Choose a 12" or 9" heating element

Certifications

California Prop 65

Specifications

APPEARANCE

Oven Door Features	Big Hearth Oven Window
Oven Door Features	Frameless Lift-off Oven Door
Handle Design	D-shaped
Color Appearance	CleanSteel™
Handle Color	Black with glass door

POWER / RATINGS

KW Rating at 240V	11.9
KW Rating at 208V	8.9
Amp Rating at 208V	40
Amp Rating at 240V	40

WARRANTY

Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance

FEATURES

Oven Interior	Interior Oven Light
8" Heating Element (s)	1 Ribbon (2,000 watt)
Oven Cooking Modes	Thermal Bake / Thermal Roast
Preheated Oven Light	Display
Control Location	Backsplash
Oven Rack Features	2 Oven Racks
9"/12" Dual Heating Element	1 Ribbon (3,000W)
Cooktop Surface	One-Piece Upswept
Cooktop Surface	Patterned Graphite on Black Glass Ceramic
Hot Surface Indicator Lights	1
Control Type	DigiTemp Temperature Display
Control Type	QuickSet IV
Control Type	Touchpads
Cleaning Time	Variable with Delay Clean Option
Oven Cleaning Type	Self-Clean
Oven Control Features	Audible Preheat Signal
Oven Control Features	Auto Oven Shut-Off with Override
Oven Control Features	Auto Self Clean
Oven Control Features	C° or F° Programmable
Oven Control Features	Delay Bake Option (Time Bake)
Oven Control Features	Delay Clean Option
Oven Control Features	Electronic Clock & Kitchen Timer
Oven Control Features	Mis-Wire Detection
Oven Control Features	Oven "ON" Light
Oven Control Features	Self-Clean Cool Down Time Display
Oven Control Features	Self-Cleaning Cycling Light
Oven Control Features	Variable Broil
Configuration	Range with Storage Drawer
Heating Element "ON" Indicator Light	Yes
Cooking Technology	Traditional
Oven Features	6-Pass Power Bake Element
Oven Features	Dual-Element Bake
Temperature Management System	True Temp System
Storage Drawer Features	Removable Full-Width
6" Heating Element(s)	2 Ribbon (1,500W)
Dishwasher Safe Knobs	Yes
Cooktop Burner Type	Radiant
Cooktop Burner Type	Smoothtop
Infinite Heat Controls	Yes
Oven Control Features	Sabbath Mode

WEIGHTS & DIMENSIONS

Oven Interior Dimensions (W x H x D) (in.)	24-1/8 x 19-1/2 x 19-3/8
Approximate Shipping Weight	175 lb
Cabinet Width	30 in
Net Weight	154 lb
Overall Depth	27 3/4 in
Overall Height	46 7/8 in
Overall Width	29 7/8 in
Depth Without Handle	25.375 in
Depth with Door Open	47.625 in

ACCESSORIES

Cooktop Cleaning	Cream
Cooktop Cleaning	Included
Cooktop Cleaning	Sponge

Dimensions & Weight

Width	29.88 in.
Height	46.88 in.
Length	27.75 in.
Weight	154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	51.88 in.
Shipping Length	32.75 in.
Shipping Weight	194 lbs.
Total of Shipping Weight	194 lbs.
Source	Calculation
