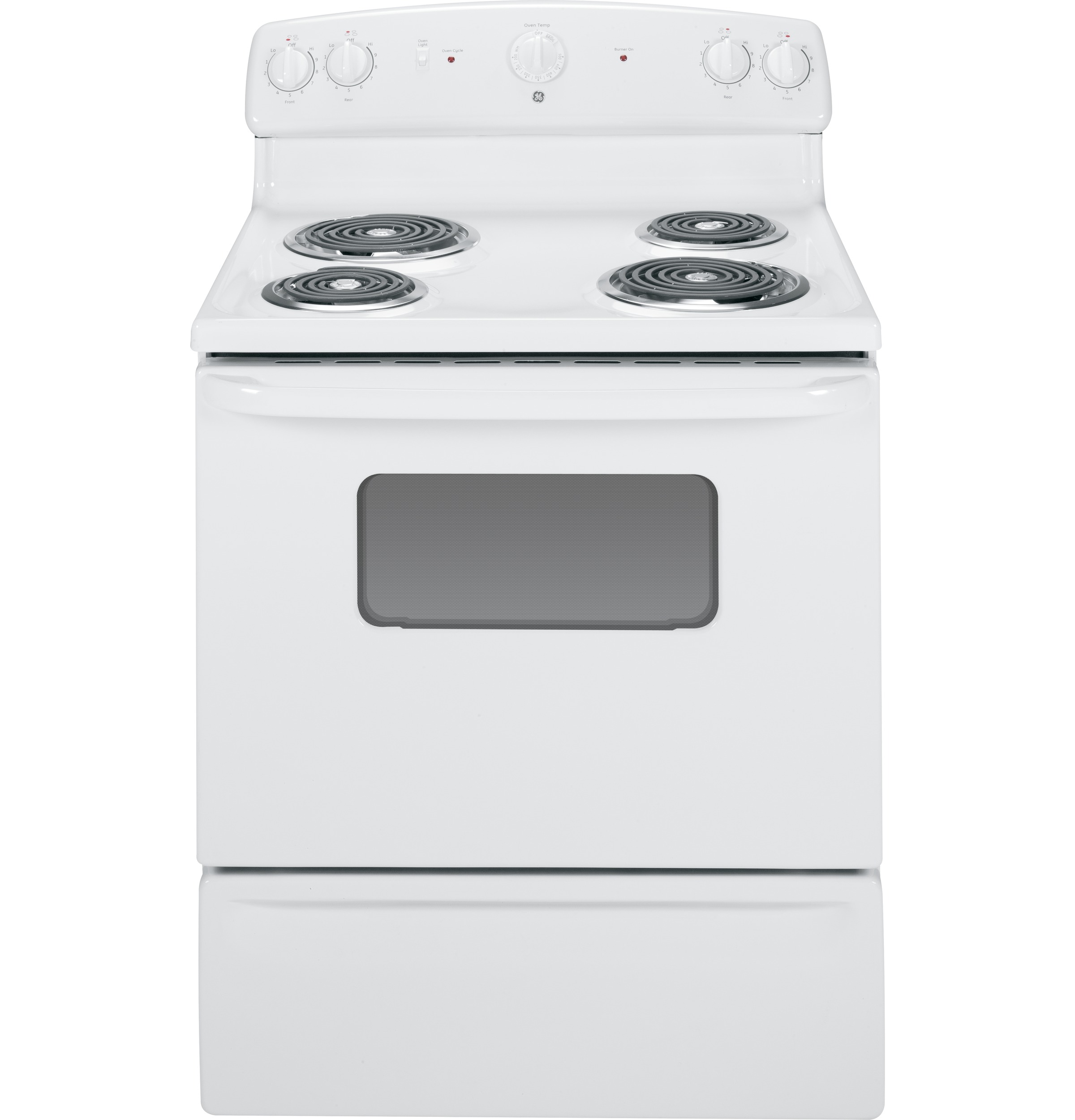

30" Free-Standing Electric Range - JBS07MWW
30" Free-Standing Electric Range
Model: JBS07MWW
Product Video
30" Free-Standing Electric Range
Model: JBS07MWW
Color : White
Key Features
5.0 cu. ft. oven capacity
Coil heating elements
Clear View window
Porcelain oven door
Dual-element Bake
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features

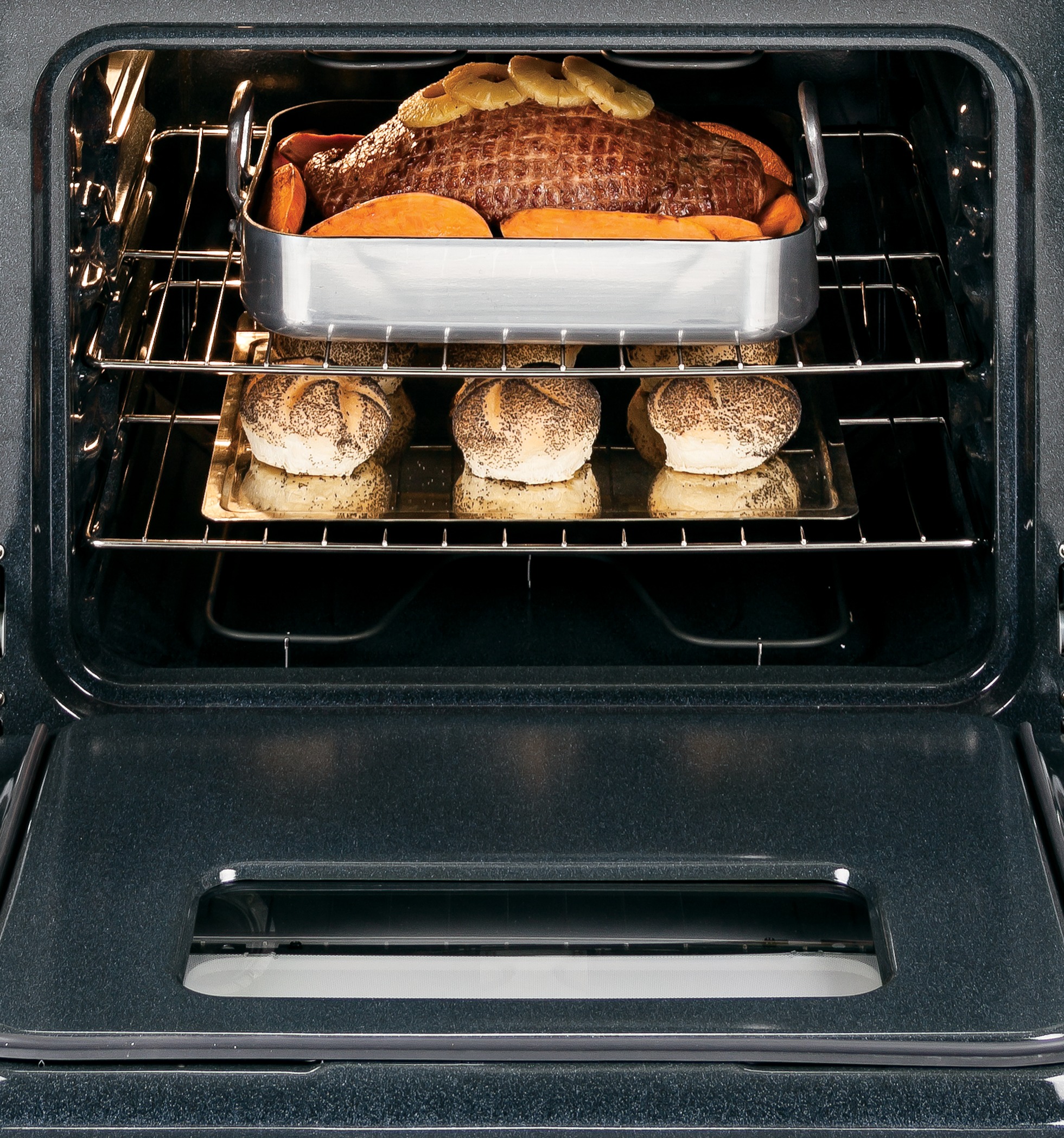

5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once

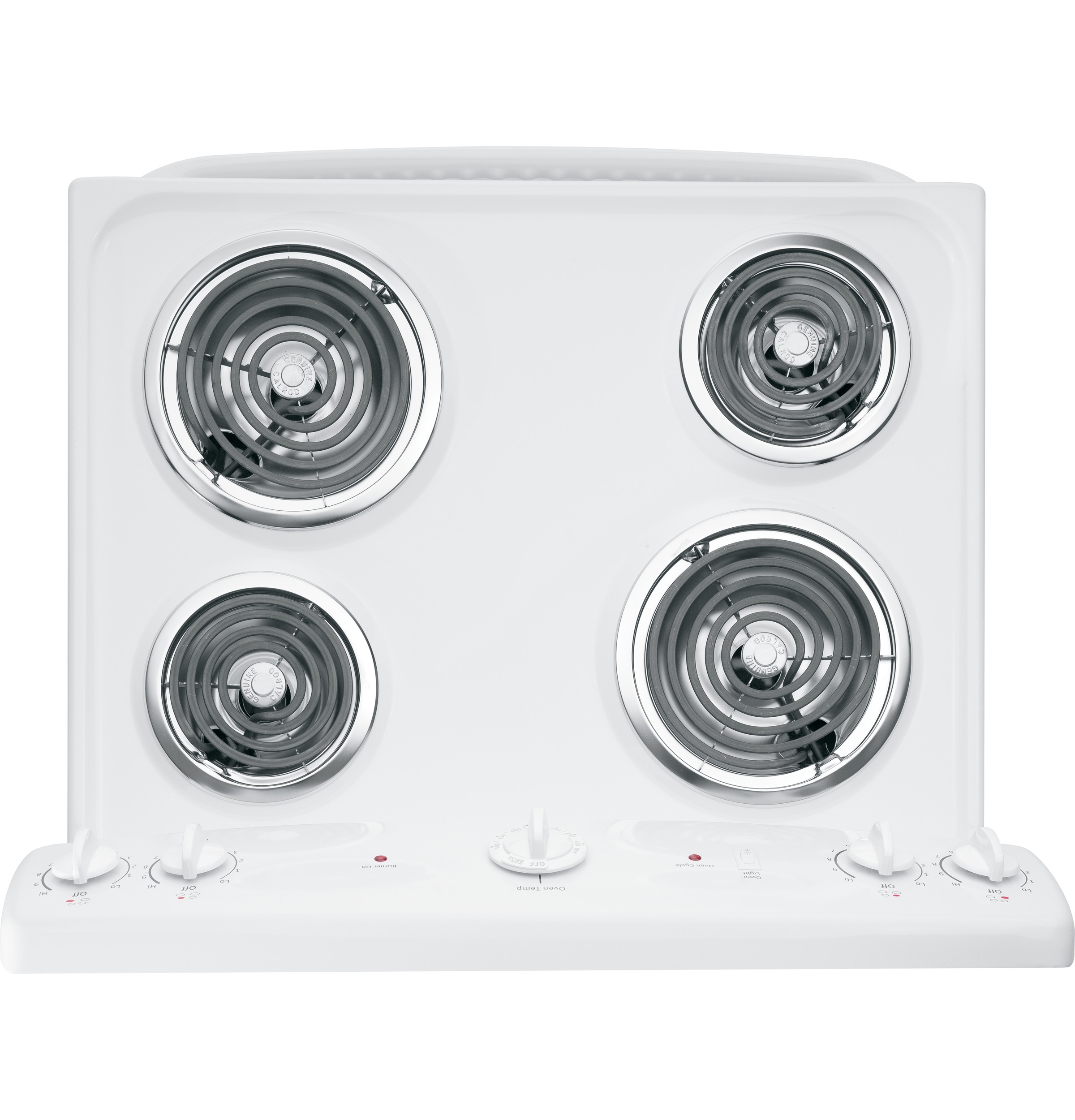

Coil heating elements
Provide even heat and easy cleanup
Clear View window
Clear window makes monitoring food simple
Porcelain oven door
Scratch-resistant coating is easy to maintain
Dual-element Bake
Upper and lower elements produce even heat and great results
Certifications
California Prop 65
Specifications
FEATURES
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2600W 5-turn |
| Oven Features | Dual-Element Bake |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Chrome |

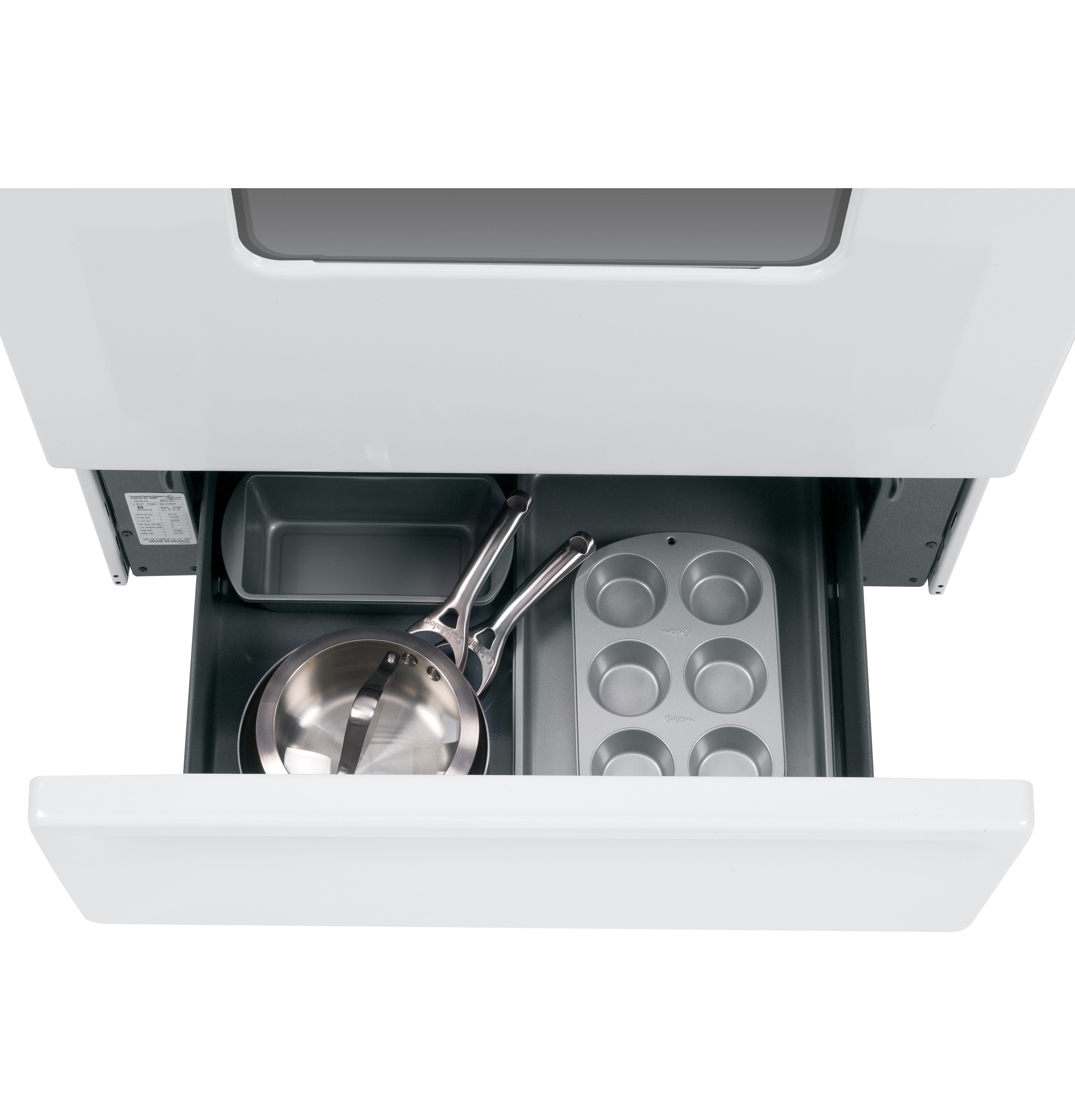

| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Oven Control Features | Variable Broil |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W 4-turn |

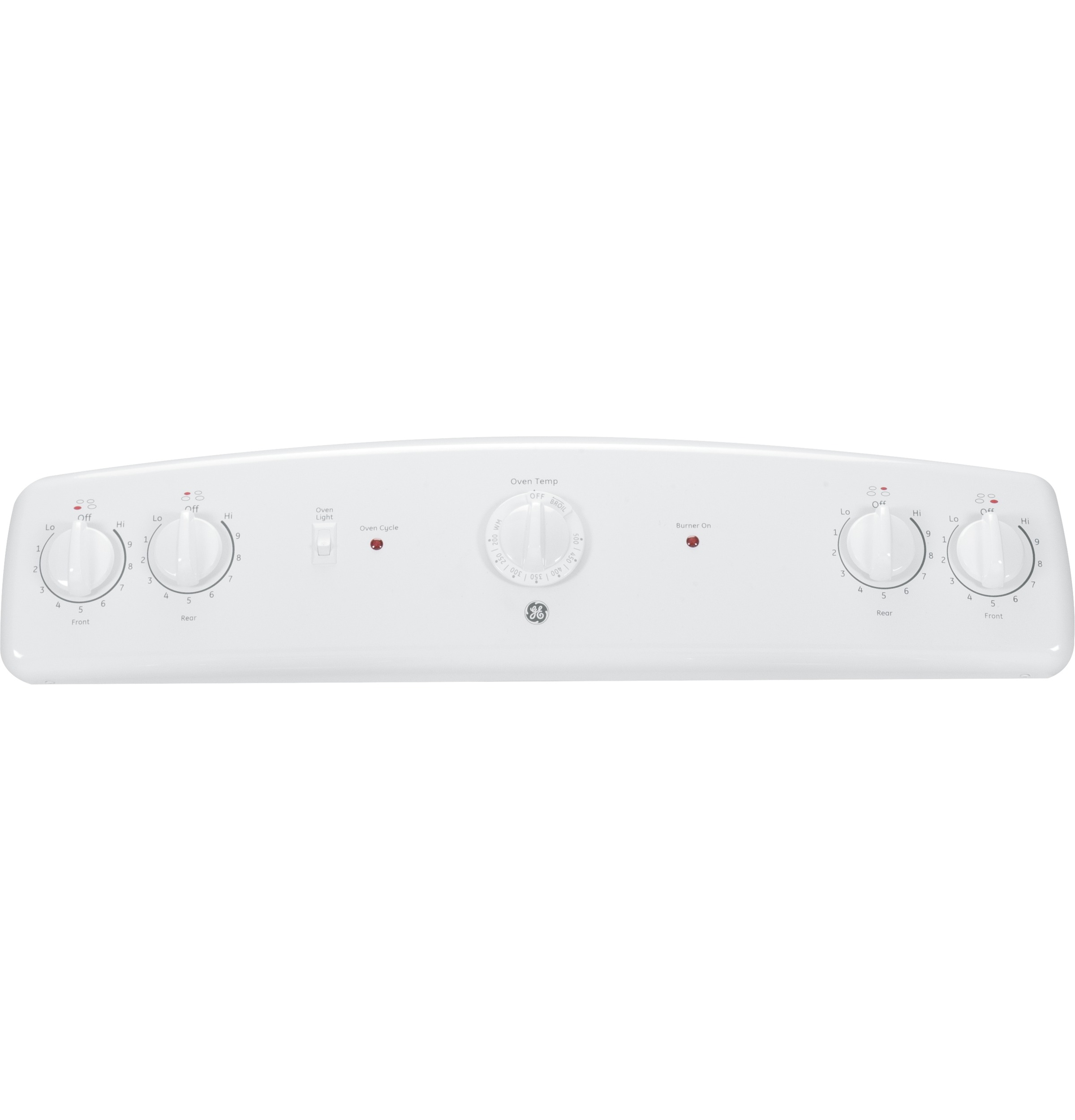

| Infinite Heat Controls | Yes |
| Oven Cleaning Type | Standard Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 8" 2600W 5-turn |
| Element - Right Rear | 6" 1500W 4-turn |
| Cooktop Surface | Porcelain-Enamel |
| Cooking Technology | Traditional |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Oven "ON" Light |

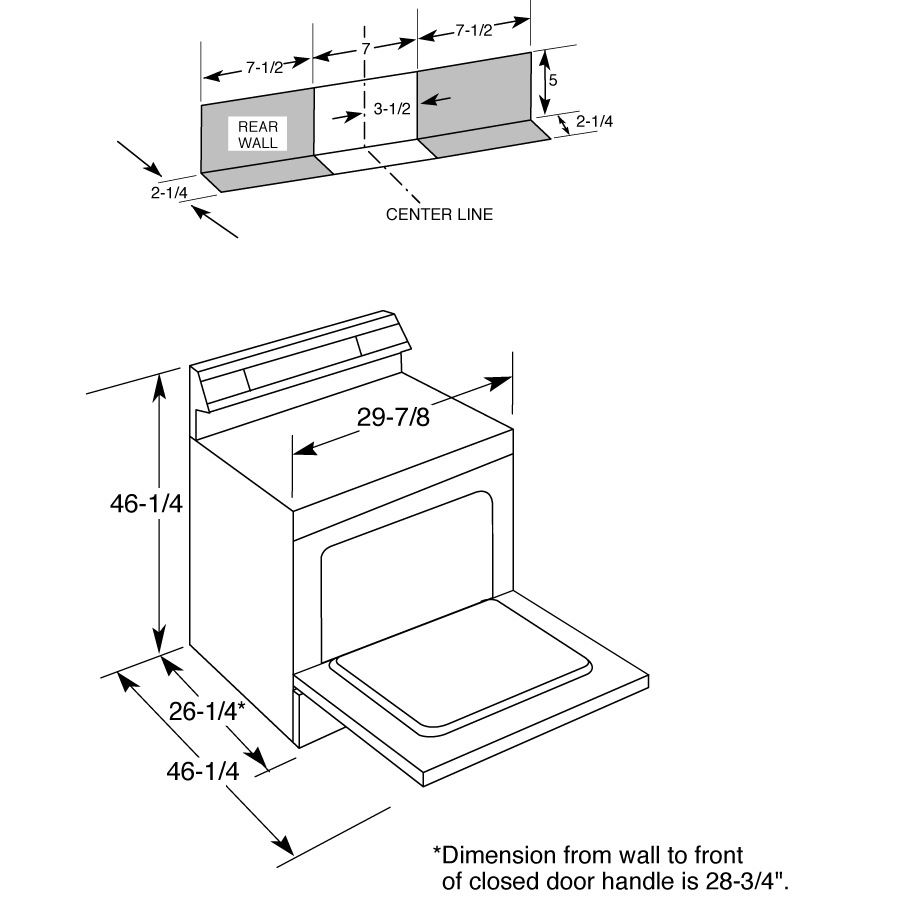

WEIGHTS & DIMENSIONS
| Net Weight | 130 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 150 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 12.6 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 9.5 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | White Porcelain-Enamel Frameless Lift-off Oven Door |
| Textured Steel Side Panels | Yes |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | White on White |
| Oven Door Features | Clear View Oven Window |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 130 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.27 ft³ |
| Dimensional Weight | 264.46 lbs. |
| Total of Cubes | 21.27 ft³ |
| Total of Dimensional Weight | 264.46 lbs. |
