30" Free-Standing Electric Range - JBS10DFWW
30" Free-Standing Electric Range
Model: JBS10DFWW
Product Video
360 View

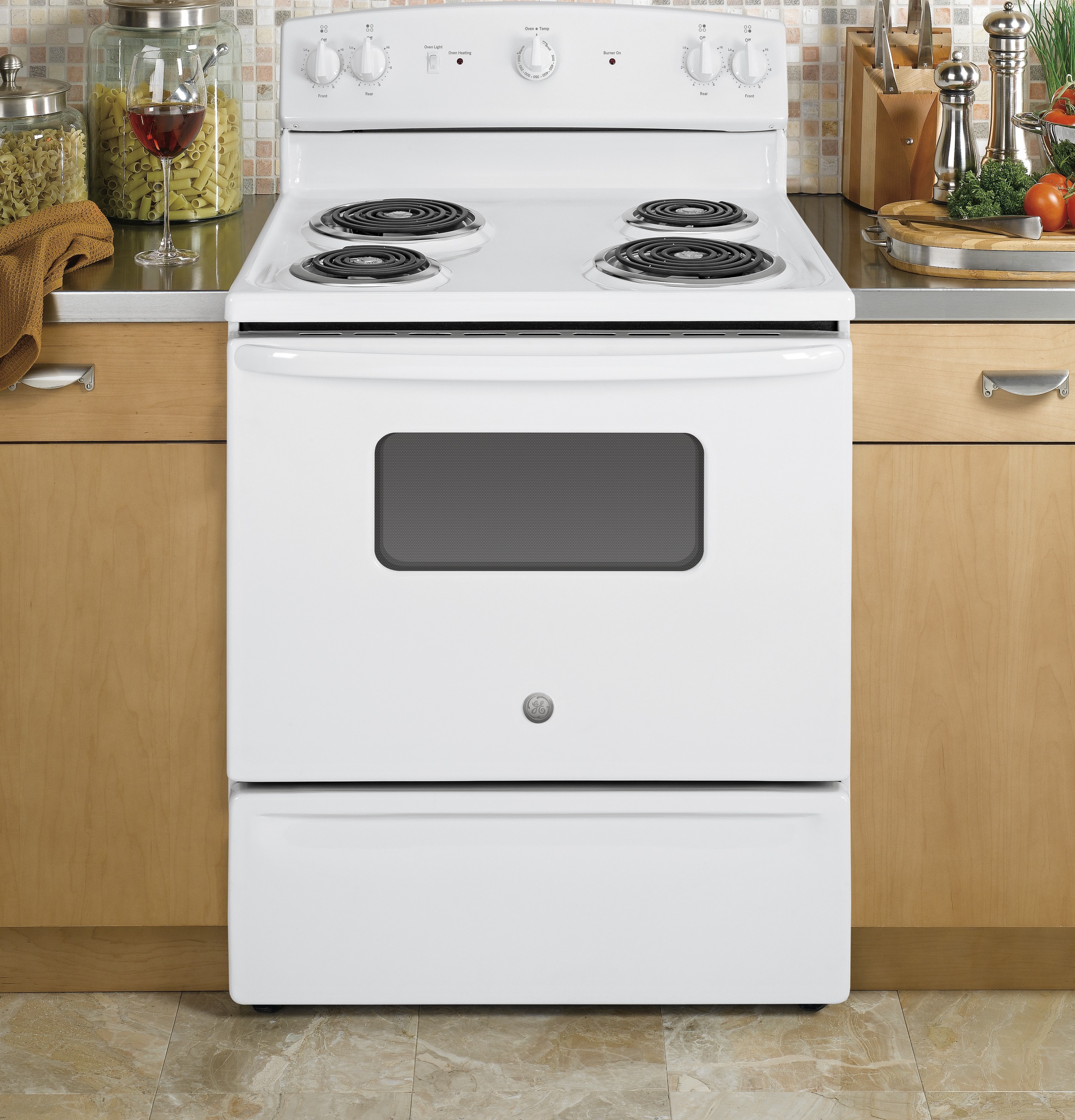

30" Free-Standing Electric Range
Model: JBS10DFWW
Color : White
Key Features
5.0 cu. ft. oven capacity
Standard clean oven
Coil heating elements
Removable full-width storage drawer
Dual-element Bake
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
5.0 cu. ft. oven capacity
Cook more dishes at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

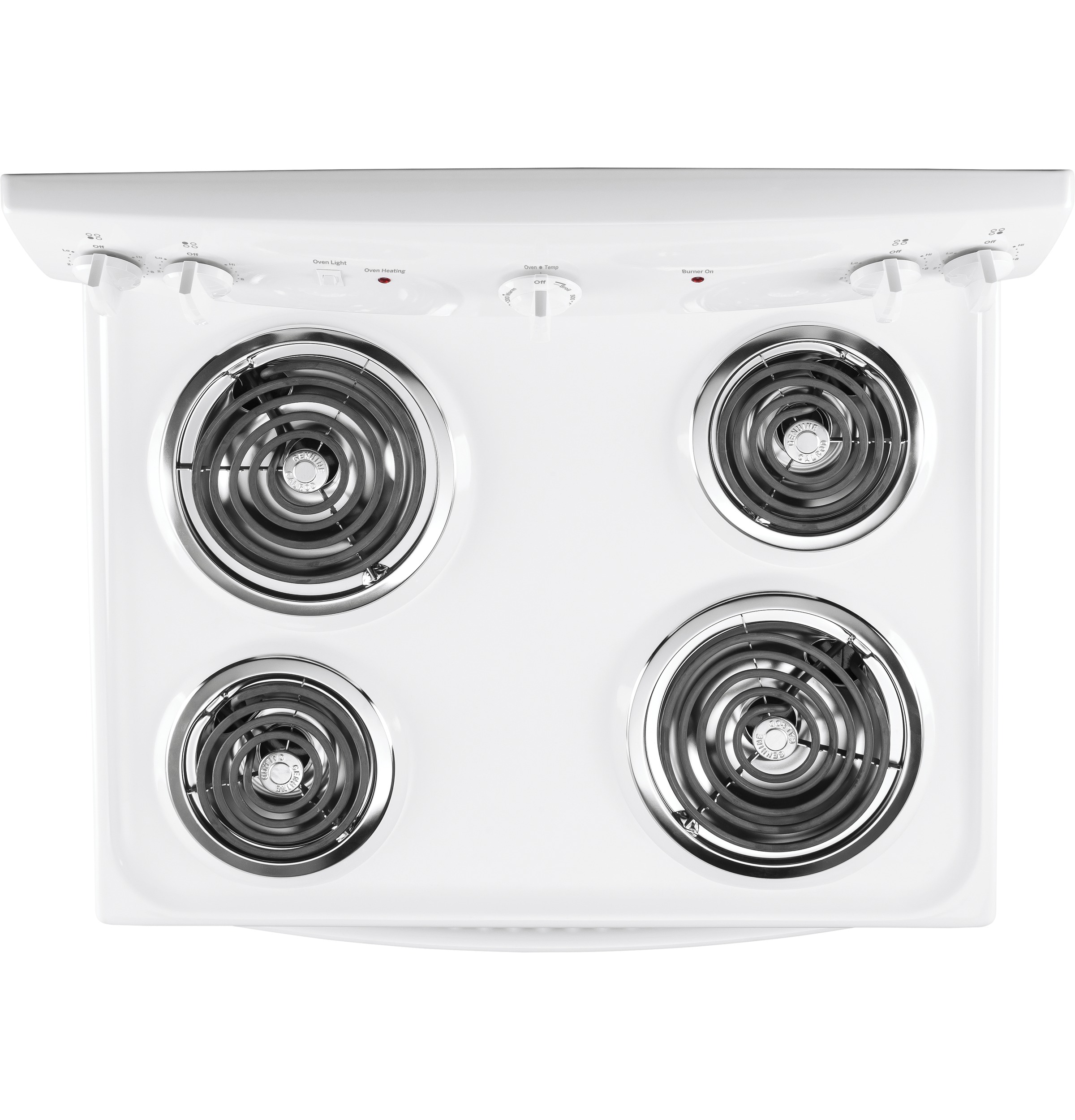

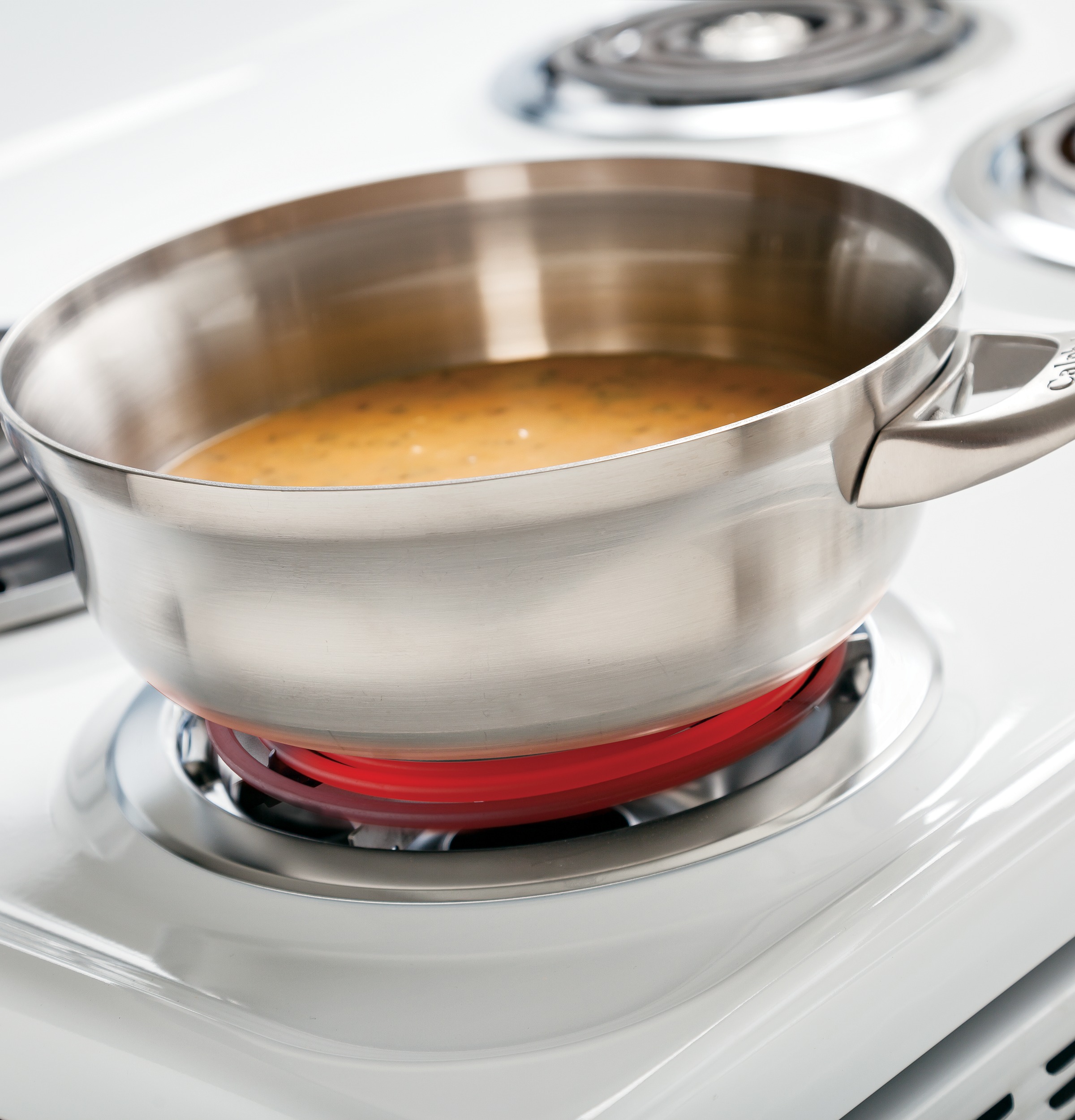

Coil heating elements
Provide even heat and easy cleanup

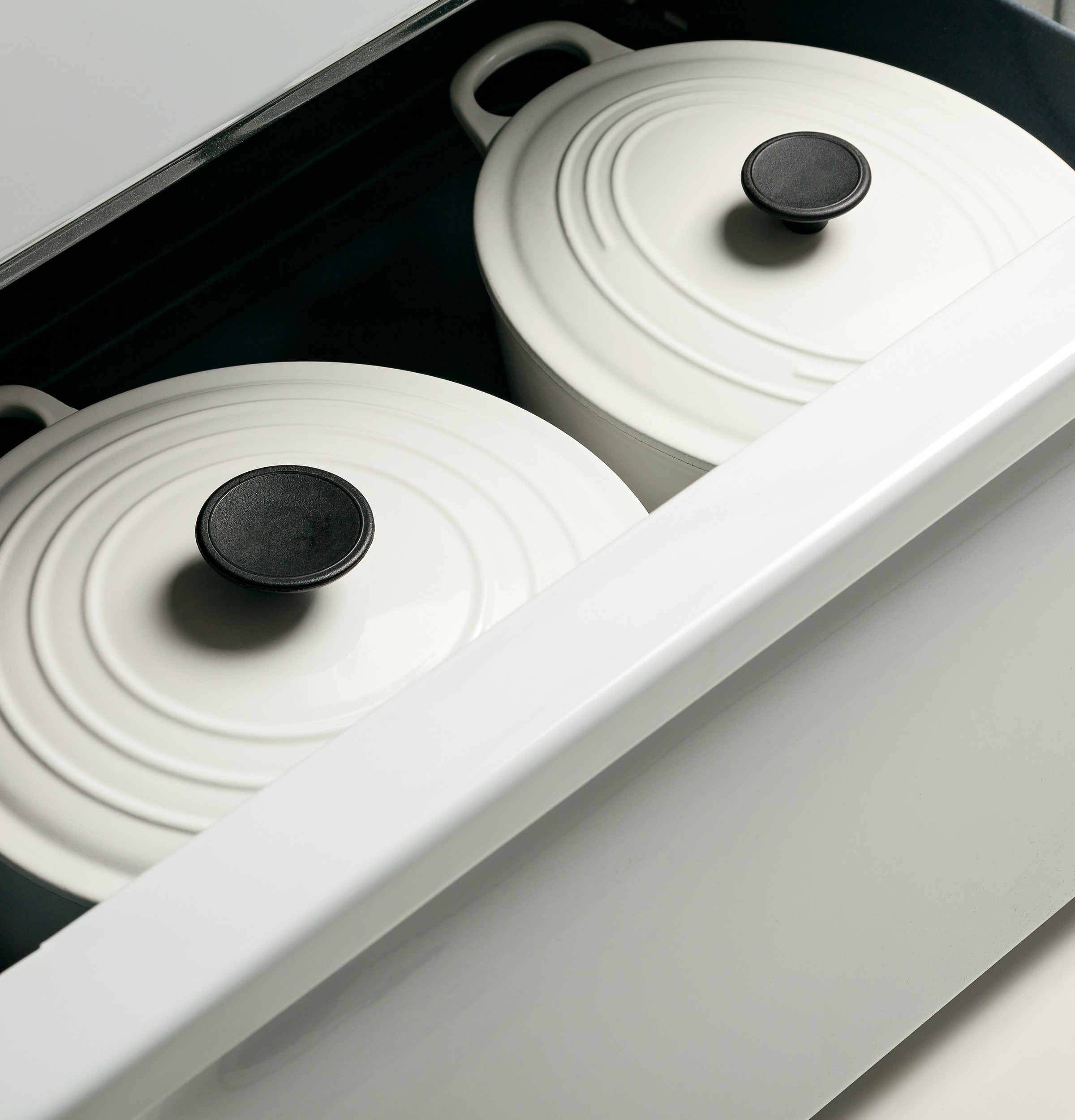

Removable full-width storage drawer
Store cookware or kitchen accessories

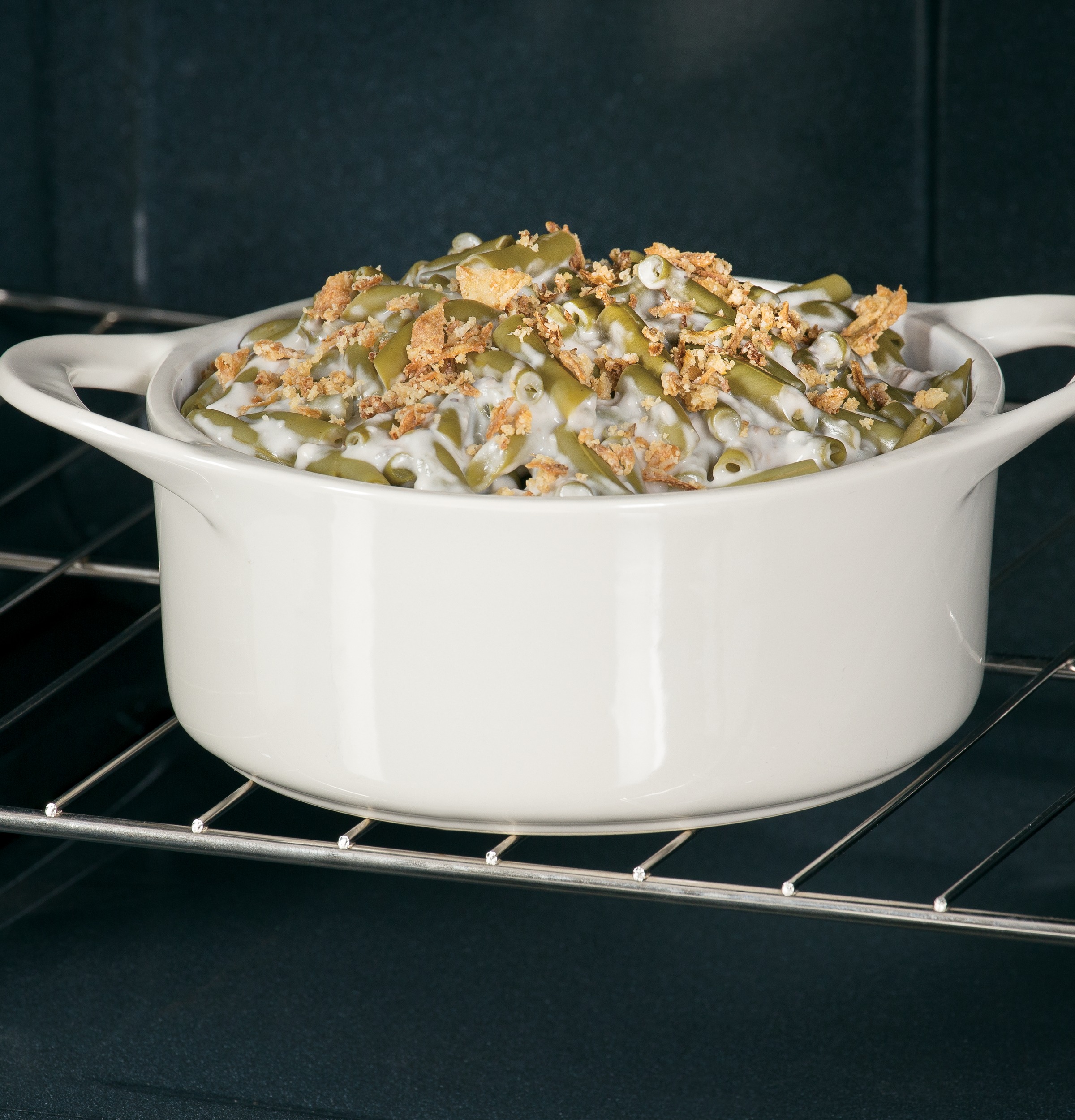

Dual-element Bake
Upper and lower elements produce even heat and great results
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

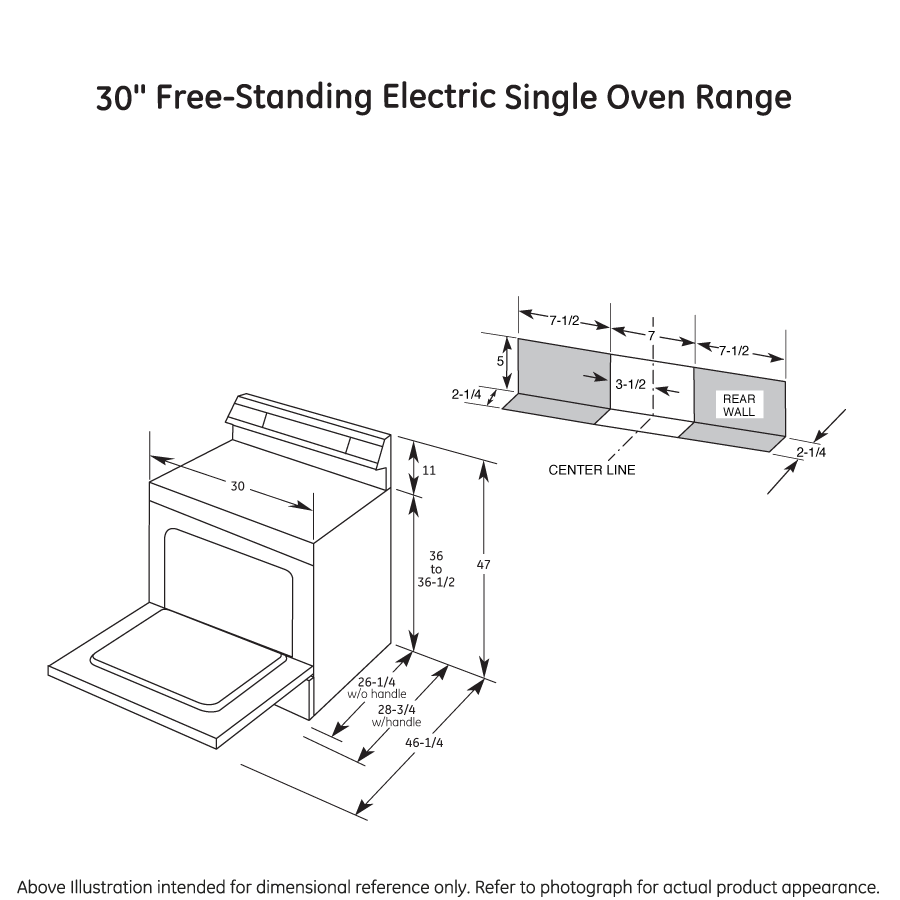

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47 in |
| Net Weight | 130 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 150 lb |
| Overall Depth | 28 3/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | 4-Pass Broil Element |
| Element - Right Front | 8" 5-turn 2600W |
| Removable One-Piece Drip Bowls | Chrome |
| Cooking System | Traditional |
| Lift-Up Cooktop With Support Rods | Yes |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | 1 Incandescent |
| Oven Control Features | Oven "ON" Light |
| Cooktop Burner Type | Coil |

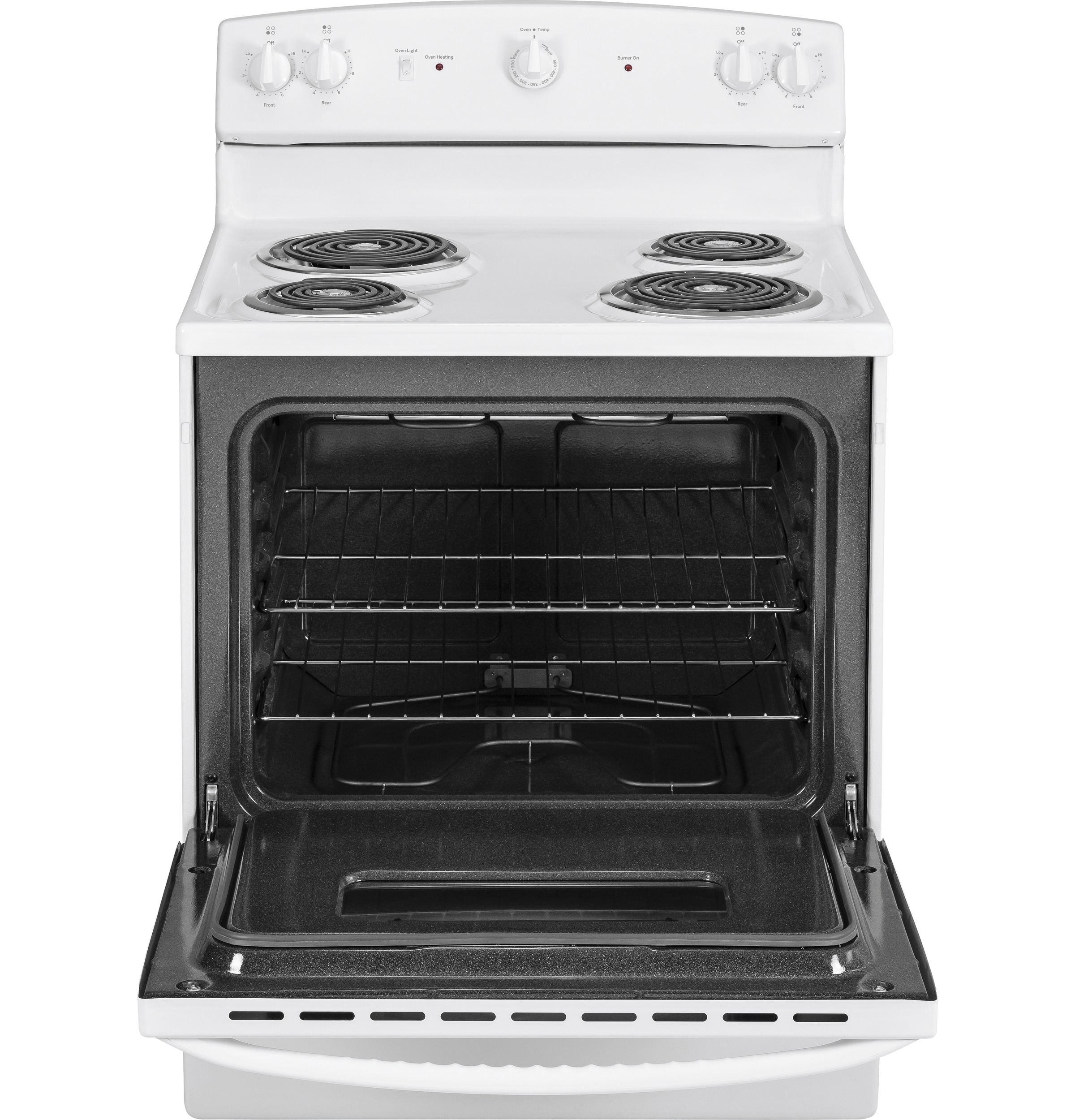

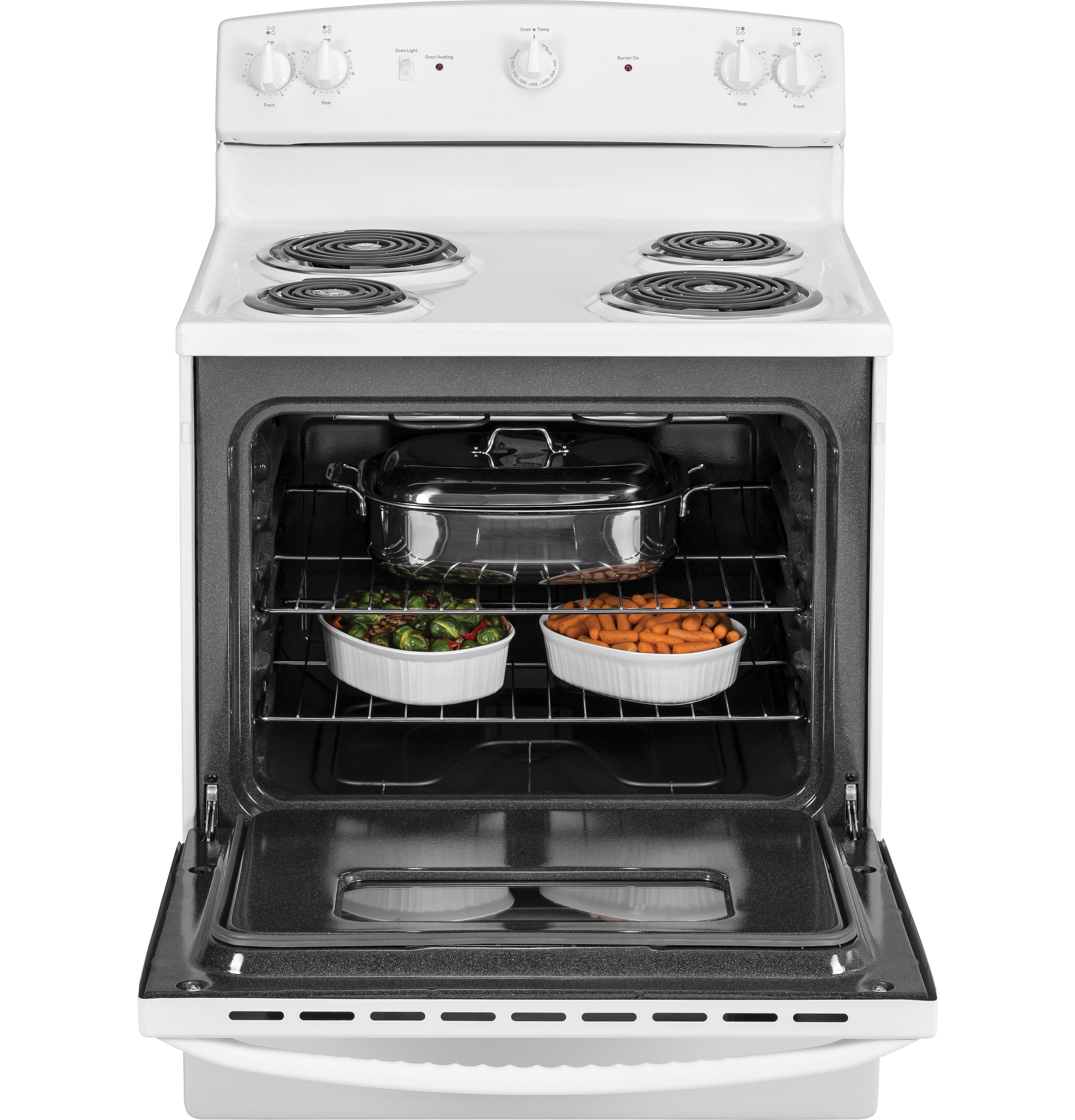

| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 4-turn 1500W |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 8" 5-turn 2600W |
| Element - Right Rear | 6" 4-turn 1500W |
| Cooktop Surface | Porcelain-Enamel |

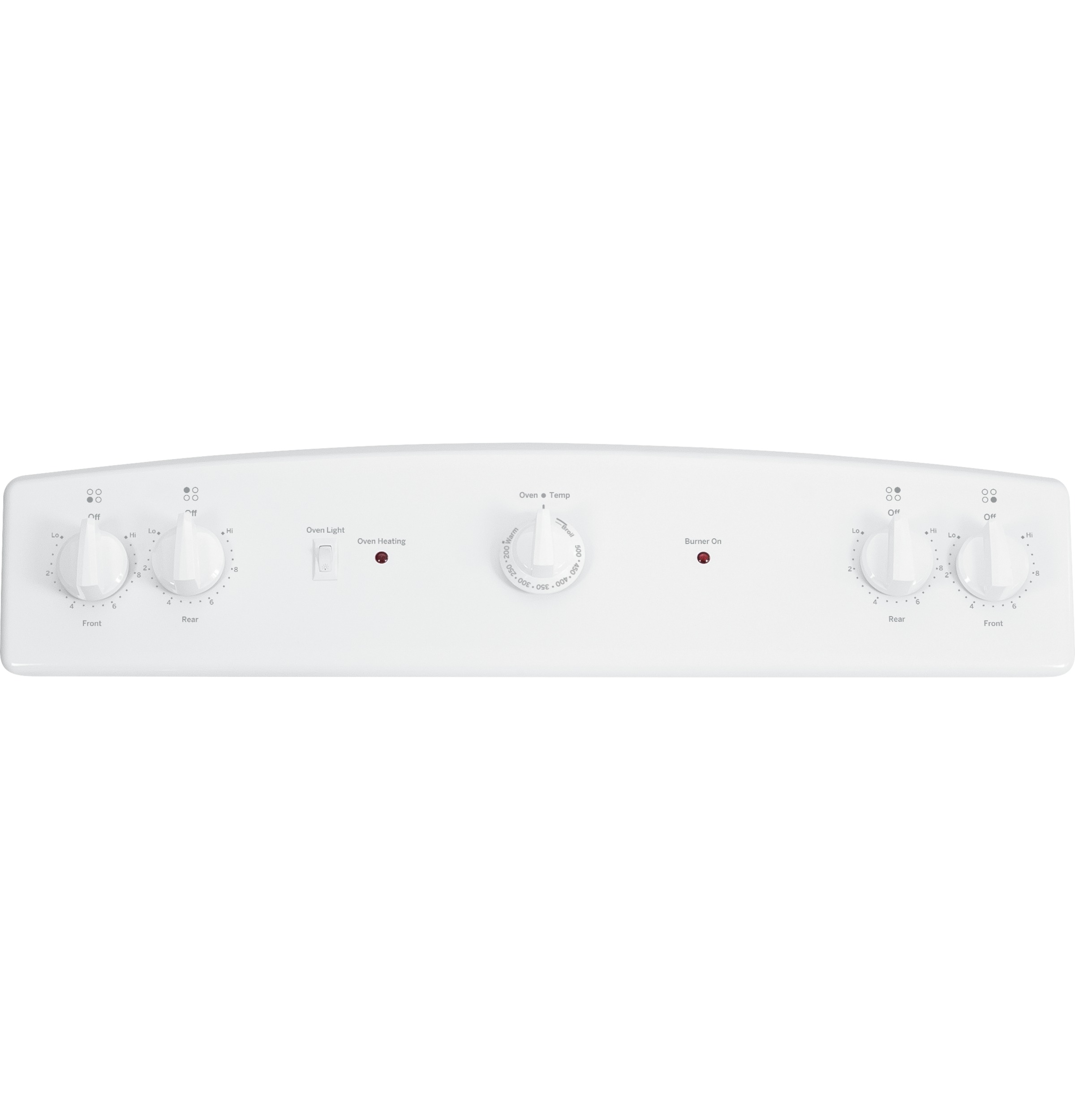

| Control Location | Backsplash |
| Drawer Type | Storage |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Cooking Technology | Traditional |
| Cooktop Surface | One-Piece Upswept |
| Oven Features | 4-Pass Bake Element |
POWER / RATINGS
| KW Rating at 240V | 12.6 |
| Bake Wattage | 2585W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| KW Rating at 208V | 9.9 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Small Window |
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Control Knobs | Color-Matched |
| Color Appearance | White |
| Handle | Color-Matched |
| Oven Door Features | Metal Door |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 28.75 in. |
| Weight | 130 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.46 ft³ |
| Dimensional Weight | 291.64 lbs. |
| Total of Cubes | 23.46 ft³ |
| Total of Dimensional Weight | 291.64 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
