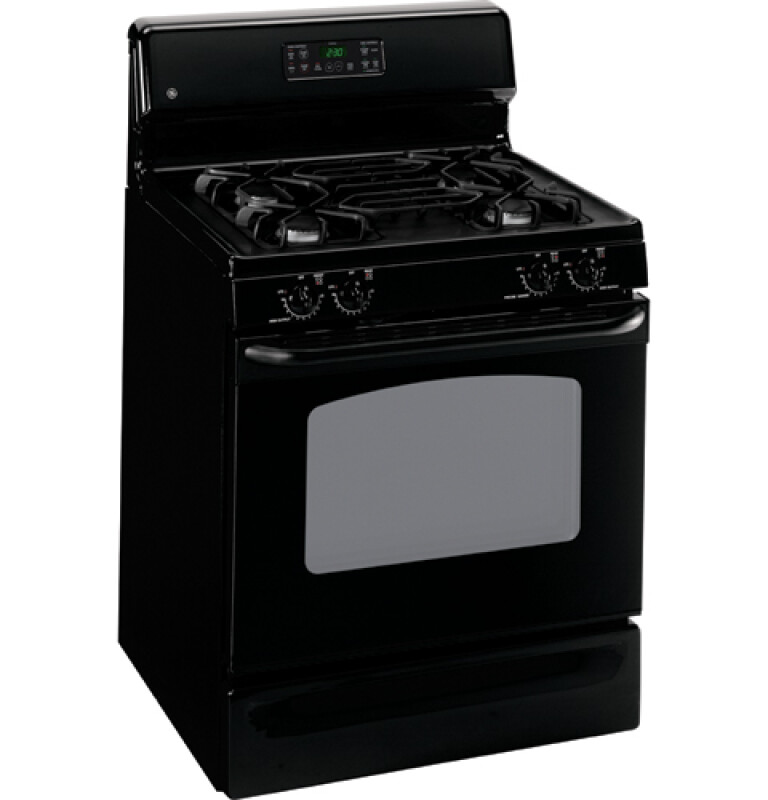

30" Free-Standing Gas Range - JGBP34BELBB
30" Free-Standing Gas Range
Model: JGBP34BELBB
30" Free-Standing Gas Range
Model: JGBP34BELBB
Color : Black
Key Features
Self-clean oven
Extra-large oven capacity
TrueTemp system
QuickSet IV oven controls
13,000 BTU power burner
Precise Simmer burner
Continuous grates
Description
Available from Southern Appliance, serving customers throughout Georgia.
Features
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
TrueTemp system
Delivers even heat distribution and maximum oven control
QuickSet IV oven controls
Feature an easy to use design which allows you to set precise cooking temperatures
13,000 BTU power burner
Delivers a wide range of heat output ideal for most cooking requirements
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
Continuous grates
Provide a flat, sturdy surface allowing easy movement of pans between burners
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Rack Features | Embossed Rack Positions |
| Cooktop Burner Type | Sealed |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 13,000/1,000 BTU |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Cooktop Burner Grate Material | Medium Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet IV |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| One-Piece Drip Pans | Black Porcelain-Enameled |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Control Type | Digital Temperature Display |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | High-Gloss Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Designer-Style |
| Color Appearance | Black on Black |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.80 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 12.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
